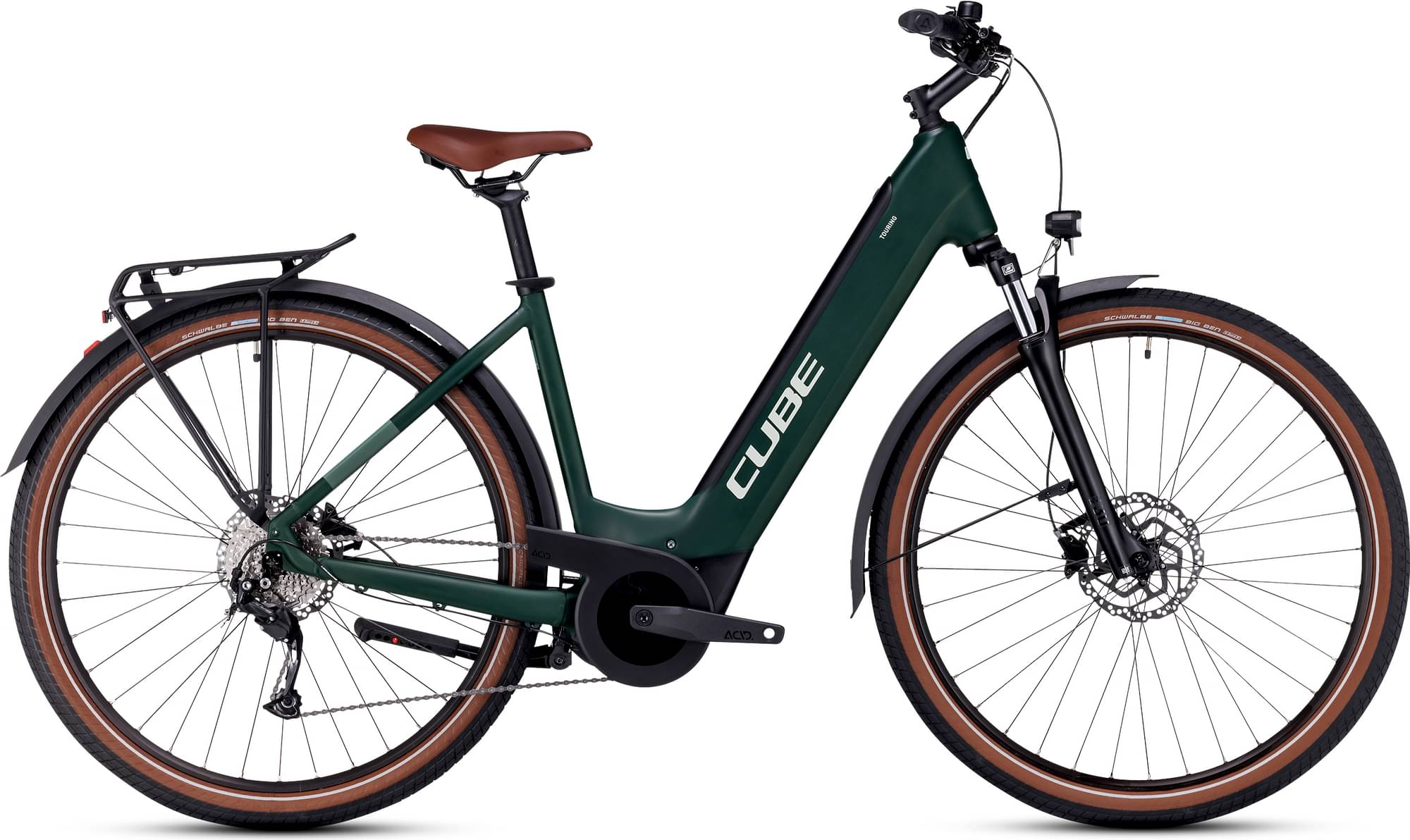

CUBE TOURING HYBRID, ONE 500 2024
2024 E-bike
Estimate price |
3,082$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -

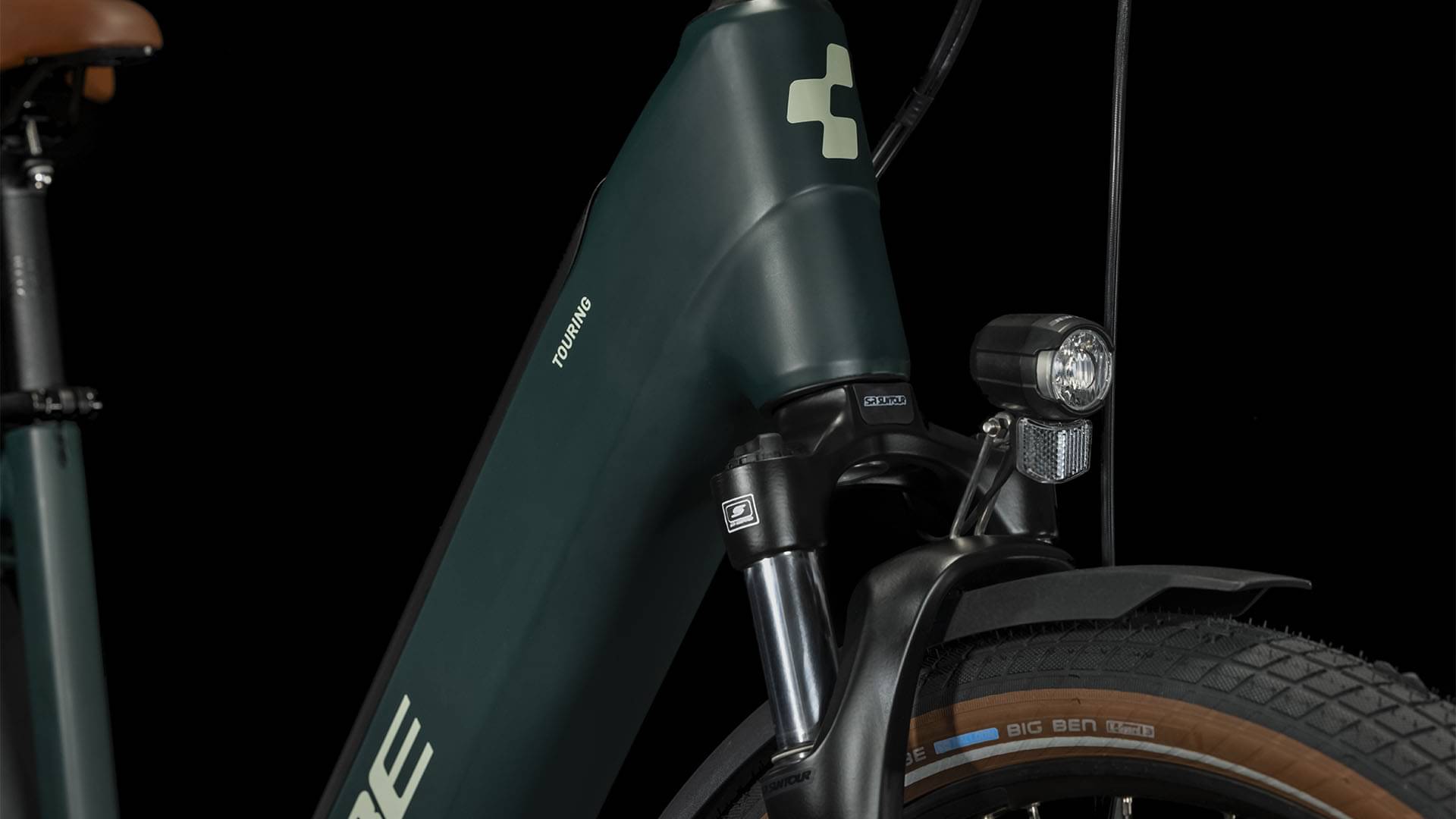

Fork Suntour NVX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

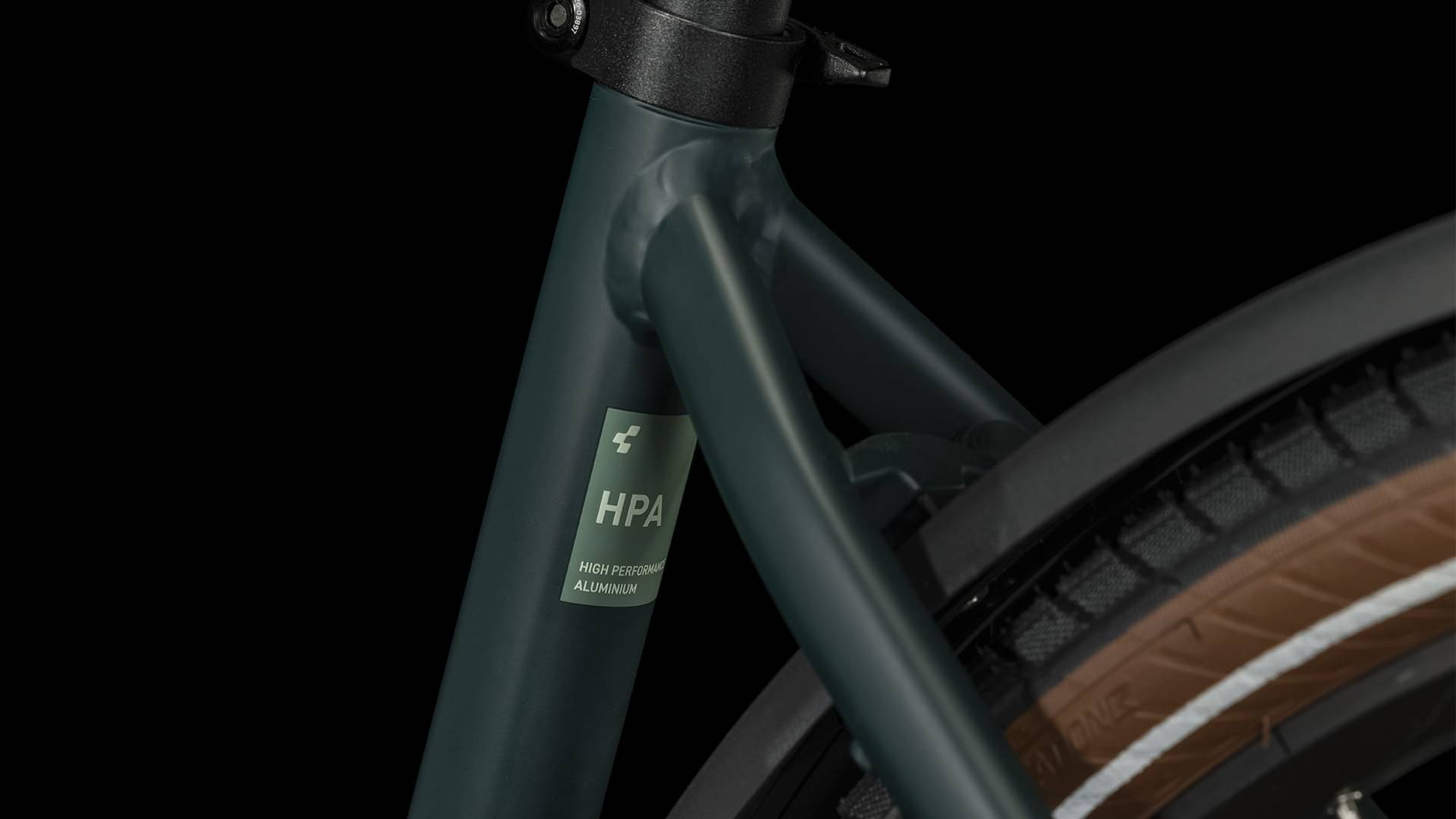

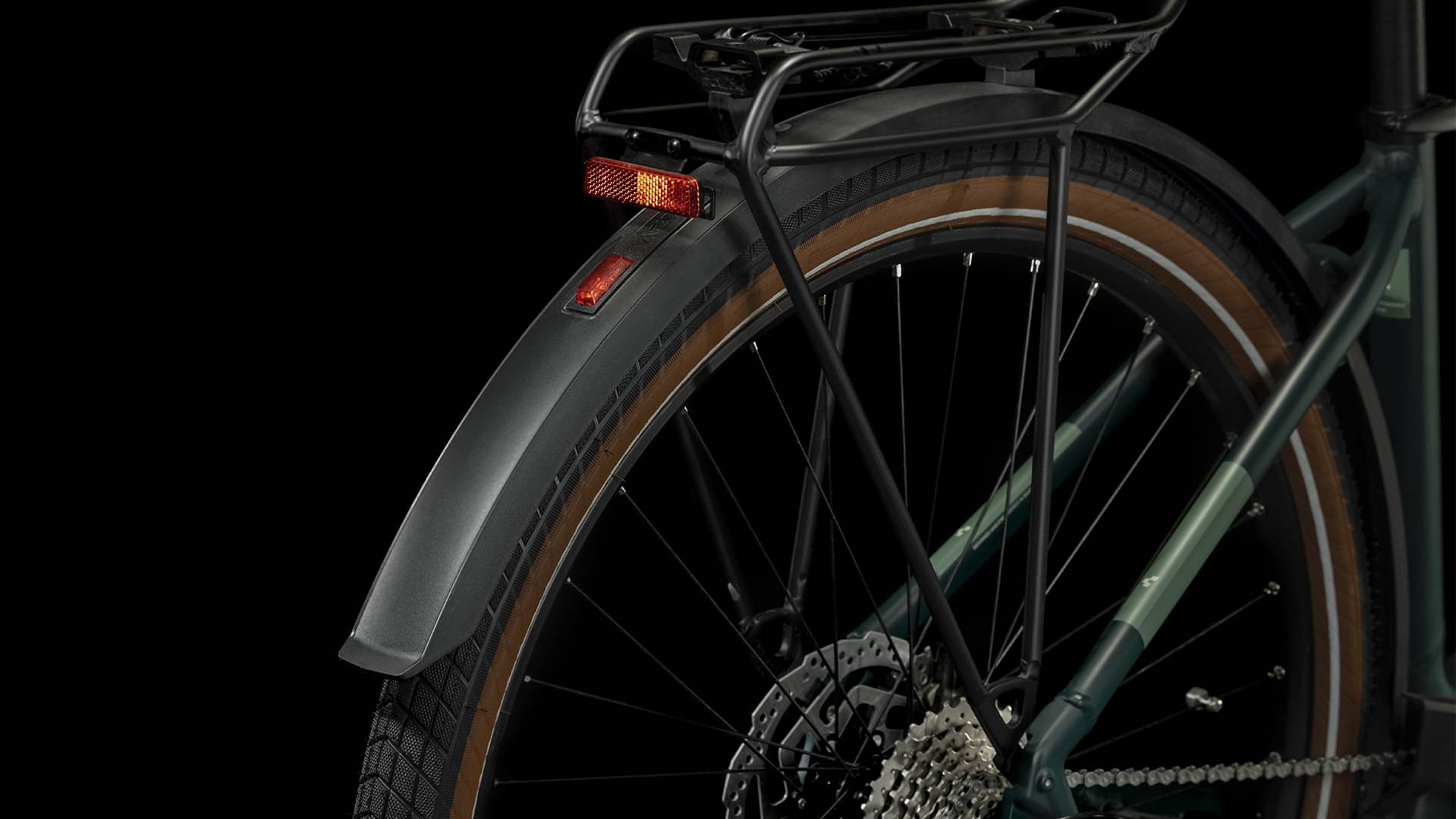

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube, Semi-Integrated Carrier
Suspension Fork
SR Suntour NVX30 Coil, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shift Levers
Shimano SL-M3100-R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
ACID E-Crank, 40T, 170mm
Chain
KMC X9
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc
Tires
Schwalbe Big Ben, Active, K-Guard, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Headset
ACROS AZF-1031, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle

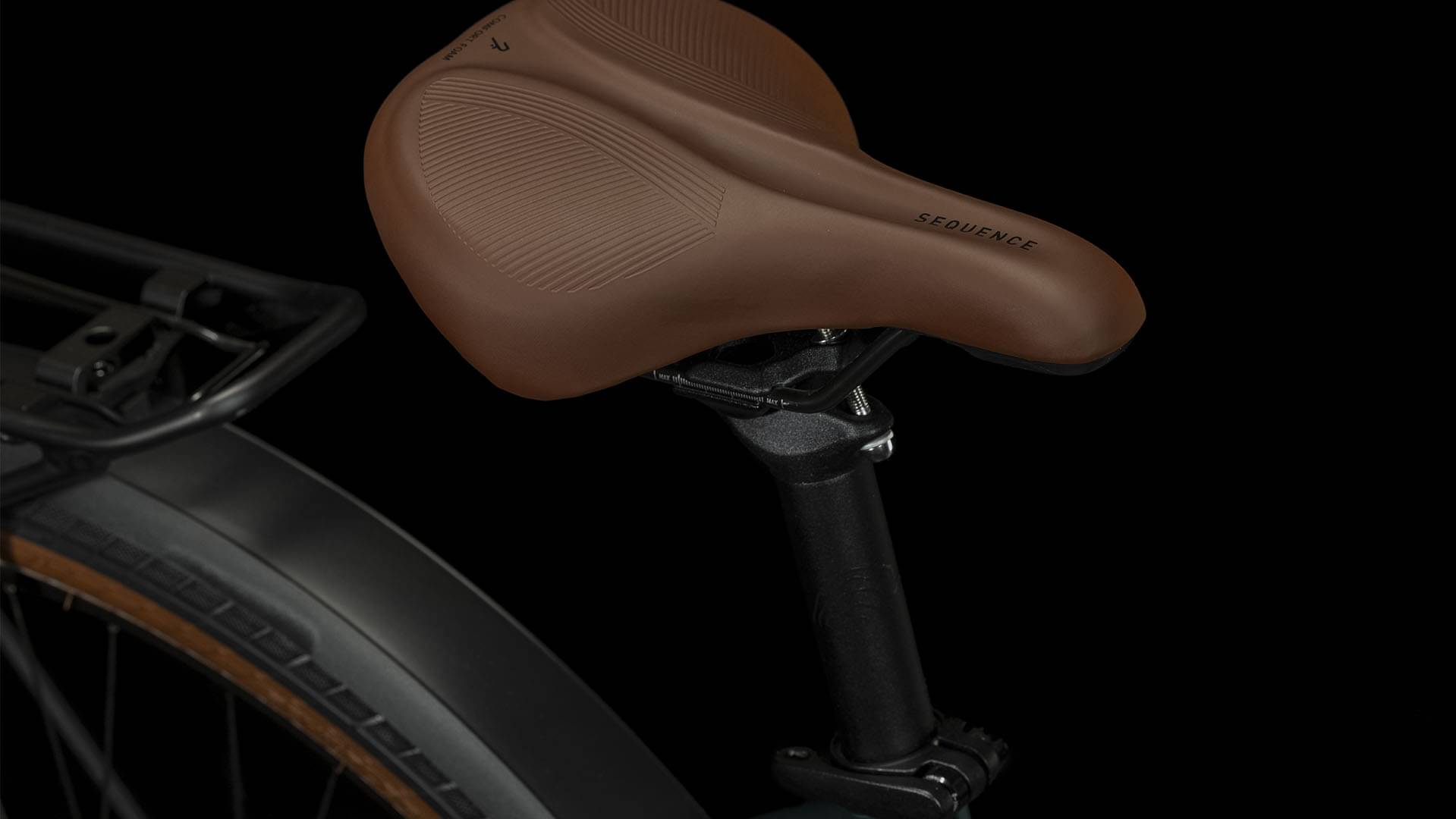

Natural Fit Sequence Comfort
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
Battery

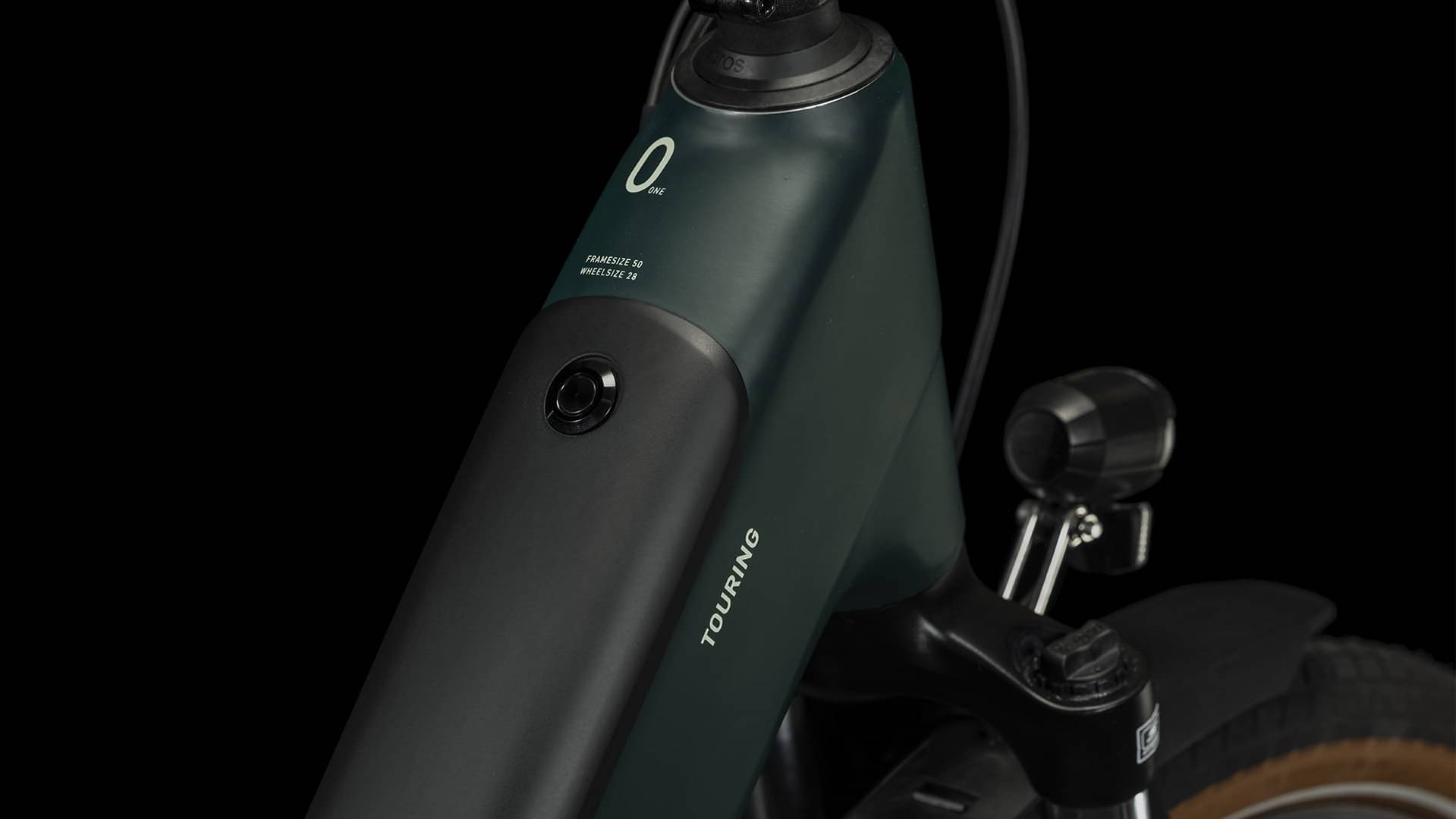

Bosch PowerTube 500
Remote
Bosch LED Remote
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.697 mm | 1.659 mm | 1.623 mm | 1.595 mm |
| Front Center | 672 mm | 677 mm | 682 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm | 44 mm |
| Trail | 90 mm | 87 mm | 83 mm | 84 mm |
| Stack | 655 mm | 657 mm | 659 mm | 662 mm |
| Reach | 386 mm | 396 mm | 406 mm | 415 mm |
| Top Tube Length | 590 mm | 600 mm | 610 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68.2 ° | 68.7 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 509 mm | 509 mm | 509 mm | 509 mm |
| Wheelbase | 1171 mm | 1176 mm | 1181 mm | 1185 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 29" | 29" | 29" | 29" |
