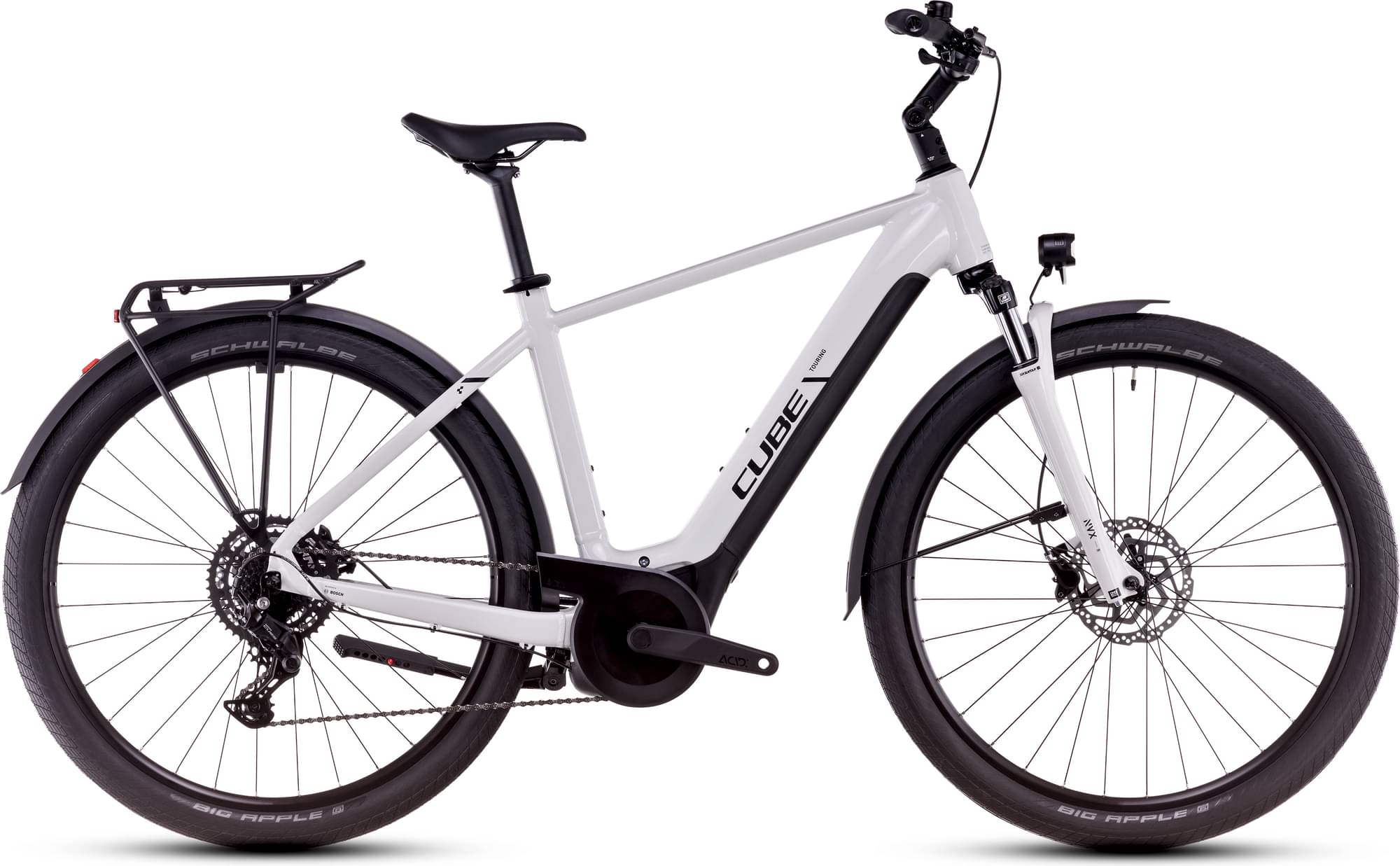

CUBE TOURING HYBRID, ONE 625 2025
2025 E-bike
Estimate price |
3,140$
Weight | 27.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NVX
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube, Semi Integrated Carrier
Suspension Fork
SR Suntour NVX30 Coil, 63mm
Drivetrain
Rear Derailleur
Shimano Cues RD-U4000-GS, 9-Speed
Shift Levers
Shimano Cues SL-U4010, Rapidfire-Plus
Cassette
Shimano Cues CS-LG300, 11-46T
Crank
ACID Trekking Hybrid, 40T
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano HB-QC300, QR, Centerlock
Rear Hub
Shimano FH-QC300-HM, QR, Centerlock
Rims
CUBE EX25, 32H, Disc, Tubeless Ready
Tires
Schwalbe Big Apple, Active, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem

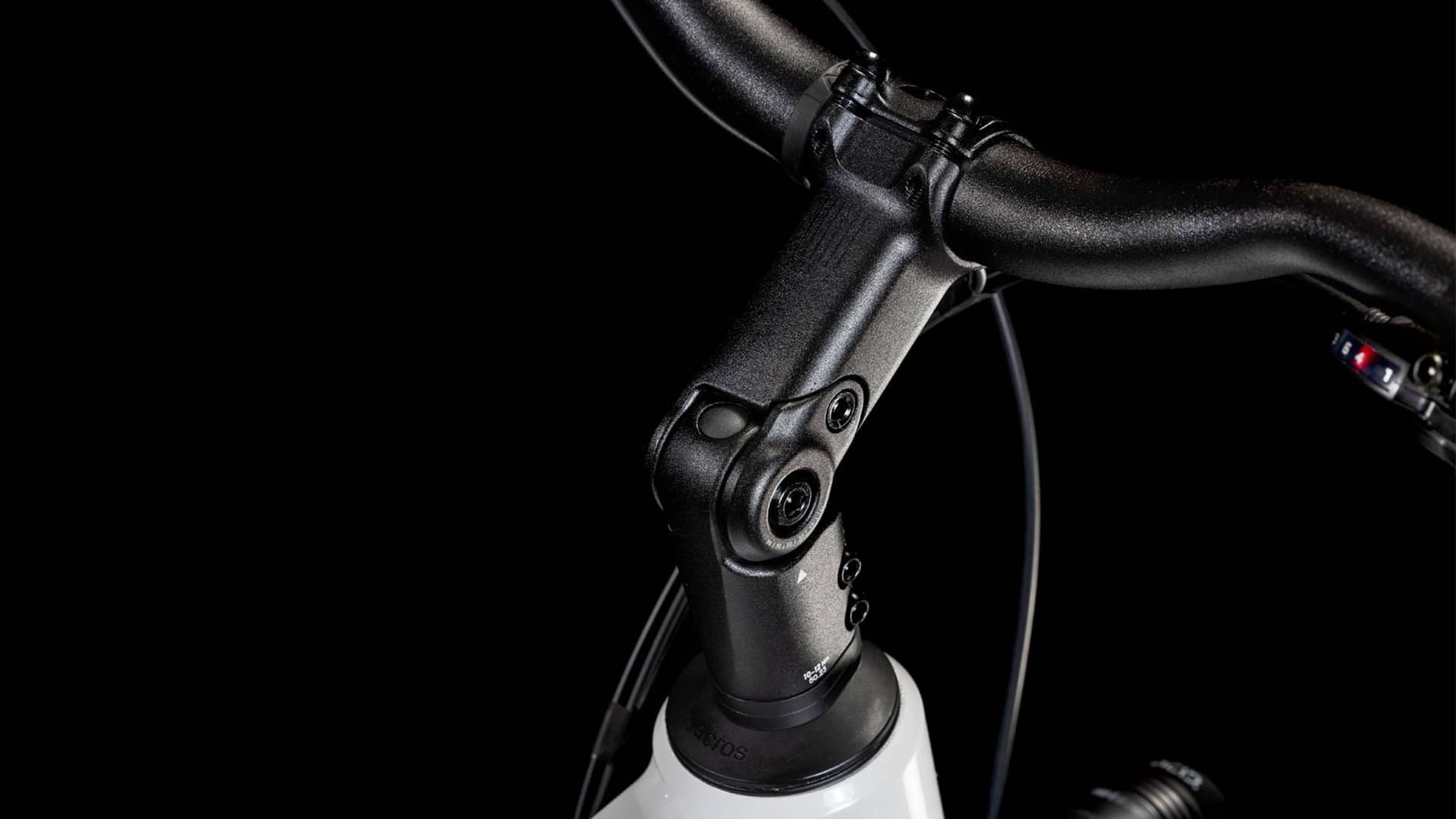

CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Headset
ACROS AZF-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
ACID Sequence Pro Plus
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 625
Remote
Bosch Purion 200 w/ Integrated Display
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.574 mm | 1.564 mm | 1.585 mm | 1.607 mm |
| Front Center | 659 mm | 671 mm | 685 mm | 698 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 81 mm | 82 mm | 81 mm | 81 mm |
| Stack | 628 mm | 638 mm | 656 mm | 675 mm |
| Reach | 399 mm | 408 mm | 414 mm | 420 mm |
| Top Tube Length | 595 mm | 606 mm | 617 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 509 mm | 509 mm | 509 mm | 509 mm |
| Wheelbase | 1158 mm | 1170 mm | 1184 mm | 1197 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 29" | 29" | 29" | 29" |
