Bike details
Overview
Key information split into simple groups.

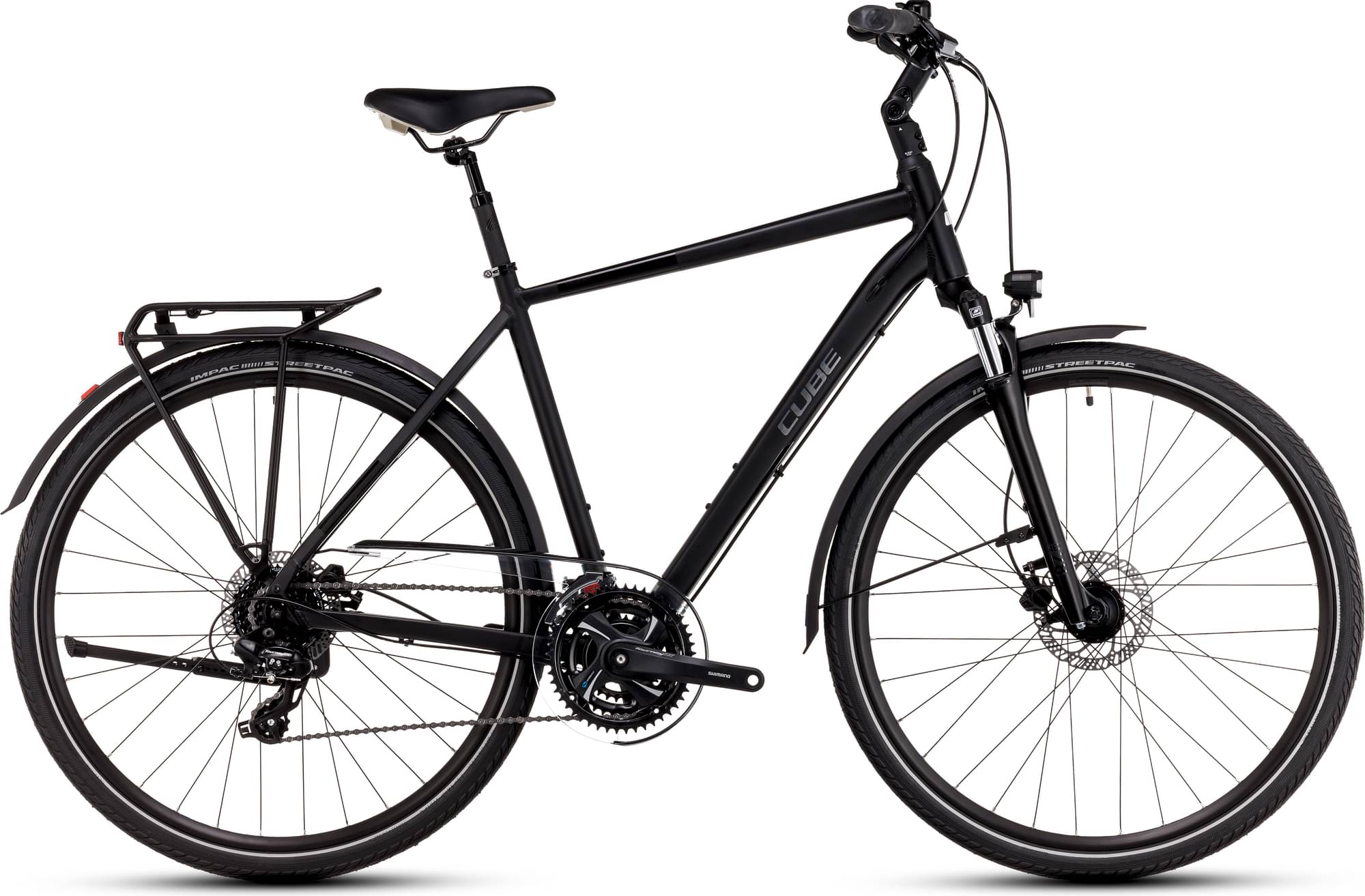

Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Comfort, Double Butted

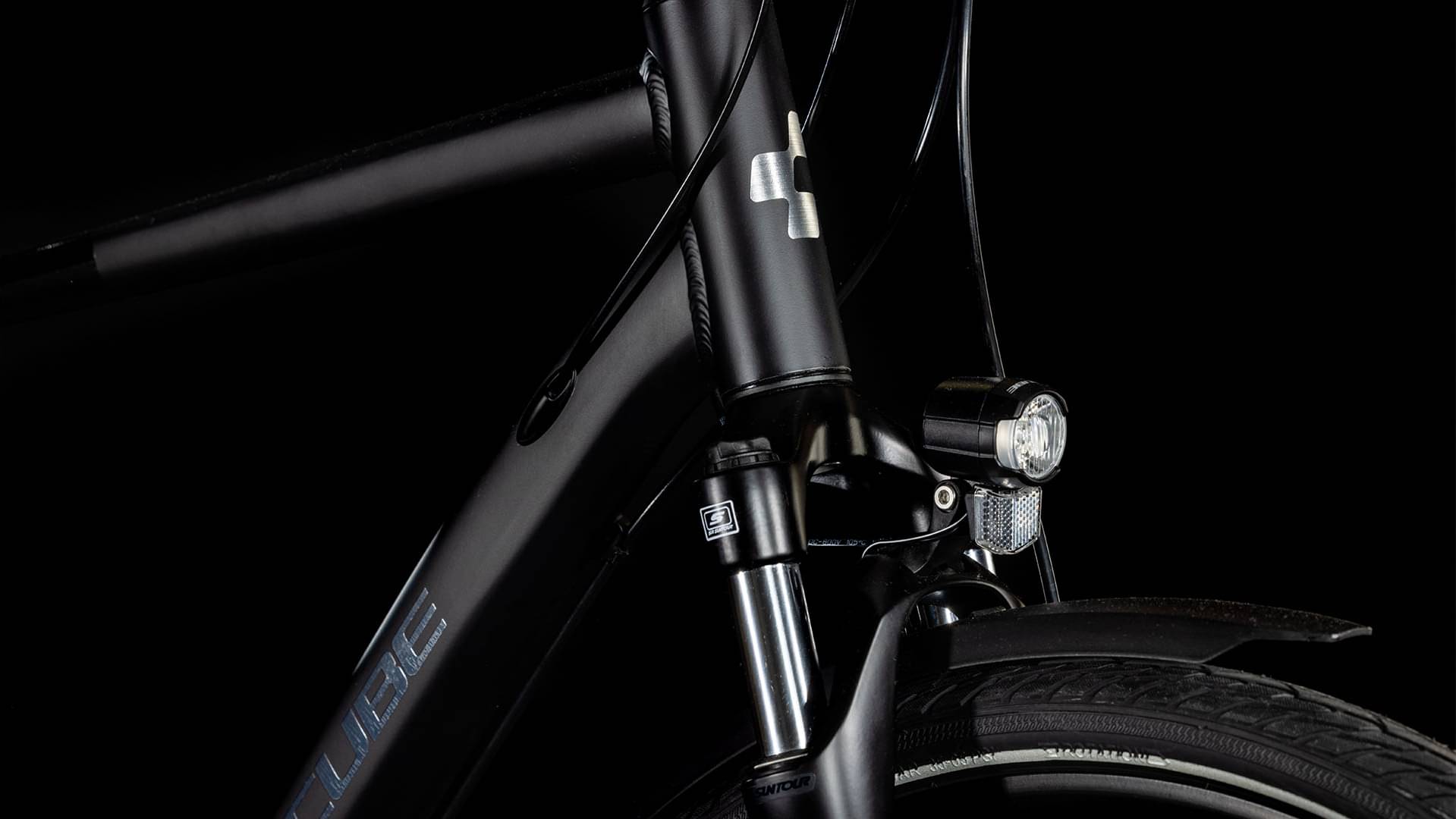

Suspension Fork
SR Suntour NEX, 63mm
Drivetrain
Rear Derailleur
Shimano RD-TX800, 8-Speed
Front Derailleur
Shimano FD-M310, Topswing, 31.8mm
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG200, 12-32T
Crank
Shimano FC-T801, 48x36x26T, 175mm
Bottom Bracket
Thun Paso-ML, 73mm BSA
Chain
KMC Z51
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-3D32, Hub Dynamo, QR
Rear Hub
CUBE Alloy Light, QR, 6-Bolt
Rims
CUBE ZX20, 32H, Disc
Tires
Impac Streetpac, Active, 47-622
Brakes
Brakes
Tektro HD-M275, Hydr. Disc Brake (160/160)
Cockpit

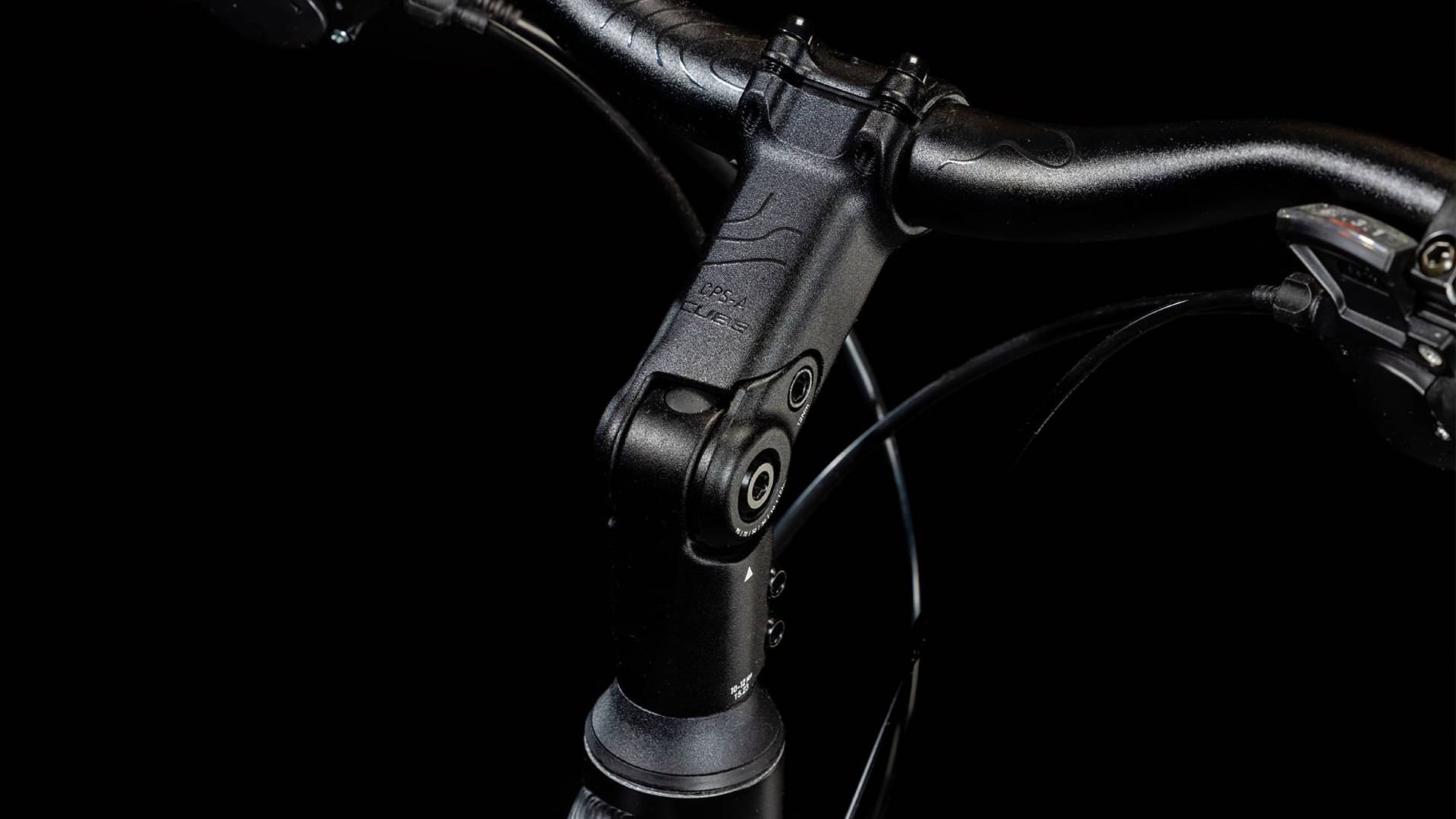

Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 660mm
Grips
ACID Travel Comfort
Headset
CUBE H863, 1 1/8", Semi-Integrated
Seat

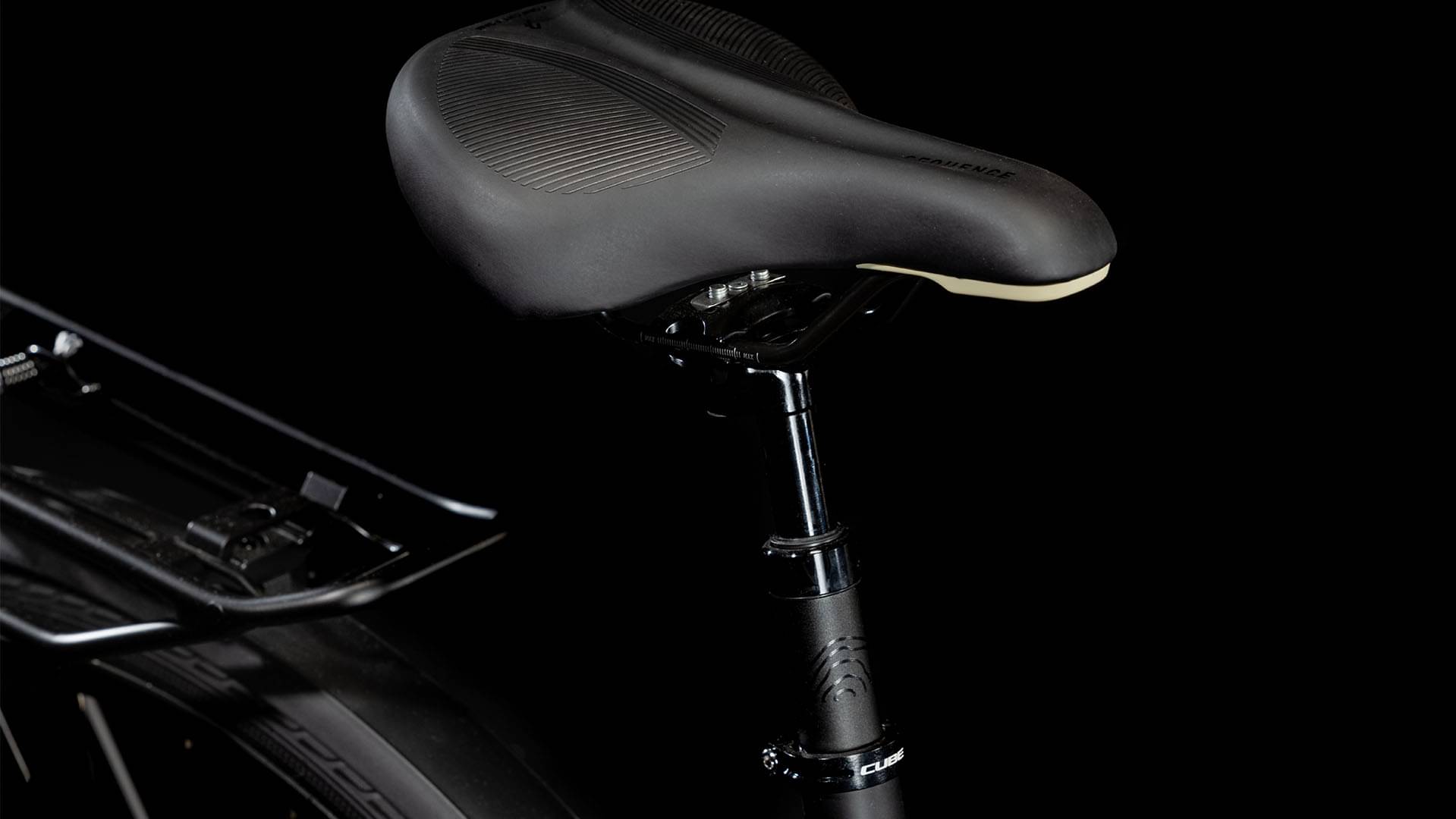

Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.596 mm | 1.639 mm | 1.659 mm | 1.669 mm | 1.679 mm |
| Front Center | 604 mm | 615 mm | 625 mm | 640 mm | 656 mm |
| Rake | 27 mm | 32 mm | 33 mm | 32 mm | 33 mm |
| Trail | 98 mm | 90 mm | 85 mm | 86 mm | 85 mm |
| Stack | 600 mm | 621 mm | 642 mm | 661 mm | 680 mm |
| Reach | 376 mm | 379 mm | 387 mm | 396 mm | 405 mm |
| Top Tube Length | 558 mm | 569 mm | 583 mm | 598 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm | 620 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1052 mm | 1063 mm | 1073 mm | 1088 mm | 1104 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
