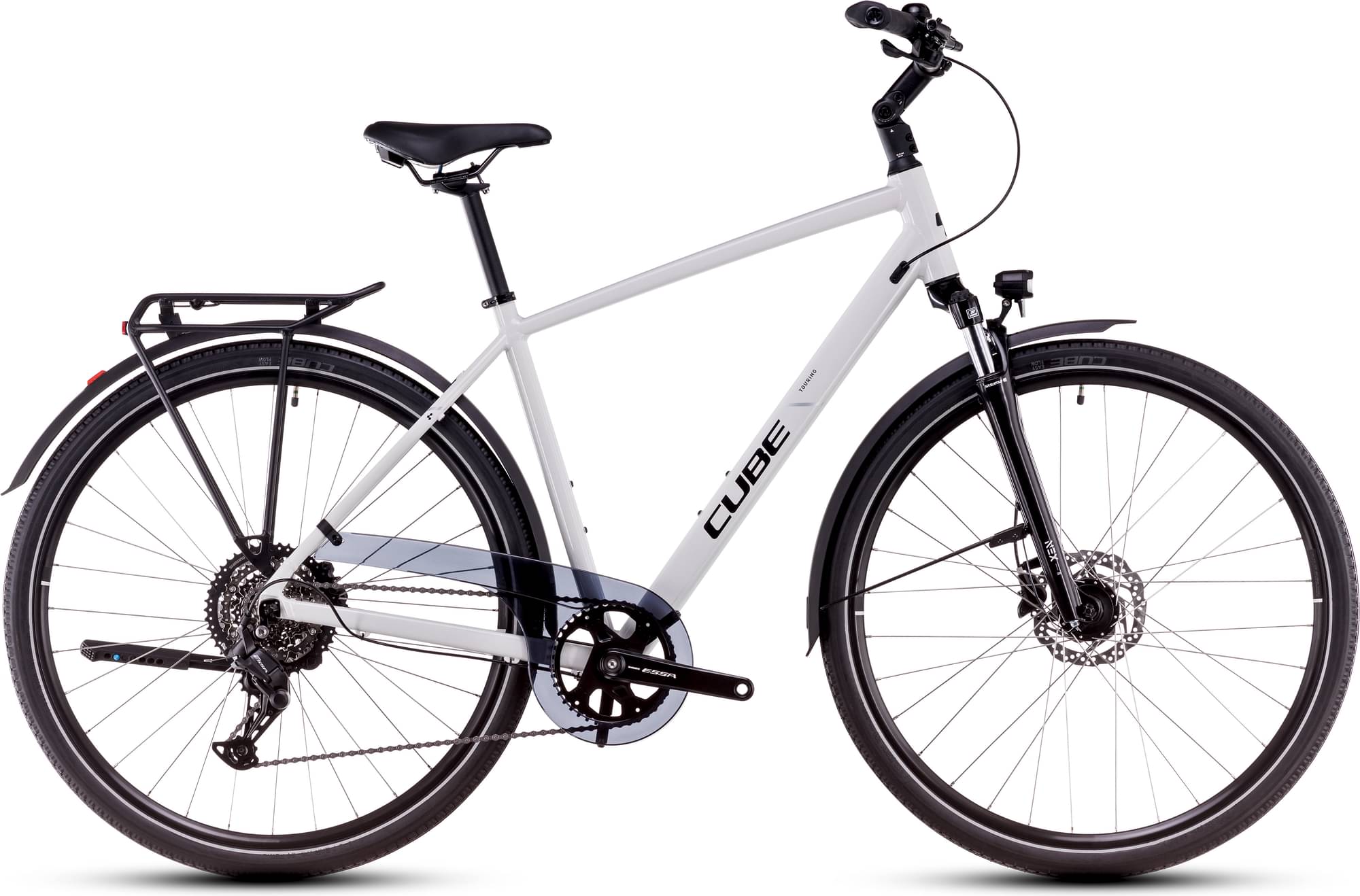

CUBE TOURING, ONE 2025
2025 Urban
Estimate price |
813$
Weight | 17.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Shimano -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Comfort, Double Butted
Suspension Fork
SR Suntour NEX, 63mm
Drivetrain
Rear Derailleur
Shimano Essa RD-U2000-GS, 8-Speed
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG400, 11-45T
Crank
Shimano Essa FC-U2000-1, 40T
Bottom Bracket
Thun Paso-ML, 68mm, BSA
Chain
KMC Z51
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-QC300-HM, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc, Tubeless Ready
Tires
CUBE Trekking, 47-622
Brakes
Brakes
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
Cockpit

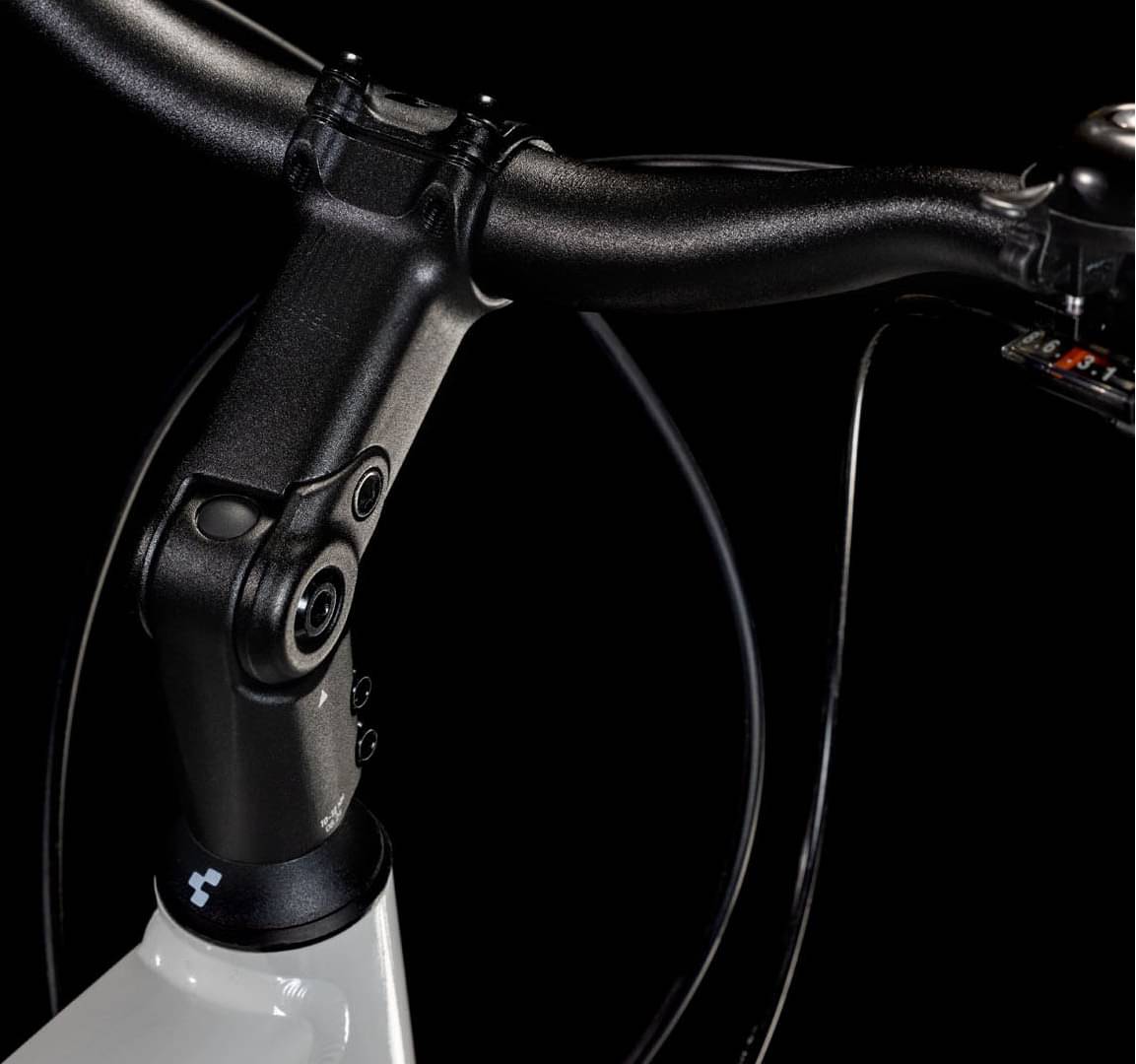

Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 680mm
Grips
ACID Travel Comfort
Headset
CUBE H863, 1 1/8", Semi-Integrated
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.537 mm | 1.665 mm | 1.685 mm | 1.694 mm | 1.704 mm |
| Front Center | 642 mm | 626 mm | 635 mm | 651 mm | 667 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 79 mm | 76 mm | 76 mm | 76 mm |
| Stack | 610 mm | 631 mm | 652 mm | 671 mm | 690 mm |
| Reach | 397 mm | 379 mm | 387 mm | 396 mm | 405 mm |
| Top Tube Length | 561 mm | 572 mm | 586 mm | 601 mm | 616 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1088 mm | 1072 mm | 1081 mm | 1097 mm | 1113 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
