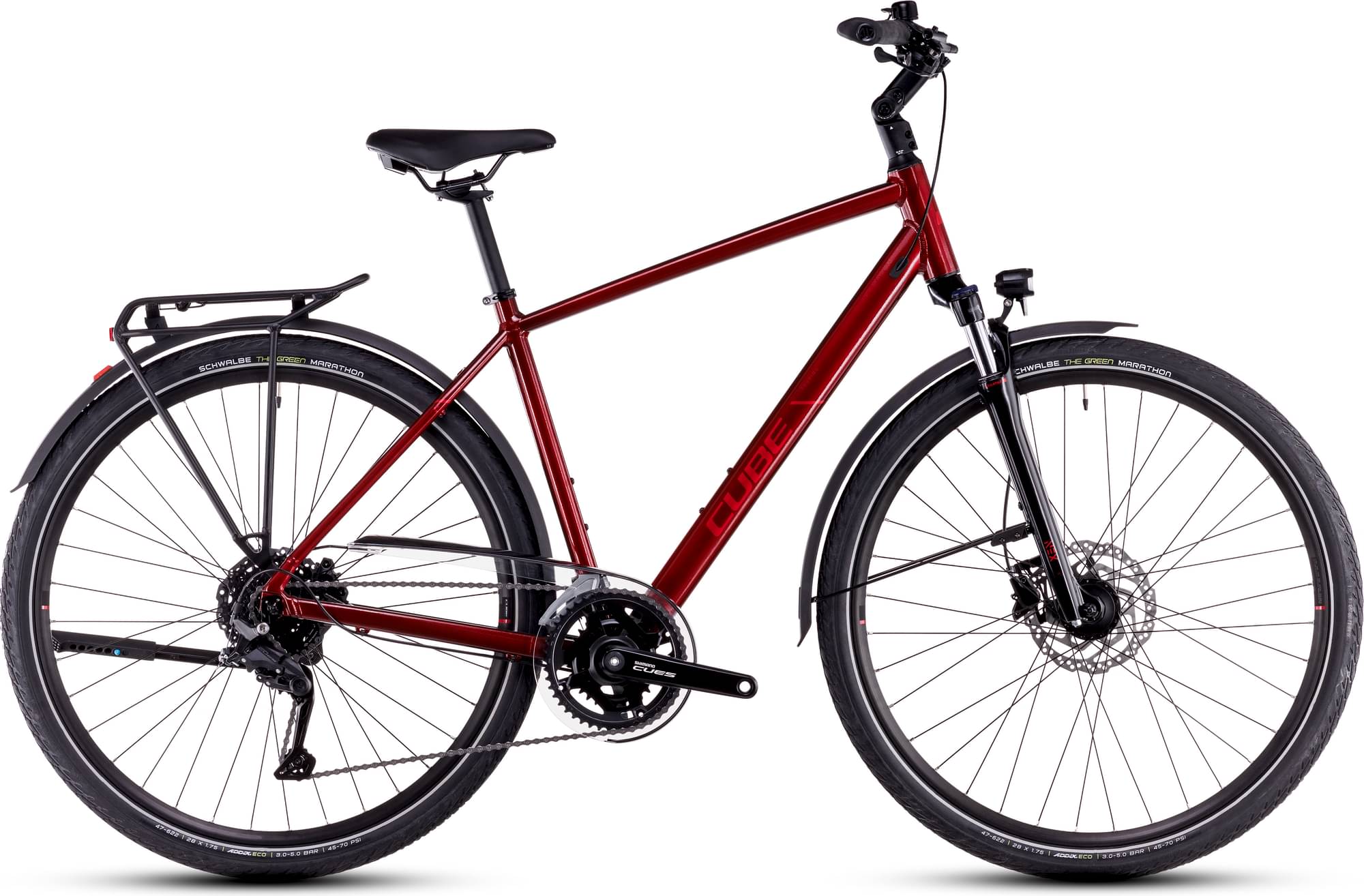

CUBE TOURING, PRO 2025
2025 Urban
Estimate price |
930$
Weight | 17.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

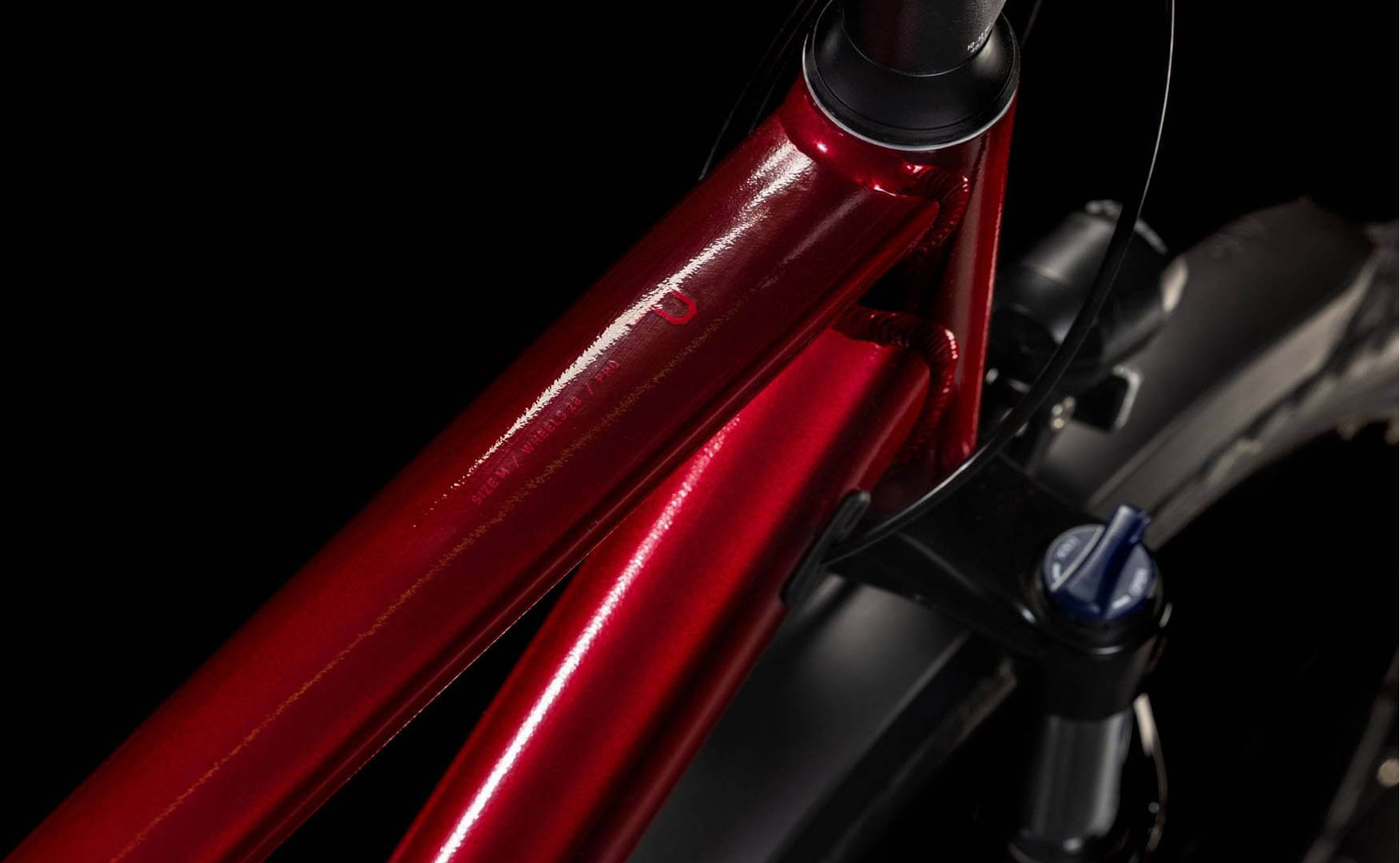

Aluminium Superlite, Trekking Comfort, Double Butted
Suspension Fork

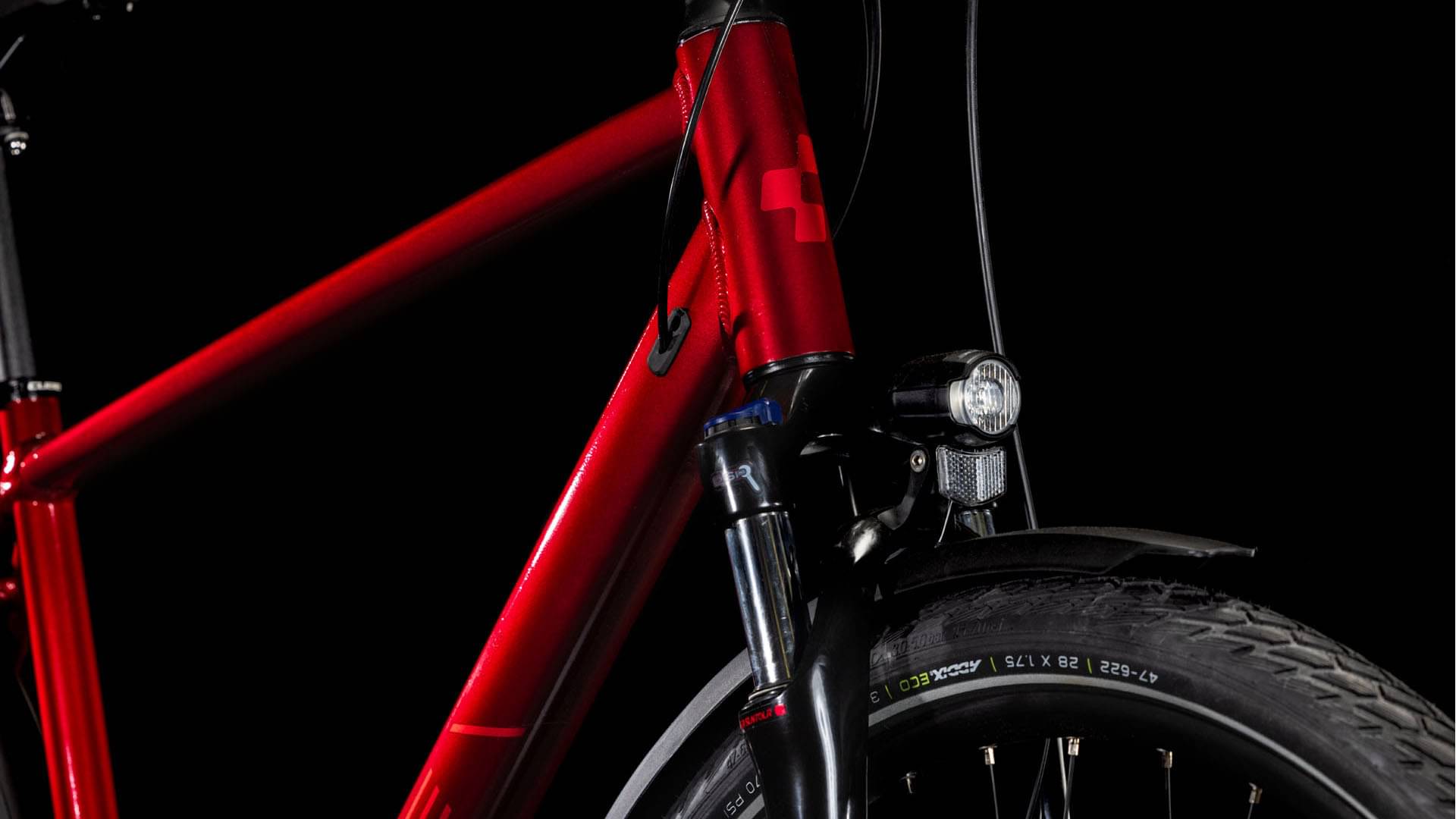

SR Suntour NEX HLO, 63mm, Lockout
Drivetrain
Rear Derailleur
Shimano Cues RD-U4020-SGS, 9-Speed
Front Derailleur
Shimano Cues FD-U4010, Top-Swing, 31.8mm
Shift Levers
Shimano Cues SL-U4010- Rapidfire-Plus
Cassette
Shimano CS-LG300, 11-36T
Crank
Shimano Cues FC-U4010, Hollowtech ll, 46x30T, Chainguard
Bottom Bracket
Shimano BB-MT501, 68mm BSA
Chain
KMC xGlide
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-QC300-HM, QR, Centerlock
Rims
CUBE ZX20, 36H, Disc, Tubeless Ready
Tires
Schwalbe Marathon Green, Perf, 47-622
Brakes
Brakes
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/180)
Cockpit
Stem

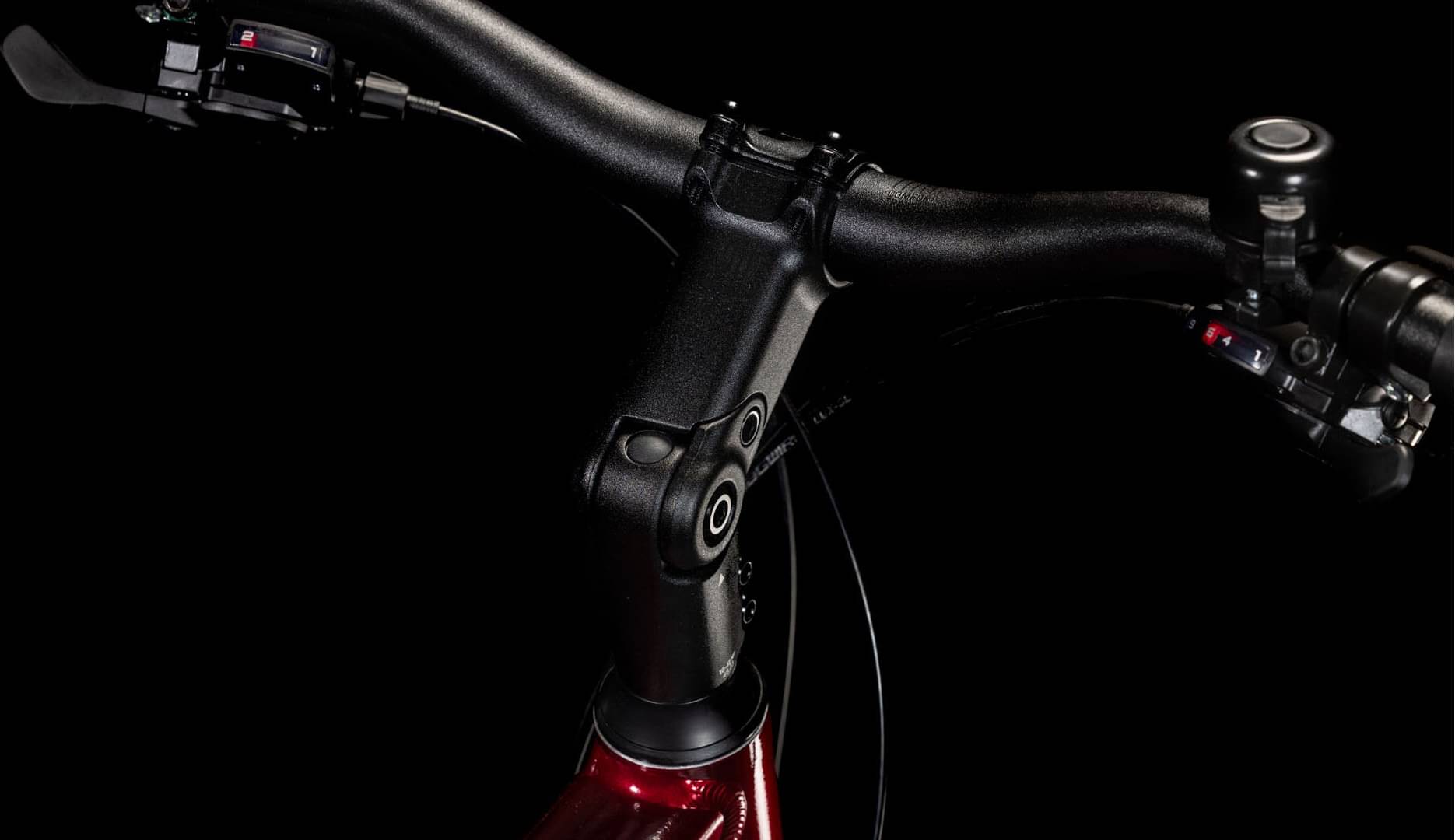

CUBE Comfort Stem Pro, 31.8mm, Adjustable
Grips
ACID Travel Comfort
Headset
CUBE H863, 1 1/8", Semi-Integrated
Seat
Saddle

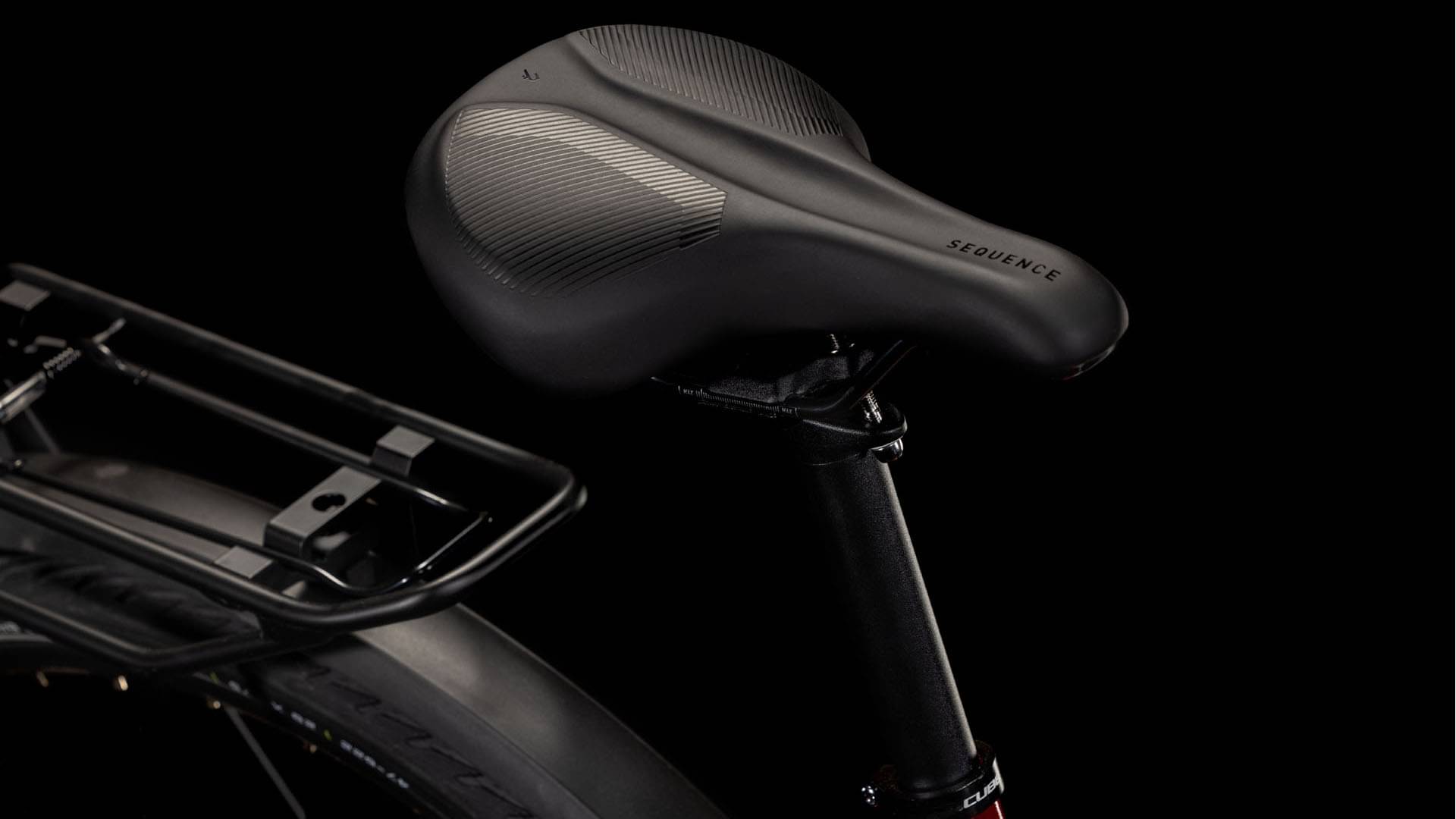

Natural Fit Sequence
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.537 mm | 1.665 mm | 1.685 mm | 1.694 mm | 1.704 mm |
| Front Center | 642 mm | 626 mm | 635 mm | 651 mm | 667 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 79 mm | 76 mm | 76 mm | 76 mm |
| Stack | 610 mm | 631 mm | 652 mm | 671 mm | 690 mm |
| Reach | 397 mm | 379 mm | 387 mm | 396 mm | 405 mm |
| Top Tube Length | 561 mm | 572 mm | 586 mm | 601 mm | 616 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1088 mm | 1072 mm | 1081 mm | 1097 mm | 1113 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
