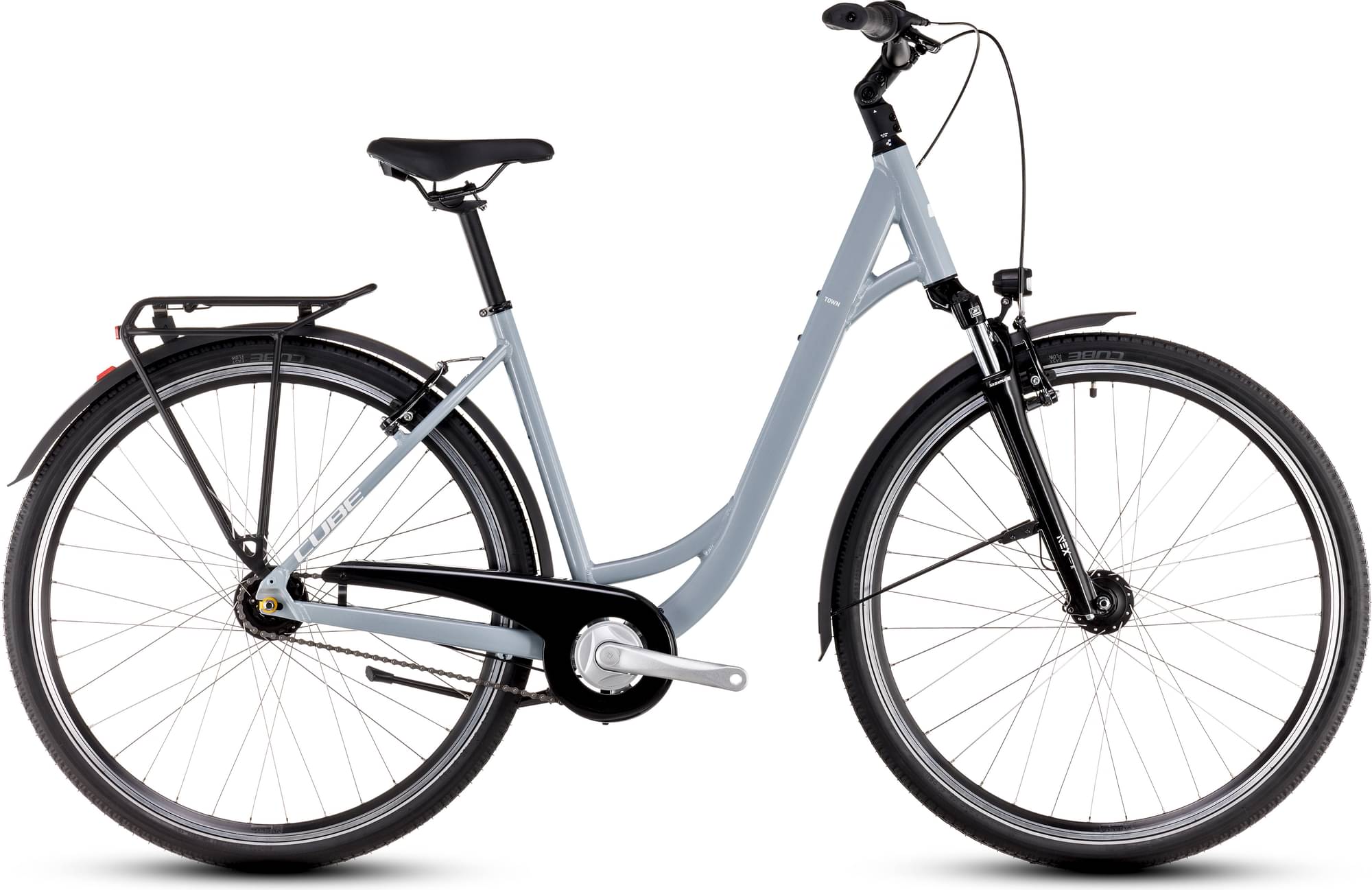

CUBE TOWN, ONE 2025
2025 Urban
Estimate price |
790$
Weight | 17.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Comfort
Suspension Fork
SR Suntour NEX, 63mm
Drivetrain
Shift Levers
Shimano Nexus SL-C3000-7, Revoshift
Cassette
Shimano Nexus, 20T
Crank
Prowheel PRA 11C, 170mm
Bottom Bracket
Feimin FP-B902N
Chain
KMC HV500
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-C3000, Hub Dynamo, Nut
Rear Hub
Shimano Nexus SG-C3000-7R, 7-Speed, Nut
Rims
CUBE ZX20, 36H, V-Brake
Tires
CUBE Trekking, 47-622
Brakes
Brakes
Alloy V-Brake with Powermodulator
Cockpit
Stem

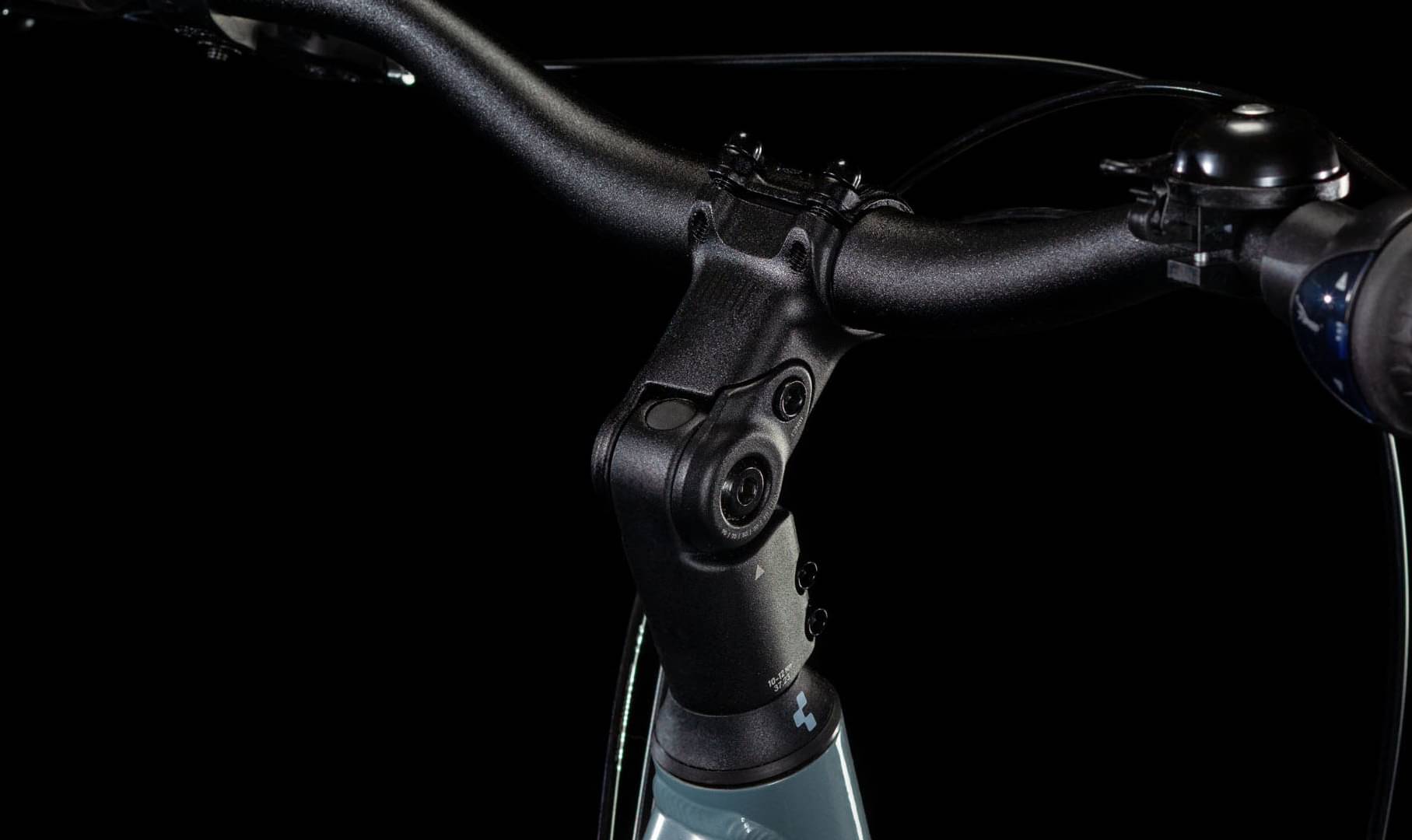

CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 680mm
Grips
ACID Travel Comfort Gripshift
Headset
CUBE H863, 1 1/8", Semi-Integrated
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 49cm | 53cm |
|---|---|---|---|
| Stack Reach Ratio | 1.715 mm | 1.705 mm | 1.698 mm |
| Front Center | 636 mm | 652 mm | 668 mm |
| Rake | 40 mm | 39 mm | 40 mm |
| Trail | 84 mm | 86 mm | 84 mm |
| Stack | 650 | 665 mm | 679 mm |
| Reach | 379 mm | 390 mm | 400 mm |
| Top Tube Length | 578 mm | 593 mm | 608 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 185 mm | 200 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1082 mm | 1098 mm | 1114 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
