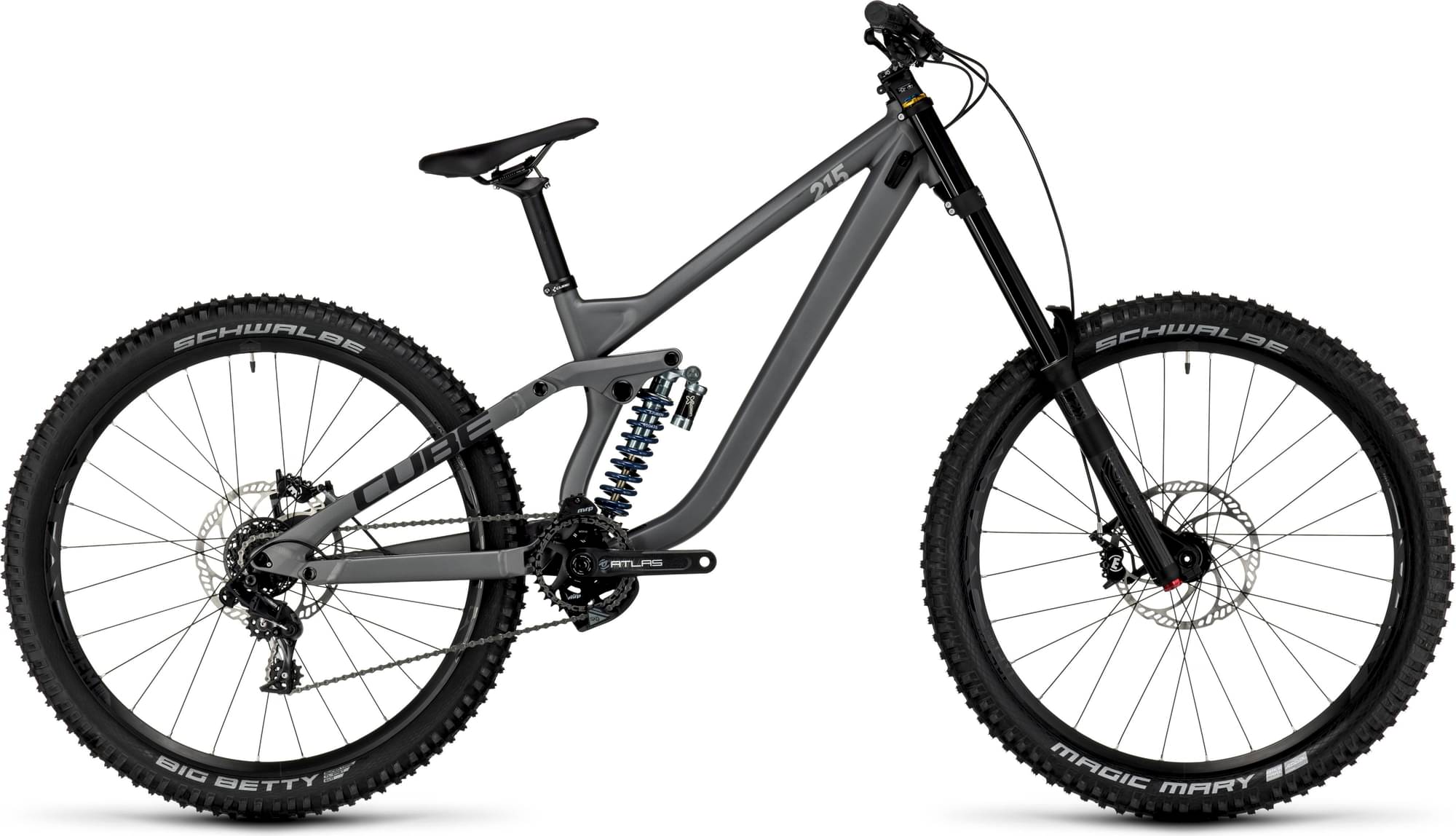

CUBE TWO15 PRO 27.5 2024
2024 Mountain
Estimate price |
3,489$
Weight | 17.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 200mm -
Travel Rear 200mm -
Fork X-Fusion RV1
-
Groupset GX -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, Carbon Rocker Arm, ETC 4-Link, ISCG Mount, 200mm travel
Suspension Fork
X-Fusion RV1 DH, 20x110mm, High and Low Speed Compression, Rebound, 200mm

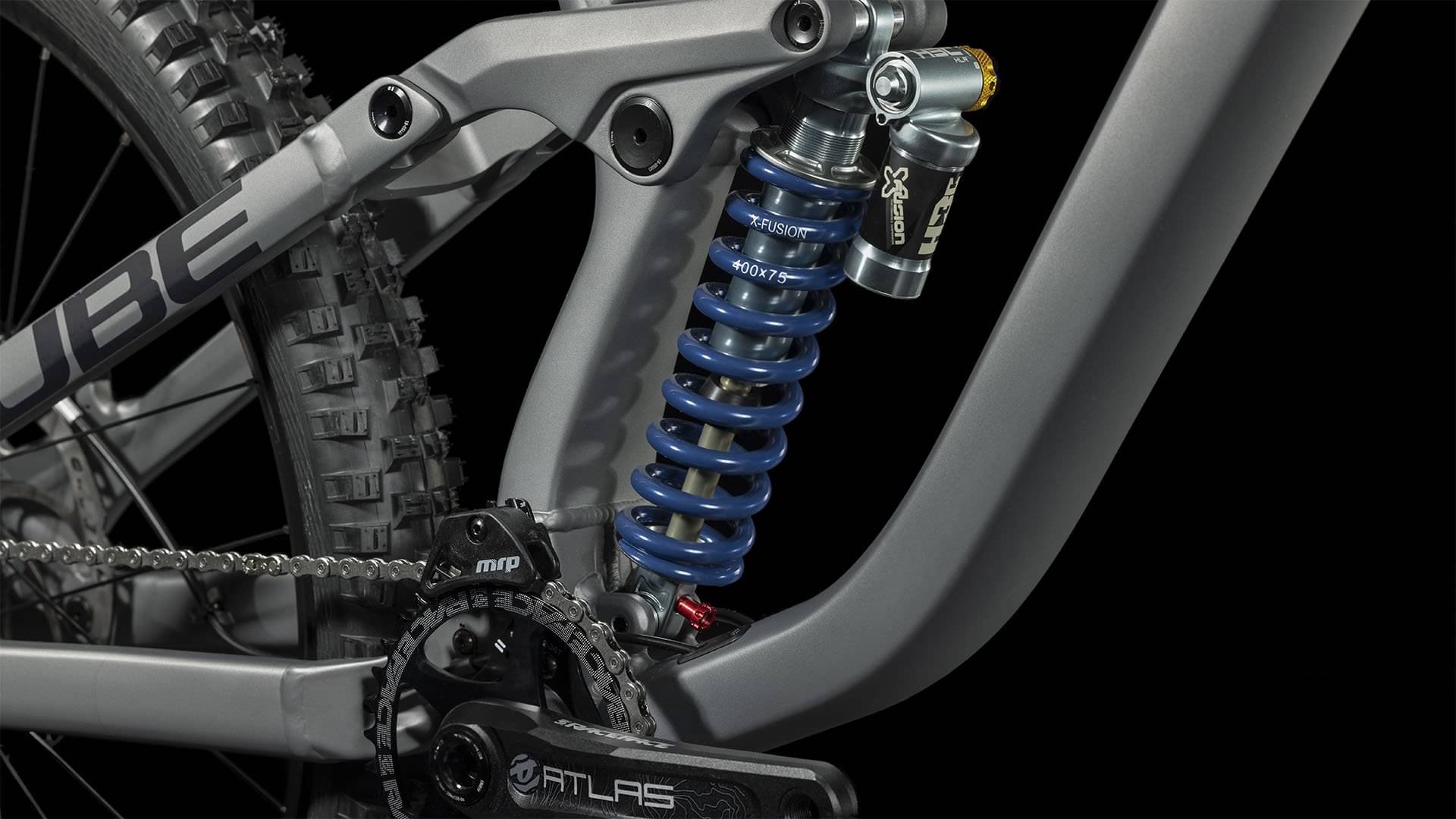

Rear Shock
X-Fusion H3-C DH, 250x75mm, High & Low Speed Compression, Rebound, spring rate 400 lbs/in.
Drivetrain

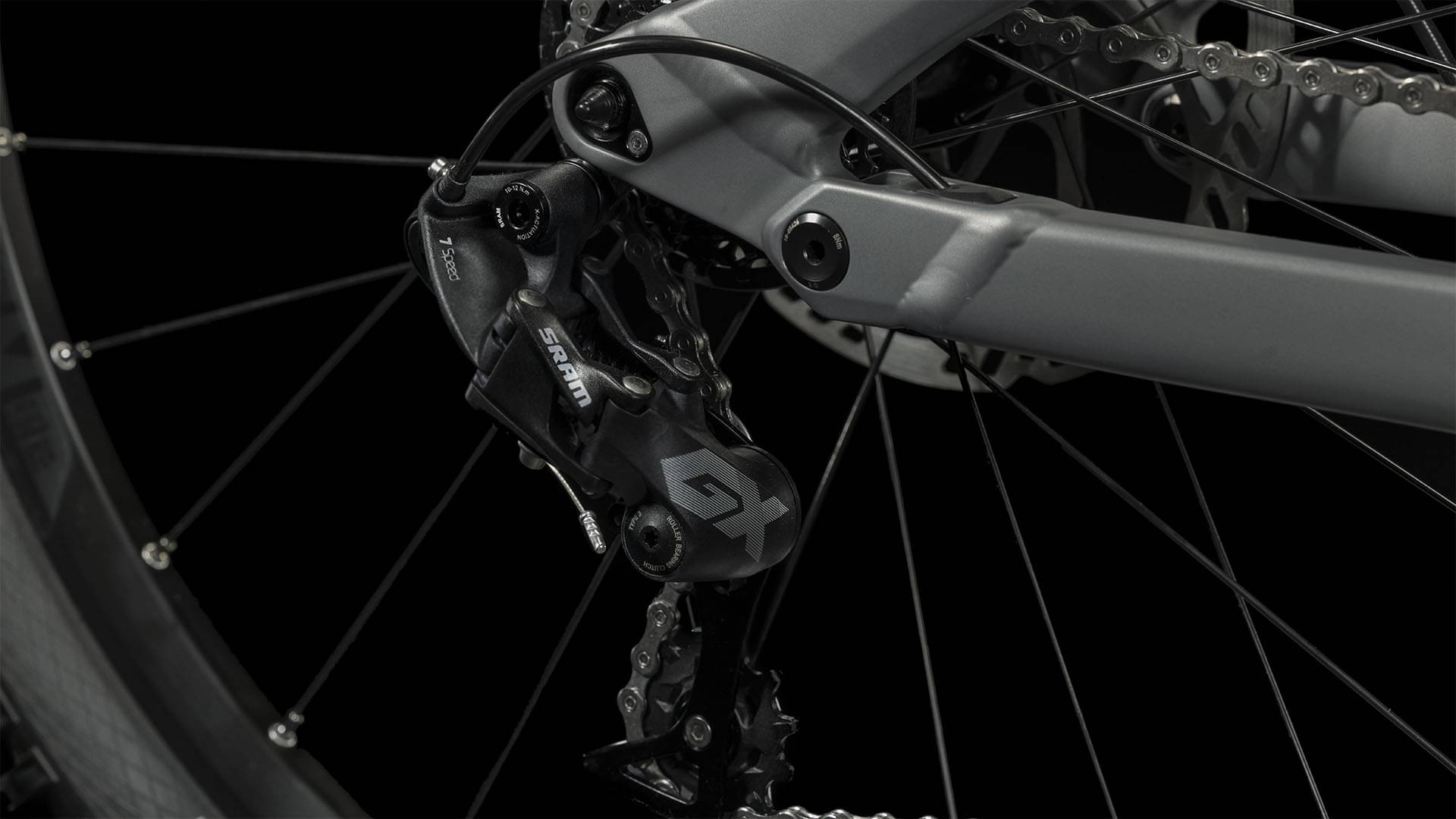

Rear Derailleur
SRAM GX DH, 7-Speed
Shift Levers
SRAM GX Trigger
Cassette
SRAM PG-720, 11-25T

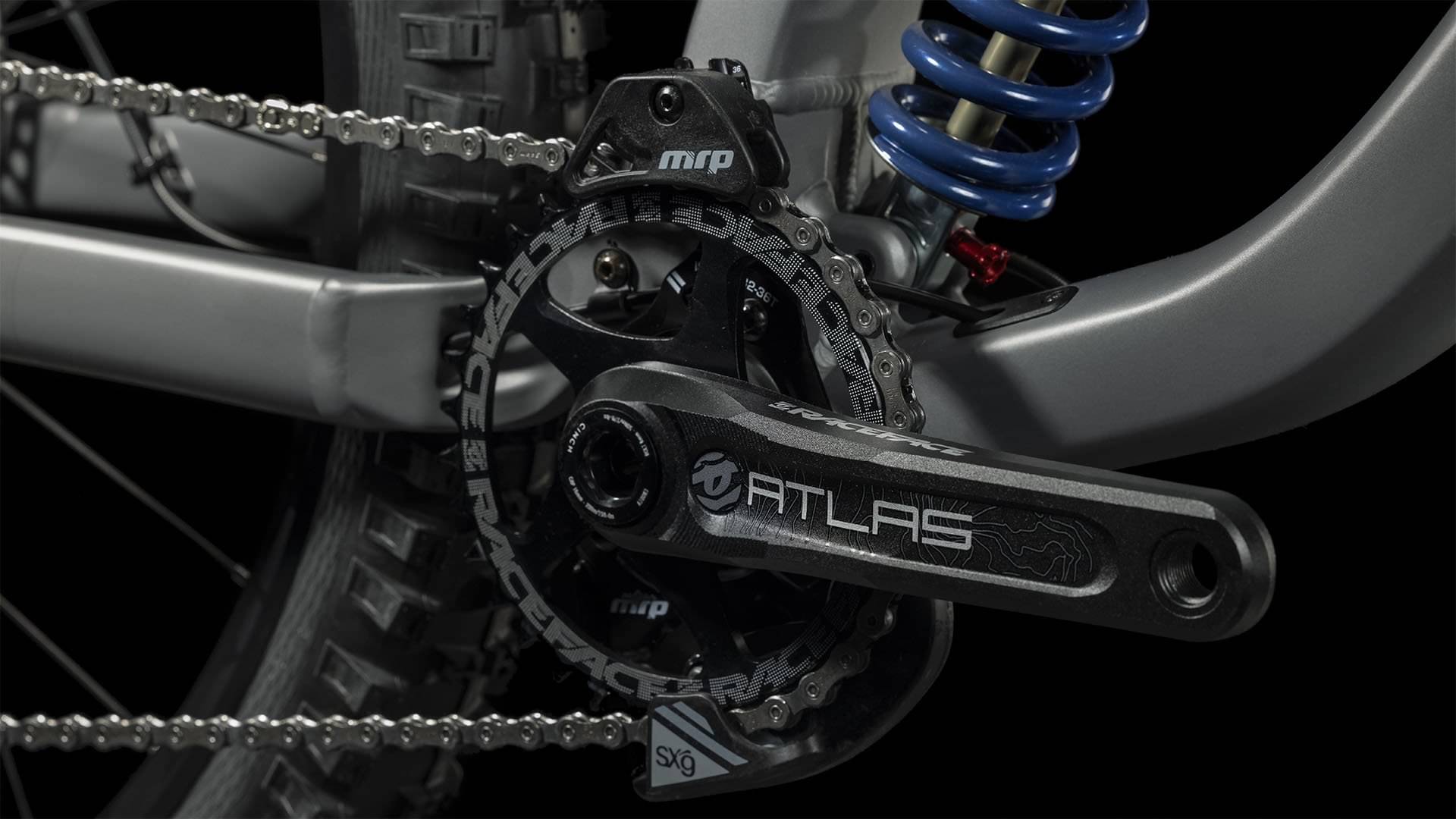

Crank
Race Face Atlas 34T, 165mm
Bottom Bracket
Race Face DH Pressfit 107mm
Chain
SRAM PC-1110
Chain Guide
MRP SXg Chain Guide
Wheels
Rims
Answer Atac DH TR29, 20x110mm/12x157mm, Tubeless Ready
Tires
Front: Schwalbe Magic Mary, Bikepark, Addix Performance, 2.4, Rear: Schwalbe Big Betty, Bikepark, Addix Performance, 2.4
Brakes
Brakes
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Stem
Race Face Chester 35 Direct Mount
Handlebar
Race Face Chester 35, 780mm
Grips
SDG Thrice
Headset
ACROS Integrated, Top & Bottom 1 1/8", Fiber Inserts for Angle Adjustment
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.355 mm | 1.298 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Front Center | 812 mm | 832 mm | 852 mm |
| Rake | 52 mm | 52 mm | 52 mm |
| Trail | 126 mm | 126 mm | 126 mm |
| Stack | 618 mm | 618 mm | 618 mm |
| Reach | 436 mm | 456 mm | 476 mm |
| Top Tube Length | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° |
| Seat Tube Length | 380 mm | 400 mm | 400 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 124 mm | 124 mm | 124 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm |
| Rear Travel | 200 mm | 200 mm | 200 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
