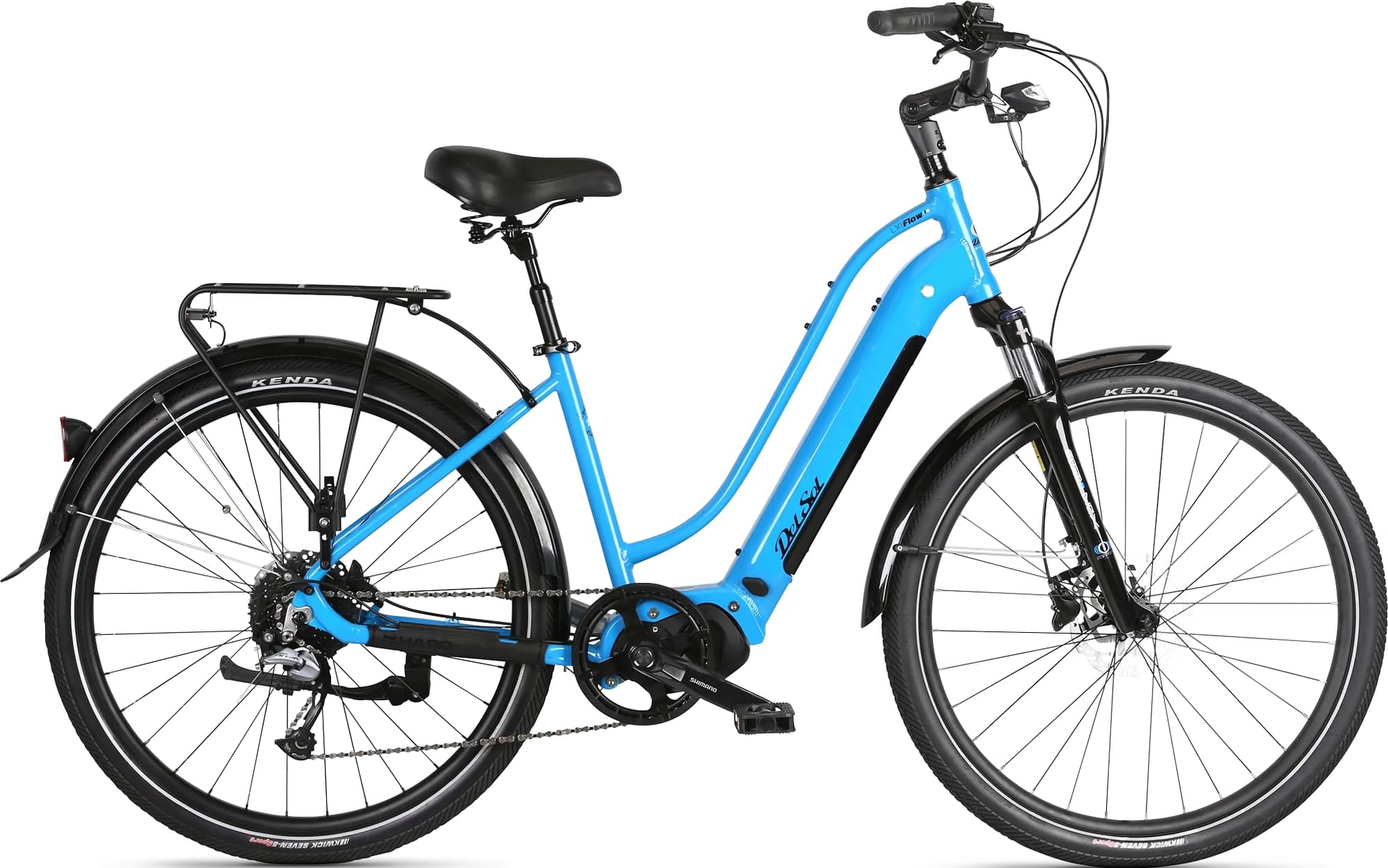

Del Sol Lxi Flow i/O Step Thru 2022
2022 Urban
Estimate price |
2,999$
Weight | 23.13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Battery 36V | 504Wh | Fully-integrated within down tube -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
LXI Flow i/O | 6061 heat-treaded aluminum | Tig-welded construction | Buttressed down tube frame | Fully internal battery | Angle-correct mid-drive motor mount | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | Post mount disc tab | 135m
Suspension Fork
SRSuntour | SF20 NEX-HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake
Drivetrain
Rear Derailleur
Shimano Acera M3100 | Shadow Design | Long cage | 9-speed
Front Derailleur
N/A
Shift Levers
Shimano Acera Rapidfire Plus | 9-speed
Cassette
Shimano HG200-9 | 11-36T | 9-speed
Crank
Shimano FC-E5010 crank arm set for E5000 mid-motor
Bottom Bracket
N/A
Chain
KMC E9-Sport | 9-speed
Pedals
Comfort | Shock-absorbing Kraton inserts
Wheels
Front Hub
Shimano TX-505 | 100mm quick release | Center Lock disc mount | 32h
Rear Hub
Shimano TX505 | 135mm quick release | Center Lock disc mount | HG freehub | 32h
Rims
Alloy | Width (internal): 25mm | Doulbe-wall construction | 32h
Tires
Kenda Kwick Seven.5 | 27.5 x 2.2"
Brakes
Brakes
Shimano MT200 Hydraulic Disc | Post mount | 180/160mm Center Lock rotors
Brake Levers
Shimano MT200 | Alloy | Hydraulic
Cockpit
Stem
Alloy | ?31.8 bar bore | Adjustable angle | Integrated light holder
Handlebar
LXI Flow i/O: Alloy | 85mm rise | 54° sweep | 630mm wide; LXI Flow i/O ST: Alloy | 40mm rise | 40° sweep | 615mm wide
Headset
FSA No. 10 | 1-1/8" | Threadless
Seat
Saddle
Del Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle
Seatpost
Alloy | Suspension | 40mm travel | 27.2 x 350mm
Motor & Battery
Battery
36V | 504Wh | Fully-integrated within down tube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 17" | 20" |
|---|---|---|---|
| Front Center | 659 mm | 659 mm | 670 mm |
| Top Tube Length | 602 mm | 602 mm | 612 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 356 mm | 435 mm | 508 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 165 mm | 175 mm |
| Chainstay Length | 472 mm | 472 mm | 472 mm |
| Wheelbase | 1127 mm | 1127 mm | 1138 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 769 mm | 807 mm | 842 mm |
| Wheels | 650 | 650 | 650 |
Model Overview
Lxi Flow i/O Step Thru completes the Delsol Lxi model. Del Sol released 5 bikes variations of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Comfort bikes average price
Our math shows that the average cost of a dependable Comfort bike is 360$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Comfort bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Del Sol released this model in 2022, its price was 2999$. Comparing this to the average Comfort bike price, we see that the price is 733.06% higher.
Comfort bikes average weight
The average weight for Comfort bikes is 15.11 kg (33.31 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Lxi Flow i/O Step Thru weighs 23.13 kg (50.99 lbs) and is much heavier than the average. In conclusion, the average Comfort bike weighs 53.08% less than Lxi Flow i/O Step Thru.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Lxi Flow i/O Step Thru components
Fork
This bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Lxi Flow i/O Step Thru 2022 bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
