Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Carbon Construction
Drivetrain
Crank
Minimum Q-factor of 168mm
Bottom Bracket
73mm BSA Threaded
Cockpit
Headset
ZS44/28.6 upper and a ZS56/40 lower headset cup
Seat
Seatpost
Internal dropper routing with internal cable routing. 34.9”
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.348 mm | 1.286 mm | 1.231 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 794 mm | 829 mm | 864 mm |
| Rake | 44 mm | 44 mm | 45 mm |
| Trail | 131 mm | 131 mm | 130 mm |
| Stack | 620 mm | 630 mm | 640 mm |
| Reach | 460 mm | 490 mm | 520 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° |
| Head Tube Angle | 64.3 ° | 64.3 ° | 64.3 ° |
| Head Tube Length | 92 mm | 108 mm | 114 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1233 mm | 1268 mm | 1303 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

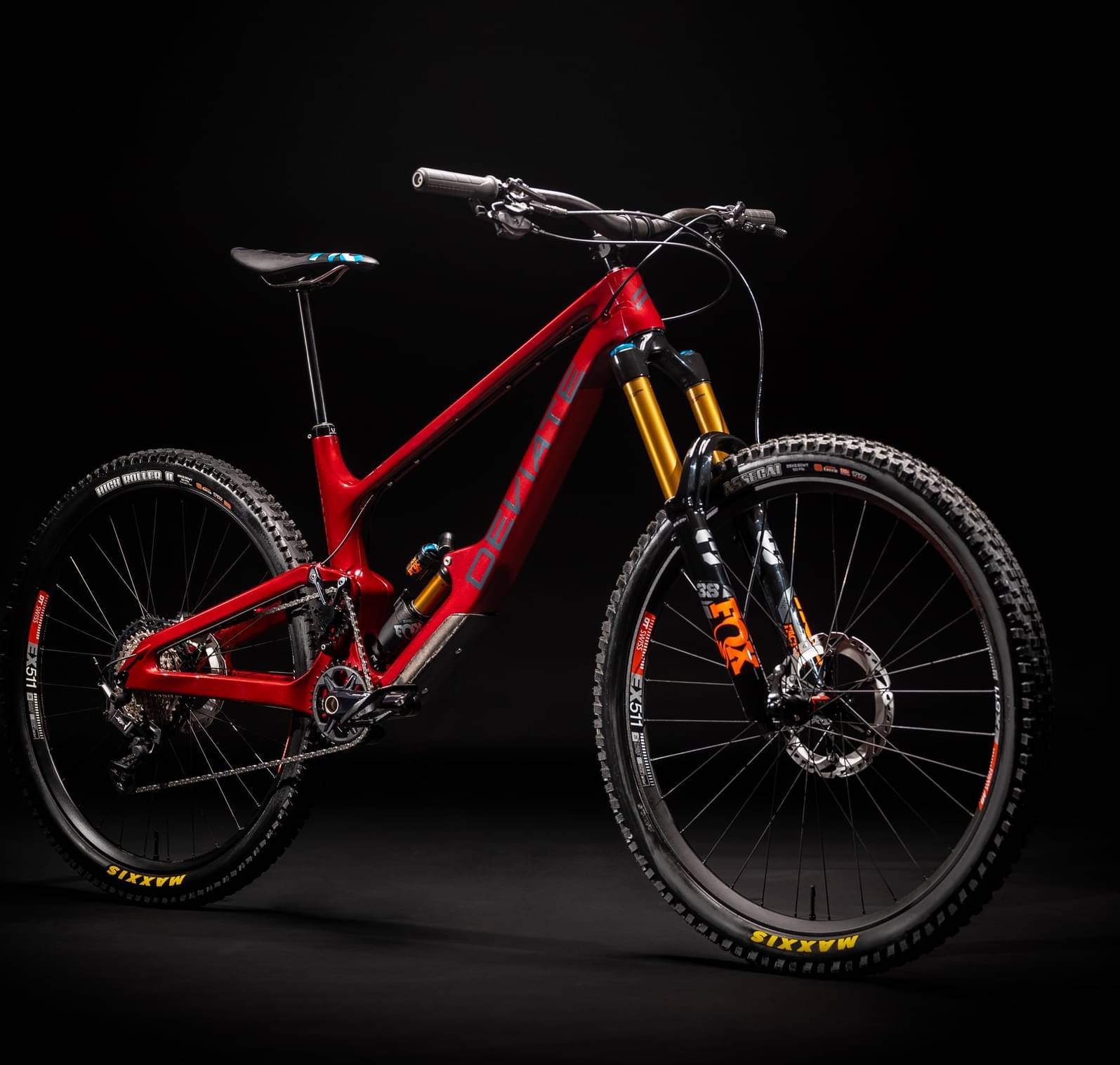

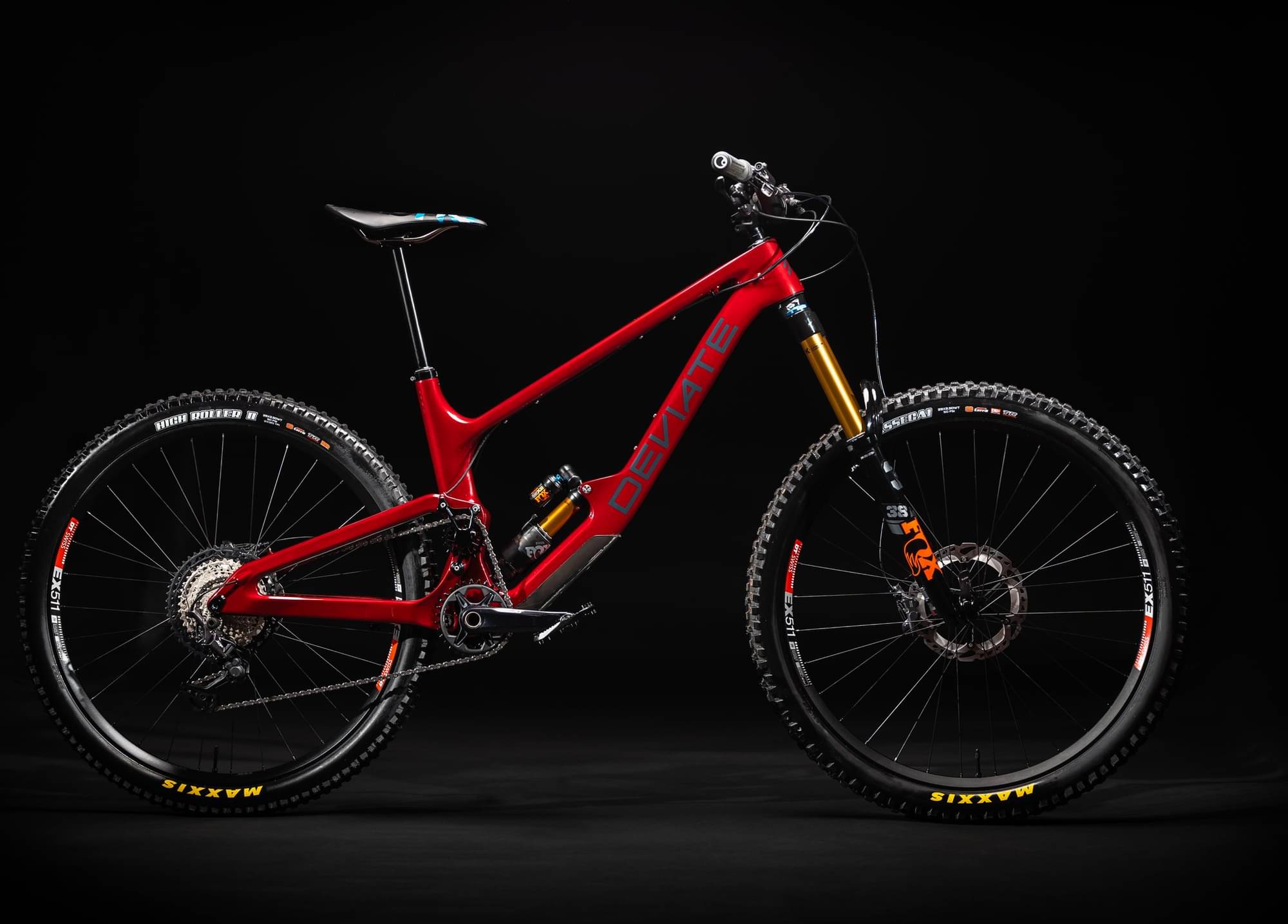

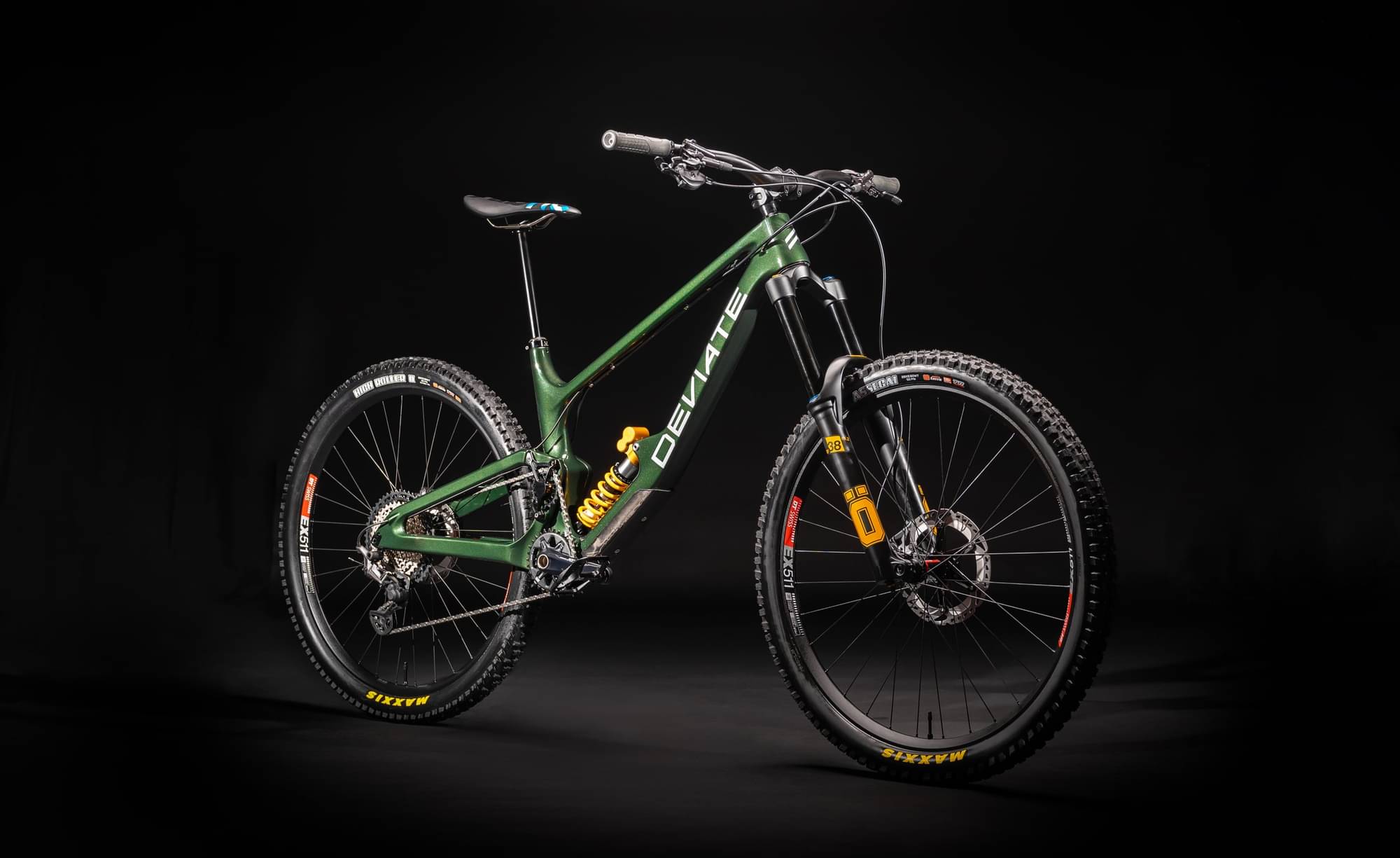

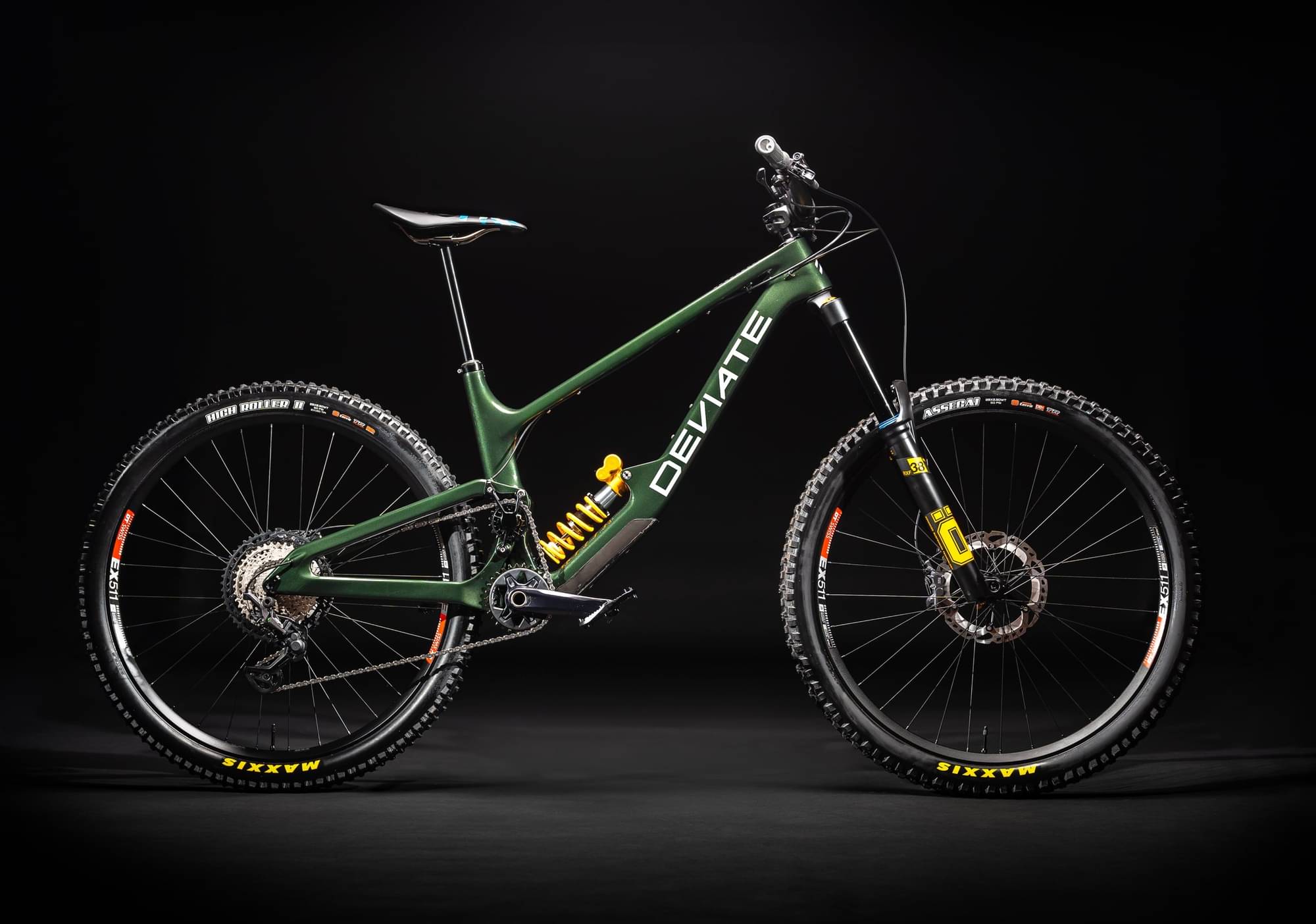

CLAYMORE Frame belongs to the Deviate Claymore model. There are 2 frames that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro frames average price
According to our calculations, the average cost of an Enduro frame that is reliable is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Enduro frames average weight
On a deeper look, we notice that the average weight of an Enduro frame is 3.43 kg (7.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 3.2 kg (7.05 lbs), the CLAYMORE Frame model is a bit lighter than average. In conclusion, the average Enduro frame weighs 7.19% more than CLAYMORE Frame.
Overview of components
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
