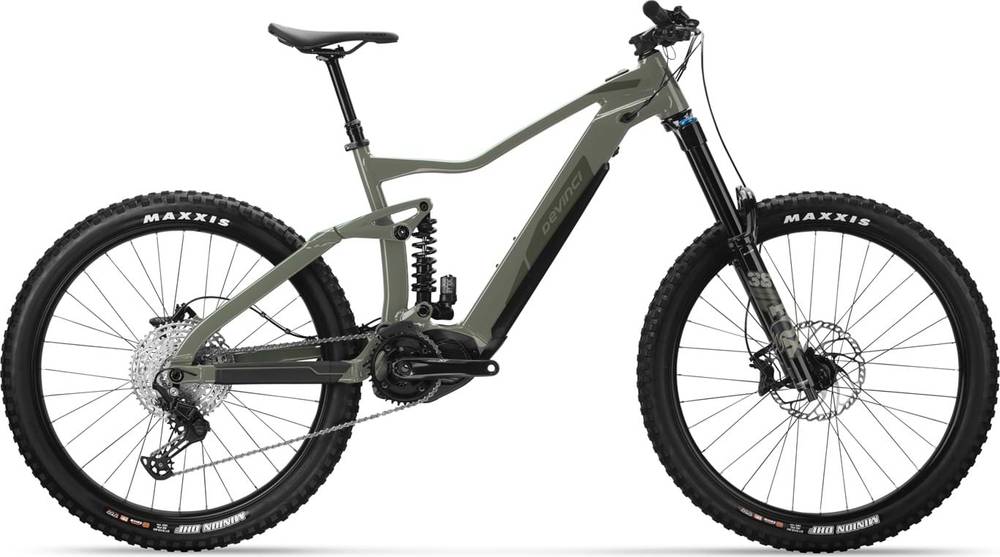

Devinci AC Deore 12S 2021
2021 E-bike
Estimate price |
6,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Performance Float 38
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS E8035 | 504Wh | Lithium-ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 170mm
Suspension Fork
Fox Float 38 Performance E-Bike Grip 180 | 44 Offset
Rear Shock
Fox DHX2 Performance Elite Trunnion | 205x65
Drivetrain
Rear Derailleur
Shimano Deore M6100 | 12s
Shift Levers
Shimano Deore M6100 | 12s
Cassette
Shimano M6100 | 12s | 10-51T | Microspline
Crank
Shimano STEPS SM-CRE80 | 36T
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore M6100 | 12s
Chain Guide
E*thirteen E*Spec PLus | ISCG05
Wheels
Front Hub
Formula DC-711 | Sealed | 6bolts | TA 15x110mm
Rear Hub
Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | Microspline
Rims
V2 Comp | 36mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Minion DHF | 27.5x2.8wt | 3C MaxxTerra EXO+ TR
Brakes
Brakes
Shimano MT520/MT501 | 4 Pistons
Disk Rotors
Shimano RT66 | 203mm
Cockpit
Stem
V2 Pro | B:35mm | L:50mm | 0°
Handlebar
V2 Pro | B:35mm | R:15mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
TranzX Dropper | 31.6mm | 1x Lever
Motor & Battery
Motor
Shimano STEPS EP800 | 250W | 85Nm
Battery
Shimano STEPS E8035 | 504Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.42 mm | 1.35 mm | 1.38 mm | 1.32 mm | 1.34 mm | 1.29 mm | 1.31 mm |
| Bottom Bracket Height | 364 mm | 357.5 mm | 364 mm | 357.5 mm | 364 mm | 357.5 mm | 364 mm | 357.5 mm |
| Stack | 591 mm | 595 mm | 600 mm | 604 mm | 609 mm | 613 mm | 622 mm | 626 mm |
| Reach | 423 mm | 418 mm | 443 mm | 438 mm | 463 mm | 458 mm | 483 mm | 478 mm |
| Top Tube Length | 575 mm | 577 mm | 598 mm | 600 mm | 621 mm | 623 mm | 646 mm | 648 mm |
| Seat Tube Angle | 75.7 ° | 75.2 ° | 75.6 ° | 75.1 ° | 75.6 ° | 75.1 ° | 75.5 ° | 75 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 455 mm | 455 mm | 495 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° | 65.5 ° | 65 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 441 mm | 443 mm | 441 mm | 443 mm | 441 mm | 443 mm | 441 mm | 443 mm |
| Wheelbase | 1195 mm | 1197 mm | 1219 mm | 1221 mm | 1243 mm | 1245 mm | 1270 mm | 1272 mm |
| Bottom Bracket Drop | -9 mm | -2 mm | -9 mm | -2 mm | -9 mm | -2 mm | -9 mm | -2 mm |
| Standover Height | 726 mm | 720 mm | 743 mm | 737 mm | 771 mm | 765 mm | 800 mm | 794 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
About this model
AC Deore 12S is part of the Devinci E Ac model. 8 e-bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 6499$. Doing a quick comparison, we notice that AC Deore 12S price is 35.82% more expensive than the average cost of an Enduro e-bike.
Overview of components
Fork
The AC Deore 12S comes factory-installed with the Fox Performance Float 38 fork. This has a travel range of 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Devinci AC Deore 12S e-bike has the Fox DHX2 Performance Elite Trunnion | 205×65 model installed, and has a travel of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The AC Deore 12S 2021 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
AC Deore 12S comes in 8 sizes, that range from 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
