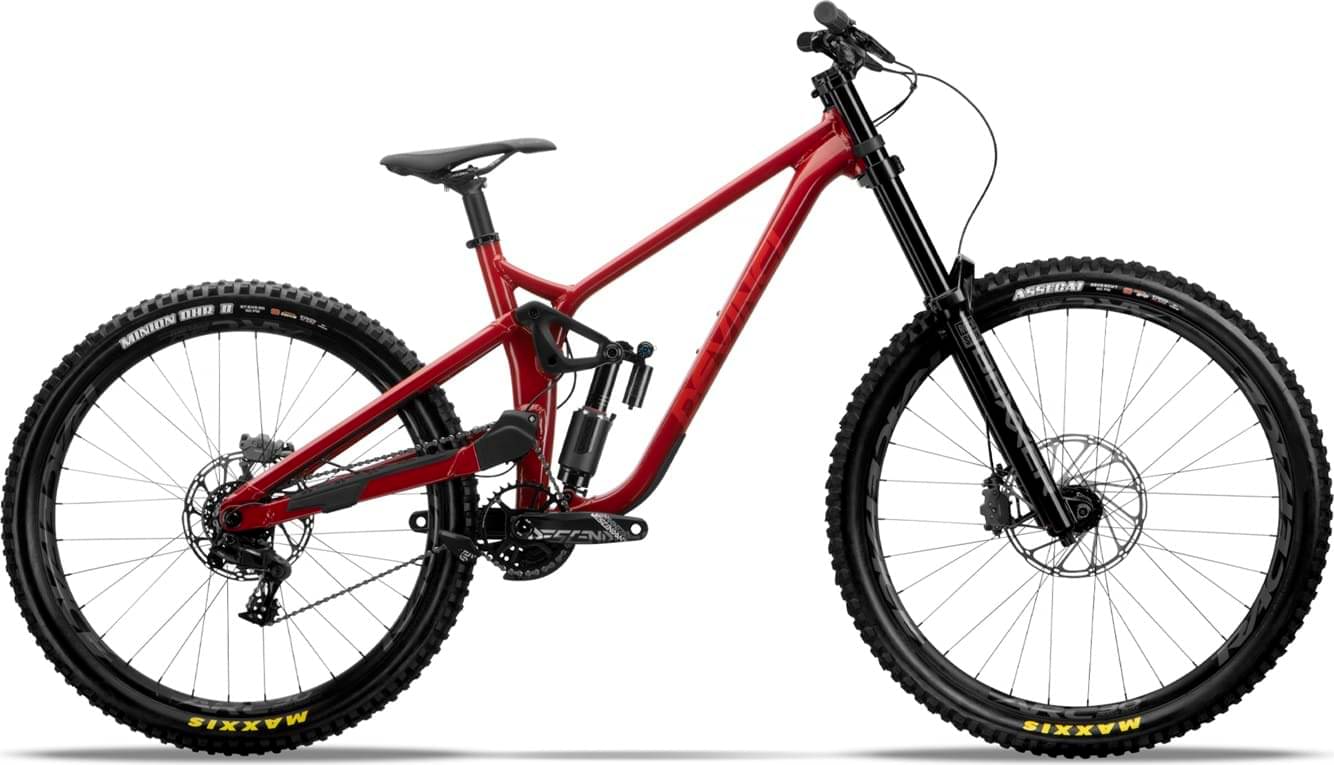

Devinci Chainsaw GX 7s | Air 2025
2025 Mountain
Estimate price |
4,799$
Weight | 17.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 190mm -
Travel Rear 170mm -
Fork RockShox BoXXer
-
Groupset Truvativ Descendant, GX -
Suspension Full -
Drivetrain 1 × 7 -
Brakes SRAM Maven Bronze Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
MD High
168cm - 180cm
LG High
177cm - 189cm
XL High
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 170mm
Suspension Fork
RockShox Boxxer Base RC DebonAir+ |190mm | 52 Offset
Rear Shock
Rockshox Vivid S+ | 225x70
Drivetrain
Rear Derailleur
SRAM GX DH | 7s
Shift Levers
SRAM GX DH | 7s
Cassette
SRAM PG720 | 7s | 11-25T | HG
Crank
Truvativ Descendant Eagle | 34T | SuperBoost157 | 165mm
Bottom Bracket
SRAM DUB | BSA | 73mm
Chain
KMC X11 | 11s
Wheels
Front Hub
Novatec XD641SB-B20 | 6bolts | TA 20x110mm
Rear Hub
RaceFace Vault | 6bolts | TA 12x157mm | HG
Rims
Front: RaceFace ARC30 HeavyDuty 29 | 30mm inner | TR, Rear: RaceFace ARC30 HeavyDuty 27.5 | 30mm inner | TR
Spokes
Stainless 14G w/Nylok
Tires
Front: Maxxis Assegai | 29x2.5WT | 3C | DH | TR | MaxxGrip, Rear: Maxxis Minion DHR II | 27.5x2.5 | 3CT | DH | TR | MaxxTerra
Brakes
Brakes
Front: SRAM Maven Bronze, Rear: SRAM Maven Bronze
Cockpit
Stem
RaceFace Chester 35 | B:35mm | L:50mm | Direct Mount
Handlebar
RaceFace Atlas 35 | B:35mm | R:35mm | W:820mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5E | ZS-1
Seat
Saddle
SDG FLY RL
Seatpost
V2 Comp | 34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | MD High | LG High | XL High |
|---|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.367 mm | 1.315 mm | 1.268 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Stack | 630 mm | 630 mm | 639 mm | 648 mm |
| Reach | 441 mm | 461 mm | 486 mm | 511 mm |
| Top Tube Length | 559 mm | 587 mm | 620 mm | 653 mm |
| Seat Tube Angle | 80.2 ° | 79.6 ° | 79.1 ° | 78.6 ° |
| Seat Tube Length | 405 mm | 435 mm | 450 mm | 470 mm |
| Head Tube Angle | 62.1 ° | 62.1 ° | 62.1 ° | 62.1 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 421 mm | 426 mm | 431 mm | 436 mm |
| Wheelbase | 1234 mm | 1263 mm | 1298 mm | 1333 mm |
| Standover Height | 716 mm | 716 mm | 716 mm | 716 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 177 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 198 cm |
