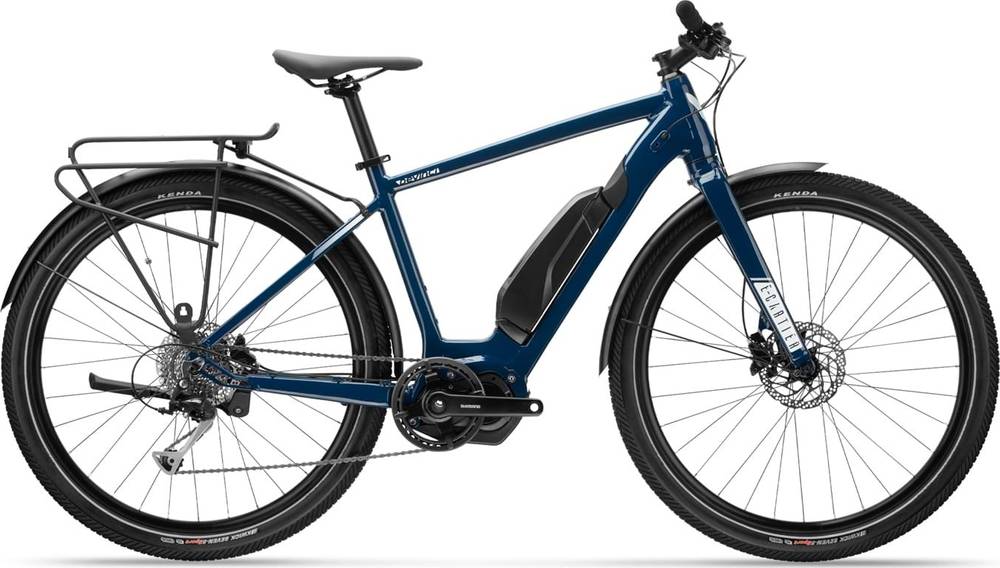

Devinci E-Cartier Alivio 9S 2021
2021 E-bike
Estimate price |
3,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Alivio, Shimano -
Suspension Rigid -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS E8014 | 418Wh | Lithium-ion -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 171cm
MD
169cm - 180cm
LG
178cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum S03
Suspension Fork
Aluminum Optimum S03
Drivetrain
Rear Derailleur
Shimano Alivio T4000 | 9s
Shift Levers
Shimano Alivio M3100 | 9s
Cassette
Shimano HG400 | 9s | 11-32T | SH
Crank
Shimano STEPS SM-CRE61 | 38T
Bottom Bracket
STEPS, press-fit
Chain
Shimano E6070 | 9s
Pedals
Wellgo M085
Wheels
Front Hub
Formula CL-25 | Sealed | Centerlock | QR 9x100mm
Rear Hub
Fma E-hub ECT-135S | Sealed | Centerlock | QR 10x135mm | SH
Rims
V2 Comp | 24mm inner
Spokes
Sapim Stainless 14G w/Nylok
Tires
Kenda KwickSeven-5 | 27.5x2 | SRC
Brakes
Brakes
Shimano MT201/MT200 | 2 Pistons
Disk Rotors
Shimano RT30 | Centerlock | 160mm
Cockpit
Stem
V2 Pro | B:31.8mm | 17°
Handlebar
V2 Comp | B:31.8mm | R:10mm | W:680mm
Grips
Soft Comfort | Single lock
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
Devinci
Seatpost
V2 Comp | 30.9mm
Motor & Battery
Motor
Shimano STEPS E6100 | 250W | 60Nm
Battery
Shimano STEPS E8014 | 418Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.405 mm | 1.409 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm |
| Stack | 558 mm | 583 mm | 606 mm |
| Reach | 400 mm | 415 mm | 430 mm |
| Top Tube Length | 560 mm | 588 mm | 615 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 150 mm | 175 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1052 mm | 1075 mm | 1099 mm |
| Standover Height | 700 | 740 mm | 776 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 169 cm | 178 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm |
About this model
E-Cartier Alivio 9S is a Devinci E E Cartier model. Devinci launched 8 e-bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 3099$. In conclusion, this e-bike price is 20.63% higher than the price of the average Commuter e-bike.
E-Cartier Alivio 9S components
Fork material
E-Cartier Alivio 9S has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the E-Cartier Alivio 9S model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci E-Cartier Alivio 9S has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
E-Cartier Alivio 9S comes in 3 sizes, that range from 152 cm – 187 cm (4.99 ft – 6.14 ft). In short, you can easily find one that suits you.
