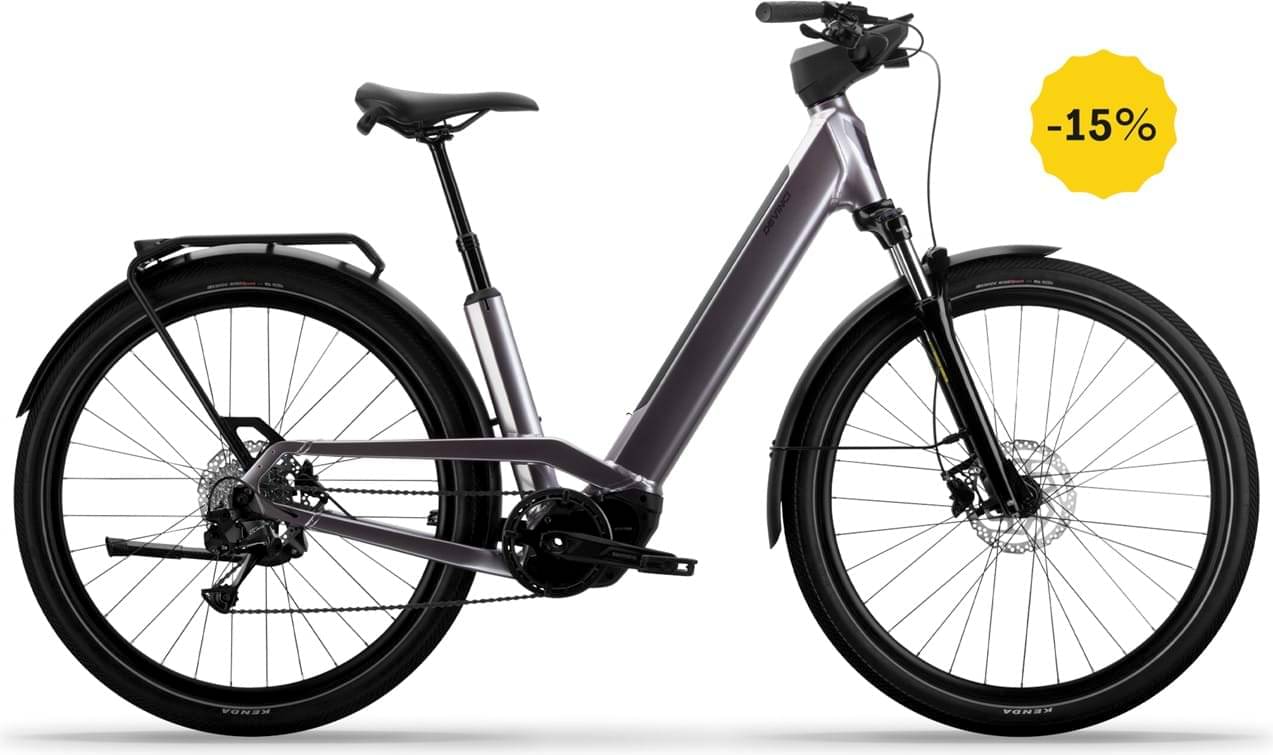

Devinci E-Griffin ST EP6 11s 2024
2024 E-bike
Estimate price |
3,799$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery BMZ Gen2 540Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
152cm - 174cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum S03
Suspension Fork
Suntour NVX30 NLO | 80mm PM direct 160mm
Drivetrain
Rear Derailleur
Shimano Deore M4120 | 10/11s
Shift Levers
Shimano Deore M5100 | 11s
Cassette
Shimano SLX 11s 11-40T
Crank
Shimano E-BIKE SYSTEMS CRET600 | 38T Single chain guard
Chain
Shimano HG601 | 11s
Pedals
Wellgo C211DU
Wheels
Front Hub
Formula Disc sealed
Rear Hub
Formula EHL-135S | Sealed | 6bolts | 10x135mm | HG
Rims
Front: V2 Comp | 23mm inner, Rear: V2 Comp | 23mm inner
Spokes
Stainless 14G
Tires
Front: Kenda KwickNine | 29x2.2 | KS, Rear: Kenda KwickNine | 29x2.2 | KS
Brakes
Brakes
Front: Shimano Deore M4100/MT410 | 2 Pistons, Rear: Shimano Deore M4100/MT410 | 2 Pistons
Cockpit
Stem
TranzX I-Alloy | B:31.8mm | 70mm | 7°
Handlebar
V2 Comp | 640mm | 48mm rise | 40° backsweep
Grips
Velo Ergo Comfort
Headset
FSA Custom
Seat
Saddle
Devinci
Seatpost
TranzX Dropper 31.6mm 1xLever
Motor & Battery
Motor
Shimano E-BIKE SYSTEMS EP600 | 250W | 85Nm
Battery
BMZ Gen2 540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.617 mm |
| Bottom Bracket Height | 295 mm |
| Stack | 671 mm |
| Reach | 415 mm |
| Top Tube Length | 621 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 400 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 170 mm |
| Chainstay Length | 480 mm |
| Wheelbase | 1181 mm |
| Standover Height | 455 mm |
| Wheels | 29" |
| Rider Min Height | 152 cm |
| Rider Max Height | 174 cm |
