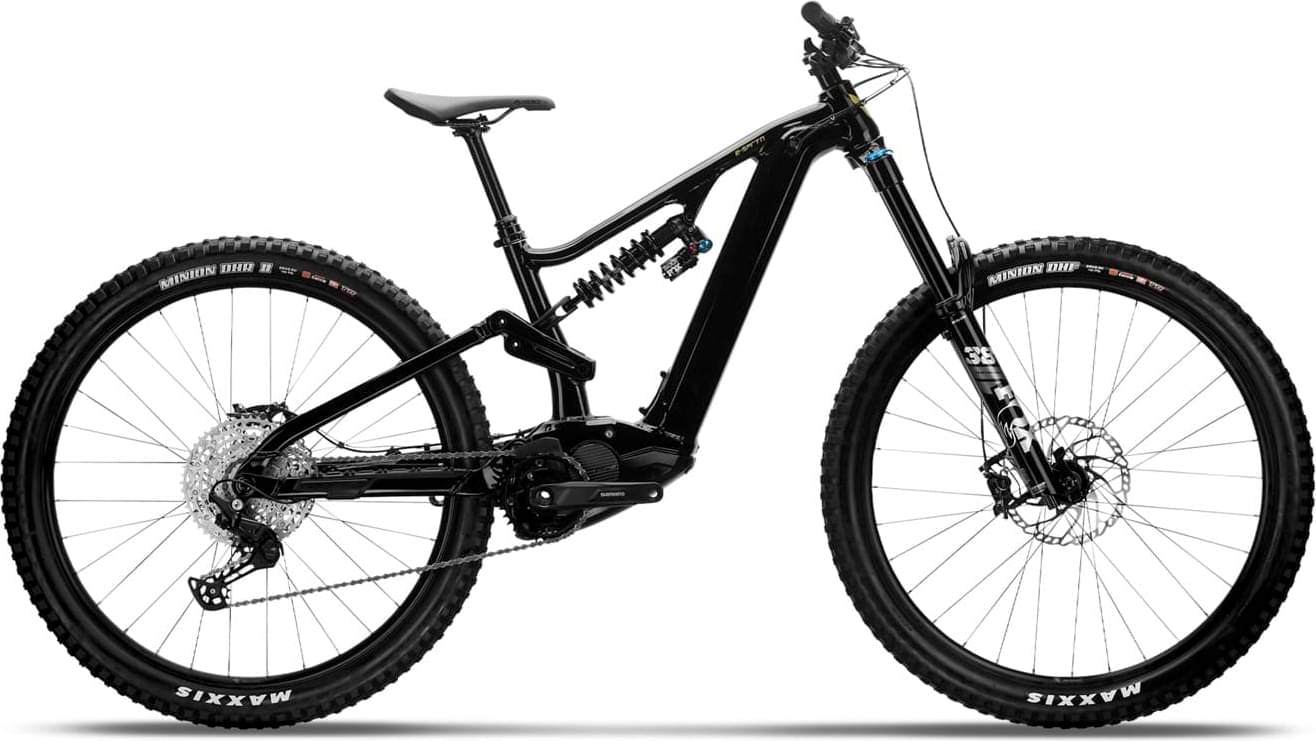

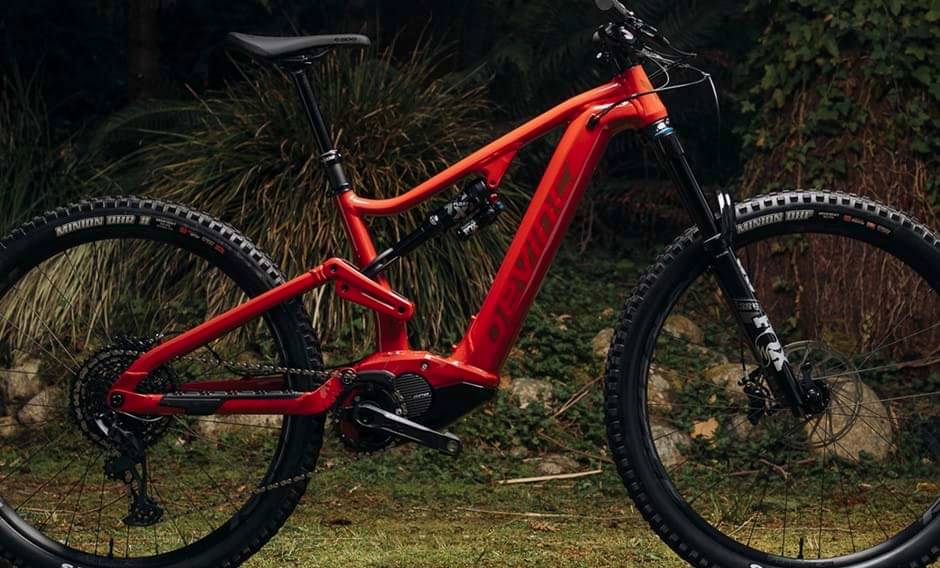

Devinci E-Spartan Deore 12S 2023
2023 E-bike
Estimate price |
6,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Performance Float 38
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery BMZ 725WH -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
160cm - 171cm
MD Low
168cm - 180cm
LG Low
177cm - 189cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 170mm
Suspension Fork
Fox 38 Performance E-Bike Grip 180 | 44 Offset
Rear Shock
Fox DHX2 Performance Elite | 230x65
Drivetrain
Rear Derailleur
Shimano Deore M6100 | 12s
Shift Levers
Shimano Deore M6100 | 12s
Cassette
Shimano Deore M6100 | 12s | 10-51T | Microspline
Crank
Shimano SM-CRE80 34T
Chain
Shimano Deore M6100 | 12s
Chain Guide
E*thirteen E*Spec PLus | ISCG05
Wheels
Front Hub
Formula DC-711 | Sealed | 6bolts | TA 15x110mm
Rear Hub
Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | Microspline
Rims
V2 Comp | 29mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR, Rear: Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR
Brakes
Brakes
Front: Shimano XT M8120/M8100 | 4 Pistons, Rear: Shimano XT M8120/M8100 | 4 Pistons
Cockpit
Stem
V2 Pro | B:35mm | L:40mm | 0°
Handlebar
V2 Pro | B:35mm | R:25mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA SX Pro | 1.5
Seat
Saddle
SDG BELAIR Max eMTB
Seatpost
TranzX | 34.9mm | 1x Lever
Motor & Battery
Motor
Shimano STEPS EP800 | 250W | 85Nm
Battery
BMZ 725WH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | MD Low | LG Low | XL Low |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.378 mm | 1.326 mm | 1.291 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm | 354 mm |
| Stack | 625 mm | 634 mm | 643 mm | 652 mm |
| Reach | 440 mm | 460 mm | 485 mm | 505 mm |
| Top Tube Length | 581 mm | 604 mm | 633 mm | 656 mm |
| Seat Tube Angle | 77.3 ° | 77.2 ° | 77.1 ° | 77 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 485 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1236 mm | 1260 mm | 1290 mm | 1314 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 733 mm | 745 mm | 763 mm | 785 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 177 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 198 cm |
About this model
E-Spartan Deore 12S is part of the Devinci E E Spartan model. 3 e-bikes variations carry this model name so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Devinci released this model in 2023, its price was 6999$. Doing a quick comparison, we notice that E-Spartan Deore 12S price is 46.27% higher than the average cost of an Enduro e-bike.
E-Spartan Deore 12S components
Fork
The fork installed on this bike is the Fox Performance Float 38 model. The travel on this model is 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Devinci E-Spartan Deore 12S e-bike has the Fox DHX2 Performance Elite | 230×65 model installed, and has a travel of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the E-Spartan Deore 12S model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Spartan Deore 12S has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Devinci E-Spartan Deore 12S comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
