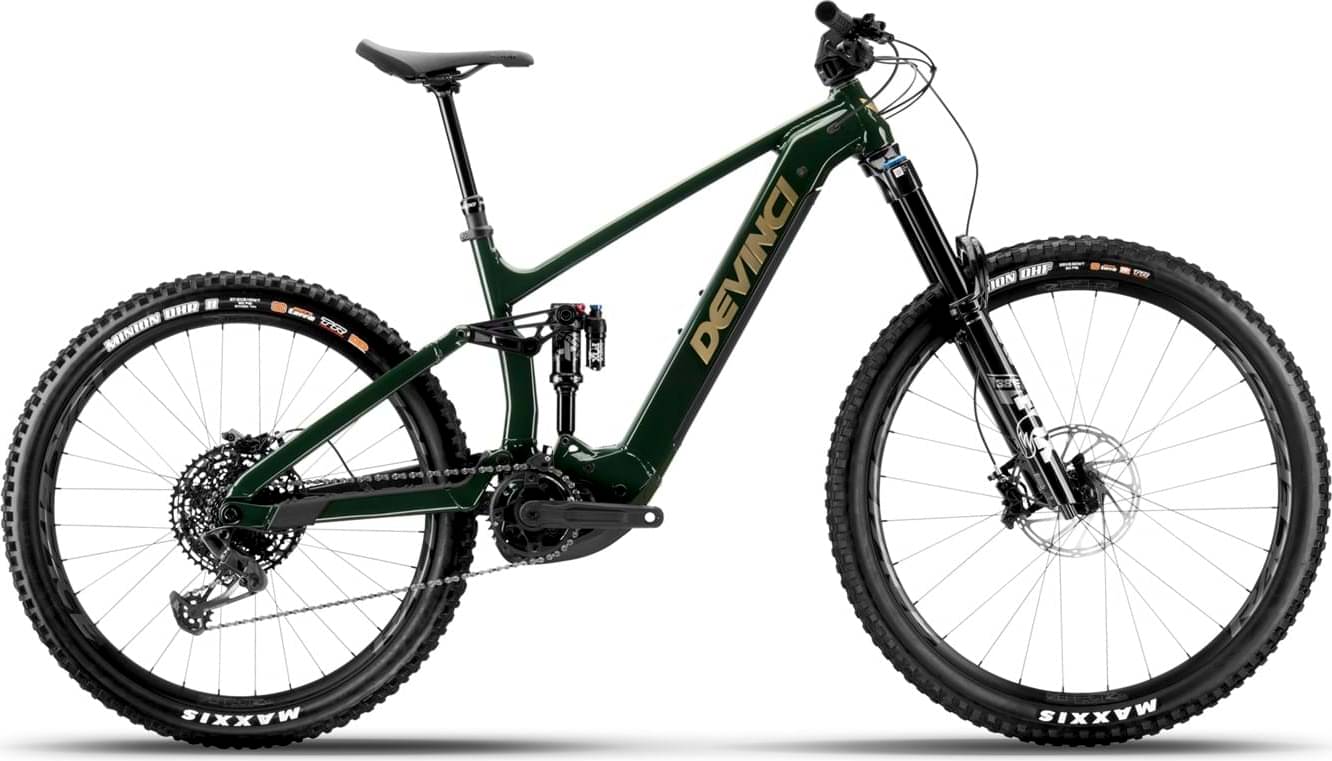

Devinci E-Troy GX 12S 2025
2025 E-bike
Estimate price |
7,299$
Weight | 24.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 38
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery BOSCH PowerTube | 625Wh -
Drivetrain 1 × 12 -
Brakes SRAM Code R Hydraulic Disc
Sizing
Recommended size guide.
SM Low
160cm - 171cm
MD Low
168cm - 180cm
LG Low
177cm - 189cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 150mm
Suspension Fork
Fox 38 Performance Elite E-Tuned Grip2 160 | 51 Offset
Rear Shock
Fox Float X Performance Elite Evol LV | 0.4VSpacer| 185x55T
Drivetrain
Rear Derailleur
SRAM GX Eagle | 12s
Shift Levers
SRAM GX Eagle 12s Single Click
Cassette
SRAM PG1230 | 12s | 11-50T | HG
Crank
SRAM X-Sync Eagle 34T EMTB
Chain
SRAM GX Eagle | 12s
Chain Guide
GN4 Mini Guide
Wheels
Rims
Front: RaceFace Aeffect R30 29 Boost110x15 | 30mm inner, Rear: RaceFace Aeffect R30 27.5 B148x12 HG | 30mm inner EMTB
Tires
Front: Maxxis Minion DHF | 29x2.5WT | 3C | Exo+ | TR | MaxxTerra, Rear: Maxxis Minion DHR II 27.5x2.4" 3C Compound, TR, DD
Brakes
Brakes
Front: SRAM Code R | 4 Pistons, Rear: SRAM Code R | 4 Pistons
Cockpit
Stem
V2 Pro E | B:35mm | L:40mm | 0°
Handlebar
V2 Pro E | B:35mm | R:15mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR Max eMTB
Seatpost
SDG Tellis 31.6mm
Motor & Battery
Motor
BOSCH Performance Line CX | 85Nm
Battery
BOSCH PowerTube | 625Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | MD Low | LG Low | XL Low |
|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.323 mm | 1.287 mm | 1.253 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Stack | 615 mm | 615 mm | 624 mm | 633 mm |
| Reach | 445 mm | 465 mm | 485 mm | 505 mm |
| Top Tube Length | 570 mm | 590 mm | 612 mm | 635 mm |
| Seat Tube Angle | 78.5 ° | 78.5 ° | 78.5 ° | 78.4 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 495 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1225 mm | 1245 mm | 1270 mm | 1294 mm |
| Standover Height | 740 mm | 740 mm | 740 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 177 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 198 cm |
