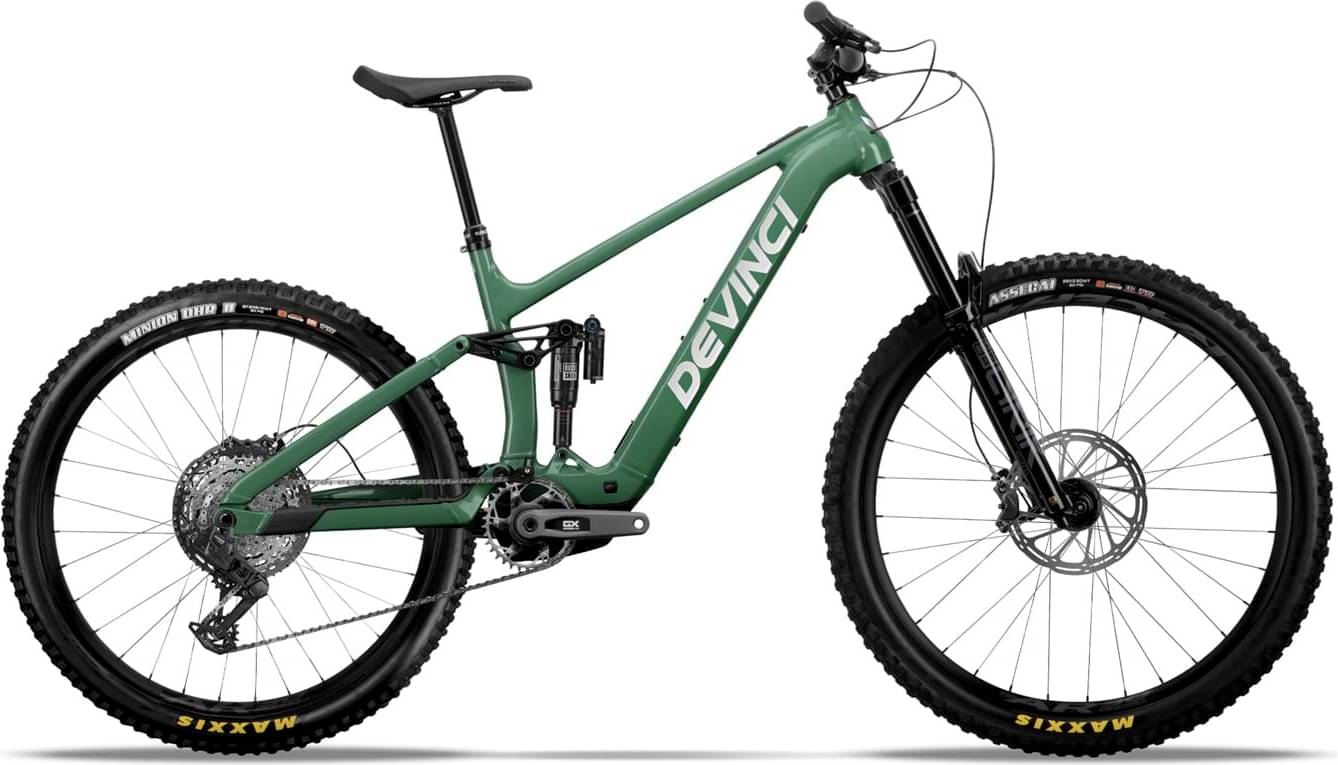

Devinci E-TROY LITE S1000 AXS 12s 2025
2025 E-bike
Estimate price |
7,199$
Weight | 20.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Rear 150mm -
Fork RockShox Lyrik Select+ -
Groupset XX, Eagle AXS -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTube 400 | 36V | 400 Wh -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM Low
160cm - 171cm
MD Low
168cm - 180cm
LG Low
177cm - 189cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 150mm
Suspension Fork
RockShox Lyrik Select+ | Charger3.1 |RC2 | DB|160 | 44Offset
Rear Shock
Rockshox Super Deluxe Ultimate | 185x55 Trunnion
Drivetrain
Rear Derailleur
SRAM S1000 Eagle AXS | T-Type | 12s
Shift Levers
SRAM AXS POD | 12s
Cassette
SRAM XS1270 T-TYPE | 12s | 10-52T
Crank
SRAM XX Eagle 34T Bosch EMTB
Bottom Bracket
Bosch, press-fit
Chain
SRAM Eagle 70
Wheels
Front Hub
Dtswiss 370 Classic | 15x110 Boost | 6bolts | 32H
Rear Hub
Dt Swiss 370 Classic | 12x148 Boost
Rims
Front: RaceFace AR30 29 | 30mm inner | TR, Rear: RaceFace AR30 27.5 | 30mm inner
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: Maxxis Assegai | 29x2.5WT | 3C | Exo+ | TR | MaxxTerra, Rear: Maxxis Minion DHR II | 27.5x2.5 | 3C | EXO+ | TR | MaxxTerra
Brakes
Brakes
Front: SRAM Code Bronze, Rear: SRAM Code Bronze
Cockpit
Stem
V2 Pro | B:35mm | L:40mm | 0°
Handlebar
RaceFace Turbine R35 | B:35mm | W:800mm
Grips
Devinci | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR Max eMTB
Seatpost
SDG Tellis 31.6mm
Motor & Battery
Motor
Bosch Performance Line SX | 55NM | 600W
Battery
Bosch CompactTube 400 | 36V | 400 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | MD Low | LG Low | XL Low |
|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.338 mm | 1.301 mm | 1.267 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 608 mm | 617 mm | 626 mm | 635 mm |
| Reach | 441 mm | 461 mm | 481 mm | 501 mm |
| Top Tube Length | 572 mm | 594 mm | 618 mm | 641 mm |
| Seat Tube Angle | 77.9 ° | 77.8 ° | 77.6 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 495 mm |
| Head Tube Angle | 63.6 ° | 63.6 ° | 63.6 ° | 63.6 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1216 mm | 1240 mm | 1264 mm | 1289 mm |
| Standover Height | 740 mm | 740 mm | 740 mm | 740 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 177 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 198 cm |
