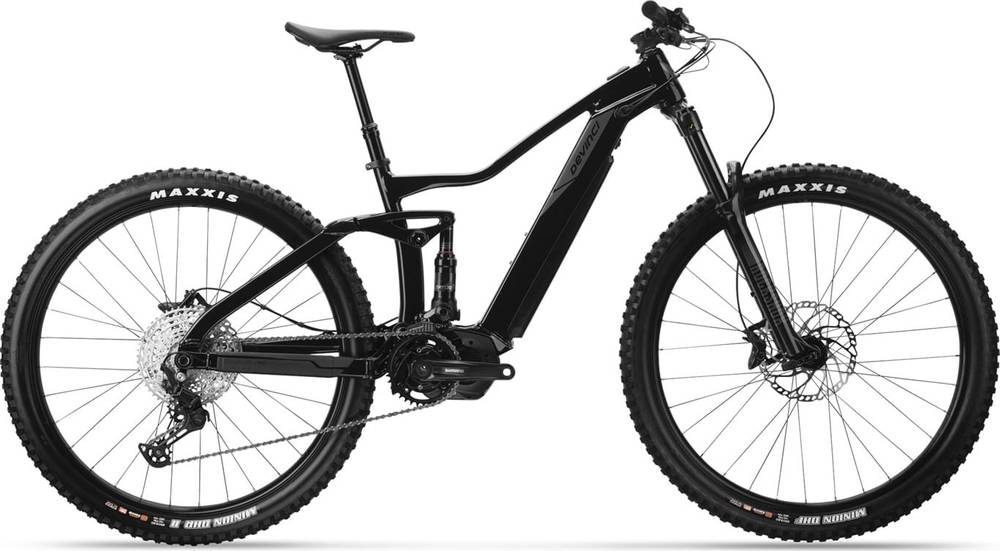

Devinci EP Deore 12S 2021
2021 E-bike
Estimate price |
5,649$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS E8035 | 504Wh | Lithium-ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 130mm
Suspension Fork
RockShox 35 Silver TK Solo Air 140 | 0T | 44 Offset
Rear Shock
Rockshox Deluxe Select R Debonair Trunnion | 185x47.5
Drivetrain
Rear Derailleur
Shimano Deore M6100 | 12s
Shift Levers
Shimano Deore M6100 | 12s
Cassette
Shimano M6100 | 12s | 10-51T | Microspline
Crank
Shimano STEPS CRE70 | 36T
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore M6100 | 12s
Chain Guide
E*thirteen TRS | ISCG05
Wheels
Front Hub
Formula DC-711 | Sealed | 6bolts | TA 15x110mm
Rear Hub
Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | Microspline
Rims
V2 Comp | 36mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Minion DHF | 29x2.6wt | 3C MaxxTerra Exo+ TR
Brakes
Brakes
Shimano MT520/MT501 | 4 Pistons
Disk Rotors
Shimano RT66 | 203mm
Cockpit
Stem
V2 Pro | B:35mm | L:50mm | 0°
Handlebar
V2 Pro | B:35mm | R:15mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
TranzX Dropper | 31.6mm | 1x Lever
Motor & Battery
Motor
Shimano STEPS E7000 | 250W | 60Nm
Battery
Shimano STEPS E8035 | 504Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.34 mm | 1.36 mm | 1.3 mm | 1.32 mm | 1.26 mm | 1.29 mm |
| Bottom Bracket Height | 351 mm | 345 mm | 351 mm | 345 mm | 351 mm | 345 mm | 351 mm | 345 mm |
| Stack | 606 mm | 610 mm | 606 mm | 610 mm | 615 mm | 619 mm | 624 mm | 628 mm |
| Reach | 433 mm | 428 mm | 453 mm | 448 mm | 473 mm | 468 mm | 494 mm | 488 mm |
| Top Tube Length | 575 mm | 576 mm | 595 mm | 596 mm | 618 mm | 619 mm | 640 mm | 642 mm |
| Seat Tube Angle | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 76.9 ° | 76.4 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 455 mm | 455 mm | 495 mm | 495 mm |
| Head Tube Angle | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 462 mm | 463 mm | 462 mm | 463 mm | 462 mm | 463 mm | 462 mm | 463 mm |
| Wheelbase | 1198 mm | 1199 mm | 1218 mm | 1219 mm | 1242 mm | 1243 mm | 1266 mm | 1267 mm |
| Bottom Bracket Drop | 23 mm | 29 mm | 23 mm | 29 mm | 23 mm | 29 mm | 23 mm | 29 mm |
| Standover Height | 738 mm | 733 mm | 745 mm | 740 mm | 769 mm | 763 mm | 796 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
Model Overview
EP Deore 12S is a Devinci E Ep model. 5 e-bikes variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2021 and its price was 5649$. Doing a quick comparison, we notice that EP Deore 12S price is 67.88% higher than the average cost of a Trail e-bike.
Overview of components
Fork
This e-bike has the RockShox 35 Silver fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Devinci EP Deore 12S e-bike has the Rockshox Deluxe Select R Debonair Trunnion | 185×47.5 model installed, and has a travel of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Devinci EP Deore 12S 2021, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Devinci EP Deore 12S is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Devinci EP Deore 12S includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
