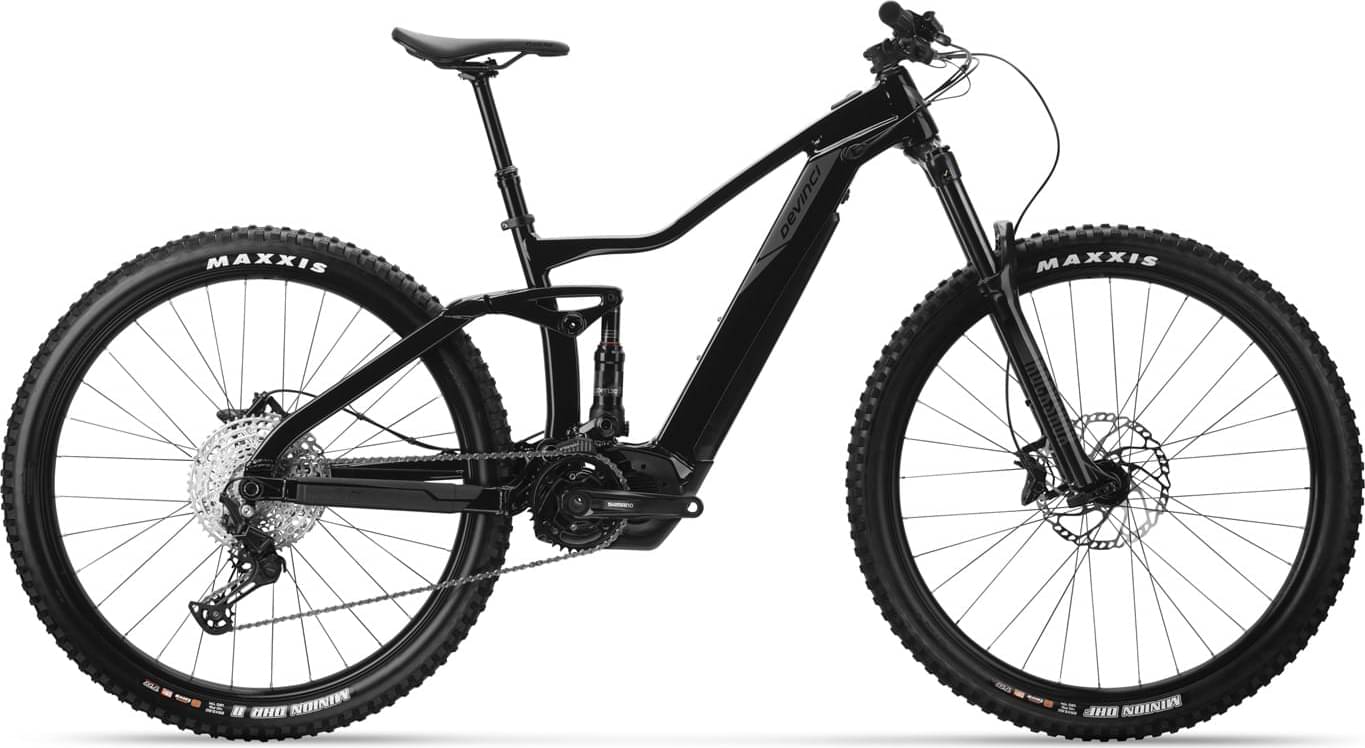

Devinci EP Deore 12S 2022
2022 E-bike
Estimate price |
5,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS E8035 | 504Wh | Lithium-ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 130mm
Suspension Fork
RockShox 35 Silver TK Solo Air 140 | 0T | 44 Offset
Rear Shock
Rockshox Deluxe Select R Debonair Trunnion | 185x47.5
Drivetrain
Rear Derailleur
Shimano Deore M6100 | 12s
Shift Levers
Shimano Deore M6100 | 12s
Cassette
Sunrace 12s | 11-51T
Crank
Shimano STEPS CRE70 | 36T
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore M6100 | 12s
Chain Guide
E*thirteen TRS | ISCG05
Wheels
Front Hub
Formula DC-711 | Sealed | 6bolts | TA 15x110mm
Rear Hub
Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | HG
Rims
V2 Comp | 36mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Minion DHF | 29x2.6wt | 3C MaxxTerra Exo+ TR
Brakes
Brakes
Magura MT30 | 4 Pistons
Disk Rotors
Magura Storm HC | 203mm
Cockpit
Stem
V2 Pro | B:35mm | L:50mm | 0°
Handlebar
V2 Pro | B:35mm | R:15mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
TranzX Dropper | 31.6mm | 1x Lever
Motor & Battery
Motor
Shimano STEPS E7000 | 250W | 60Nm
Battery
Shimano STEPS E8035 | 504Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.34 mm | 1.36 mm | 1.3 mm | 1.32 mm | 1.26 mm | 1.29 mm |
| Bottom Bracket Height | 351 mm | 345 mm | 351 mm | 345 mm | 351 mm | 345 mm | 351 mm | 345 mm |
| Stack | 606 mm | 610 mm | 606 mm | 610 mm | 615 mm | 619 mm | 624 mm | 628 mm |
| Reach | 433 mm | 428 mm | 453 mm | 448 mm | 473 mm | 468 mm | 494 mm | 488 mm |
| Top Tube Length | 575 mm | 576 mm | 595 mm | 596 mm | 618 mm | 619 mm | 640 mm | 642 mm |
| Seat Tube Angle | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 76.9 ° | 76.4 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 455 mm | 455 mm | 495 mm | 495 mm |
| Head Tube Angle | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 462 mm | 463 mm | 462 mm | 463 mm | 462 mm | 463 mm | 462 mm | 463 mm |
| Wheelbase | 1198 mm | 1199 mm | 1218 mm | 1219 mm | 1242 mm | 1243 mm | 1266 mm | 1267 mm |
| Bottom Bracket Drop | 23 mm | 29 mm | 23 mm | 29 mm | 23 mm | 29 mm | 23 mm | 29 mm |
| Standover Height | 738 mm | 733 mm | 745 mm | 740 mm | 769 mm | 763 mm | 796 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
About this model
EP Deore 12S is part of the Devinci E Ep model. Devinci released 5 e-bikes variations of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Devinci released this model in 2022, its price was 5999$. If we compare this with the average Trail e-bike cost we notice that the price is 78.28% higher.
Overview of components
Fork
The EP Deore 12S comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is Rockshox Deluxe Select R Debonair Trunnion | 185×47.5, with a travel distance of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Devinci EP Deore 12S 2022, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The EP Deore 12S has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 160 cm – 198 cm (5.25 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Devinci EP Deore 12S includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
