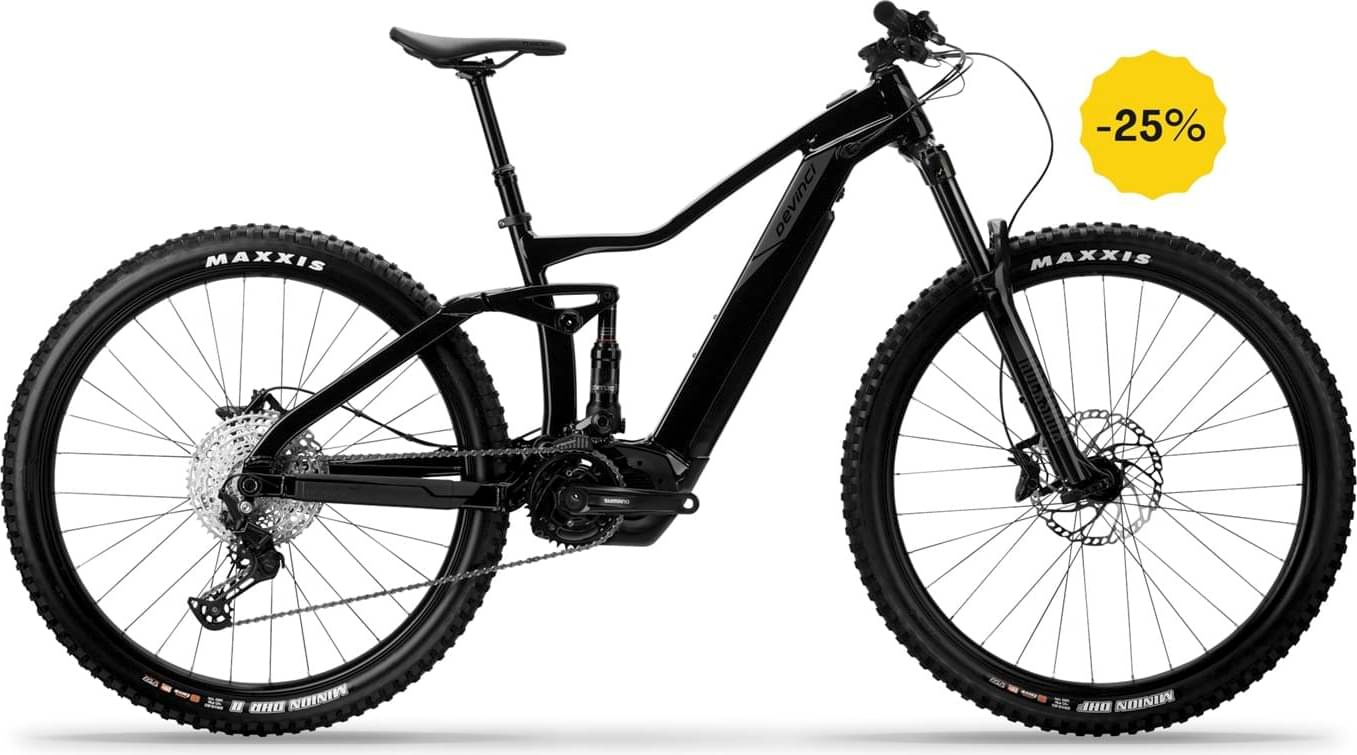

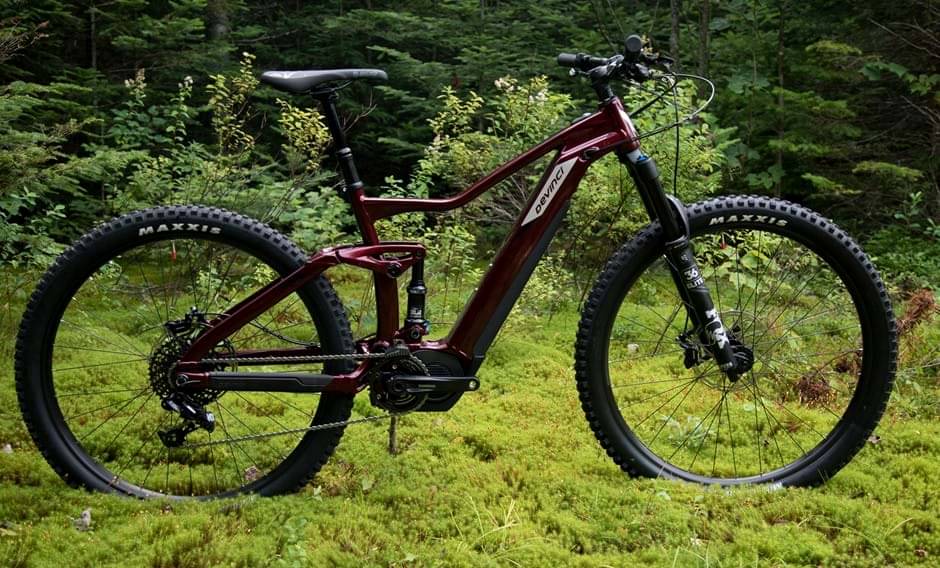

Devinci EP Deore 12S 2024
2024 E-bike
Estimate price |
5,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox 35 Silver
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano STEPS E8035 | 504Wh | Lithium-ion -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 130mm
Suspension Fork
RockShox 35 Silver TK Solo Air 140 | 0T | 44 Offset
Rear Shock
Rockshox Deluxe Select R Debonair Trunnion | 185x47.5
Drivetrain
Rear Derailleur
Shimano Deore M6100 | 12s
Shift Levers
Shimano Deore M6100 | 12s
Cassette
Sunrace 12s | 11-51T
Crank
Shimano STEPS CRE70 | 36T
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore M6100 | 12s
Chain Guide
E*thirteen TRS | ISCG05
Wheels
Front Hub
Formula DC-711 | Sealed | 6bolts | TA 15x110mm
Rear Hub
Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | HG
Rims
V2 Comp | 36mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: Maxxis Minion DHF | 29x2.6wt | 3C MaxxTerra Exo+ TR, Rear: Maxxis Minion DHF | 29x2.6wt | 3C MaxxTerra Exo+ TR
Brakes
Brakes
Front: Magura MT30 | 4 Pistons, Rear: Magura MT30 | 4 Pistons
Cockpit
Stem
V2 Pro | B:35mm | L:50mm | 0°
Handlebar
V2 Pro | B:35mm | R:15mm | W:780mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
TranzX Dropper | 31.6mm | 1x Lever
Motor & Battery
Motor
Shimano STEPS E7000 | 250W | 60Nm
Battery
Shimano STEPS E8035 | 504Wh | Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.43 mm | 1.34 mm | 1.36 mm | 1.3 mm | 1.32 mm | 1.26 mm | 1.29 mm |
| Bottom Bracket Height | 351 mm | 345 mm | 351 mm | 345 mm | 351 mm | 345 mm | 351 mm | 345 mm |
| Stack | 606 mm | 610 mm | 606 mm | 610 mm | 615 mm | 619 mm | 624 mm | 628 mm |
| Reach | 433 mm | 428 mm | 453 mm | 448 mm | 473 mm | 468 mm | 494 mm | 488 mm |
| Top Tube Length | 575 mm | 576 mm | 595 mm | 596 mm | 618 mm | 619 mm | 640 mm | 642 mm |
| Seat Tube Angle | 77 ° | 76.5 ° | 77 ° | 76.5 ° | 76.9 ° | 76.4 ° | 76.9 ° | 76.4 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 455 mm | 455 mm | 495 mm | 495 mm |
| Head Tube Angle | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° | 67 ° | 66.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 462 mm | 463 mm | 462 mm | 463 mm | 462 mm | 463 mm | 462 mm | 463 mm |
| Wheelbase | 1198 mm | 1199 mm | 1218 mm | 1219 mm | 1242 mm | 1243 mm | 1266 mm | 1267 mm |
| Bottom Bracket Drop | 23 mm | 29 mm | 23 mm | 29 mm | 23 mm | 29 mm | 23 mm | 29 mm |
| Standover Height | 738 mm | 733 mm | 745 mm | 740 mm | 769 mm | 763 mm | 796 mm | 790 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
Model Overview
EP Deore 12S completes the Devinci E Ep model. Devinci launched 5 e-bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5999$. If we compare this with the average Trail e-bike cost we notice that the price is 78.28% higher.
EP Deore 12S components
Fork
The fork installed on this bike is the RockShox 35 Silver model. The travel on this model is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is Rockshox Deluxe Select R Debonair Trunnion | 185×47.5, with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The EP Deore 12S 2024 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci EP Deore 12S has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 160 cm – 198 cm (5.25 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Devinci model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
