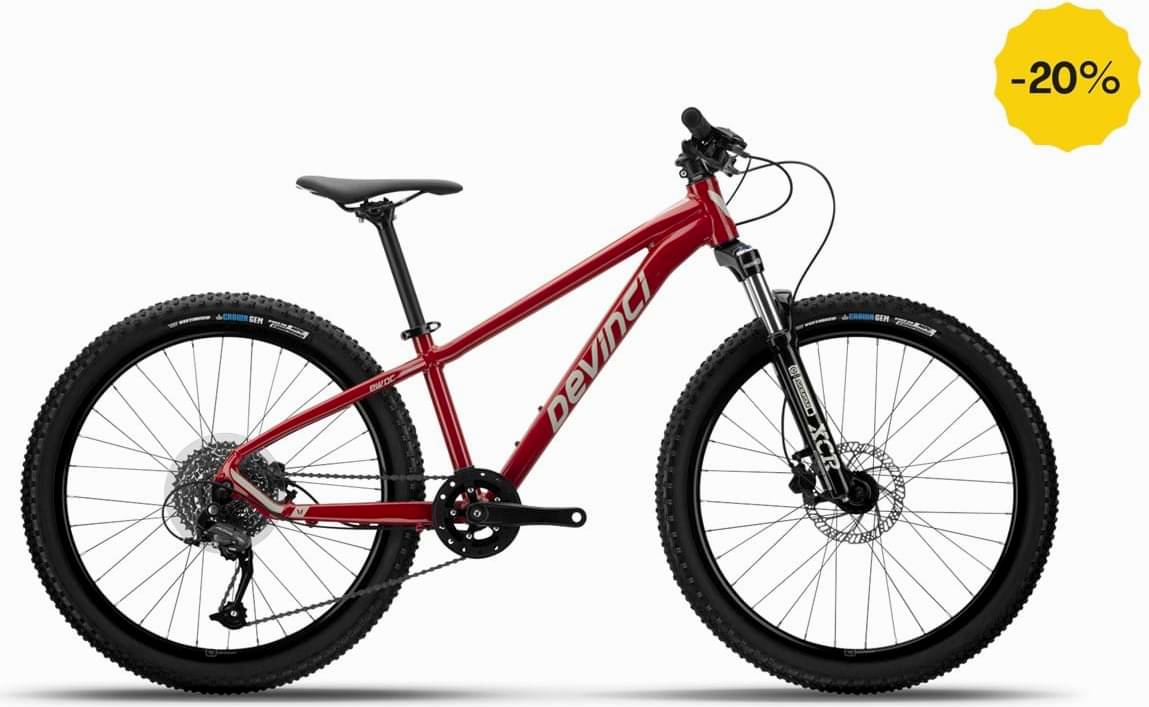

Devinci Ewoc 24” 8S LTD 2024
2024 Youth
Estimate price |
687$
Weight | 11.86 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCR Air
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
124cm - 152cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G02
Suspension Fork
SR Suntour XCR Air LO-DS | 80mm
Drivetrain
Rear Derailleur
Shimano Altus M370 | 8s
Shift Levers
Shimano M315 | 8s
Cassette
Sunrace | 8s | 11-40T
Crank
Alloy | 28T Narrow Wide
Chain
KMC Z | 8s
Chain Guide
CD-04D
Pedals
Wellgo LU937
Wheels
Front Hub
Formula Disc | QR 9x100mm
Rear Hub
Formula Disc | QR 10x135mm
Rims
Front: V2 Comp db | 21mm inner, Rear: V2 Comp db | 21mm inner
Spokes
Stainless 14G
Tires
VeeTire CrownGem | 24x2.25
Brakes
Brakes
Front: Tektro HD-M285 | Hydraulic, Rear: Tektro HD-M285 | Hydraulic
Cockpit
Stem
V2 Comp | B:31.8mm | 0°
Handlebar
V2 Comp | 31.8mm | R:10mm | W:680mm
Grips
Kraton
Headset
CH-9280 | Zero Stack
Seat
Saddle
Devinci
Seatpost
Devinci | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.509 mm |
| Bottom Bracket Height | 278 mm |
| Stack | 516 mm |
| Reach | 342 mm |
| Top Tube Length | 510 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 300 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 380 mm |
| Wheelbase | 963 mm |
| Standover Height | 613 mm |
| Wheels | 24" |
| Rider Min Height | 124 cm |
| Rider Max Height | 152 cm |
