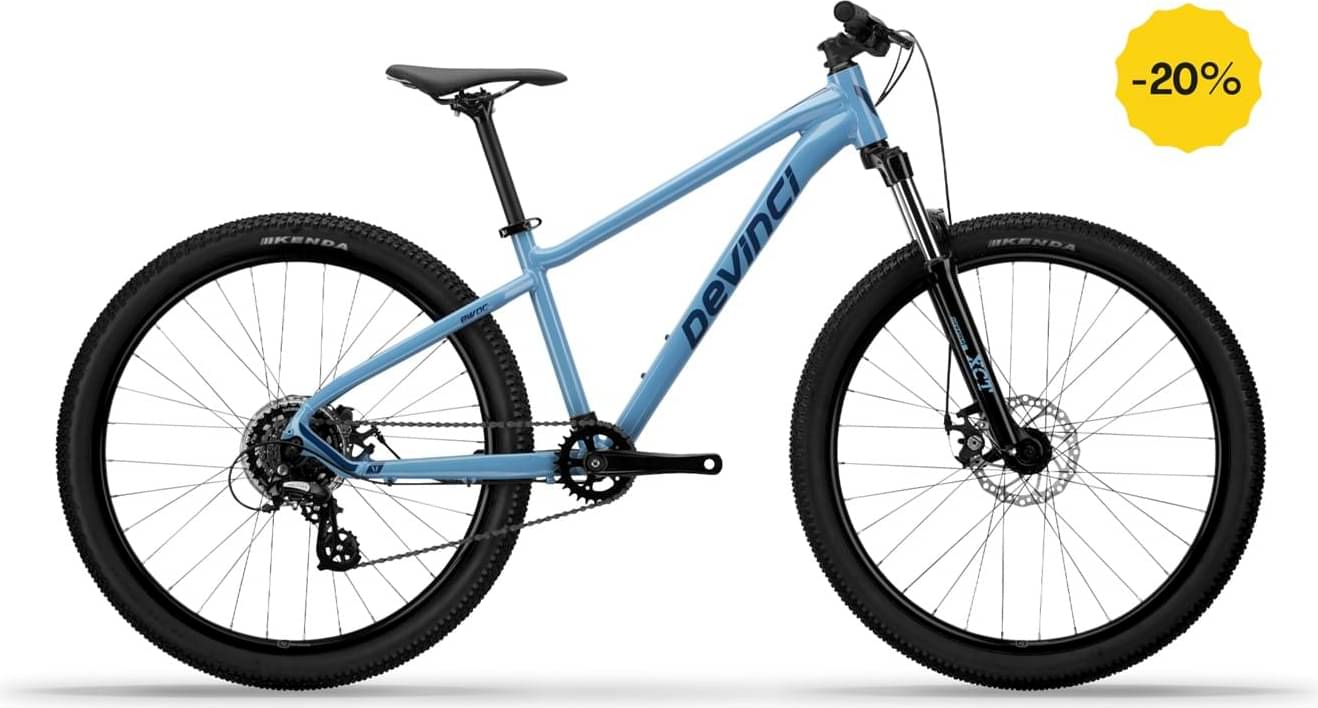

Devinci Ewoc 26” 7S 2024
2024 Youth
Estimate price |
615$
Weight | 14.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
137cm - 150cm
SM
147cm - 160cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G02
Suspension Fork
SR Suntour XCT-DS | 100mm
Drivetrain
Rear Derailleur
Shimano Altus M310 | Smart Cage | 7s
Shift Levers
Shimano M315 | 7s
Cassette
Sunrace | 7s | 14-34T
Crank
Alloy | 28T Narrow Wide
Chain
KMC Z | 7s
Chain Guide
CD-04D
Pedals
Wellgo M113
Wheels
Front Hub
Formula Disc | QR 9x100mm
Rear Hub
Formula Disc | QR 10x135mm
Rims
Front: V2 Comp db | 24mm inner, Rear: V2 Comp db | 24mm inner
Spokes
Stainless 14G
Tires
Kenda Aptor | 26x2.35
Brakes
Brakes
Tektro Aries MD-M300 | Mechanical
Cockpit
Stem
V2 Pro | B:31.8mm | 6°
Handlebar
V2 Comp | B:31.8mm | R:10mm | W:680mm
Grips
Kraton
Headset
CH-9280 | Zero Stack
Seat
Saddle
Devinci
Seatpost
Devinci | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.593 mm |
| Bottom Bracket Height | 327.5 mm | 327.5 mm |
| Stack | 547 mm | 556 mm |
| Reach | 353 mm | 349 mm |
| Top Tube Length | 525 mm | 530 mm |
| Seat Tube Angle | 72.5 ° | 72 ° |
| Seat Tube Length | 330 mm | 355 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm |
| Chainstay Length | 425 mm | 425 mm |
| Wheelbase | 1029 mm | 1029 mm |
| Standover Height | 687 mm | 710 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 137 cm | 147 cm |
| Rider Max Height | 150 cm | 160 cm |
