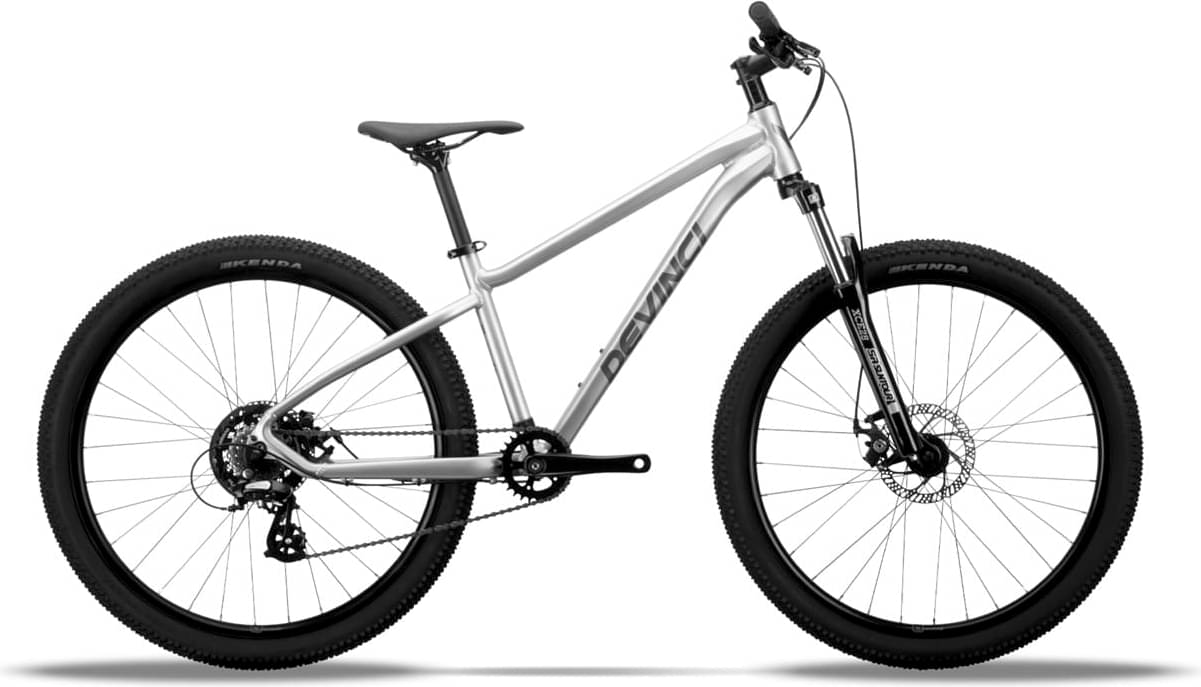

Devinci Ewoc 26” 7S 2025
2025 Youth
Estimate price |
615$
Weight | 14.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
XS
137cm - 150cm
SM
147cm - 160cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G02
Suspension Fork
Suntour XCT Jr 100mm
Drivetrain
Rear Derailleur
Shimano Altus M310 Smart Cage
Shift Levers
Shimano Altus M310
Cassette
Shimano TX500 | 7s | 14-34T
Crank
Alloy | 28T Narrow Wide
Chain
KMC Z7
Wheels
Front Hub
Formula Disc QR 9x100
Rear Hub
Formula Disc QR 10x135
Rims
Front: V2 Comp db | 17mm inner, Rear: V2 Comp db | 17mm inner
Spokes
Stainless 14G
Tires
Kenda K817 26x2.125
Brakes
Brakes
Front: Tektro Aries MD-M300 Mechanical, Rear: Tektro Aries MD-M300 Mechanical
Cockpit
Stem
V2 Pro | B:31.8mm | 6°
Handlebar
V2 Comp | B:31.8mm | R:10mm | W:680mm
Grips
Devinci | Kraton | Black
Headset
CH-9280 Zero Stack
Seat
Saddle
Devinci
Seatpost
Devinci 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.593 mm |
| Bottom Bracket Height | 327.5 mm | 327.5 mm |
| Stack | 547 mm | 556 mm |
| Reach | 353 mm | 349 mm |
| Top Tube Length | 525 mm | 530 mm |
| Seat Tube Angle | 72.5 ° | 72 ° |
| Seat Tube Length | 330 mm | 355 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm |
| Chainstay Length | 425 mm | 425 mm |
| Wheelbase | 1029 mm | 1029 mm |
| Standover Height | 687 mm | 710 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 137 cm | 147 cm |
| Rider Max Height | 150 cm | 160 cm |
