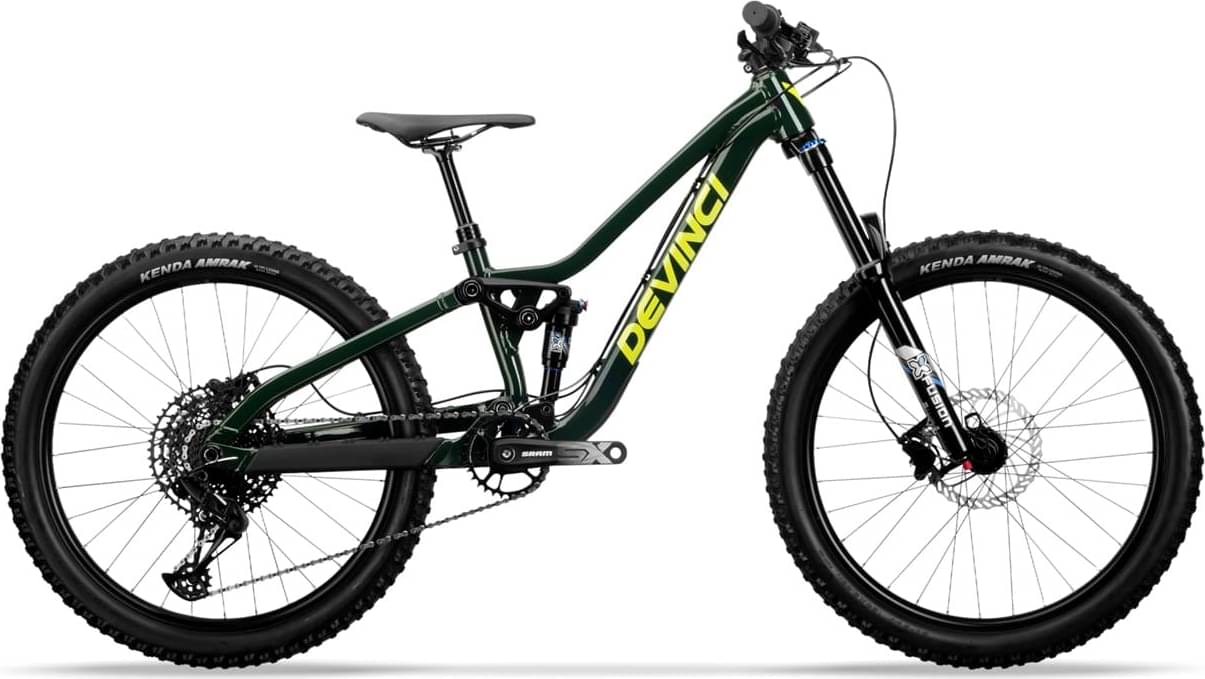

Devinci Ewoc FS SX 12s 2024
2024 Youth
Estimate price |
2,099$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 140mm -
Fork X-Fusion VELVET
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
133cm - 149cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
XFusion Velvet RL | Kids tune | 140mm | w/Lockout & Rebound
Rear Shock
XFusion O2 Pro RL | Kids Tune | 170x35mm
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM SX Eagle | 12s
Cassette
SRAM PG1210-12s 11-50T
Crank
SRAM SX Eagle 30T 155mm Boost 148
Bottom Bracket
Truvativ Power Spline
Chain
SRAM SX Eagle | 12s
Pedals
Wellgo J345
Wheels
Front Hub
Formula | DC-71 | Sealed | 6bolts TA 15x100mm
Rear Hub
Formula | DHT-148 | 6 Bolts TA 12x148 BOOST
Rims
Front: V2 Comp 24 | 27mm inner, Rear: V2 Comp 24 | 27mm inner
Spokes
Stainless 14G
Tires
Front: Kenda Amrak K1247 | 24x2.4, Rear: Kenda Amrak K1247 | 24x2.4
Brakes
Brakes
Front: Promax DSK-926 | 2 Pistons, Rear: Promax DSK-926 | 2 Pistons
Cockpit
Stem
V2 Comp 31.8 | 35mm ext | 0 degree
Handlebar
V2 Pro | B:31.8mm | R:18mm | W:680mm
Grips
Devinci Performance | w/lock-on
Headset
FSA Orbit | 1.5E | Zero Stack
Seat
Saddle
Devinci
Seatpost
TranzX Dropper | 31.6mm | 1xLever | 100mm | Kids Tune
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.451 mm |
| Bottom Bracket Height | 310 mm |
| Stack | 544 mm |
| Reach | 375 mm |
| Top Tube Length | 511 mm |
| Seat Tube Angle | 76 ° |
| Seat Tube Length | 310 mm |
| Head Tube Angle | 64.5 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 419 mm |
| Wheelbase | 1097 mm |
| Standover Height | 633 mm |
| Wheels | 24" |
| Rider Min Height | 133 cm |
| Rider Max Height | 149 cm |
