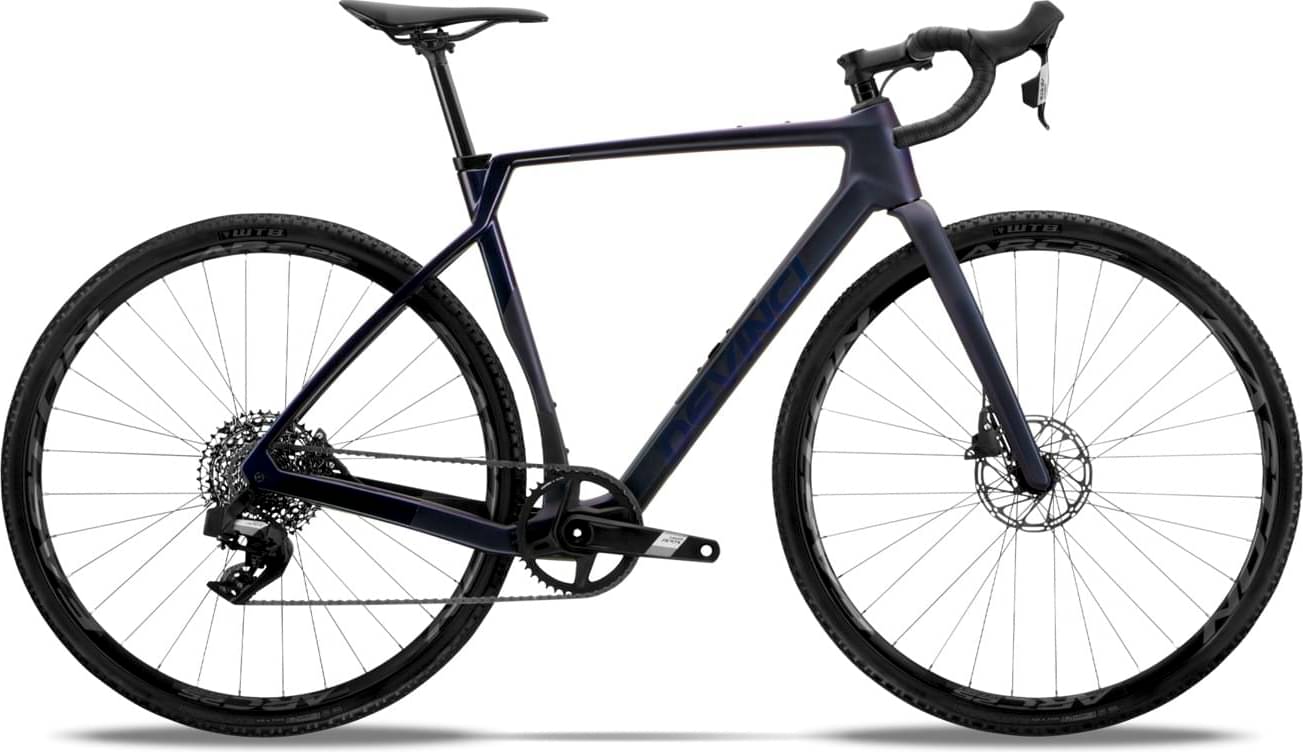

Devinci Hatchet Pro Apex AXS 12s 2025
2025 Road
Estimate price |
3,799$
Weight | 9.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex XPLR AXS, Apex AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Apex Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 171cm
MD
169cm - 180cm
LG
178cm - 187cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon OSC | Dual Core Fusion | SHED
Suspension Fork
Carbon OSC
Drivetrain
Rear Derailleur
SRAM Apex | XPLR | AXS | 12s
Shift Levers
SRAM Apex AXS | 12s
Cassette
SRAM PG1231 | XPLR | 12s | 11-44T | HG
Crank
SRAM Apex 1 | 42T
Bottom Bracket
DUB BB386 Road Wide
Chain
SRAM APEX | FLAT TOP | 12s
Wheels
Front Hub
Shimano 105 R7070 | Centerlock | TA 12x100mm
Rear Hub
Shimano 105 R7070 | Centerlock | TA 12x142mm | SH
Rims
Front: Easton ARC25 700c | 25mm inner | TR, Rear: Easton ARC25 700c | 25mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: WTB Resolute | 700x42 | TCS Light, Rear: WTB Resolute | 700x42 | TCS Light
Brakes
Brakes
Front: SRAM Apex
Cockpit
Stem
V2 Pro | B:31.8mm | 6°
Handlebar
V2 Pro | B:31.8mm | R:70mm | D:125mm | Flare 6°
Headset
Acros AIF-557 Integrated cable routing
Seat
Saddle
V2 Pro
Seatpost
V2 Elite | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.444 mm | 1.494 mm | 1.527 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 598 mm | 609 mm | 621 mm | 636 mm |
| Rake | 52 mm | 52 mm | 52 mm | 53 mm |
| Trail | 62 mm | 59 mm | 56 mm | 54 mm |
| Stack | 537 mm | 563 mm | 593 mm | 617 mm |
| Reach | 383 mm | 390 mm | 397 mm | 404 mm |
| Top Tube Length | 537 mm | 557 mm | 578 mm | 593 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 110 mm | 135 mm | 165 mm | 190 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1013 mm | 1024 mm | 1036 mm | 1051 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 759 mm | 796 mm | 831 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 169 cm | 178 cm | 185 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm | 193 cm |
