Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
147cm - 160cm
SM
157cm - 170cm
MD
168cm - 180cm
LG
178cm - 187cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-R
Suspension Fork
Devinci Carbon Leggera
Drivetrain
Rear Derailleur
Shimano 105 R7000 | 11s
Front Derailleur
Shimano 105 R7000 | 2s
Shift Levers
Shimano 105 R7000 | 2s
Cassette
Shimano 105 R7000 | 11s | 11-28T | SH
Crank
FSA Gossamer Pro 48/32T
Bottom Bracket
FSA BB386
Chain
Shimano HG601 | 11s
Wheels
Front Hub
Formula RB-51 | QR 9x100mm
Rear Hub
Formula RB-5711 | QR 10x130mm | SH
Rims
V2 Pro | 18mm inner
Spokes
Sapim Stainless 14G w/Nylok
Tires
Maxxis Detonator | 700x25c | Silkworm
Brakes
Brakes
Tektro T741R | Direct mount
Cockpit
Stem
V2 Pro | B:31.8mm | 6°
Handlebar
V2 Comp | B:31.8mm | R:75mm | D:120mm
Headset
FSA Orbit | C40 | Integrated
Seat
Saddle
Devinci
Seatpost
V2 Comp | 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.4 mm | 1.46 mm | 1.49 mm | 1.58 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Stack | 501 mm | 524 mm | 551 mm | 575 mm | 608 mm |
| Reach | 371 mm | 374 mm | 377 mm | 385 mm | 385 mm |
| Top Tube Length | 496 mm | 516 mm | 536 mm | 556 mm | 581 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 130 mm | 155 mm | 180 mm | 215 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 971 mm | 974 mm | 976 mm | 991 mm | 1011 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 646 mm | 686 mm | 721 mm | 756 mm | 796 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 157 cm | 168 cm | 178 cm | 185 cm |
| Rider Max Height | 160 cm | 170 cm | 180 cm | 187 cm | 193 cm |
About this model

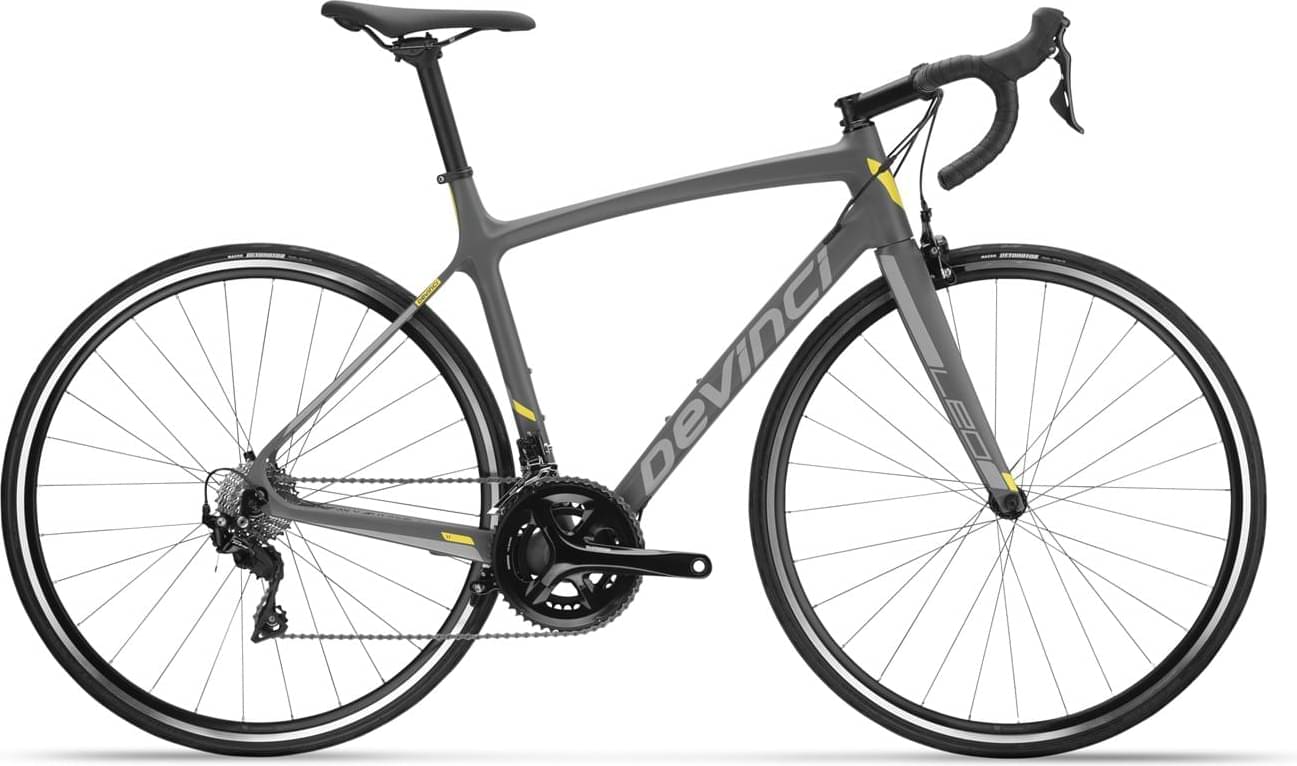

Leo 105 is a Devinci Leo model. Devinci released 18 bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Devinci Leo 105 price was 1879$. In conclusion, this bike price is 24.85% smaller than the price of the average Endurance bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Leo 105 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Devinci Leo 105 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Devinci Leo 105 bike has 5 sizes, in the range of 147 cm – 193 cm (4.82 ft – 6.33 ft). In conclusion, it won’t take much to find one that’s right for you.
