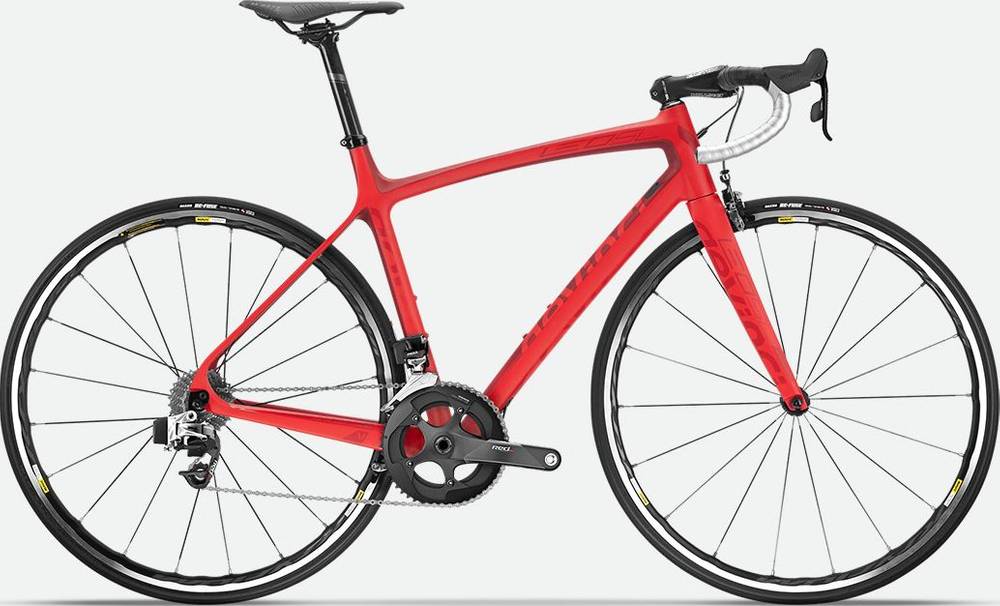

Devinci Leo SL Sram Red E-tap 2017
2017 E-bike
Estimate price |
7,339$
Weight | 6.94 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon DMC-R HR
Suspension Fork
Devinci Carbon Super Leggera
Drivetrain
Rear Derailleur
SRAM Red Etap
Front Derailleur
SRAM Red Etap
Shift Levers
SRAM Red Etap 11s
Cassette
SRAM 11s 11-28T
Crank
SRAM Red 50/34T
Bottom Bracket
SRAM Press Fit BB86
Chain
SRAM Red 22 11s
Wheels
Rims
Mavic Ksyrium Elite
Tires
Maxxis Refuse 700x25c Maxx Shield
Brakes
Brakes
TRP T930 Direct Mount
Cockpit
Stem
Easton EC90SL 31.8mm
Handlebar
Easton E100 31.8mm
Headset
FSA Orbit C40-CF ACB Integrated w/SL bearing
Seat
Saddle
Fizik Antares R5 Mg
Seatpost
Seat Post V2 Elite Carbon 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.4 mm | 1.46 mm | 1.49 mm | 1.58 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Stack | 501 mm | 524 mm | 551 mm | 575 mm | 608 mm |
| Reach | 371 mm | 374 mm | 377 mm | 385 mm | 385 mm |
| Top Tube Length | 496 mm | 516 mm | 536 mm | 556 mm | 581 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 130 mm | 155 mm | 180 mm | 215 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 971 mm | 974 mm | 976 mm | 991 mm | 1011 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 646 mm | 686 mm | 721 mm | 756 mm | 796 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Leo SL Sram Red E-tap belongs to the Devinci E Leo model. Devinci released 1 e-bike variation of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance e-bikes average price
If you want to purchase a solid Endurance e-bike, it is important to know that the average cost is 3800$. However, you could also get a good Endurance e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Devinci released this model in 2017, its price was 7339$. Comparing the average cost of an Endurance e-bike to this one, you will see that Leo SL Sram Red E-tap price is 93.13% higher.
Endurance e-bikes average weight
Endurance e-bikes weigh an average of 13.52 kg (29.81 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 6.94 kg (15.3 lbs), Devinci e-bike is much lighter than average. In other words, this model is 94.81% lighter than the average Endurance e-bike.
Leo SL Sram Red E-tap components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Leo SL Sram Red E-tap e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Leo SL Sram Red E-tap has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
