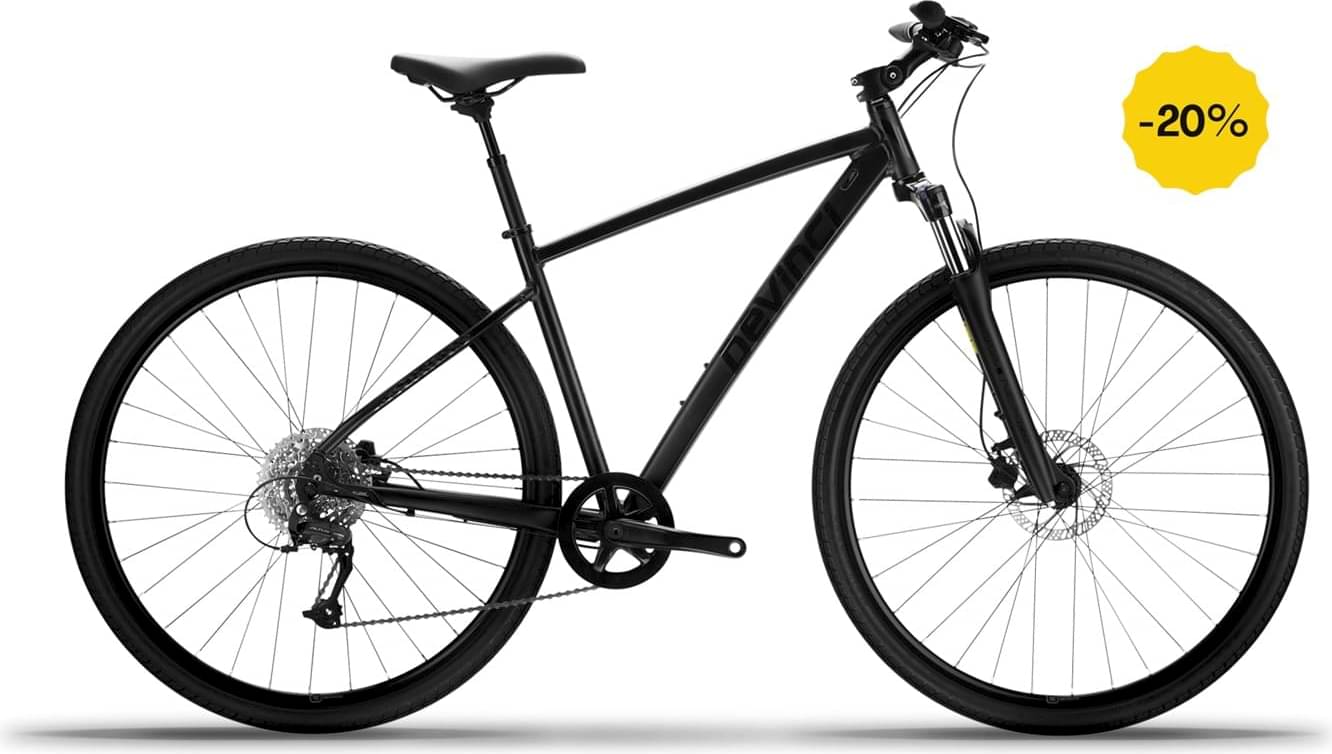

Devinci Milano Disc Altus 8S 2024
2024 Urban
Estimate price |
687$
Weight | 12.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 75mm -
Fork Suntour NEX
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 160cm
SM
152cm - 171cm
MD
169cm - 180cm
LG
178cm - 187cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G02
Suspension Fork
SR Suntour NEX E25 HLO-DS | 75mm
Drivetrain
Rear Derailleur
Shimano Altus M370 | 8s
Shift Levers
Shimano M315 | 8s
Cassette
Sunrace | 8s | 11-40T
Crank
Alloy | 36T
Chain
KMC Z | 8s
Pedals
Wellgo C246
Wheels
Front Hub
Formula Disc | QR 9x100mm
Rear Hub
Formula Disc | QR 10x135mm
Rims
Front: V2 Comp db | 18mm inner, Rear: V2 Comp db | 18mm inner
Spokes
Stainless 14G
Tires
Kenda K1170 | 700x38c
Brakes
Brakes
Front: Tektro HD-M285 | Hydraulic, Rear: Tektro HD-M285 | Hydraulic
Cockpit
Stem
Devinci Adjustable | B:25.4mm | 0-60°
Handlebar
Devinci | B:25.4mm | R:20mm | W:640mm
Grips
Devinci Ergo Comfort
Headset
Upper: FSA No.28 EC | Lower: FSA IS-3 IS
Seat
Saddle
Devinci
Seatpost
Suspension Post | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.534 mm | 1.51 mm | 1.558 mm | 1.559 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Stack | 580 mm | 580 mm | 589 mm | 617 mm | 633 mm |
| Reach | 379 mm | 378 mm | 390 mm | 396 mm | 406 mm |
| Top Tube Length | 545 mm | 555 mm | 570 mm | 585 mm | 600 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 375 mm | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 130 mm | 150 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1037 mm | 1036 mm | 1052 mm | 1068 mm | 1085 mm |
| Standover Height | 638 mm | 652 mm | 683 mm | 720 mm | 759 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 152 cm | 169 cm | 178 cm | 185 cm |
| Rider Max Height | 160 cm | 171 cm | 180 cm | 187 cm | 193 cm |
