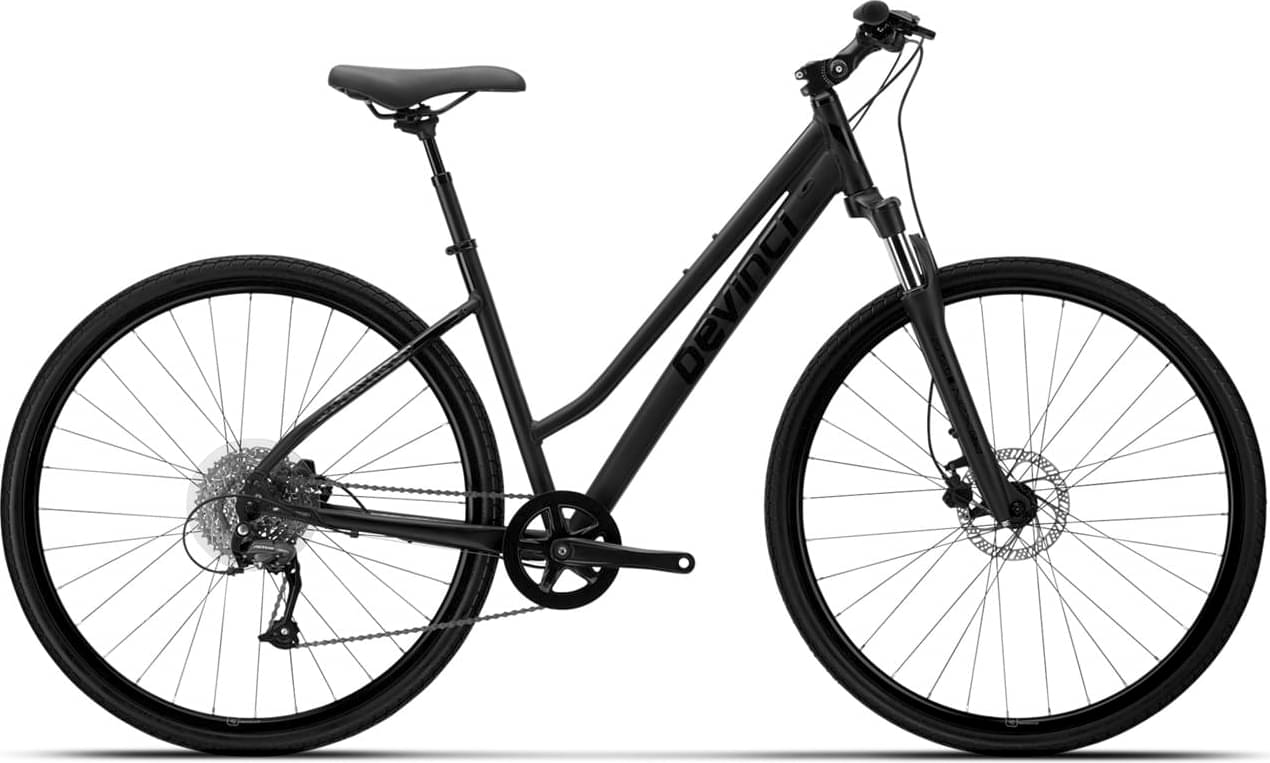

Devinci Milano Disc Stepthru Altus 8S 2025
2025 Urban
Estimate price |
687$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Alivio, Acera -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 171cm
MD
169cm - 180cm
LG
178cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G02
Suspension Fork
Devinci Full Carbon
Drivetrain
Rear Derailleur
Shimano Alivio M3100 | 9s
Front Derailleur
Shimano Acera T3000 | 3s
Shift Levers
Shimano Altus M2010 | 9s
Cassette
Sunrace | 9s | 11-36T
Crank
Alloy | 48/36/26T
Chain
KMC HG53 | 9s
Pedals
Wellgo C246
Wheels
Front Hub
Formula Disc | Sealed bearings | QR 9x100mm
Rear Hub
Formula Disc sealed bearings | QR 10x135mm
Rims
Front: V2 Comp db | 21mm inner, Rear: V2 Comp db | 21mm inner
Spokes
Stainless 14G
Tires
Kenda K1170 | 700x35c
Brakes
Brakes
Front: Shimano MT200 | Hydraulic, Rear: Shimano MT200 | Hydraulic
Cockpit
Stem
V2 Pro | B:31.8mm | 17°
Handlebar
V2 Pro | B:31.8mm | R:15mm | W:640mm
Grips
Devinci Ergo Comfort | w/lock
Headset
Upper: FSA No.28 EC | Lower: FSA IS-3 IS
Seat
Saddle
Devinci
Seatpost
V2 Comp | 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.686 mm | 1.619 mm | 1.558 mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm |
| Stack | 617 mm | 617 mm | 617 mm |
| Reach | 366 mm | 381 mm | 396 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1038 mm | 1053 mm | 1068 mm |
| Standover Height | 475 mm | 475 mm | 475 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 169 cm | 178 cm |
| Rider Max Height | 171 cm | 180 cm | 187 cm |
