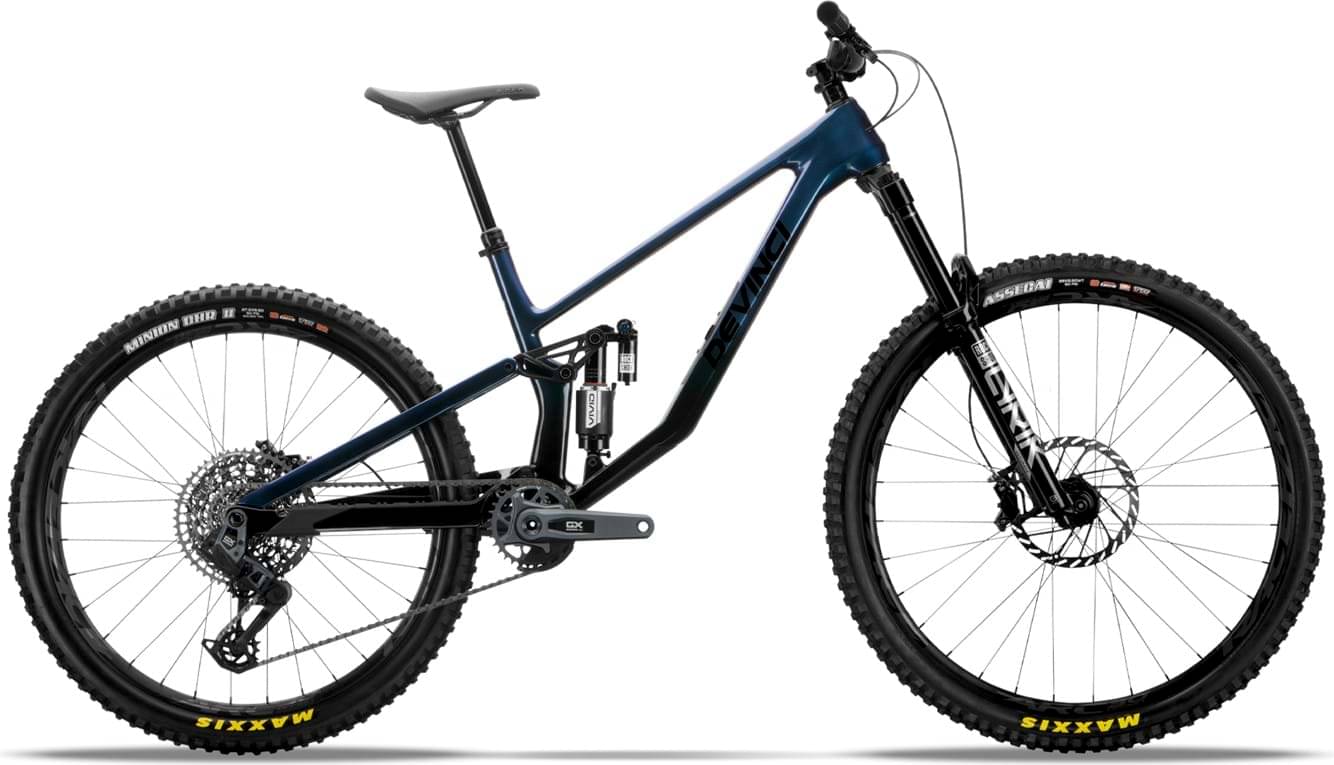

Devinci Troy Carbon GX AXS 12s 2025
2025 Mountain
Estimate price |
6,499$
Weight | 15.05 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
SM Low
160cm - 171cm
MD High
168cm - 180cm
MD Low
168cm - 180cm
LG High
177cm - 189cm
LG Low
177cm - 189cm
XL High
186cm - 198cm
XL Low
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon OSC 150mm
Suspension Fork
Rockshox Lyrik Ultimate DB | 29 | 160 | 110x15 | 44OS |Black
Rear Shock
Rockshox Vivid Ultimate | 185x55
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS | T-Type | 12s
Shift Levers
SRAM AXS POD | 12s
Cassette
SRAM XS1275 | T-TYPE | 12s | 10-52T
Crank
SRAM GX Eagle AXS | TType | 32T | 1Guard | Boost 148 | 165mm
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM GX | T-Type | 12s
Wheels
Front Hub
RaceFace Vault | 6bolts | TA 15x110mm
Rear Hub
RaceFace Vault | Boost 148x12 | XD | 6bolts
Rims
Front: RaceFace ARC30 29 | 30mm inner | TR, Rear: RaceFace ARC30 27.5 | 30mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: Maxxis Assegai | 29x2.5WT | 3C | DD | TR | MaxxGrip, Rear: Maxxis Minion DHR II | 27.5x2.5WT | 3C | DD | TR | MaxxTerra
Brakes
Brakes
Front: SRAM Code Silver, Rear: SRAM Code Silver
Cockpit
Stem
RaceFace Turbine R35 | B:35mm | L:40mm | 0°
Handlebar
RaceFace ERA 35 | B:35mm | R:40mm | W:800mm
Grips
Devinci | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
SDG Tellis 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.391 mm | 1.311 mm | 1.352 mm | 1.279 mm | 1.315 mm | 1.246 mm | 1.28 mm |
| Bottom Bracket Height | 354 mm | 343 mm | 354 mm | 343 mm | 354 mm | 343 mm | 354 mm | 343 mm |
| Stack | 606 mm | 612 mm | 615 mm | 622 mm | 624 mm | 631 mm | 633 mm | 640 mm |
| Reach | 449 mm | 440 mm | 469 mm | 460 mm | 488 mm | 480 mm | 508 mm | 500 mm |
| Top Tube Length | 567 mm | 568 mm | 593 mm | 594 mm | 630 mm | 631 mm | 655 mm | 656 mm |
| Seat Tube Angle | 78.9 ° | 78.1 ° | 78.6 ° | 77.8 ° | 77.6 ° | 76.8 ° | 77 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 390 mm | 420 mm | 420 mm | 450 mm | 450 mm | 470 mm | 470 mm |
| Head Tube Angle | 64.7 ° | 64 ° | 64.7 ° | 64 ° | 64.7 ° | 64 ° | 64.7 ° | 64 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm | 125 mm | 125 mm |
| Chainstay Length | 432 mm | 435 mm | 432 mm | 435 mm | 437 mm | 440 mm | 442 mm | 445 mm |
| Wheelbase | 1204 mm | 1206 mm | 1228 mm | 1230 mm | 1258 mm | 1260 mm | 1287 mm | 1289 mm |
| Standover Height | 718 mm | 708 mm | 718 mm | 708 mm | 718 mm | 708 mm | 718 mm | 708 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 168 cm | 168 cm | 177 cm | 177 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 198 cm | 198 cm |
