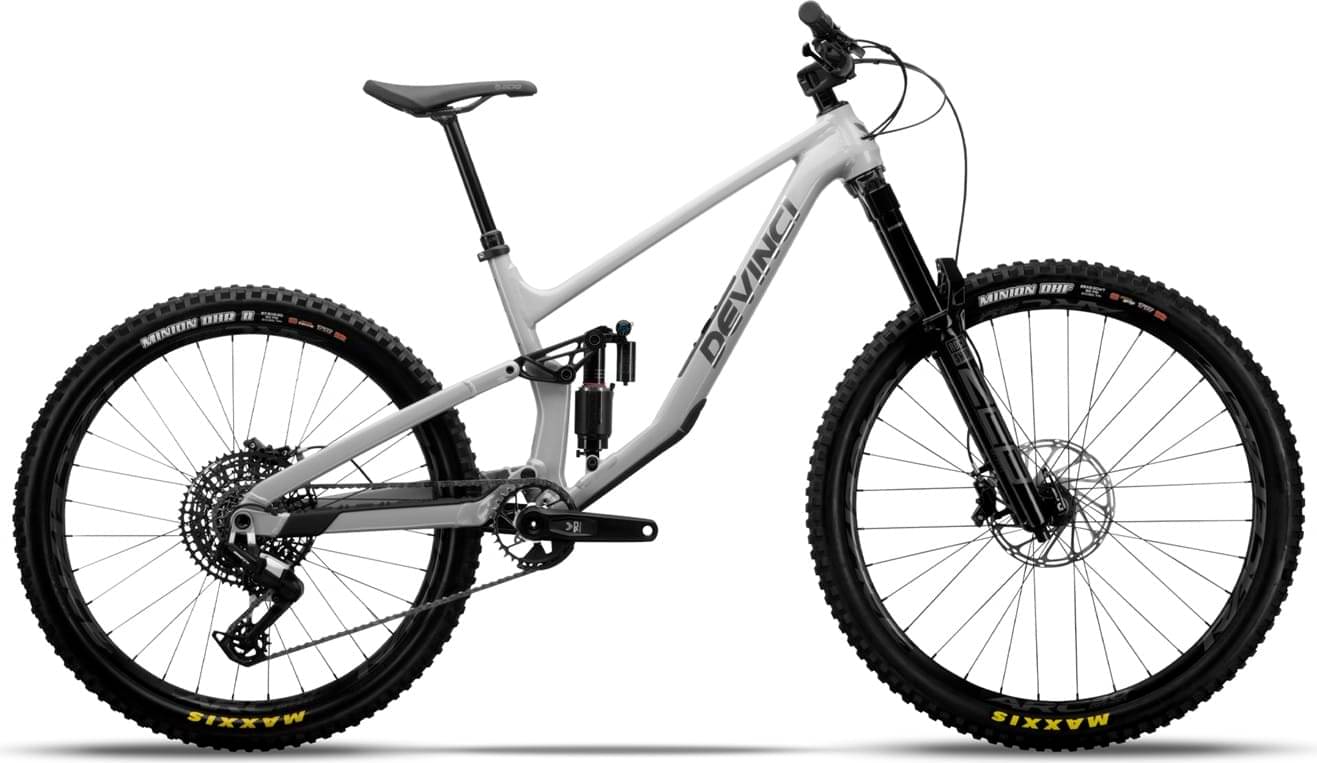

Devinci Troy Eagle 90 12s LTD 2025
2025 Mountain
Estimate price |
5,499$
Weight | 16.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox ZEB Select+
-
Groupset Eagle 90 Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 171cm
MD High
168cm - 180cm
LG High
177cm - 189cm
XL High
186cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Optimum G04 150mm
Suspension Fork
RockShox ZEB Select+ | 160mm | 44Offset
Rear Shock
Rockshox Vivid Select+ | 185x55
Drivetrain
Rear Derailleur
SRAM Eagle 90 | 12s
Shift Levers
SRAM Eagle 90 | 12s
Cassette
SRAM XS1275 | T-TYPE | 12s | 10-52T
Crank
SRAM Eagle 90 | DUB | 12s | 32T | 165mm
Bottom Bracket
SRAM DUB 73mm Threaded
Chain
SRAM GX | T-Type | 12s
Wheels
Front Hub
Dtswiss 370 Classic | 15x110 Boost | 6bolts | 32H
Rear Hub
Dt Swiss 370 Classic | 12x148 Boost
Rims
Front: RaceFace ARC30 29 | 30mm inner | TR, Rear: RaceFace ARC30 27.5 | 30mm inner | TR
Spokes
Sapim Stainless 14G w/Nylok
Tires
Front: Maxxis Minion DHF | 29x2.5WT | 3C | DD | MaxxGrip, Rear: Maxxis Minion DHR II | 27.5x2.5WT | 3C | DD | TR | MaxxTerra
Brakes
Brakes
Front: SRAM Code Silver, Rear: SRAM Code Silver
Cockpit
Stem
V2 Pro E | B:35mm | L:40mm | 0°
Handlebar
RaceFace ERA 35 | B:35mm | R:40mm | W:800mm
Grips
Devinci | w/lock-on
Headset
FSA Orbit | 1.5 | Zero Stack
Seat
Saddle
SDG BELAIR 3.0
Seatpost
SDG Tellis 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | MD High | LG High | XL High |
|---|---|---|---|---|
| Stack Reach Ratio | 1.393 mm | 1.352 mm | 1.315 mm | 1.28 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 613 mm | 622 mm | 631 mm | 640 mm |
| Reach | 440 mm | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 568 mm | 594 mm | 631 mm | 656 mm |
| Seat Tube Angle | 78.1 ° | 77.8 ° | 76.4 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 442 mm | 442 mm |
| Wheelbase | 1203 mm | 1227 mm | 1262 mm | 1286 mm |
| Standover Height | 737 mm | 737 mm | 737 mm | 737 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 177 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 198 cm |
