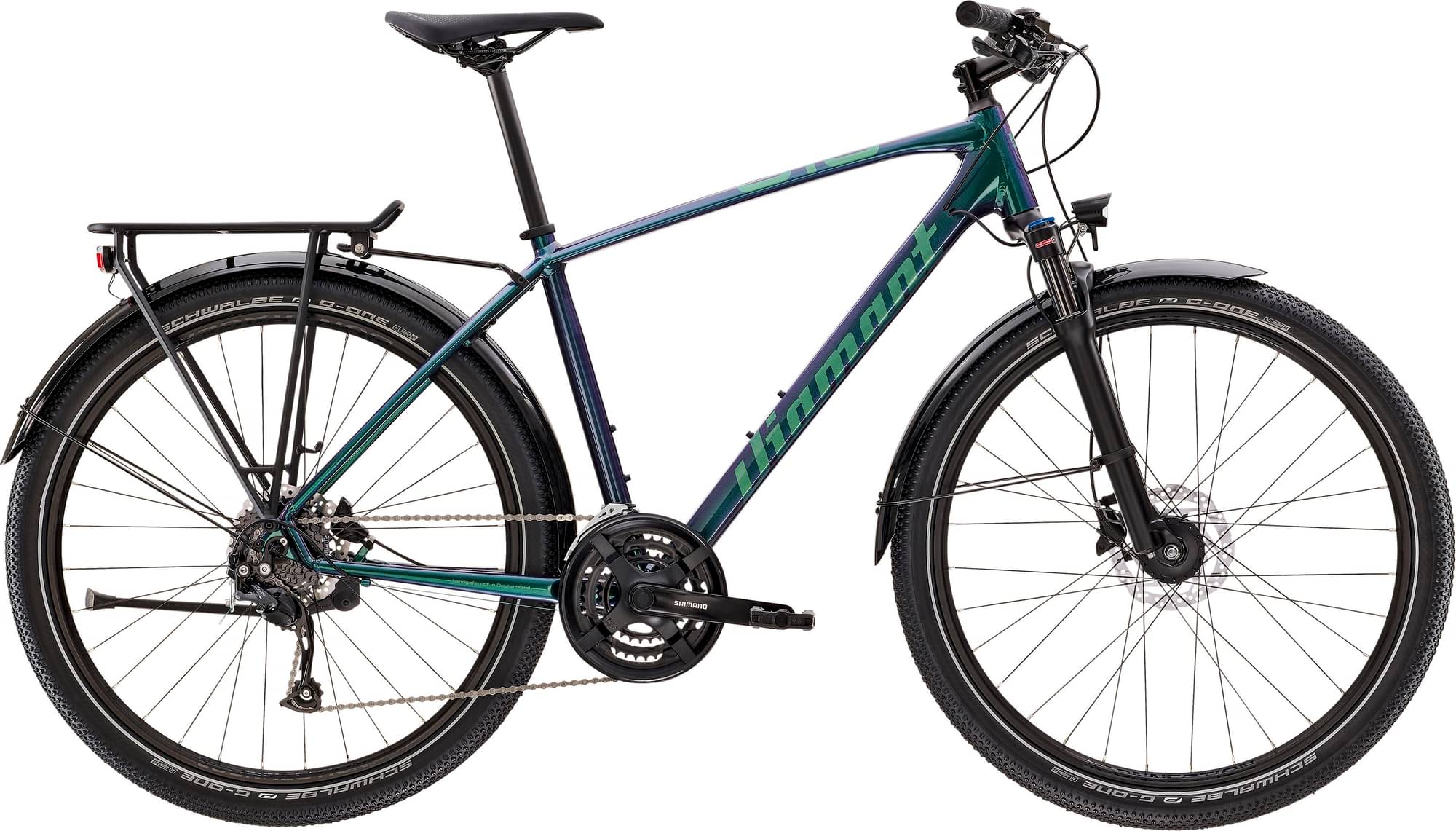

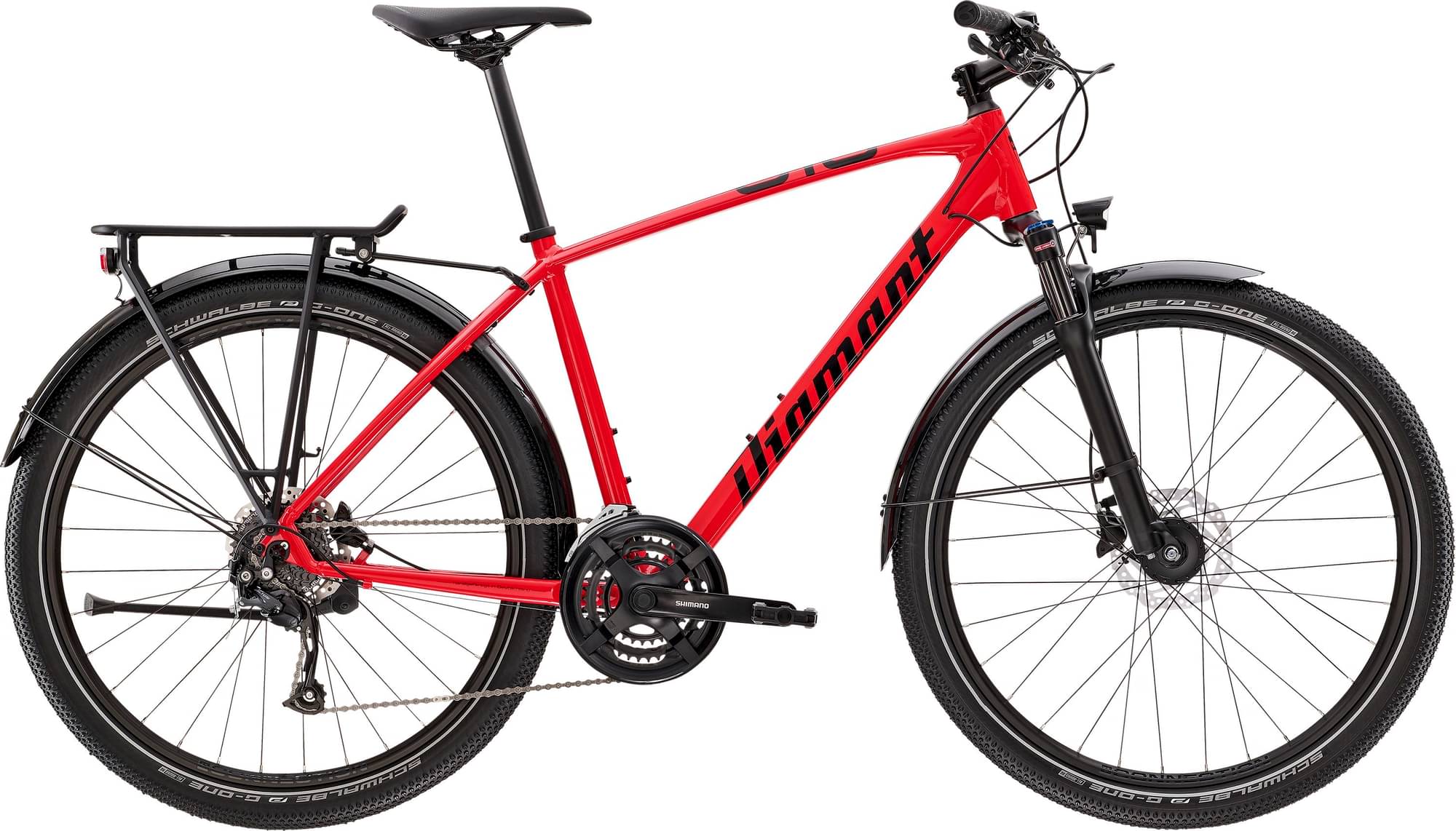

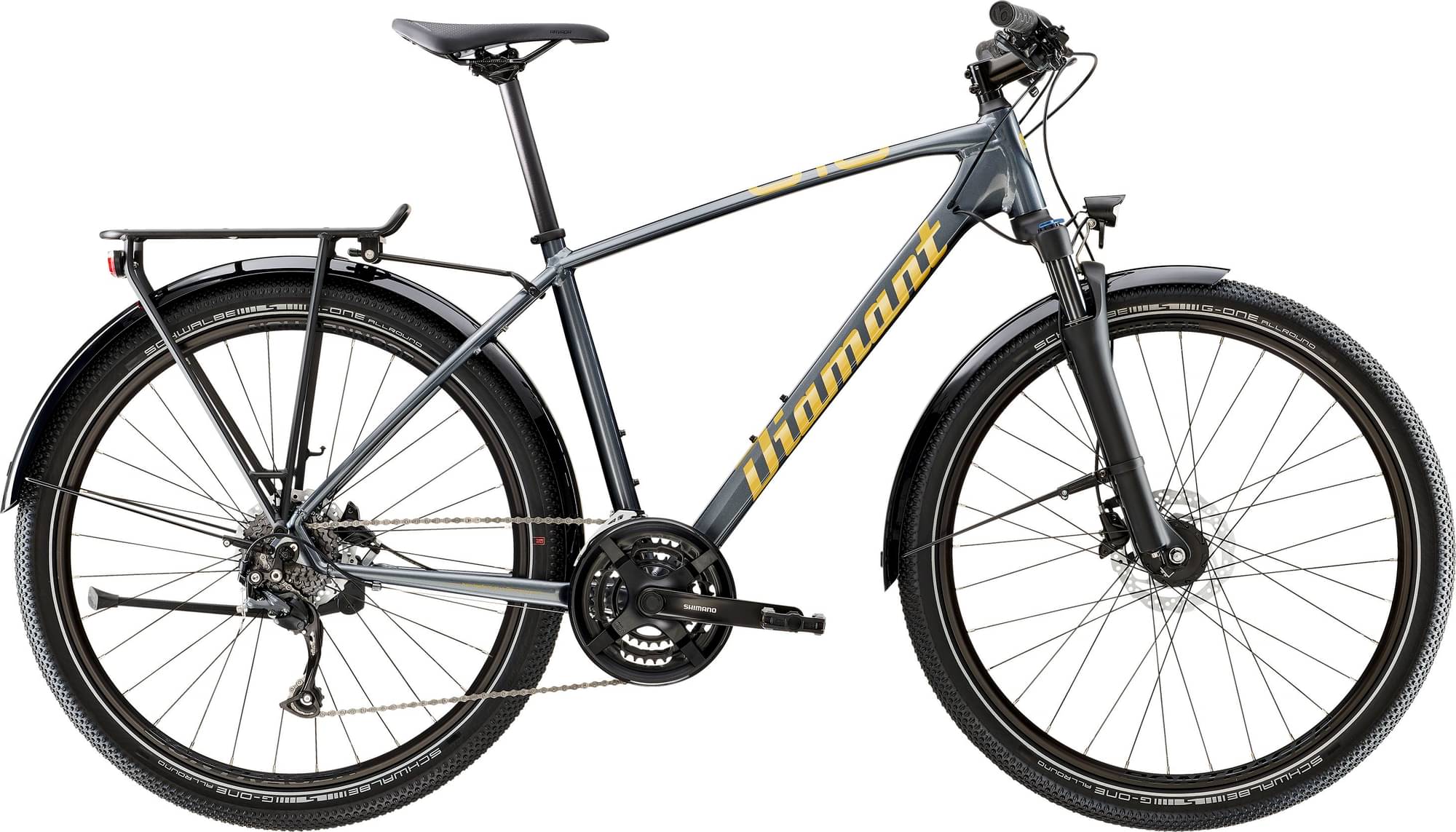

Diamant 018 HCH 2021

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Urban
- |
- Hybrid
Frame Aluminum
Travel Front 100mm
Fork Suntour X1
Groupset Tourney, Altus
Suspension Hardtail
Drivetrain 3 × 8
Brakes Shimano Hydraulic Disc

Sizing

Recommended size guide.

SM
158cm - 171cm
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
XL
186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Alpha Gold Aluminium, DuoTrap S-kompatibel, interne Zugführung, Gepäckträger- und Schutzblechösen, Post Mount-Scheibenbremsaufnahme, Seitenständerhalterung, 135 x 5 mm-Schnellspannachse

Suspension Fork

SR Suntour X1, Stahlfeder, verstellbare Federvorspannung, 100 mm Schnellspannachse, 60 mm Federweg

Drivetrain

Rear Derailleur

Shimano Altus M2000, langer Käfig

Front Derailleur

Shimano Tourney TY710, 34,9 mm Klemmdurchmesser, Top Swing, Dual Pull

Shift Levers

Shimano Altus M315, 3fach // Shimano M315, 8-fach

Cassette

Shimano, 8fach, 12-32 Z.

Crank

Shimano, 48/38/24 Z. VP BC73C, 68 mm, mit Gewinde

Chain

KMC Z8

Pedals

rutschfeste Pedale mit Reflektoren

Wheels

Rims

Bontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil Shimano Nabendynamo 3,0 Watt Shimano TX505, Center Lock-Scheibenaufnahme

Brakes

Front: Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200 Shimano RT10, Center Lock-Scheibenaufnahme, 160 mm

Cockpit

Stem

Bontrager Comp, 31 8 mm, Blendr-kompatibel, 7 Grad, 100 mm Länge

Handlebar

Aluminium-Lowriser, 31,8 mm, 25 mm Rise, 11 Grad Krümmung, 690 mm Breite

Headset

1 1/8", gewindelose, gedichtete Kompaktlager

Seat

Saddle

Bontrager Arvada, Stahlstreben, 138 mm Breite

Seatpost

Bontrager aus Aluminium, 27,2 mm, 12 mm Versatz, 400 mm Länge

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM	SM	SM	MD	MD	MD	LG	LG	LG	XL	XL	XL
Stack Reach Ratio	1.451 mm	1.451 mm	1.451 mm	1.457 mm	1.457 mm	1.457 mm	1.456 mm	1.456 mm	1.456 mm	1.472 mm	1.472 mm	1.472 mm
Bottom Bracket Height	295 mm	295 mm	295 mm	295 mm	295 mm	295 mm	295 mm	295 mm	295 mm	295 mm	295 mm	295 mm
Front Center	643 mm	643 mm	643 mm	648 mm	648 mm	648 mm	657 mm	657 mm	657 mm	665 mm	665 mm	665 mm
Rake	38 mm	38 mm	38 mm	39 mm	39 mm	39 mm	37 mm	37 mm	37 mm	38 mm	38 mm	38 mm
Trail	85 mm	85 mm	85 mm	82 mm	82 mm	82 mm	82 mm	82 mm	82 mm	75 mm	75 mm	75 mm
Stack	595 mm	595 mm	595 mm	606 mm	606 mm	606 mm	616 mm	616 mm	616 mm	639 mm	639 mm	639 mm
Reach	410 mm	410 mm	410 mm	416 mm	416 mm	416 mm	423 mm	423 mm	423 mm	434 mm	434 mm	434 mm
Top Tube Length	575 mm	575 mm	575 mm	590 mm	590 mm	590 mm	605 mm	605 mm	605 mm	635 mm	635 mm	635 mm
Seat Tube Angle	74.5 °	74.5 °	74.5 °	74 °	74 °	74 °	73.5 °	73.5 °	73.5 °	72.5 °	72.5 °	72.5 °
Seat Tube Length	381 mm	381 mm	381 mm	445 mm	445 mm	445 mm	508 mm	508 mm	508 mm	572 mm	572 mm	572 mm
Head Tube Angle	70.5 °	70.5 °	70.5 °	71 °	71 °	71 °	71 °	71 °	71 °	72 °	72 °	72 °
Head Tube Length	115 mm	115 mm	115 mm	125 mm	125 mm	125 mm	135 mm	135 mm	135 mm	155 mm	155 mm	155 mm
Chainstay Length	460 mm	460 mm	460 mm	460 mm	460 mm	460 mm	460 mm	460 mm	460 mm	460 mm	460 mm	460 mm
Wheelbase	1096 mm	1096 mm	1096 mm	1101 mm	1101 mm	1101 mm	1110 mm	1110 mm	1110 mm	1118 mm	1118 mm	1118 mm
Bottom Bracket Drop	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm
Standover Height	667 mm	667 mm	667 mm	765 mm	765 mm	765 mm	808 mm	808 mm	808 mm	850 mm	850 mm	850 mm
Wheels	650	650	650	650	650	650	650	650	650	650	650	650
Rider Min Height	158 cm	158 cm	158 cm	168 cm	168 cm	168 cm	178 cm	178 cm	178 cm	186 cm	186 cm	186 cm
Rider Max Height	171 cm	171 cm	171 cm	180 cm	180 cm	180 cm	189 cm	189 cm	189 cm	199 cm	199 cm	199 cm
