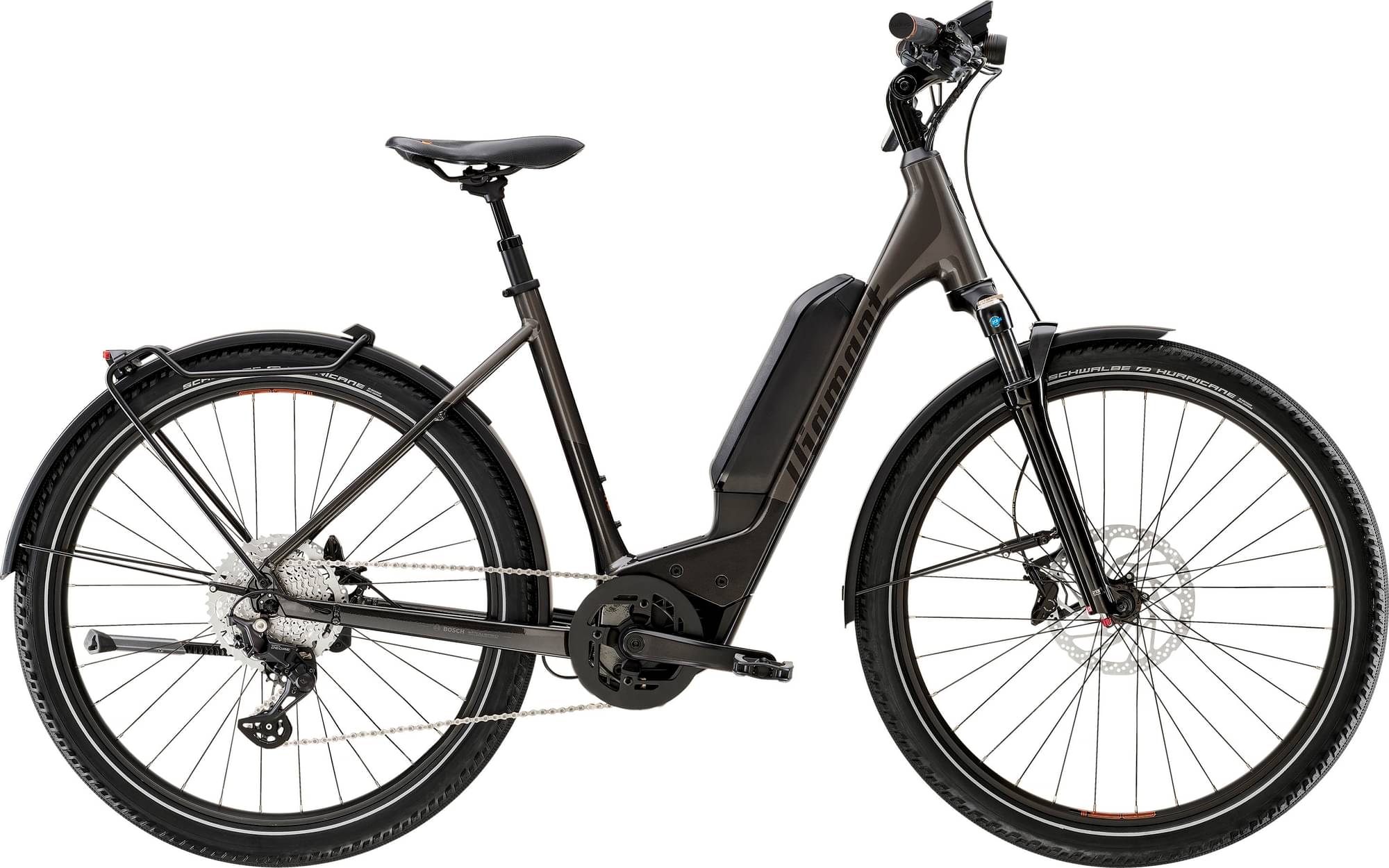

diamant 138 2023
2023 E-bike
Estimate price |
4,652$
Weight | 24.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 60mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powerpack 545 / 725, Smart System -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High performance aluminum frame with hydroformed tubes, internal cable routing, external battery holder, post mount disc brake mount, 135 x 5 mm quick release axle
Suspension Fork
SR Suntour Mobie 34, air spring, adjustable rebound and compression, tapered aluminum steerer, 15 x 100 mm thru axle, 60 mm travel
Drivetrain
Rear Derailleur
Shimano Deore M5130, GS, Shadow Plus
Shift Levers
Shimano Deore M5130, 10-speed
Cassette
Shimano LG600, 11-43, 10-speed
Crank
ProWheel, aluminum, 170 mm crank arm length
Chain
Shimano LG500, 9/10/11-speed
Pedals
Non-slip aluminum pedals with reflectors
Wheels
Rims
Alex MD35, suitable for tubeless, 32 holes, 35 mm internal width, Presta valve
Brakes
Brakes
Shimano MT401 / MT420 hydraulic disc brake, 180 mm disc diameter Shimano RT30, Center Lock, 203 mm
Cockpit
Stem
Bontrager, aluminum, 31.8mm clamp diameter, adjustable rise, Blendr compatible, 85mm length
Handlebar
Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 660mm width
Seat
Saddle
Brooks Cambium C67 Special Edition
Seatpost
Aluminum, spring-loaded, 31.6 mm, 300 mm length
Motor & Battery
Motor
Bosch Performance Line CX, 25 km/h
Battery
Bosch Powerpack 545 / 725, Smart System
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.581 mm | 1.617 mm | 1.638 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Front Center | 63 mm | 64 mm | 65 mm |
| Rake | 8.9 mm | 8.6 mm | 8.3 mm |
| Trail | 132 mm | 129 mm | 125 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 174 cm |
| Rider Max Height | 167 cm | 177 cm | 187 cm |
Model Overview
138 belongs to the Diamant E 138 model. There is 1 e-bike that carries this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Diamant 138 price was 4246$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 73.09% higher.
Crosscountry e-bikes average weight
The average weight for Crosscountry e-bikes is 22.58 kg (49.78 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, 138 has a weight of 24.1 kg (53.13 lbs). In other words, this model is 6.73% heavier than the average Crosscountry e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
138 components
Fork
Diamant 138 2023 e-bike is equipped with the Suntour MOBIE fork, and has 60mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
138 has an aluminum fork, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the 138 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
138 comes in 3 sizes, that range from 154 cm – 187 cm (5.05 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
