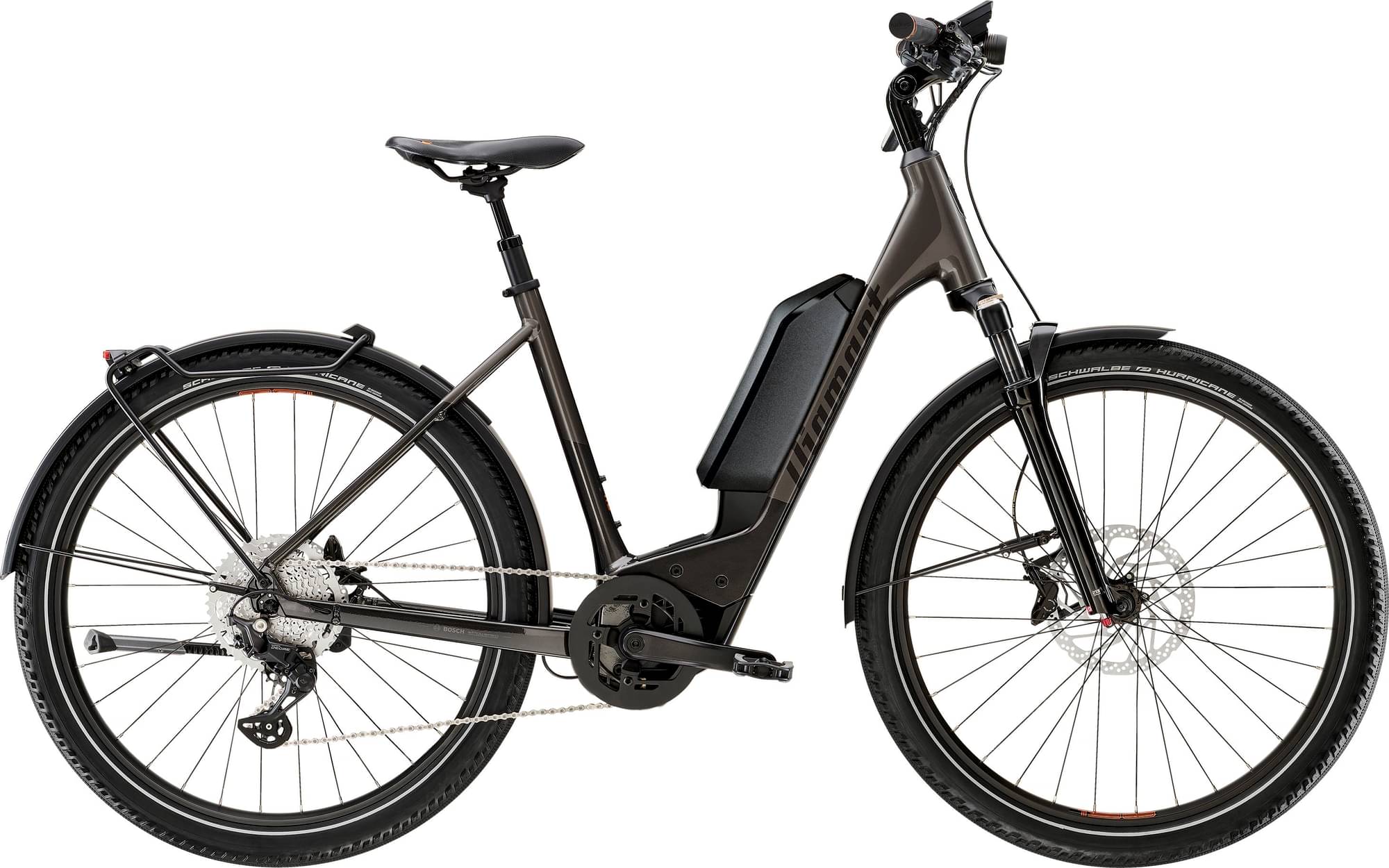

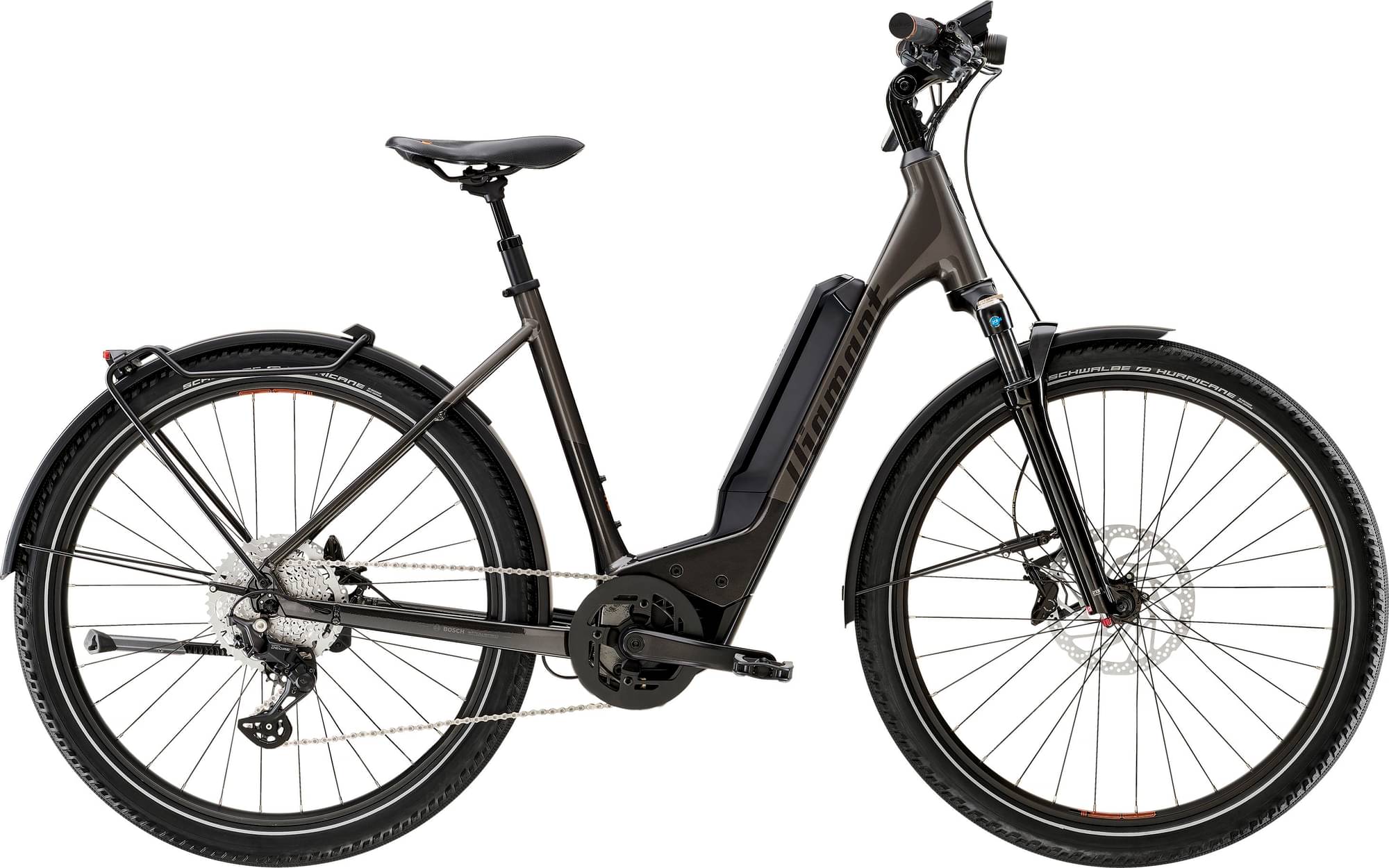

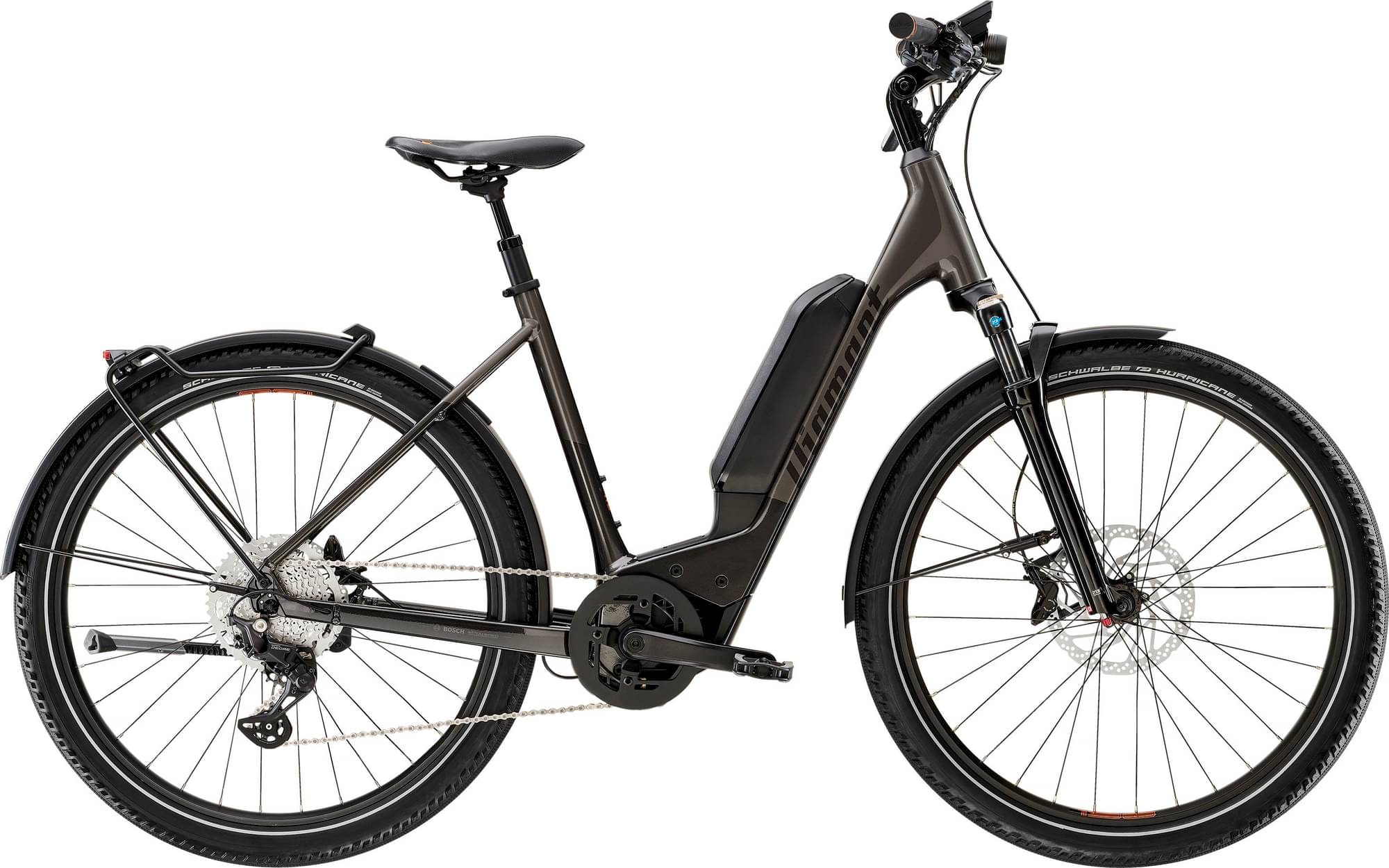

Diamant 138 TIE 2023

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- E-bike
- |
- Mountain
- |
- Crosscountry
Frame Aluminum
Travel Front 60mm
Fork Suntour MOBIE
Groupset Deore
Suspension Hardtail
Motor Bosch 600W 85Nm mid-drive
Battery Bosch Powerpack 545 / 725, Smart System
Brakes Shimano Hydraulic Disc

Sizing

Recommended size guide.

SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Hochleistungsfähiger Aluminiumrahmen mit hydrogeformten Rohren, interne Zugführung, externe Akku-Halterung, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm-Schnellspannachse

Suspension Fork

SR Suntour Mobie 34, Luftfeder, verstellbare Zugstufe und Druckstufe, konischer Aluminiumgabelschaft, 15 x 100 mm Steckachse, 60 mm Federweg

Drivetrain

Rear Derailleur

Shimano Deore M5130, GS, Shadow Plus

Shift Levers

Shimano Deore M5130, 10fach

Cassette

Shimano LG600, 11-43, 10fach

Crank

ProWheel, Aluminium, 170 mm Kurbelarmlänge

Chain

Shimano LG500

Pedals

rutschfeste Aluminiumpedale mit Reflektoren

Wheels

Rims

Alex MD35, passer til Tubeless, 32-Loch, 35 mm Innenweite, Presta-Ventil Bontrager, gedichtete Lager, 32-Loch, 15-mm-Aluminiumsteckachse Shimano Alivio M4050,135 x 5 mm Schnellspannachse

Brakes

Front: Shimano MT401 / MT420 hydraulische Scheibenbremse, 180 mm Scheibendurchmesser Shimano RT30, Center Lock, 203 mm // Shimano EM300, Centerlock-Scheibenaufnahme, 180 mm

Cockpit

Stem

Bontrager Aluminium, 31,8 mm, verstellbar, Blendr-kompatibel

Handlebar

Aluminium-Lowriser, 31,8 mm, 25 mm Rise, 11 Grad Krümmung, 660 mm Breite

Headset

Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

Seat

Saddle

Brooks Cambium C67 Special Edition

Seatpost

Aluminium, gefedert, 31,6 mm, 300 mm Länge

Motor & Battery

Motor

Bosch Performance Line CX, 25 km/h

Battery

Bosch Powerpack 545 / 725, Smart System

Charger

Bosch Standardladegerät 4 A, 230 V, Smart System

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM	SM	SM	SM	MD	MD	MD	MD	LG	LG	LG	LG
Stack Reach Ratio	1.581 mm	1.581 mm	1.581 mm	1.581 mm	1.617 mm	1.617 mm	1.617 mm	1.617 mm	1.638 mm	1.638 mm	1.638 mm	1.638 mm
Bottom Bracket Height	289 mm	289 mm	289 mm	289 mm	289 mm	289 mm	289 mm	289 mm	289 mm	289 mm	289 mm	289 mm
Front Center	634 mm	634 mm	634 mm	634 mm	644 mm	644 mm	644 mm	644 mm	654 mm	654 mm	654 mm	654 mm
Rake	45 mm	45 mm	45 mm	45 mm	44 mm	44 mm	44 mm	44 mm	35 mm	35 mm	35 mm	35 mm
Trail	89 mm	89 mm	89 mm	89 mm	86 mm	86 mm	86 mm	86 mm	83 mm	83 mm	83 mm	83 mm
Stack	596 mm	596 mm	596 mm	596 mm	621 mm	621 mm	621 mm	621 mm	652 mm	652 mm	652 mm	652 mm
Reach	377 mm	377 mm	377 mm	377 mm	384 mm	384 mm	384 mm	384 mm	398 mm	398 mm	398 mm	398 mm
Top Tube Length	559 mm	559 mm	559 mm	559 mm	576 mm	576 mm	576 mm	576 mm	590 mm	590 mm	590 mm	590 mm
Seat Tube Angle	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °
Seat Tube Length	450 mm	450 mm	450 mm	450 mm	500 mm	500 mm	500 mm	500 mm	550 mm	550 mm	550 mm	550 mm
Head Tube Angle	69 °	69 °	69 °	69 °	69.5 °	69.5 °	69.5 °	69.5 °	70 °	70 °	70 °	70 °
Head Tube Length	140 mm	140 mm	140 mm	140 mm	165 mm	165 mm	165 mm	165 mm	195 mm	195 mm	195 mm	195 mm
Chainstay Length	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm
Wheelbase	1110 mm	1110 mm	1110 mm	1110 mm	1120 mm	1120 mm	1120 mm	1120 mm	1130 mm	1130 mm	1130 mm	1130 mm
Bottom Bracket Drop	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm
Standover Height	682 mm	682 mm	682 mm	682 mm	687 mm	687 mm	687 mm	687 mm	727 mm	727 mm	727 mm	727 mm
Wheels	27"	27"	27"	27"	27"	27"	27"	27"	27"	27"	27"	27"
Rider Min Height	158 cm	158 cm	158 cm	158 cm	168 cm	168 cm	168 cm	168 cm	176 cm	176 cm	176 cm	176 cm
Rider Max Height	170 cm	170 cm	170 cm	170 cm	179 cm	179 cm	179 cm	179 cm	187 cm	187 cm	187 cm	187 cm
