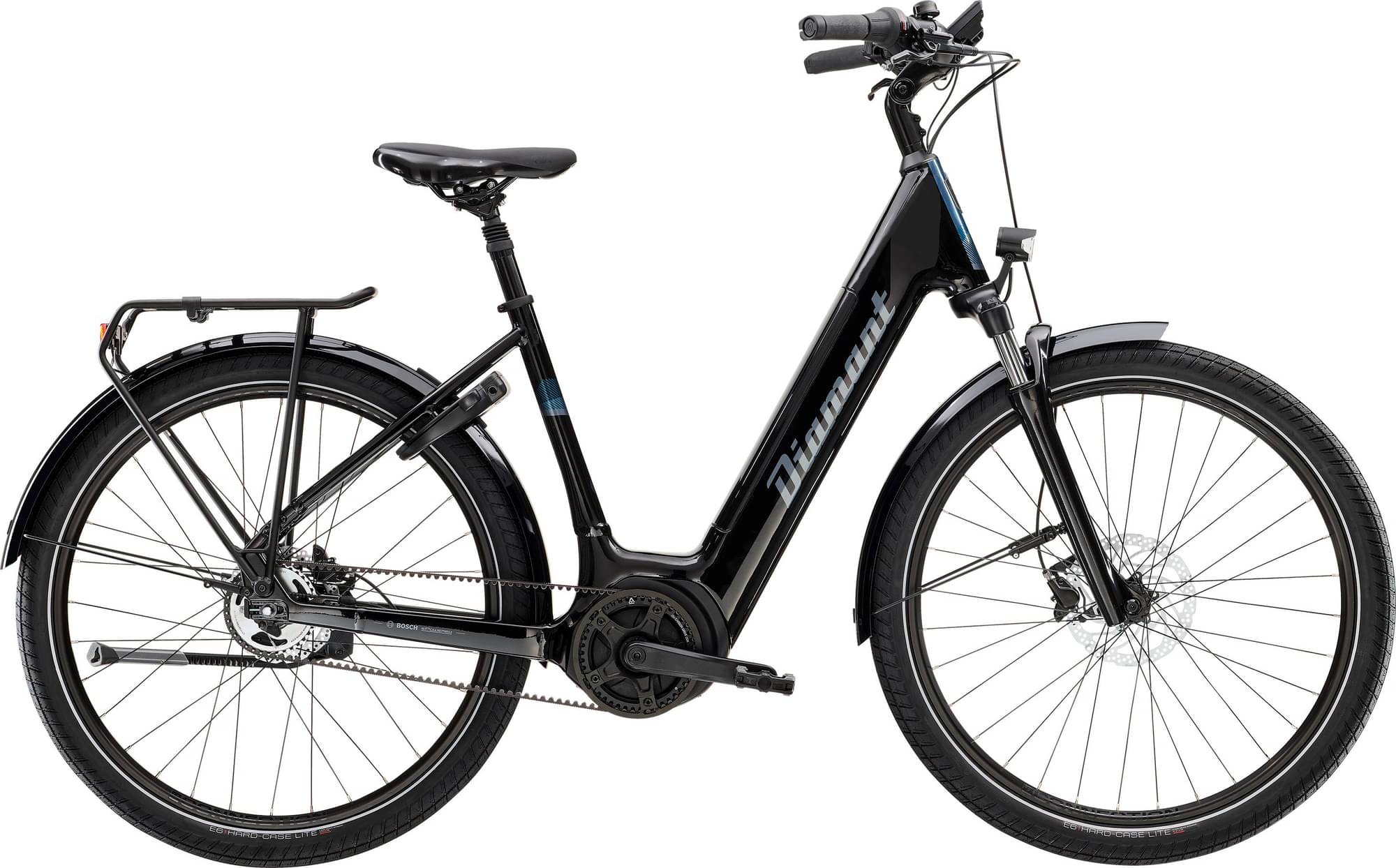

Diamant Beryll Esprit TIE 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- E-bike
- |
- Urban
- |
- Commuter
Frame Aluminum
Travel Front 60mm
Fork Suntour NVX
Groupset Nexus
Suspension Hardtail
Motor Bosch 250W 75Nm mid-drive
Battery Bosch Powerpack 545 / 725, Smart System
Drivetrain Belt Drive, Internally Geared Hub
Brakes Shimano Hydraulic Disc

Sizing

Recommended size guide.

XS
151cm - 164cm
XS
151cm - 164cm
XS
151cm - 164cm
XS
151cm - 164cm
SM
159cm - 170cm
SM
159cm - 170cm
SM
159cm - 170cm
SM
159cm - 170cm
MD
165cm - 177cm
MD
165cm - 177cm
MD
165cm - 177cm
MD
165cm - 177cm
LG
171cm - 184cm
LG
171cm - 184cm
LG
171cm - 184cm
LG
171cm - 184cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Alpha Smooth Aluminium, Removable Integrated Battery, interne Zugführung, Motor Armor, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm Schnellspannachse

Suspension Fork

SR Suntour NVX30, Spiralfeder, verstellbare Federvorspannung, 100-mm-Schnellspannachse, 60 mm Federweg

Drivetrain

Shift Levers

Shimano Nexus C7000, 5fach

Cassette

Gates CDX, 36 Z., Stahl

Crank

ProWheel, Aluminium, 170 mm Kurbelarmlänge

Chain

Gates CDX, 130 Z.

Pedals

rutschfeste Pedale mit Reflektoren

Wheels

Rims

Bontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil Shimano QC300, Centerlock Shimano Nexus C7000, 5fach

Brakes

Front: Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200 Shimano RT30, Centerlock-Scheibenaufnahme, 180 mm // Shimano EM300, Centerlock-Scheibenaufnahme, 160 mm

Cockpit

Stem

Bontrager Aluminium, 31,8 mm, verstellbar, Blendr-kompatibel

Handlebar

Aluminium, 31,8 mm Klemmung, 25 mm Rise, 630 mm Breite

Headset

Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

Seat

Saddle

Selle Royal Nuvola

Seatpost

Aluminium, gefedert, 31,6 mm, 300 mm Länge

Motor & Battery

Motor

Bosch Performance Line, 250 W, 75 Nm, 25 km/h

Battery

Bosch Powerpack 545 / 725, Smart System

Charger

Bosch Standardladegerät 4 A, 230 V, Smart System

Fit data

Geometry

Numbers for sizing and ride feel.

Size	XS	XS	XS	XS	SM	SM	SM	SM	MD	MD	MD	MD	LG	LG	LG	LG
Stack Reach Ratio	1.726 mm	1.726 mm	1.726 mm	1.726 mm	1.636 mm	1.636 mm	1.636 mm	1.636 mm	1.686 mm	1.686 mm	1.686 mm	1.686 mm	1.735 mm	1.735 mm	1.735 mm	1.735 mm
Bottom Bracket Height	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm
Front Center	643 mm	643 mm	643 mm	643 mm	648 mm	648 mm	648 mm	648 mm	661 mm	661 mm	661 mm	661 mm	673 mm	673 mm	673 mm	673 mm
Rake	45 mm	45 mm	45 mm	45 mm	31 mm	31 mm	31 mm	31 mm	36 mm	36 mm	36 mm	36 mm	40 mm	40 mm	40 mm	40 mm
Trail	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm
Stack	630 mm	630 mm	630 mm	630 mm	630 mm	630 mm	630 mm	630 mm	649 mm	649 mm	649 mm	649 mm	668 mm	668 mm	668 mm	668 mm
Reach	365 mm	365 mm	365 mm	365 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm
Top Tube Length	582 mm	582 mm	582 mm	582 mm	587 mm	587 mm	587 mm	587 mm	598 mm	598 mm	598 mm	598 mm	610 mm	610 mm	610 mm	610 mm
Seat Tube Angle	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °
Seat Tube Length	390 mm	390 mm	390 mm	390 mm	440 mm	440 mm	440 mm	440 mm	500 mm	500 mm	500 mm	500 mm	550 mm	550 mm	550 mm	550 mm
Head Tube Angle	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °
Head Tube Length	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm	180 mm	180 mm	180 mm	180 mm	200 mm	200 mm	200 mm	200 mm
Chainstay Length	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm
Wheelbase	1122 mm	1122 mm	1122 mm	1122 mm	1127 mm	1127 mm	1127 mm	1127 mm	1140 mm	1140 mm	1140 mm	1140 mm	1152 mm	1152 mm	1152 mm	1152 mm
Bottom Bracket Drop	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm
Standover Height	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm
Wheels	650	650	650	650	650	650	650	650	650	650	650	650	650	650	650	650
Rider Min Height	151 cm	151 cm	151 cm	151 cm	159 cm	159 cm	159 cm	159 cm	165 cm	165 cm	165 cm	165 cm	171 cm	171 cm	171 cm	171 cm
Rider Max Height	164 cm	164 cm	164 cm	164 cm	170 cm	170 cm	170 cm	170 cm	177 cm	177 cm	177 cm	177 cm	184 cm	184 cm	184 cm	184 cm
