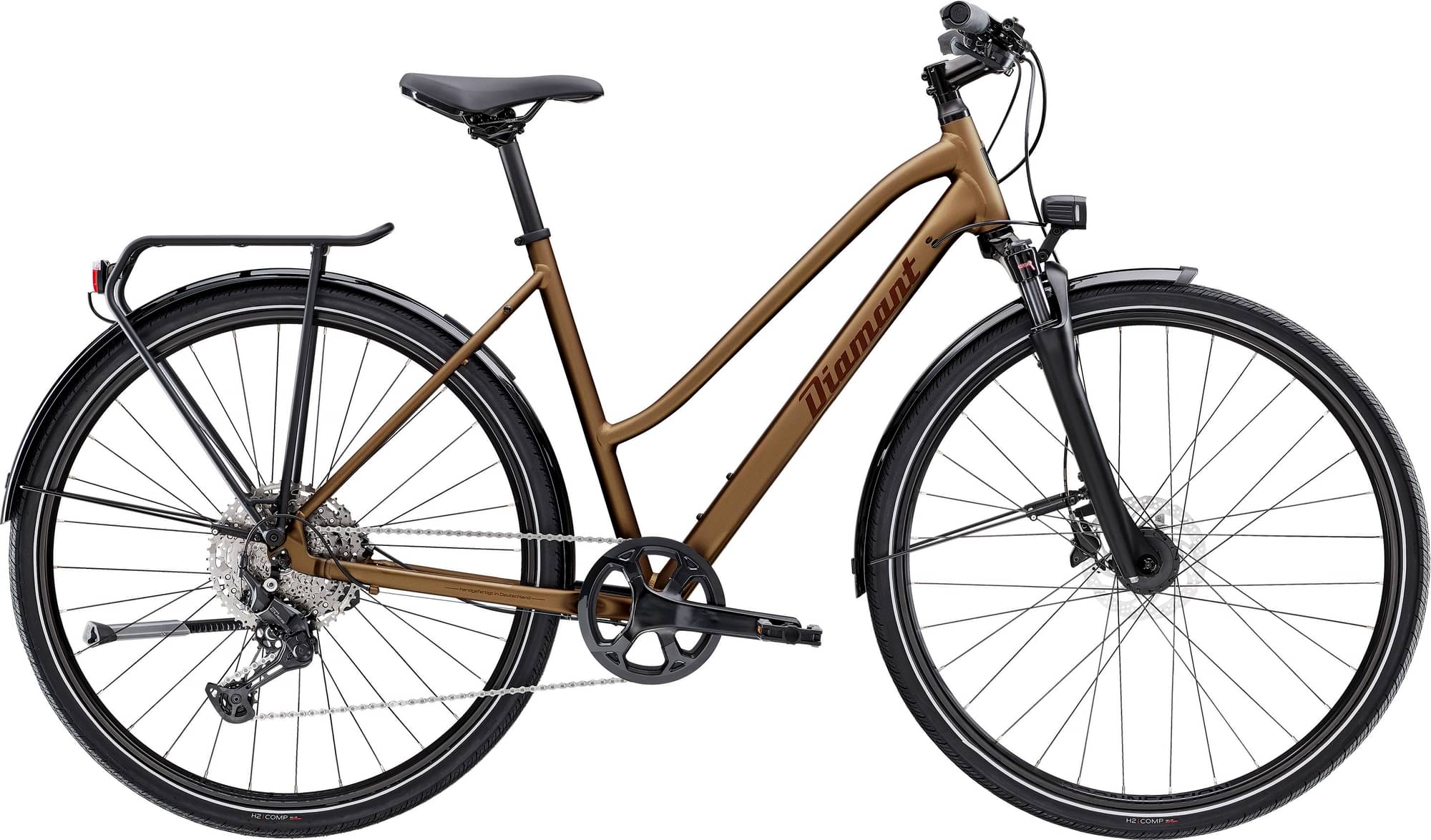

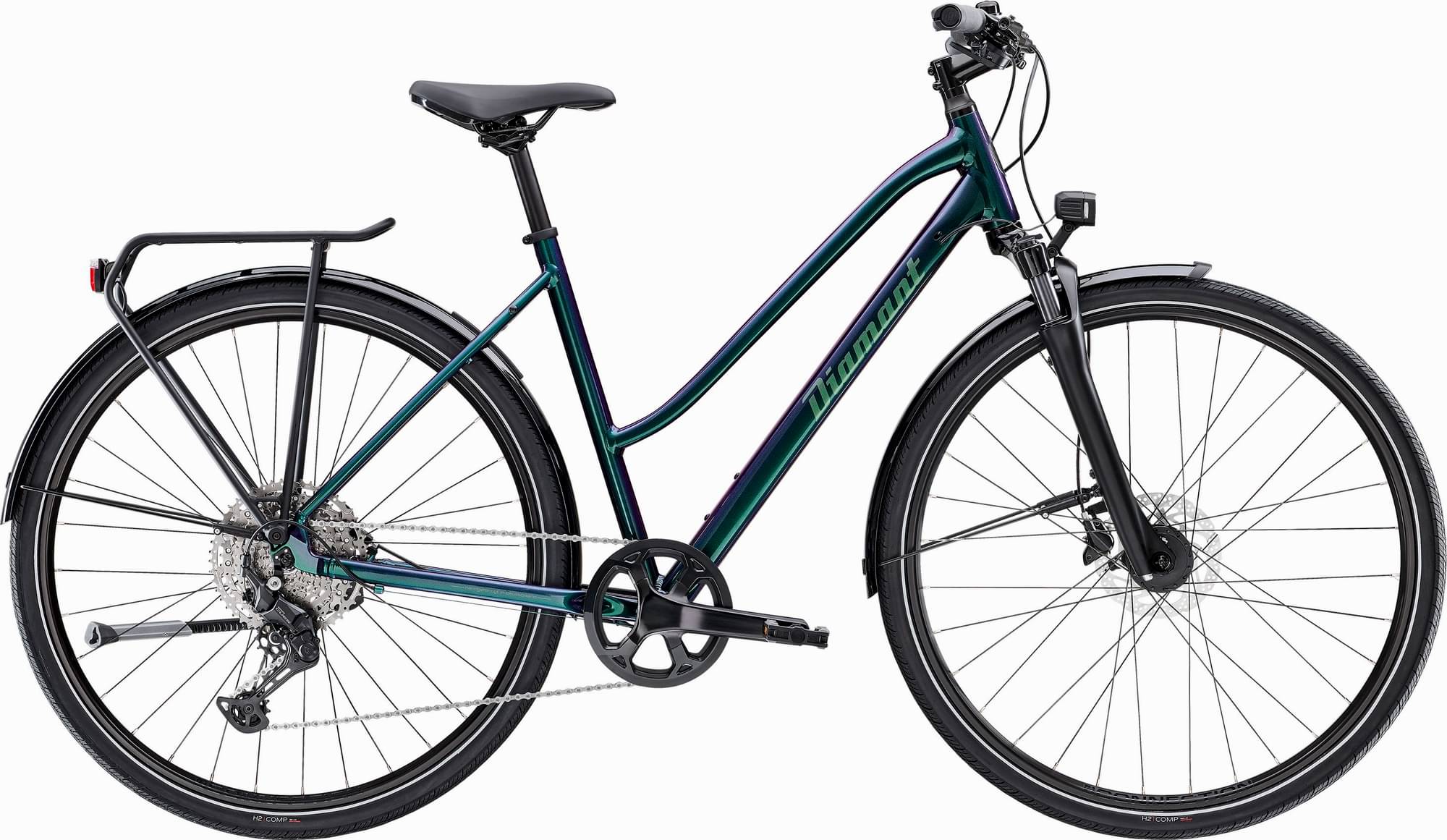

diamant Elan Deluxe 2024
2024 Urban
Estimate price |
1,665$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NX 1
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminum, internal cable routing, post-mount disc, rack and mudguard mounts
Suspension Fork
SR Suntour NX1, coil spring, adjustable spring preload, lockout, 100 mm quick release axle, 50 mm travel
Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano U6000, 11-speed
Crank
ProWheel aluminum, 42 teeth. 175 mm
Chain
Shimano LG500, 9/10/11-speed
Pedals
non-slip pedals with reflectors
Wheels
Rims
Bontrager Connection, hollow chamber rim, 32 holes, 20 mm inner width, Presta valve
Brakes
Brakes
Shimano MT200 hydraulic disc brake
Cockpit
Stem
Bontrager Comp, 31 8mm, Blendr compatible, 7 degree, 80mm length
Handlebar
Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 660mm width
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Bontrager, aluminum, 27.2mm, 12mm offset, 330mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.576 mm | 1.608 mm | 1.635 mm |
| Front Center | 63 mm | 63 mm | 64 mm |
| Rake | 8.4 mm | 8.1 mm | 7.7 mm |
| Trail | 116 mm | 112 mm | 108 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 154 cm | 164 cm | 174 cm |
| Rider Max Height | 167 cm | 177 cm | 187 cm |
