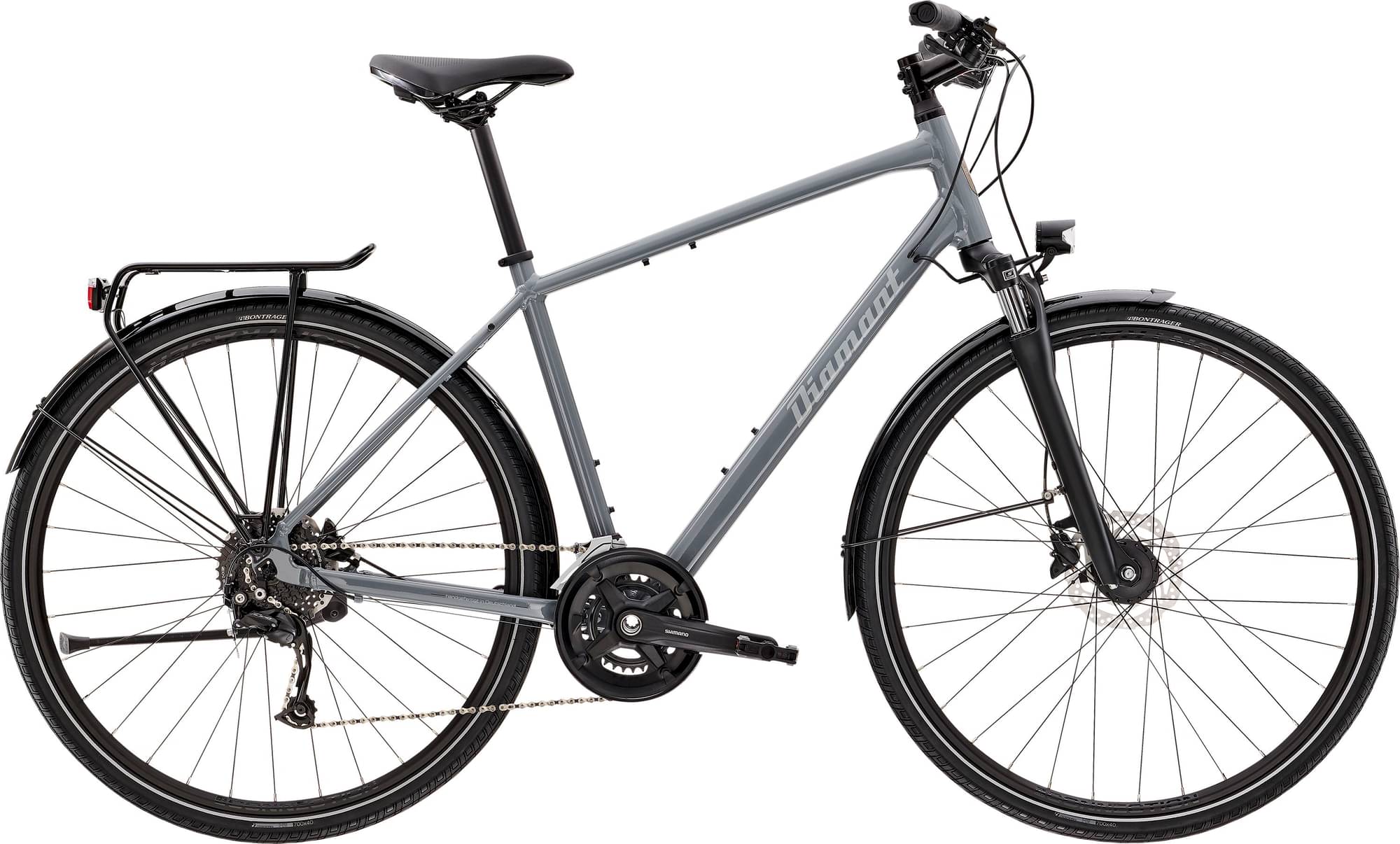

diamant Elan Deluxe (Einstieg: hoch) 2021
2021 Urban
Estimate price |
1,162$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminium, interne Zugführung, Post Mount-Scheibenbremsaufnahme, Gepäckträger- und Schutzblechösen
Suspension Fork
SR Suntour NEX, Spiralfeder, verstellbare Federvorspannung, 50 mm Federweg, 100 x 5 mm Schnellspannachse
Drivetrain
Rear Derailleur
Shimano Alivio M3100, langer Käfig
Front Derailleur
Shimano Acera T3000, 34,9 mm Klemme, Top Swing, Dual Pull
Shift Levers
Shimano Alivio M3100, 9fach // Shimano Alivio M3100, 9fach
Cassette
Shimano HG200, 11-36 Z., 9-fach
Crank
Shimano MT210, 46/30, Kettenschutz, 175 mm Kurbelarmlänge
Chain
KMC E9S, 9fach
Pedals
rutschfeste Pedale mit Reflektoren
Wheels
Rims
Bontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil // Bontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil Shimano Nabendynamo 3,0 Watt Shimano TX505, Center Lock-Scheibenaufnahme
Tires
Bontrager H2 mit Reflexstreifen, 40-622
Brakes
Brakes
Front: Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200 Shimano RT10, Center Lock-Scheibenaufnahme, 160 mm
Cockpit
Stem
Bontrager Comp, 31 8 mm, Blendr-kompatibel, 7 Grad, 90 mm Länge
Handlebar
Aluminium-Lowriser, 31,8 mm, 25 mm Rise, 11 Grad Krümmung, 690 mm Breite
Headset
Stahl, gewindelos, 1 1/8"
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Bontrager, Aluminium, 27,2 mm, 12 mm Versatz, 330 mm Länge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.608 mm | 1.647 mm | 1.658 mm |
| Bottom Bracket Height | 293 mm | 293 mm | 293 mm |
| Front Center | 631 mm | 644 mm | 661 mm |
| Rake | 45 mm | 44 mm | 45 mm |
| Trail | 81 mm | 77 mm | 74 mm |
| Stack | 619 mm | 649 mm | 675 mm |
| Reach | 385 mm | 394 mm | 407 mm |
| Top Tube Length | 574 mm | 592 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1090 mm | 1103 mm | 1120 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 778 mm | 820 mm | 859 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
