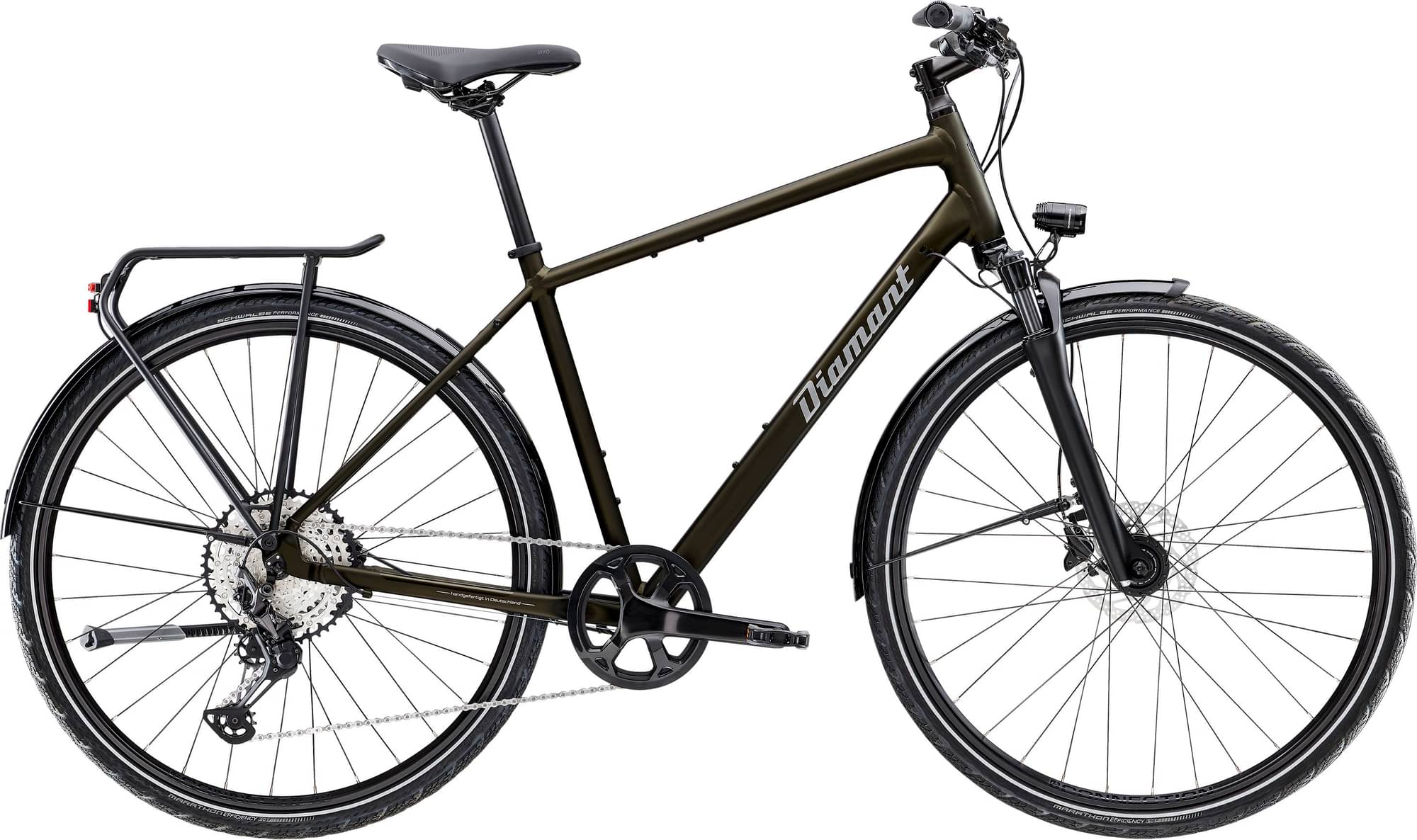

diamant Elan Super Deluxe (Einstieg: hoch) 2024
2024 Urban
Estimate price |
1,851$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour NX 1
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminium, interne Zugführung, Post Mount-Scheibenbremsaufnahme, Gepäckträger- und Schutzblechösen
Suspension Fork
SR Suntour NX1, Spiralfeder, einstellbare Federvorspannung, Lockout, 100 mm Schnellspannachse, 50 mm Federweg
Drivetrain
Rear Derailleur
Shimano XT M8100, langer Käfig
Shift Levers
Shimano XT M8100, 12 fach, Rapidfire Plus
Cassette
Shimano SLX M7100, 10-51 Zähne, 12-fach
Crank
Aluminium, 42 Zähne, Narrow-Wide-Zahnprofil, Kettenschutz
Chain
Shimano SLX M7100, 12fach
Pedals
rutschfeste Aluminiumpedale mit Reflektoren
Wheels
Rims
Bontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil Shimano Nabendynamo, DH-3D72, 6 V, 3 W, 100 mm Shimano QC500, 32 Loch, Centerlock, 135x5 mm Schnellspanner
Brakes
Brakes
Front: Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200 Shimano SM-RT30, Center Lock-Scheibenaufnahme, 160 mm
Cockpit
Stem
Bontrager Comp, 31 8 mm, Blendr-kompatibel, 7 Grad, 90 mm Länge
Handlebar
Aluminium-Lowriser, 31,8 mm, 25 mm Rise, 11 Grad Krümmung, 690 mm Breite
Headset
Stahl, gewindelos, 1 1/8"
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Bontrager, Aluminium, 27,2 mm, 12 mm Versatz, 330 mm Länge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.608 mm | 1.647 mm | 1.658 mm |
| Bottom Bracket Height | 293 mm | 293 mm | 293 mm |
| Front Center | 631 mm | 644 mm | 661 mm |
| Rake | 45 mm | 44 mm | 45 mm |
| Trail | 81 mm | 77 mm | 74 mm |
| Stack | 619 mm | 649 mm | 675 mm |
| Reach | 385 mm | 394 mm | 407 mm |
| Top Tube Length | 574 mm | 592 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1090 mm | 1103 mm | 1120 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 778 mm | 820 mm | 859 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
