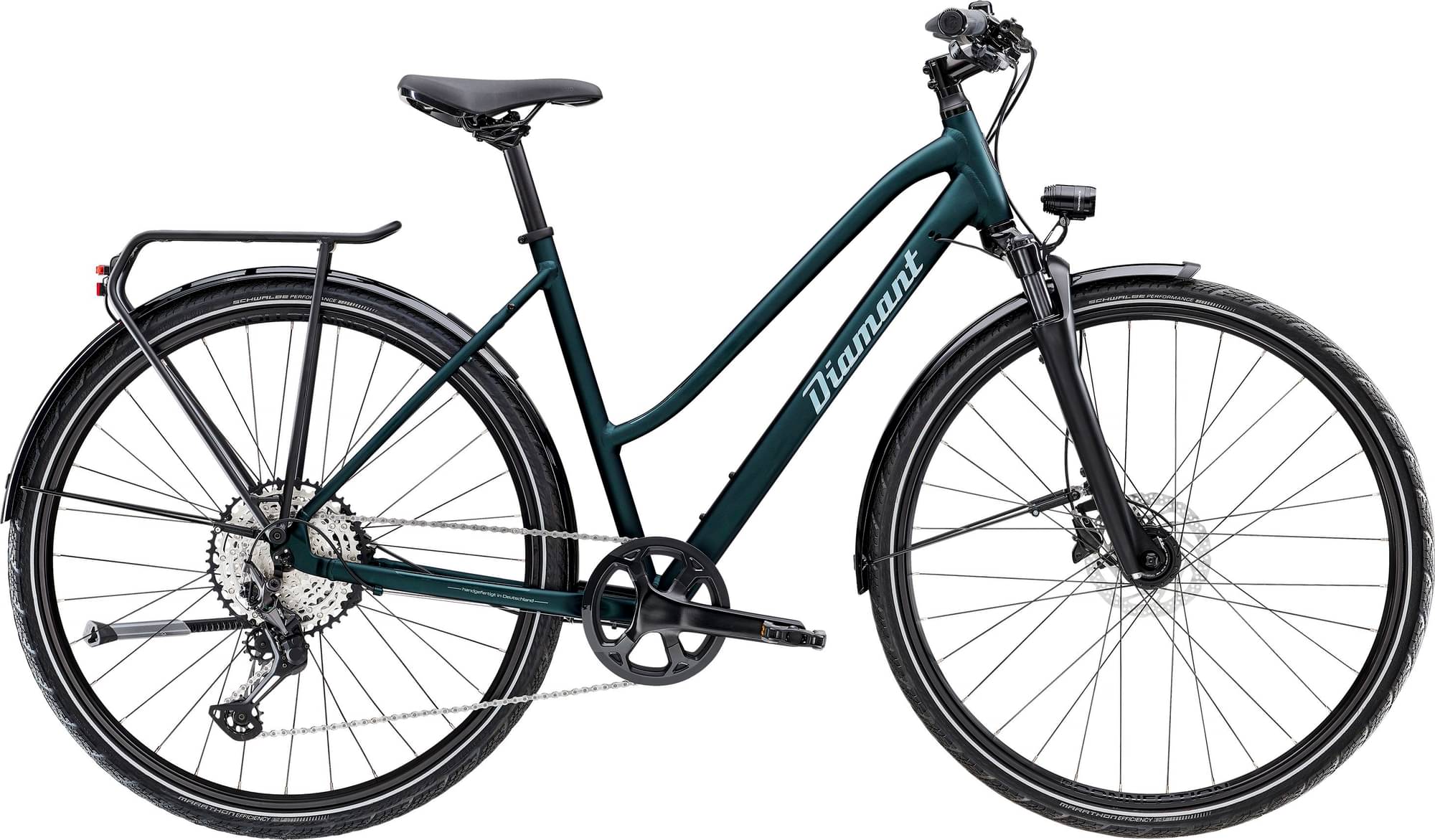

diamant Elan Super Deluxe (Einstieg: mittel) 2024
2024 Urban
Estimate price |
1,851$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour NX 1
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminum, internal cable routing, post-mount disc, rack and mudguard mounts
Suspension Fork
SR Suntour NX1, Spiralfeder, einstellbare Federvorspannung, Lockout, 100 mm Schnellspannachse, 50 mm Federweg
Drivetrain
Rear Derailleur
Shimano XT M8100, langer Käfig
Shift Levers
Shimano XT M8100, 12 fach, Rapidfire Plus
Cassette
Shimano SLX M7100, 10-51 Zähne, 12-fach
Crank
Aluminium, 42 Zähne, Narrow-Wide-Zahnprofil, Kettenschutz
Chain
Shimano SLX M7100, 12fach
Pedals
rutschfeste Aluminiumpedale mit Reflektoren
Wheels
Rims
Bontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil Shimano Nabendynamo, DH-3D72, 6 V, 3 W, 100 mm Shimano QC500, 32 Loch, Centerlock, 135x5 mm Schnellspanner
Brakes
Brakes
Front: Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200 Shimano SM-RT30, Center Lock-Scheibenaufnahme, 160 mm
Cockpit
Stem
Bontrager Comp, 31 8 mm, Blendr-kompatibel, 7 Grad, 80 mm Länge
Handlebar
Aluminium-Lowriser, 31,8 mm, 25 mm Rise, 11 Grad Krümmung, 660 mm Breite
Headset
Stahl, gewindelos, 1 1/8"
Seat
Saddle
Selle Royal Vivo Moderate Ergo mit Royalgel
Seatpost
Bontrager, Aluminium, 27,2 mm, 12 mm Versatz, 330 mm Länge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.576 mm | 1.608 mm | 1.635 mm |
| Bottom Bracket Height | 293 mm | 293 mm | 293 mm |
| Front Center | 627 mm | 631 mm | 643 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 84 mm | 81 mm | 77 mm |
| Stack | 602 mm | 619 mm | 644 mm |
| Reach | 382 mm | 385 mm | 394 mm |
| Top Tube Length | 561 mm | 574 mm | 591 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 125 mm | 145 mm | 170 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm |
| Wheelbase | 1086 mm | 1090 mm | 1102 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 653 mm | 657 mm | 687 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
