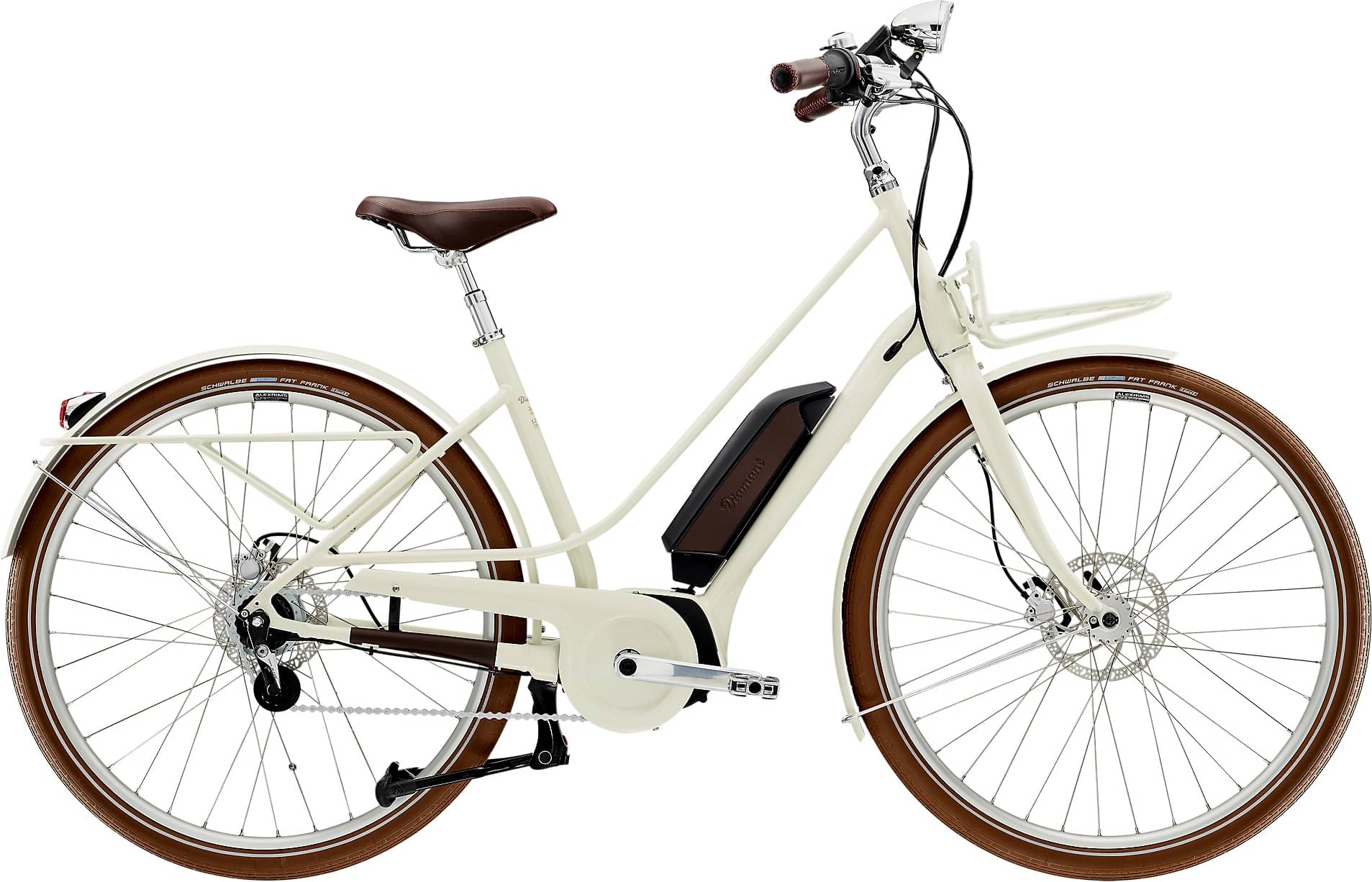

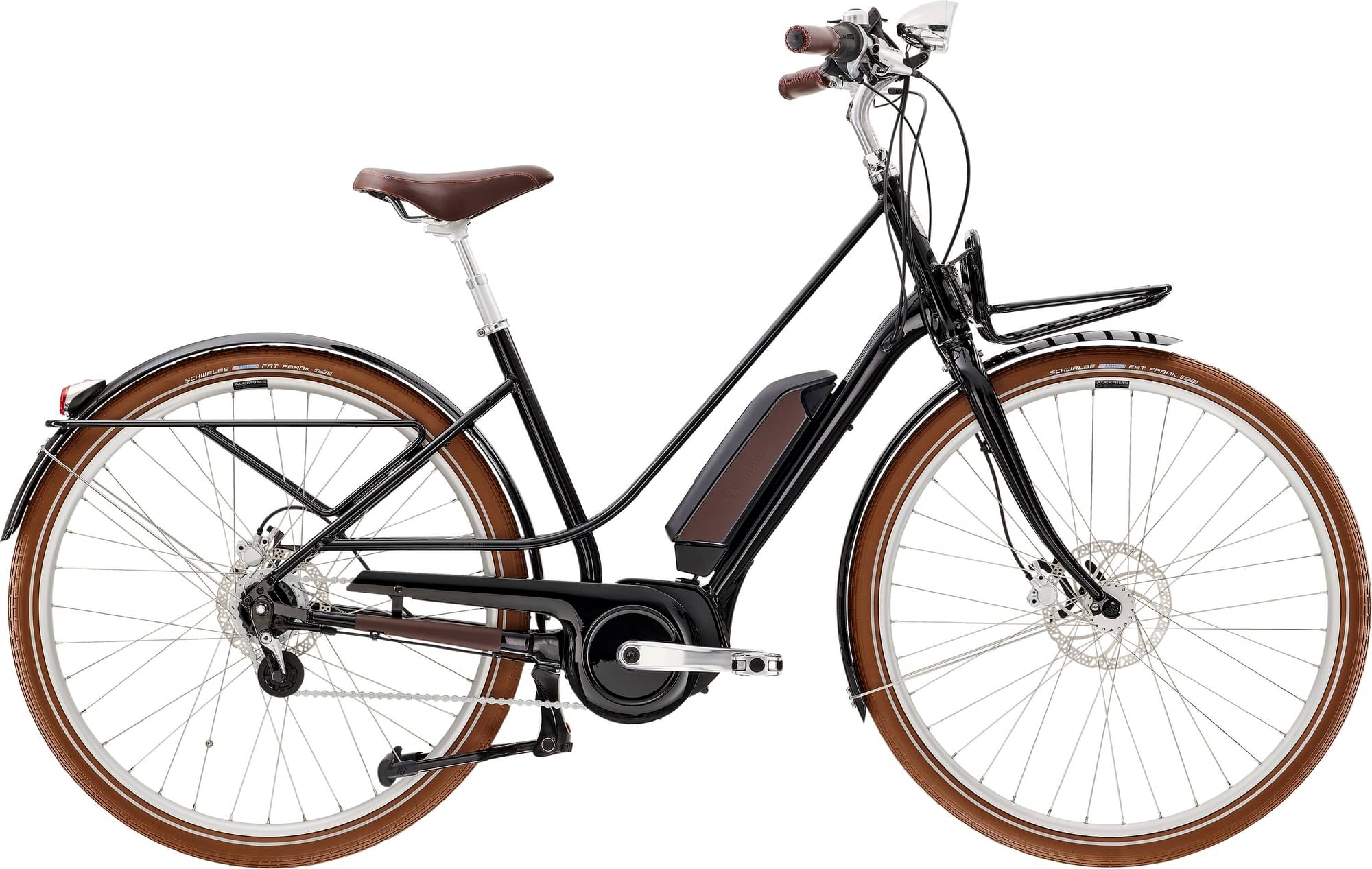

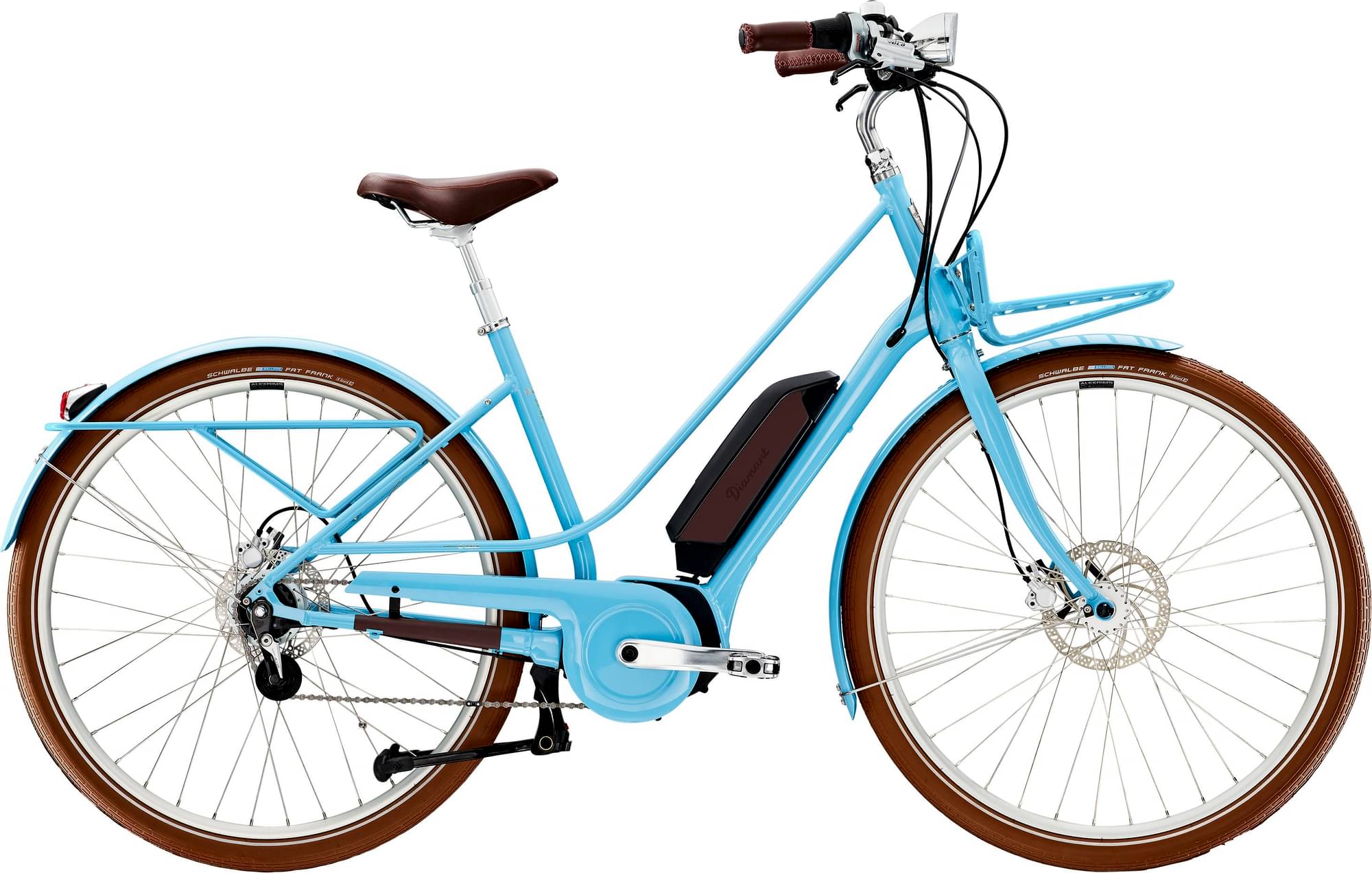

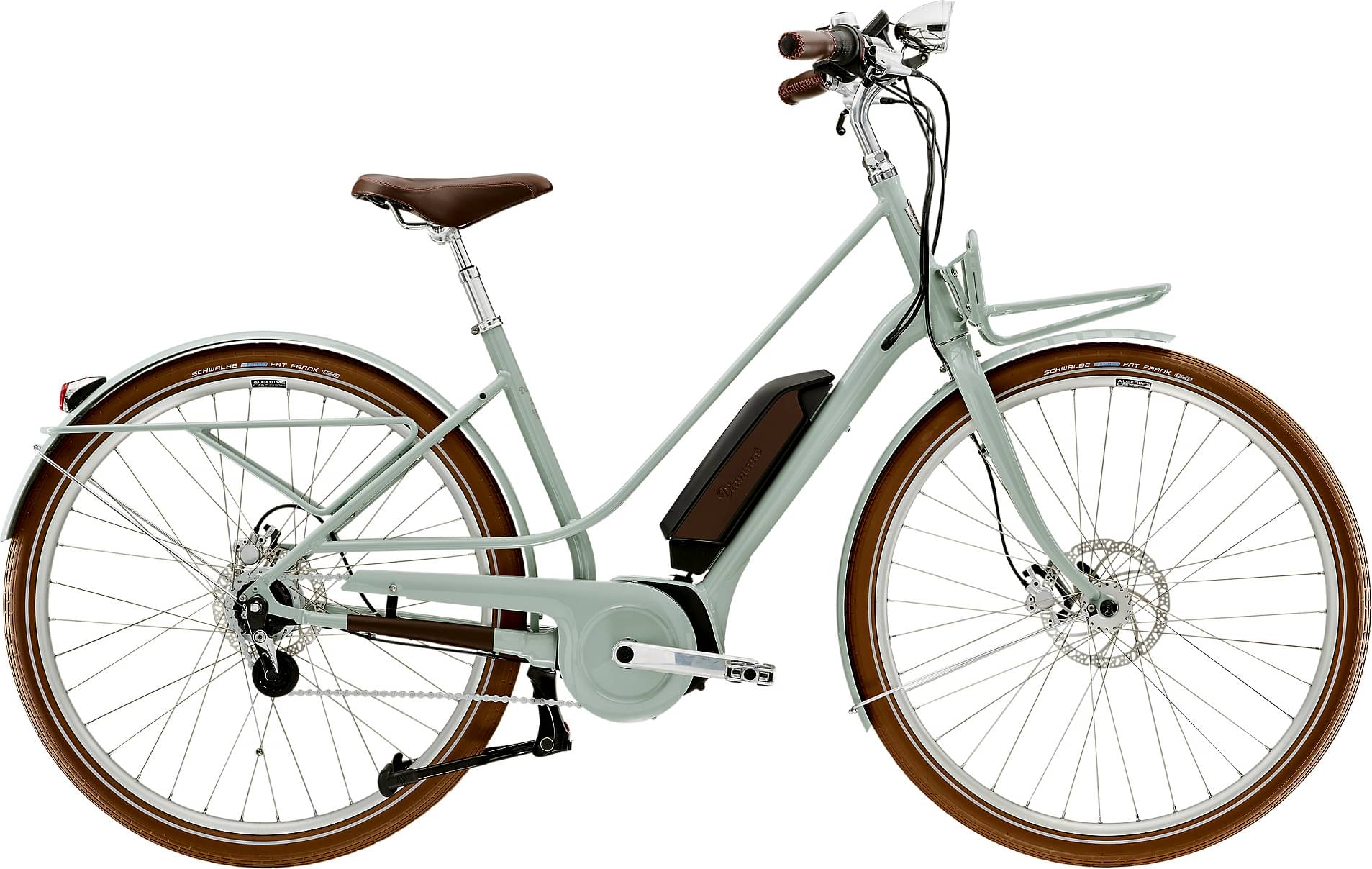

diamant Juna Deluxe+ WIE 2021
2021 E-bike
Estimate price |
3,085$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack Performance 500 am Unterrohr -
Drivetrain Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MY19 BOSCH MOTOR CITY SHOPPER FRAME MIDSTEP 45CM RIGID DERAILLEUR DISC BRAKE BEADED WELD INTERNAL CABLE ROUTING
Suspension Fork
starre Stahlgabel
Drivetrain
Shift Levers
ASLC60008DXS210LA, SHIFT LEVER(REVO)SL-C60008, NEXUS, 2355MM INNER, SAME PACK(2100MM BLACK OUTER, RESIN CAP, INNER FIXING BOLT UNIT,OUTER HOLDER UNI
Cassette
Shimano 20 Zähne
Crank
Geschmiedete Aluminium-Kurbelarme, 170 mm, Bosch-System
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG40, 6/7/8fach // CHAIN KMC 408RB 1/2 X 3/32 BULK GREY/ GREY ..
Pedals
Plattformpedale aus Aluminium mit rutschfester Gummiauflage
Wheels
Rims
RIM, ALEXRIMS DP23, 700C (622X23) 36 HOLES, WITH SINGLE EYELETS DISC/ROLLER BRAKE ONLY 23MM HOOK BEAD, SYMMETRIC, PINNED JOINT HOLE FOR Presta VALVE SILVER ANODIZED, WITH SMALL DECAL (CEN/CPSC LEGAL REQUIREMENTS AHBM475ABS, FRONT HUB, (02) HB-M475-S QR(ALLOY, BLACK), 36H SILVER OLD:100MM AXLE:108MM FOR DISC BRAKE (6 BOLT), BULK … RUNNING CHANGE TO AHBM475AS5, FRONT HUB, ( Shimano Nexus 8 Schaltnabe
Brakes
Brakes
Front: Hydraulische Shimano MT200 Scheibenbremse oder hydraulische C-Star Power Scheibenbremse, nach Verfügbarkei
Cockpit
Stem
Schaftvorbau, Ø 25,4 mm, 80 mm Verlängerung, kaltgeschmiedetes Aluminium, Edelstahlschrauben
Handlebar
Bontrager Capital Urban, 25.4mm
Seat
Saddle
Diamant Retro
Seatpost
Komfortfederung, 31,6 mm
Motor & Battery
Motor
Bosch Active Line Plus, 250 Watt, 50 Nm, 25 km/h
Battery
Bosch PowerPack Performance 500 am Unterrohr
Charger
Bosch Standardladegerät 4A (220 – 240 V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | SM | SM | MD | MD | MD | MD |
|---|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm |
| Front Center | 626 mm | 626 mm | 626 mm | 626 mm | 651 mm | 651 mm | 651 mm | 651 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
| Reach | 324 mm | 324 mm | 324 mm | 324 mm | 349 mm | 349 mm | 349 mm | 349 mm |
| Top Tube Length | 600 mm | 600 mm | 600 mm | 600 mm | 625 mm | 625 mm | 625 mm | 625 mm |
| Seat Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Seat Tube Length | 450 mm | 450 mm | 450 mm | 450 mm | 490 mm | 490 mm | 490 mm | 490 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm | 235 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm | 505 mm | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1124 mm | 1124 mm | 1124 mm | 1124 mm | 1149 mm | 1149 mm | 1149 mm | 1149 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 587 mm | 587 mm | 587 mm | 587 mm | 550 mm | 550 mm | 550 mm | 550 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
