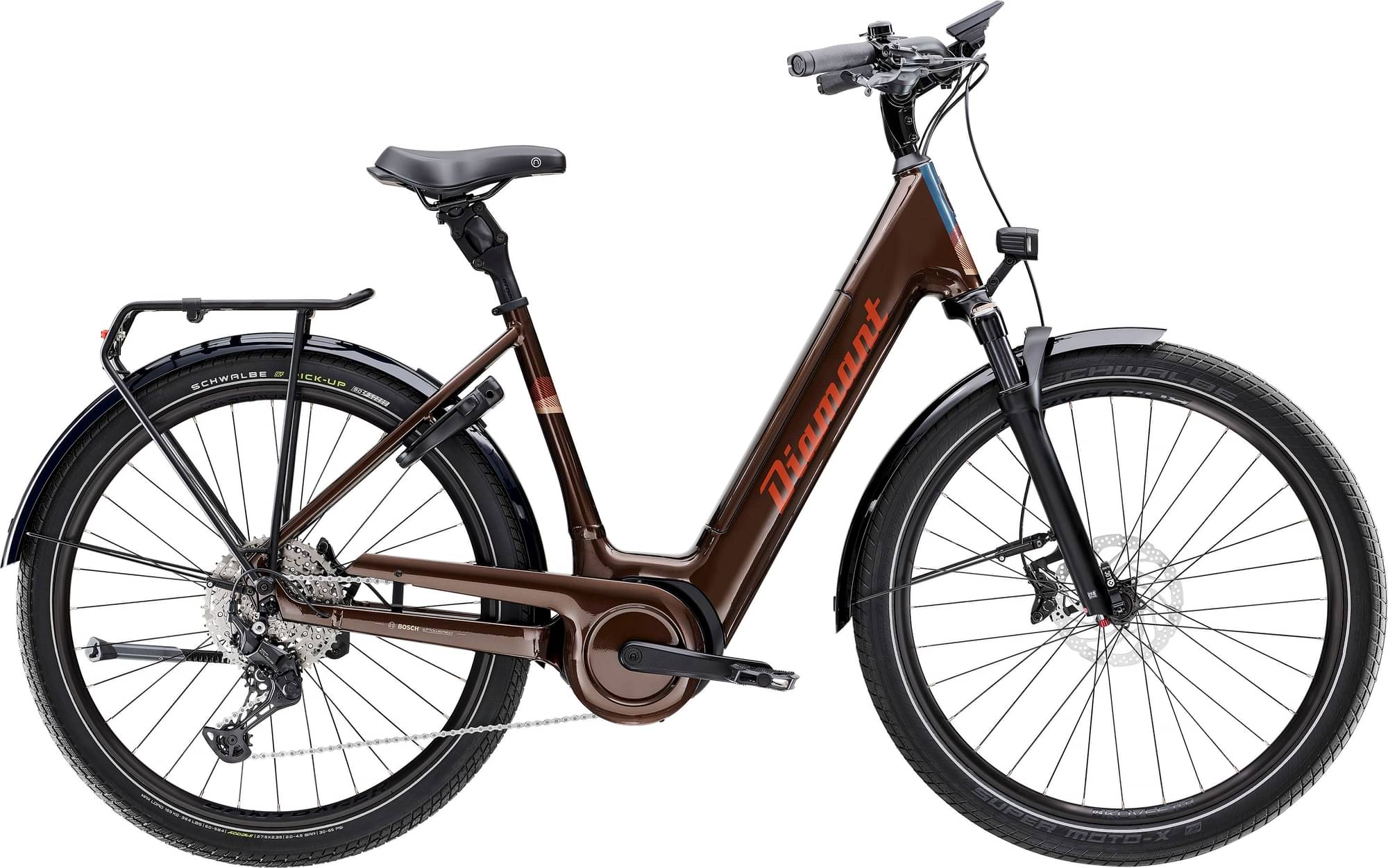

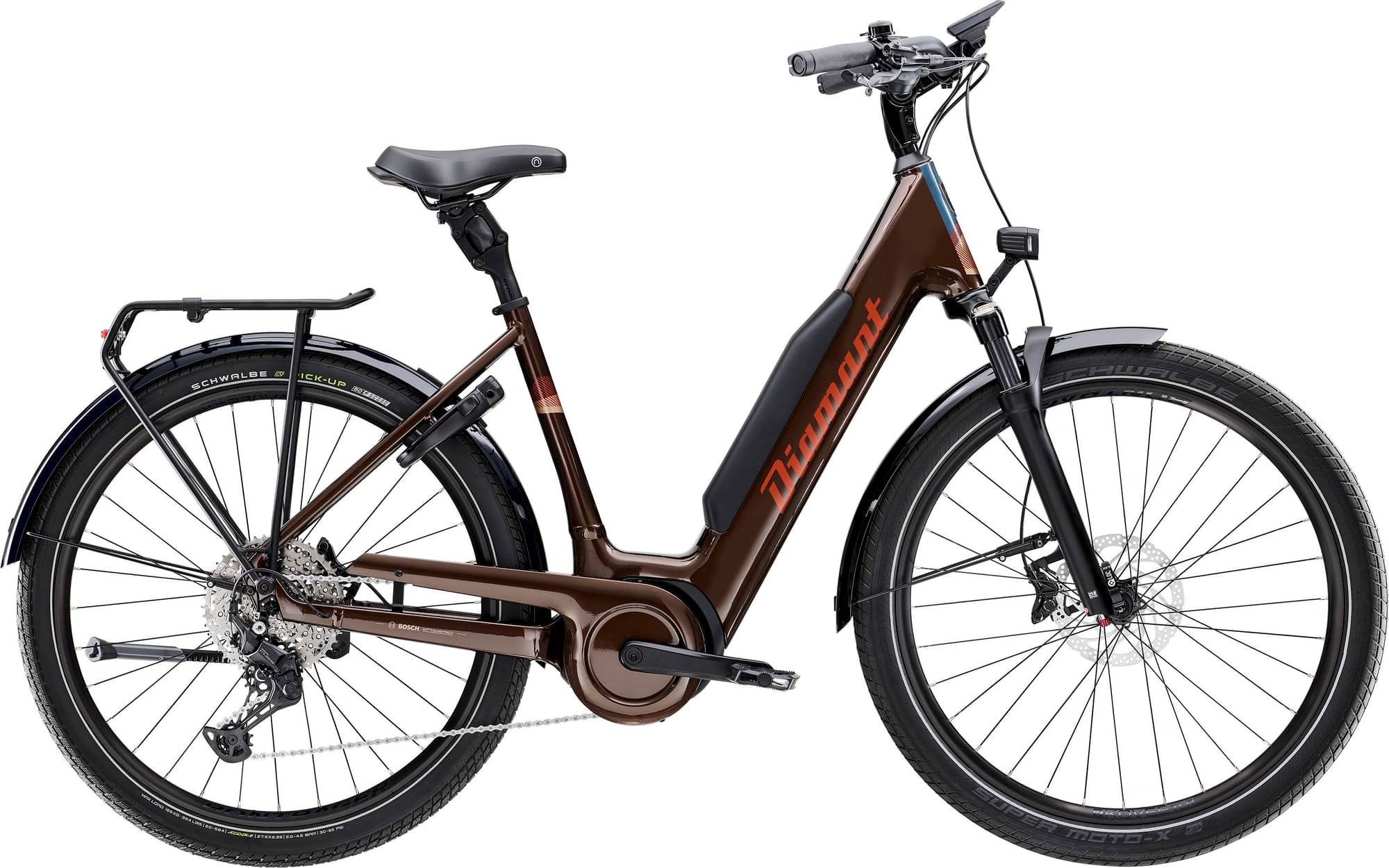

Diamant Mandara 160 Gen 3 (CUES) TIE 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- E-bike
- |
- Urban
- |
- Hybrid
Frame Aluminum
Travel Front 100mm
Fork Suntour MOBIE
Groupset CUES
Suspension Hardtail
Motor Bosch 250W 75Nm mid-drive
Battery UNKNOWN
Brakes Shimano Hydraulic Disc

Sizing

Recommended size guide.

SM
158cm - 171cm
SM
158cm - 171cm
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
XL
186cm - 199cm
XL
186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Alpha Smooth Aluminium, Removable Integrated Battery, interne Zugführung, Motor Armor, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm Schnellspannachse

Suspension Fork

SR Suntour Mobie 34, Luftfeder, verstellbare Zugstufe und Druckstufe, 100mm Steckachse, 60mm Federweg

Drivetrain

Rear Derailleur

Shimano CUES U6000 GS

Shift Levers

Shimano CUES U6000 mit optischer Ganganzeige, 10-fach

Cassette

Shimano CUES LG400, LINKGLIDE, 11-48 Zähne, 10-fach

Crank

ProWheel, Aluminium, 175 mm Kurbelarmlänge

Chain

Shimano Ultegra HG701, 11fach

Pedals

Bontrager City Pedale

Wheels

Rims

Bontrager Kovee, Hohlkammerfelge, Tubeless Ready, 28-Loch, 23 mm Innenweite, Presta-Ventil Bontrager, gedichtete Lager, 32-Loch, 15-mm-Aluminiumsteckachse

Tires

Schwalbe Pick-Up, reflektierend, Drahtwulstkern, Super Defense Karkassenkonstruktion, 60-584 // Schwalbe Super Moto-X, reflektierend, Drahtwulstkern, GreenGuard-Pannenschutz, 650 x 62 mm

Brakes

Front: Shimano MT401 / MT420 hydraulische Scheibenbremse, 180 mm Scheibendurchmesser // Shimano MT401 / MT420 hydraulic disc Shimano RT30, Centerlock-Scheibenaufnahme, 180 mm // Shimano EM300, Centerlock-Scheibenaufnahme, 180 mm

Cockpit

Stem

Verstellbarer Aluminiumvorbau, 110 mm Länge

Handlebar

Aluminium, 31,8 mm Klemmung, 25 mm Rise, 630 mm Breite

Seat

Saddle

Selle Royal ON relaxed

Seatpost

Ergotec PM705-N mit Federung

Motor & Battery

Motor

Bosch Performance Line, 250 W, 75 Nm, 25 km/h

Battery

UNKNOWN

Charger

Bosch Standardladegerät 4 A, 230 V, Smart System

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM	SM	SM	SM	MD	MD	MD	MD	LG	LG	LG	LG	XL	XL	XL	XL
Stack Reach Ratio	1.636 mm	1.636 mm	1.636 mm	1.636 mm	1.686 mm	1.686 mm	1.686 mm	1.686 mm	1.735 mm	1.735 mm	1.735 mm	1.735 mm	1.782 mm	1.782 mm	1.782 mm	1.782 mm
Bottom Bracket Height	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm
Front Center	648 mm	648 mm	648 mm	648 mm	661 mm	661 mm	661 mm	661 mm	673 mm	673 mm	673 mm	673 mm	685 mm	685 mm	685 mm	685 mm
Rake	31 mm	31 mm	31 mm	31 mm	36 mm	36 mm	36 mm	36 mm	40 mm	40 mm	40 mm	40 mm	45 mm	45 mm	45 mm	45 mm
Trail	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm
Stack	630 mm	630 mm	630 mm	630 mm	649 mm	649 mm	649 mm	649 mm	668 mm	668 mm	668 mm	668 mm	686 mm	686 mm	686 mm	686 mm
Reach	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm	385 mm
Top Tube Length	587 mm	587 mm	587 mm	587 mm	598 mm	598 mm	598 mm	598 mm	610 mm	610 mm	610 mm	610 mm	621 mm	621 mm	621 mm	621 mm
Seat Tube Angle	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °
Seat Tube Length	440 mm	440 mm	440 mm	440 mm	500 mm	500 mm	500 mm	500 mm	550 mm	550 mm	550 mm	550 mm	600 mm	600 mm	600 mm	600 mm
Head Tube Angle	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °
Head Tube Length	160 mm	160 mm	160 mm	160 mm	180 mm	180 mm	180 mm	180 mm	200 mm	200 mm	200 mm	200 mm	220 mm	220 mm	220 mm	220 mm
Chainstay Length	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm
Wheelbase	1127 mm	1127 mm	1127 mm	1127 mm	1140 mm	1140 mm	1140 mm	1140 mm	1152 mm	1152 mm	1152 mm	1152 mm	1165 mm	1165 mm	1165 mm	1165 mm
Bottom Bracket Drop	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm
Standover Height	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm	433 mm
Wheels	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"
Rider Min Height	158 cm	158 cm	158 cm	158 cm	168 cm	168 cm	168 cm	168 cm	178 cm	178 cm	178 cm	178 cm	186 cm	186 cm	186 cm	186 cm
Rider Max Height	171 cm	171 cm	171 cm	171 cm	180 cm	180 cm	180 cm	180 cm	189 cm	189 cm	189 cm	189 cm	199 cm	199 cm	199 cm	199 cm
