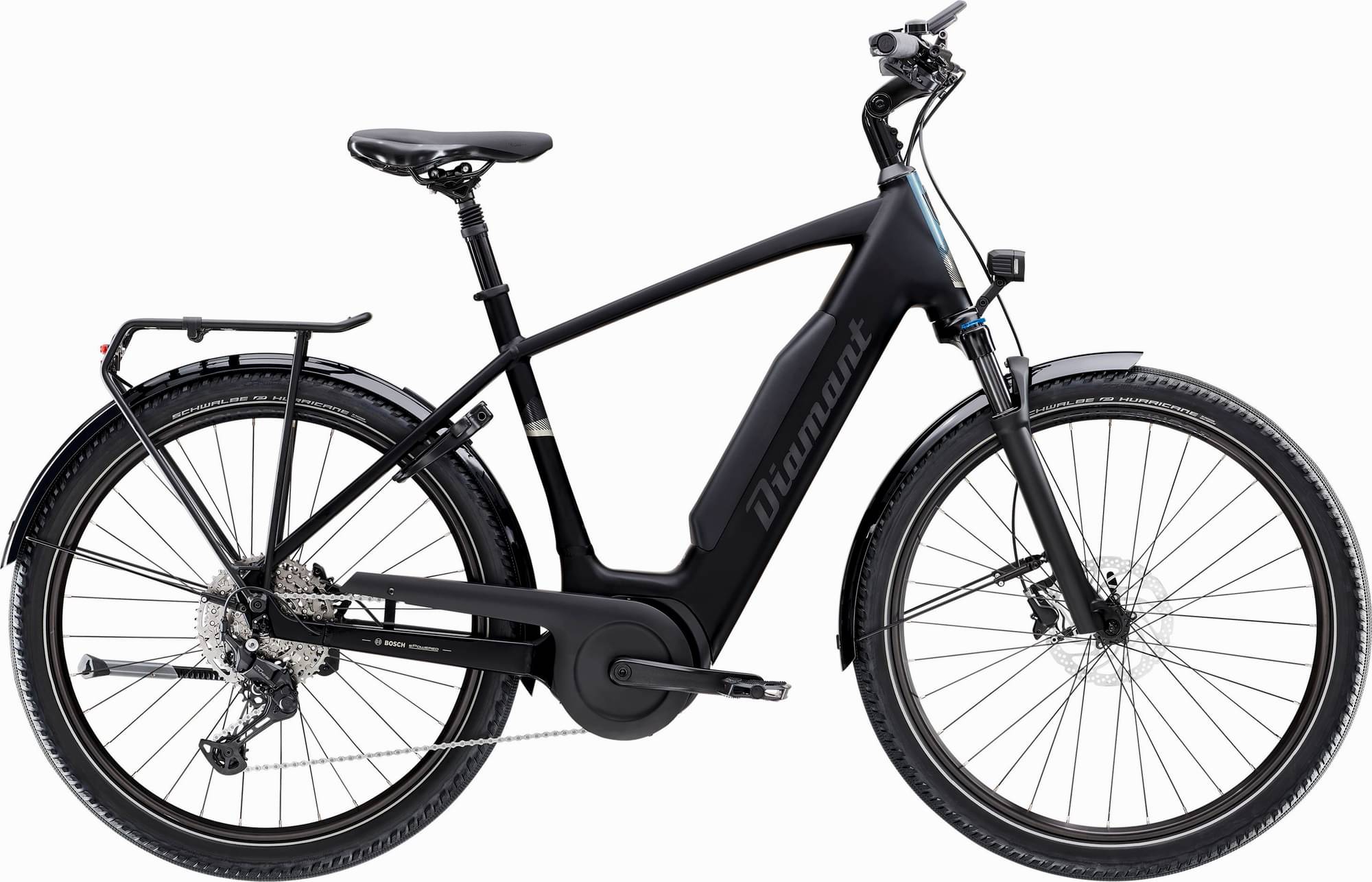

Diamant Mandara Gen 3 (CUES) (Einstieg: hoch) 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- E-bike
- |
- Urban
- |
- Hybrid
Frame Aluminum
Fork Suntour XCR
Groupset CUES
Suspension Hardtail
Motor Bosch 250W 75Nm mid-drive
Battery Gepäckträger
Brakes Hydraulic Disc

Sizing

Recommended size guide.

MD
165cm - 177cm
MD
165cm - 177cm
MD
165cm - 177cm
MD
165cm - 177cm
LG
175cm - 188cm
LG
175cm - 188cm
LG
175cm - 188cm
LG
175cm - 188cm
XL
185cm - 198cm
XL
185cm - 198cm
XL
185cm - 198cm
XL
185cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Alpha Smooth Aluminium, Removable Integrated Battery, interne Zugführung, Motor Armor, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm Schnellspannachse

Suspension Fork

SR Suntour XCR32, Stahlfeder, einstellbare Federvorspannung,

Drivetrain

Rear Derailleur

Shimano CUES U6000 GS

Shift Levers

Shimano CUES U6000 mit optischer Ganganzeige, 10-fach

Cassette

Shimano CUES LG400, LINKGLIDE, 11-48 Zähne, 10-fach

Crank

ProWheel, Aluminium, 175 mm Kurbelarmlänge

Chain

Shimano Ultegra HG701, 11fach

Pedals

Bontrager City Pedale

Wheels

Rims

Bontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil Shimano QC300, Centerlock

Brakes

Front: Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200 Shimano RT30, Centerlock-Scheibenaufnahme, 180 mm // Shimano EM300, Centerlock-Scheibenaufnahme, 180 mm

Cockpit

Stem

Bontrager Aluminium, 31,8 mm, verstellbar, Blendr-kompatibel

Handlebar

Aluminium-Lowriser, 31,8 mm, 25 mm Rise, 11 Grad Krümmung, 690 mm Breite

Seat

Saddle

Selle Royal Nuvola

Seatpost

Aluminium, gefedert, 31,6 mm, 300 mm Länge

Motor & Battery

Motor

Bosch Performance Line, 250 W, 75 Nm, 25 km/h

Battery

Gepäckträger

Charger

Bosch Standardladegerät 4 A, 230 V, Smart System

Fit data

Geometry

Numbers for sizing and ride feel.

Size	MD	MD	MD	MD	LG	LG	LG	LG	XL	XL	XL	XL
Stack Reach Ratio	1.731 mm	1.731 mm	1.731 mm	1.731 mm	1.758 mm	1.758 mm	1.758 mm	1.758 mm	1.782 mm	1.782 mm	1.782 mm	1.782 mm
Bottom Bracket Height	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm	294 mm
Front Center	661 mm	661 mm	661 mm	661 mm	673 mm	673 mm	673 mm	673 mm	685 mm	685 mm	685 mm	685 mm
Rake	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm	45 mm
Trail	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm	95 mm
Stack	649 mm	649 mm	649 mm	649 mm	668 mm	668 mm	668 mm	668 mm	686 mm	686 mm	686 mm	686 mm
Reach	375 mm	375 mm	375 mm	375 mm	380 mm	380 mm	380 mm	380 mm	385 mm	385 mm	385 mm	385 mm
Top Tube Length	598 mm	598 mm	598 mm	598 mm	610 mm	610 mm	610 mm	610 mm	621 mm	621 mm	621 mm	621 mm
Seat Tube Angle	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °	71 °
Seat Tube Length	500 mm	500 mm	500 mm	500 mm	550 mm	550 mm	550 mm	550 mm	600 mm	600 mm	600 mm	600 mm
Head Tube Angle	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °	68.2 °
Head Tube Length	180 mm	180 mm	180 mm	180 mm	200 mm	200 mm	200 mm	200 mm	220 mm	220 mm	220 mm	220 mm
Chainstay Length	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm	487 mm
Wheelbase	1140 mm	1140 mm	1140 mm	1140 mm	1152 mm	1152 mm	1152 mm	1152 mm	1165 mm	1165 mm	1165 mm	1165 mm
Bottom Bracket Drop	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm	65 mm
Standover Height	818 mm	818 mm	818 mm	818 mm	853 mm	853 mm	853 mm	853 mm	887 mm	887 mm	887 mm	887 mm
Wheels	650	650	650	650	650	650	650	650	650	650	650	650
Rider Min Height	165 cm	165 cm	165 cm	165 cm	175 cm	175 cm	175 cm	175 cm	185 cm	185 cm	185 cm	185 cm
Rider Max Height	177 cm	177 cm	177 cm	177 cm	188 cm	188 cm	188 cm	188 cm	198 cm	198 cm	198 cm	198 cm
