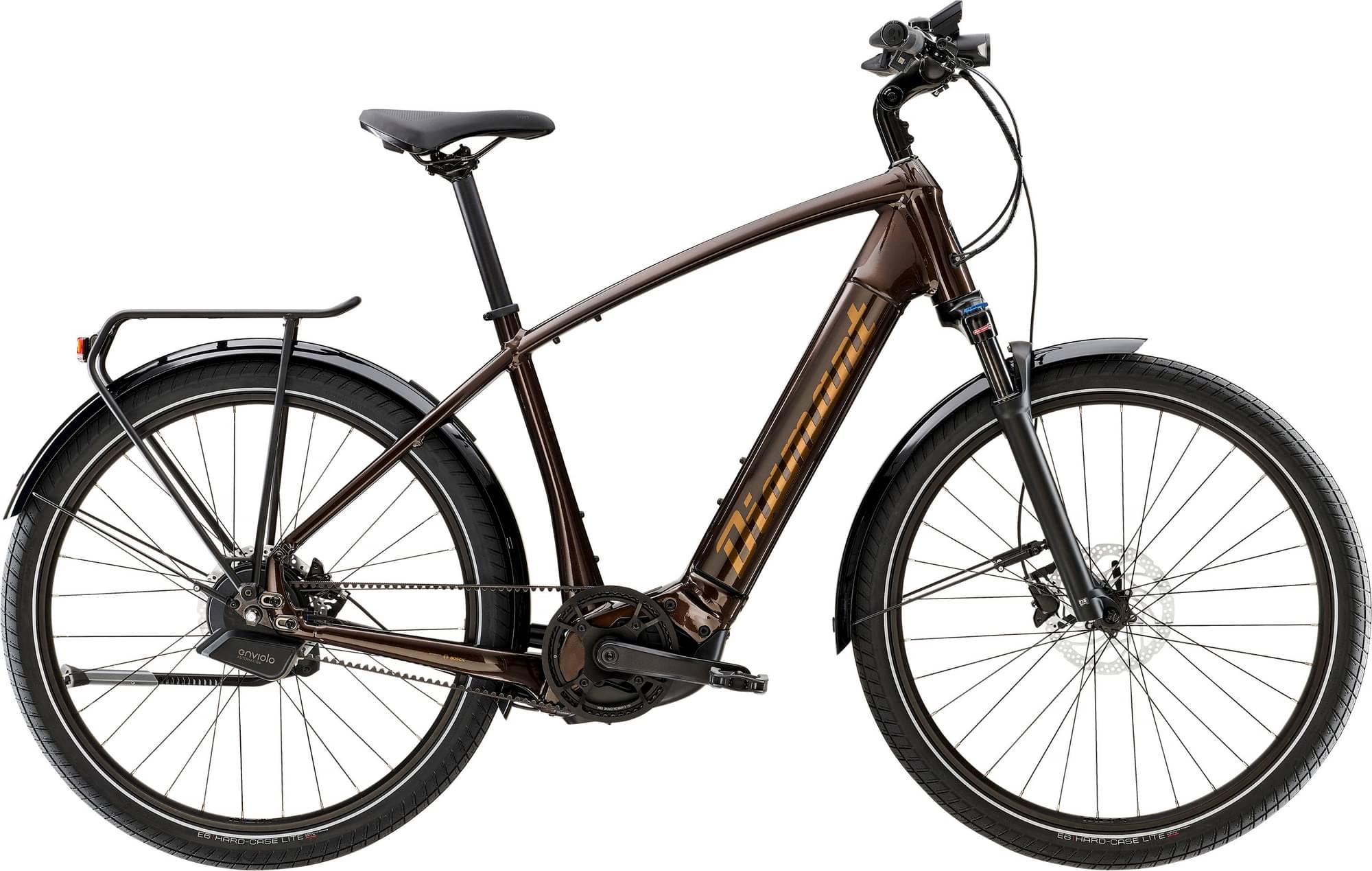

diamant Opal Esprit 2023
2023 E-bike
Estimate price |
5,234$
Weight | 28.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 60mm -
Fork Suntour XCR
-
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 Wh, Smart System -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
164cm - 177cm
LG
174cm - 187cm
XL
185cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed e-bike frame, Removable Integrated Battery (RIB), Motor Armor, internal cable routing, post mount disc brake mount
Suspension Fork
SR Suntour XCR32, steel spring, adjustable spring preload, lockout, 100 mm quick release axle, 60 mm travel
Drivetrain
Shift Levers
Enviolo Automatic Controller
Cassette
Gates CDX, 22 Z. Steel
Crank
ProWheel, aluminum, 170 mm crank arm length
Chain
Gates CDX
Pedals
Non-slip aluminum pedals with reflectors
Wheels
Rims
Alex MD35, suitable for tubeless, 32 holes, 35 mm internal width, Presta valve
Brakes
Brakes
Shimano MT200 Shimano RT26 hydraulic disc brake, 6-hole disc mount, 180 mm
Cockpit
Stem
Bontrager, aluminum, 31.8mm clamp diameter, adjustable rise, Blendr compatible, 85mm length
Handlebar
Aluminum low riser, 31.8mm, 25mm rise, 11 degree curvature, 690mm width
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Aluminum Bontrager, 31.6mm, 12mm offset, 330mm length
Motor & Battery
Motor
Bosch Performance Line CX, Smart System, motor housing made of magnesium, 85 Nm
Battery
Bosch PowerTube 625 Wh, Smart System
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.538 mm | 1.598 mm | 1.67 mm |
| Front Center | 67 mm | 67 mm | 68 mm |
| Rake | 4 mm | 4 mm | 4 mm |
| Trail | 126 mm | 123 mm | 119 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 446 mm | 491 mm | 534 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 164 cm | 174 cm | 185 cm |
| Rider Max Height | 177 cm | 187 cm | 197 cm |
About this model
Opal Esprit is a Diamant E Opal model. 1 e-bike variation carries this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 4777$. If we compare this with the average Commuter e-bike cost we notice that the price is 85.95% higher.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 24.02 kg (52.95 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, Opal Esprit has a weight of 28.3 kg (62.39 lbs). To sum up, it’s 17.82% heavier than the average weight of Commuter e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Diamant Opal Esprit 2023 e-bike is equipped with the Suntour XCR fork, and has 60mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The wheels on Opal Esprit are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Diamant Opal Esprit has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 164 cm – 197 cm (5.38 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
