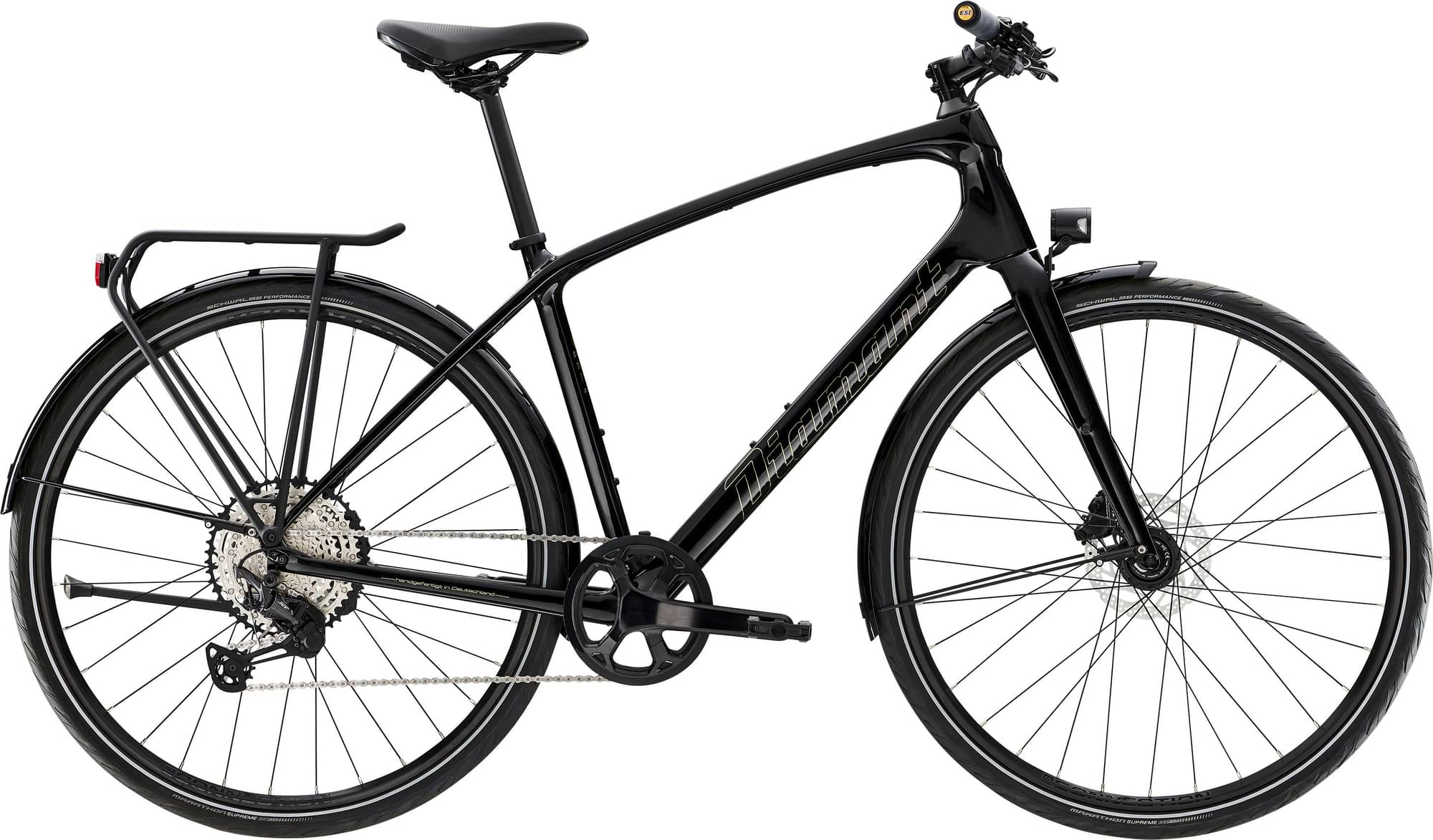

diamant Rubin Super Legere HCH 2023
2023 Urban
Estimate price |
2,715$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset XT -
Suspension Rigid -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
400 Series OCLV Carbon, interne Zugführung, 3S-Kettenführung, DuoTrap S-kompatibel, Schutzblechösen, Flat Mount-Scheibenbremsaufnahme, 135 x 5 mm ThruSkew
Suspension Fork
Carbongabel
Drivetrain
Rear Derailleur
Shimano XT M8100, langer Käfig
Shift Levers
Shimano XT M8100, 12fach
Cassette
Shimano SLX M7100, 10-51 Zähne, 12-fach
Crank
Prowheel, Aluminium, Narrow-Wide-Kettenblatt (42 Z.), 175 mm Kurbelarmlänge
Chain
Shimano SLX M7100, 12fach
Pedals
rutschfeste Pedale mit Reflektoren
Wheels
Rims
Bontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil Shimano Nabendynamo, DH-3D72, 6 V, 3 W, 100 mm Shimano MT4001, Center Lock, 135 x 5 mm-Schnellspannachse
Brakes
Brakes
Front: Hydraulische Scheibenbremse von Shimano, MT201 Bremshebel, UR300 Bremssattel // Hydraulische Scheibenbremse von Shimano, MT201 Bremshebel, UR300 Bremssattel Shimano SM-RT30, Center Lock-Scheibenaufnahme, 160 mm
Cockpit
Stem
Bontrager Comp, 31 8 mm, Blendr-kompatibel, 7 Grad, 90 mm Länge
Handlebar
Bontrager Pro Lowriser, Carbon, 31,8 mm, 15 mm Rise, 690 mm Breite
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Bontrager aus Aluminium, 27,2 mm, 12 mm Versatz, 400 mm Länge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.511 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 285 mm | 285 mm | 285 mm | 285 mm |
| Front Center | 620 mm | 631 mm | 641 mm | 648 mm |
| Rake | 51 mm | 50 mm | 49 mm | 49 mm |
| Trail | 71 mm | 68 mm | 64 mm | 58 mm |
| Stack | 568 mm | 594 mm | 620 mm | 648 mm |
| Reach | 385 mm | 393 mm | 400 mm | 410 mm |
| Top Tube Length | 543 mm | 563 mm | 583 mm | 613 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 140 mm | 165 mm | 190 mm | 215 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1054 mm | 1065 mm | 1075 mm | 1082 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 751 mm | 787 mm | 812 mm | 848 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
