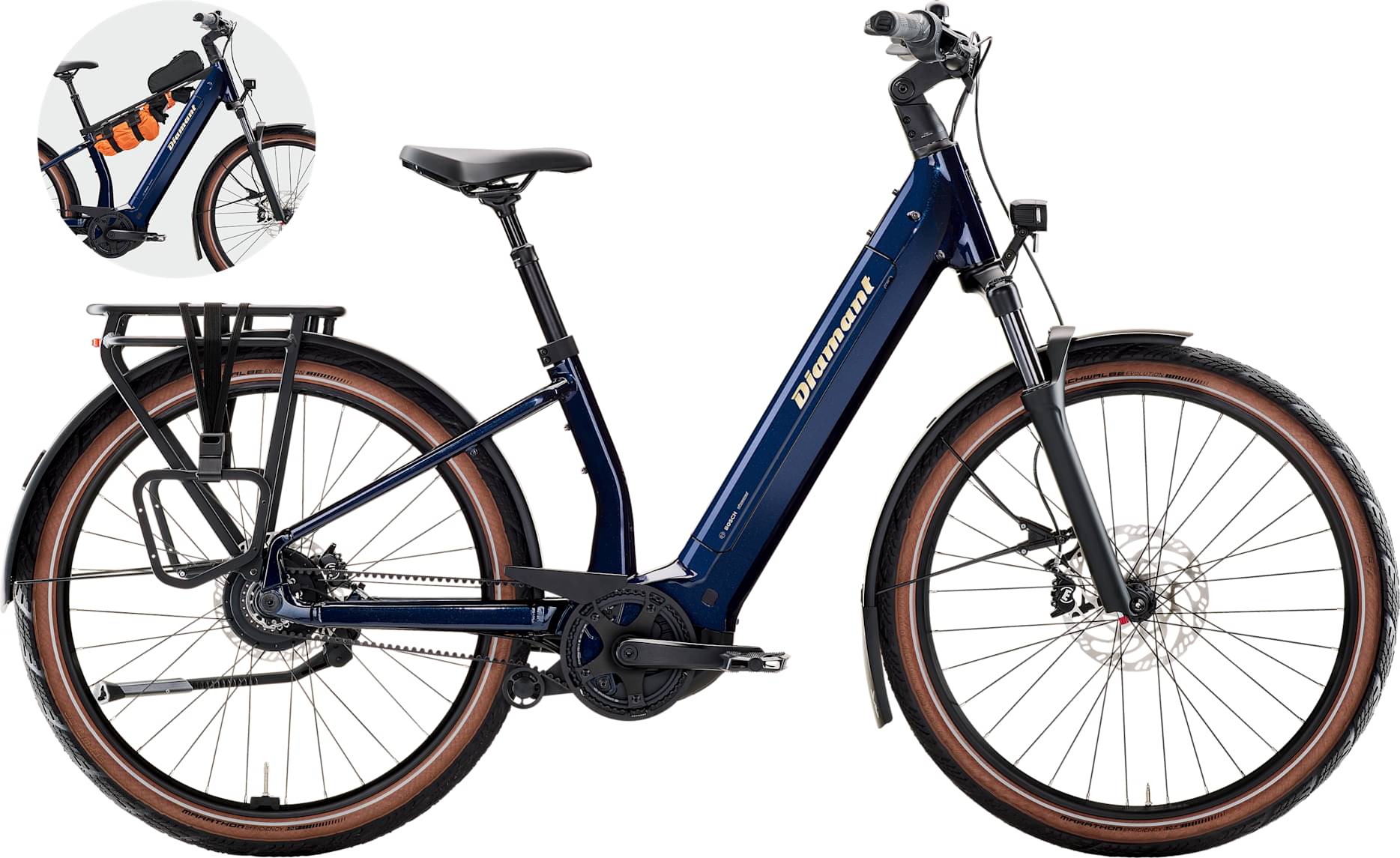

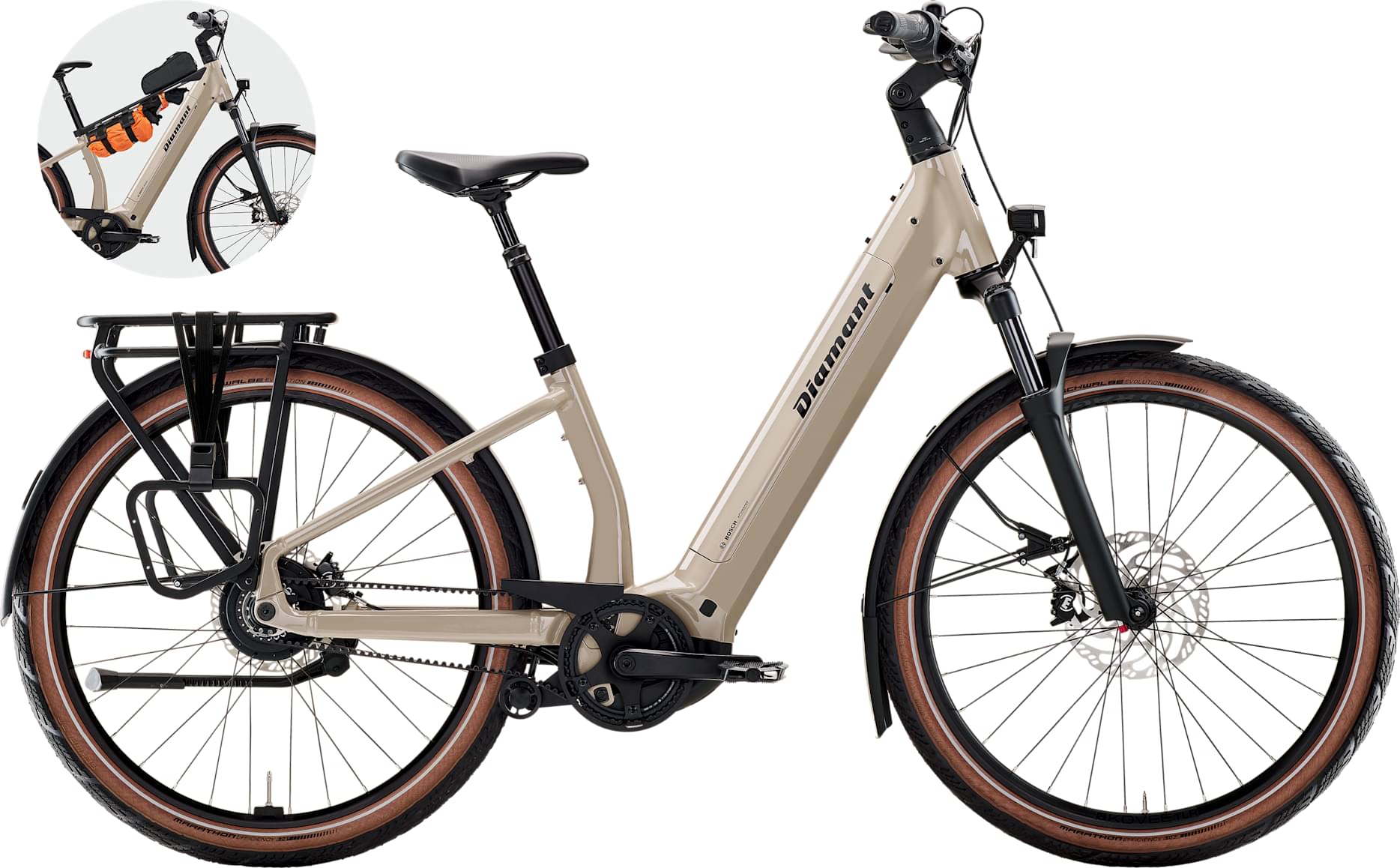

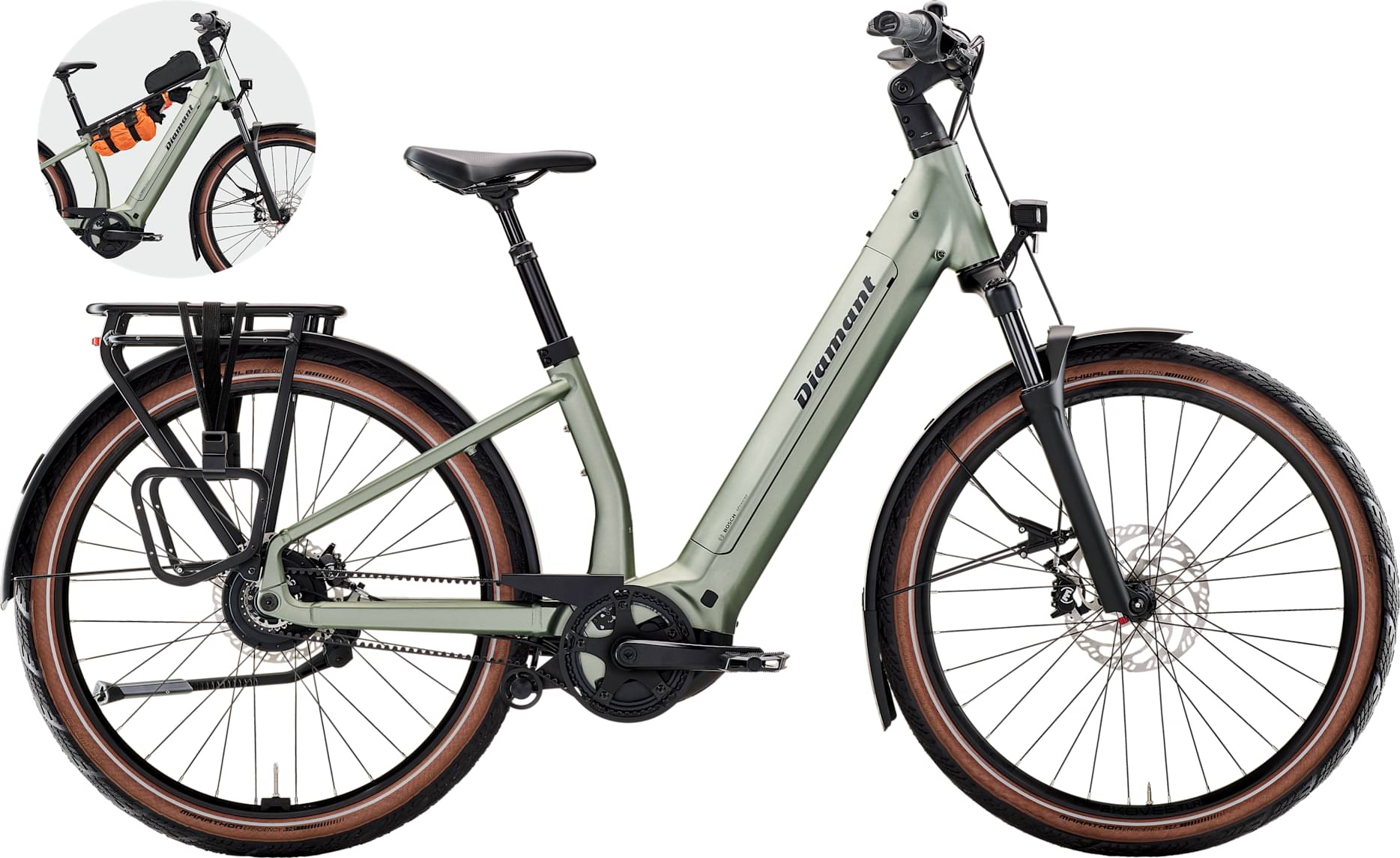

diamant Suvea Style (600 Wh) 2025
2025 E-bike
Estimate price |
6,912$
Weight | 29.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 600 -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Magura MT Thirty Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 177cm
XL
173cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, Smart Routing for cables, UDH dropout, belt split, ringlock mount
Suspension Fork
SR Suntour Mobie 34, air spring, lockout, 100 mm travel
Drivetrain
Shift Levers
Enviolo Pure Manual Controller twist shift display
Cassette
Gates CDX CenterTrack, 24T
Crank
ProWheel alloy, 165mm length
Chain
Gates CDX CenterTrac
Pedals
Bontrager City pedals
Wheels
Front Hub
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle

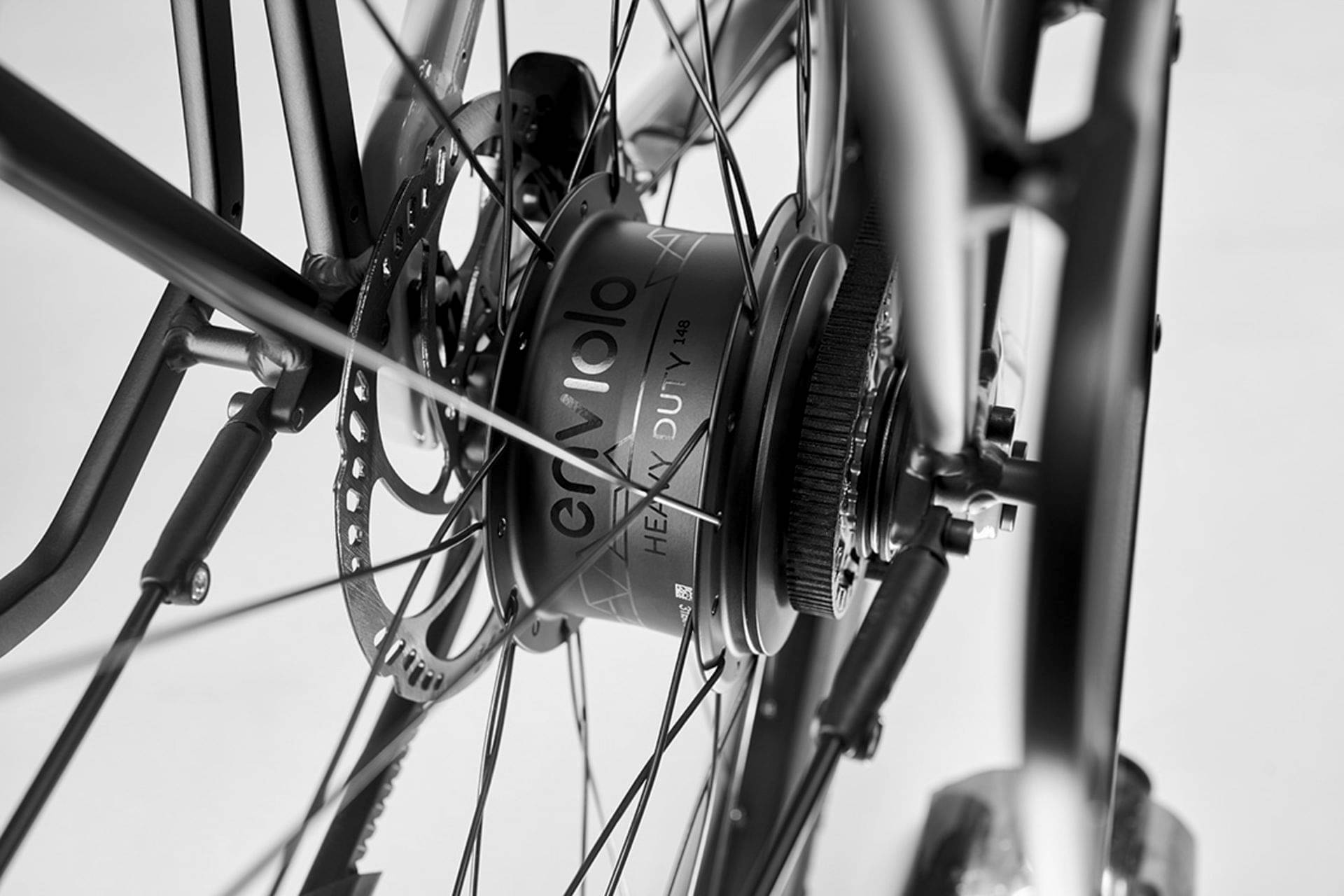

Rear Hub
Enviolo Heavy Duty
Rims
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Spokes
14 g stainless steel, black
Tires
Schwalbe Super Moto-X, with reflective stripes, GreenGuard-puncture protection, 62-584, 27.5 x 2.4"
Brakes
Brakes
Magura MT Thirty, 4-piston hydraulic disc
Cockpit
Stem
Aluminium, adjustable, 31.8 mm, Blendr-compatible, with display mount
Handlebar
Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
Grips
Ergotec EG Active Flex, lock on, flex adjustment
Seat
Saddle
Selle Royal Vivo Moderate Ergo with Royalgel
Seatpost
Size: S-M, Aluminium with suspension, 300 mm long, with adjustable spring rate; Size: L-XL, Aluminium with suspension, 350 mm long, with adjustable spring rate
Motor & Battery

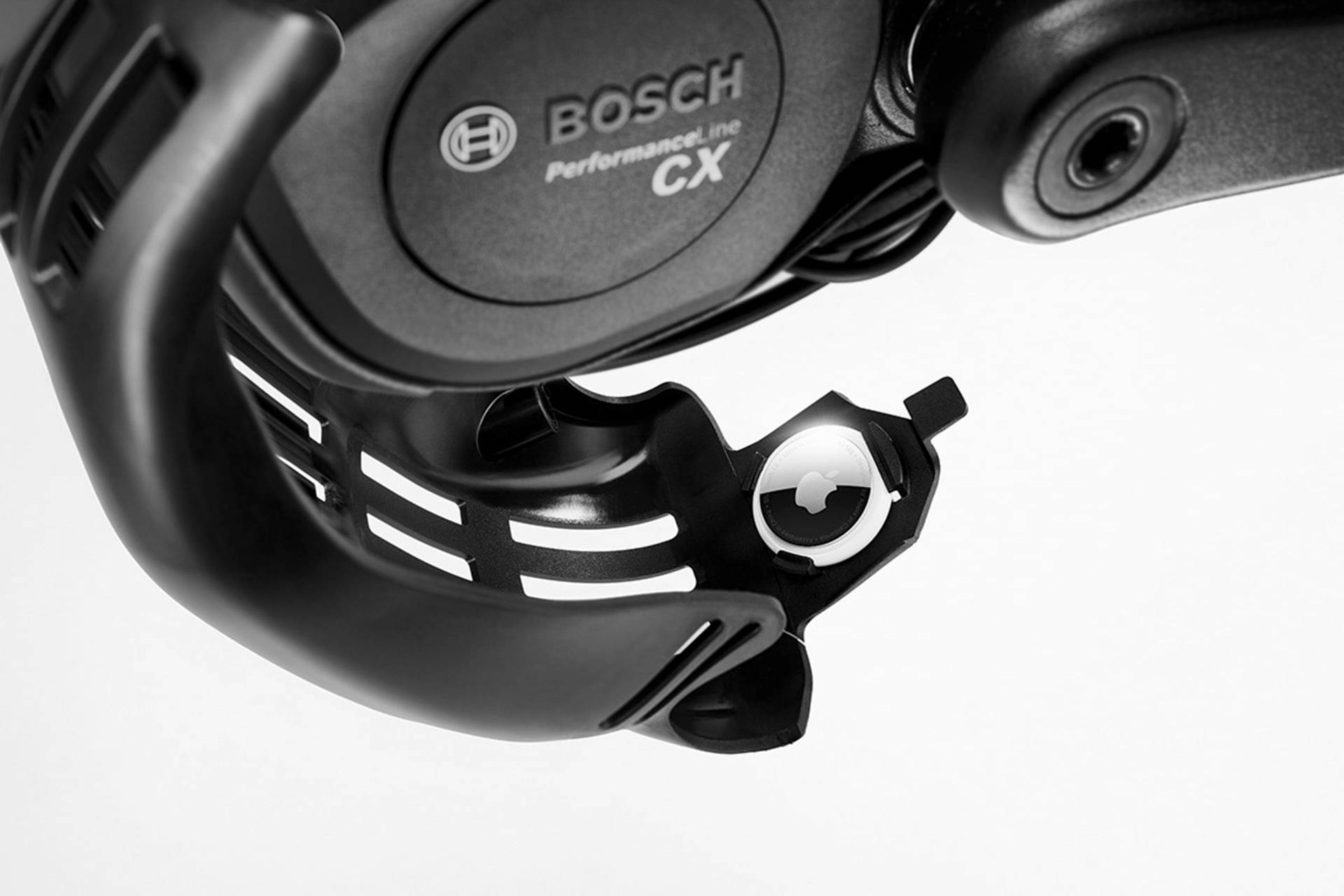

Motor
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Battery
Bosch PowerTube 600
Remote
Bosch Kiox 500, smart system
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | XL |
|---|---|---|
| Stack Reach Ratio | 1.659 mm | 1.667 mm |
| Bottom Bracket Height | 294 mm | 294 mm |
| Front Center | 696 mm | 716 mm |
| Rake | 45 mm | 47 mm |
| Trail | 87 mm | 87 mm |
| Stack | 680 mm | 700 |
| Reach | 410 mm | 420 mm |
| Top Tube Length | 610 mm | 630 mm |
| Seat Tube Angle | 68 ° | 68 ° |
| Seat Tube Length | 430 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 165 mm | 185 mm |
| Chainstay Length | 483 mm | 483 mm |
| Wheelbase | 1170 mm | 1190 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 470 mm | 470 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 155 cm | 173 cm |
| Rider Max Height | 177 cm | 195 cm |
