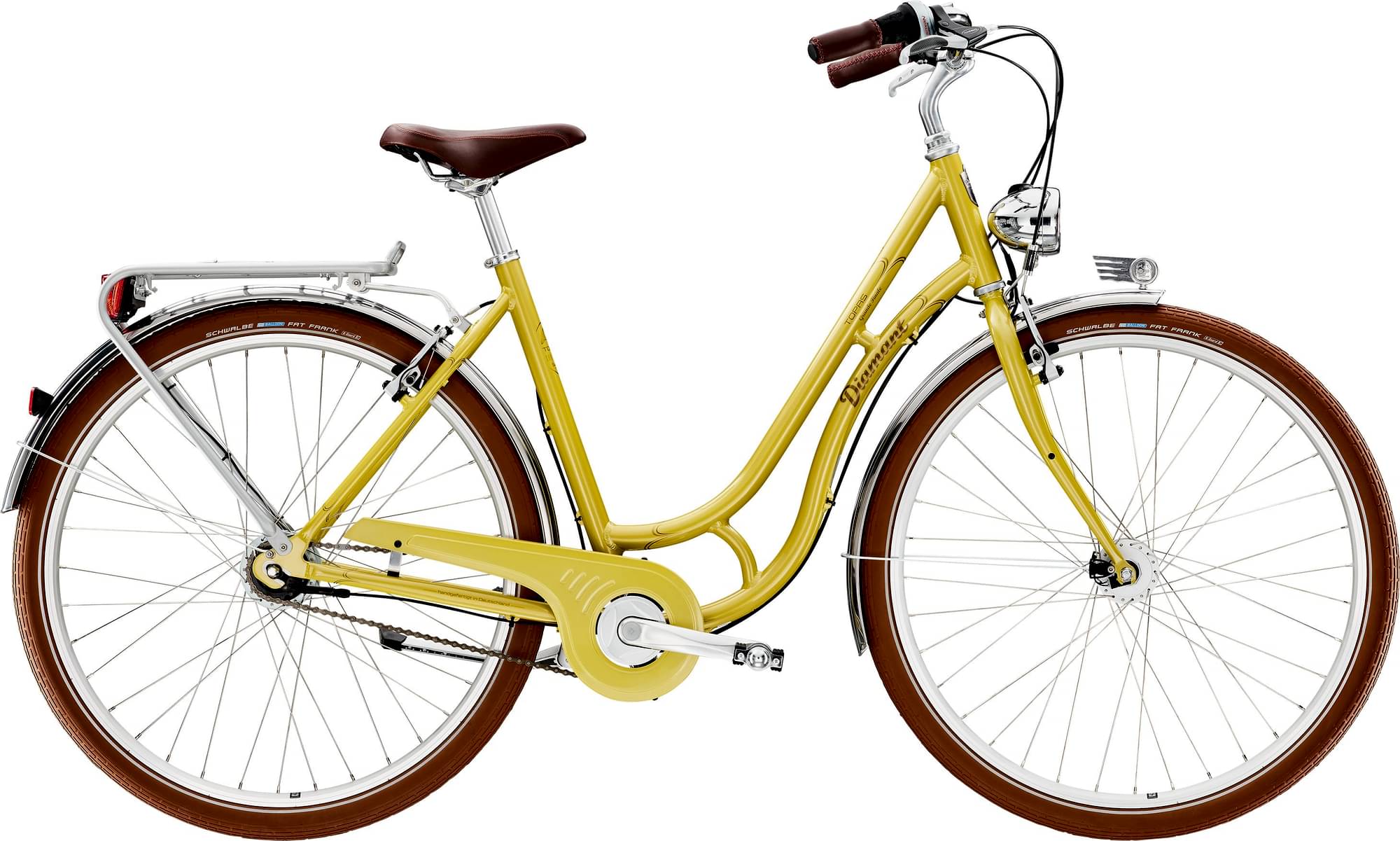

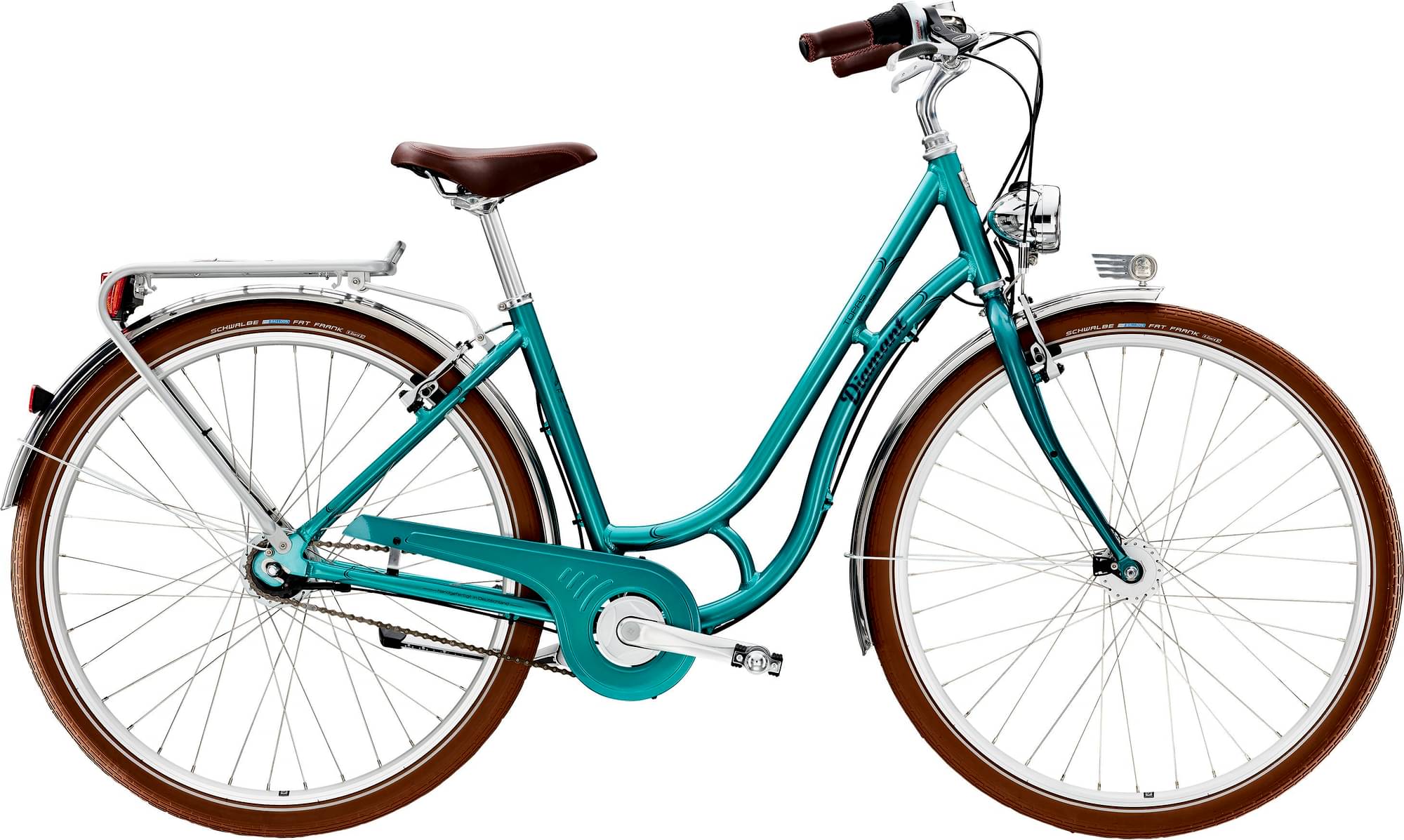

diamant Topas Grande Finale SCH 2022
2022 Urban
Estimate price |
1,172$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Diamant Topas-Swan Frame, 53cm
Suspension Fork
starre Stahlgabel
Drivetrain
Shift Levers
ASLC60008DXS210LA, SHIFT LEVER(REVO)SL-C60008, NEXUS, 2355MM INNER, SAME PACK(2100MM BLACK OUTER, RESIN CAP, INNER FIXING BOLT UNIT,OUTER HOLDER UNI
Cassette
Shimano 19 Zähne
Crank
Aluminium geschmiedet, 38 Zähne VP BC73C, 68 mm, mit Gewinde
Chain
KMC S1
Pedals
Retro Stahl mit Gummiauflage
Wheels
Rims
BONTRAGER, RIM, 2019, CONNECTION, 700C, 36H, CLINCHER, MACHINED, NON TUBELESS, Presta, SYMMETRIC, PINNED SEAM, NON EYELETED, 20MM INNER HOOK BEAD, DOUBLE WALL, ANO SILVER, NEUTRAL GRAPHIC Shimano C3000 Nabendynamo Shimano Nexus, 8fach
Brakes
Brakes
Front: Shimano T4000 V-Bremse mit Tektro Bremshebel Tektro, Aluminium, verstellbare Griffweite
Cockpit
Stem
Schaftvorbau, Ø 25,4 mm, 80 mm Verlängerung, kaltgeschmiedetes Aluminium, Edelstahlschrauben
Handlebar
Humpert Courier, 25.4mm
Seat
Saddle
Diamant Retro
Seatpost
Bontrager, Aluminium, 27,2 mm, 12 mm Versatz, 330 mm Länge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | MD | LG | LG |
|---|---|---|---|---|
| Front Center | 675 mm | 675 mm | 675 mm | 675 mm |
| Top Tube Length | 601 mm | 601 mm | 605 mm | 605 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 470 mm | 470 mm | 530 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1141 mm | 1141 mm | 1141 mm | 1141 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm |
| Wheels | 650 | 650 | 650 | 650 |
