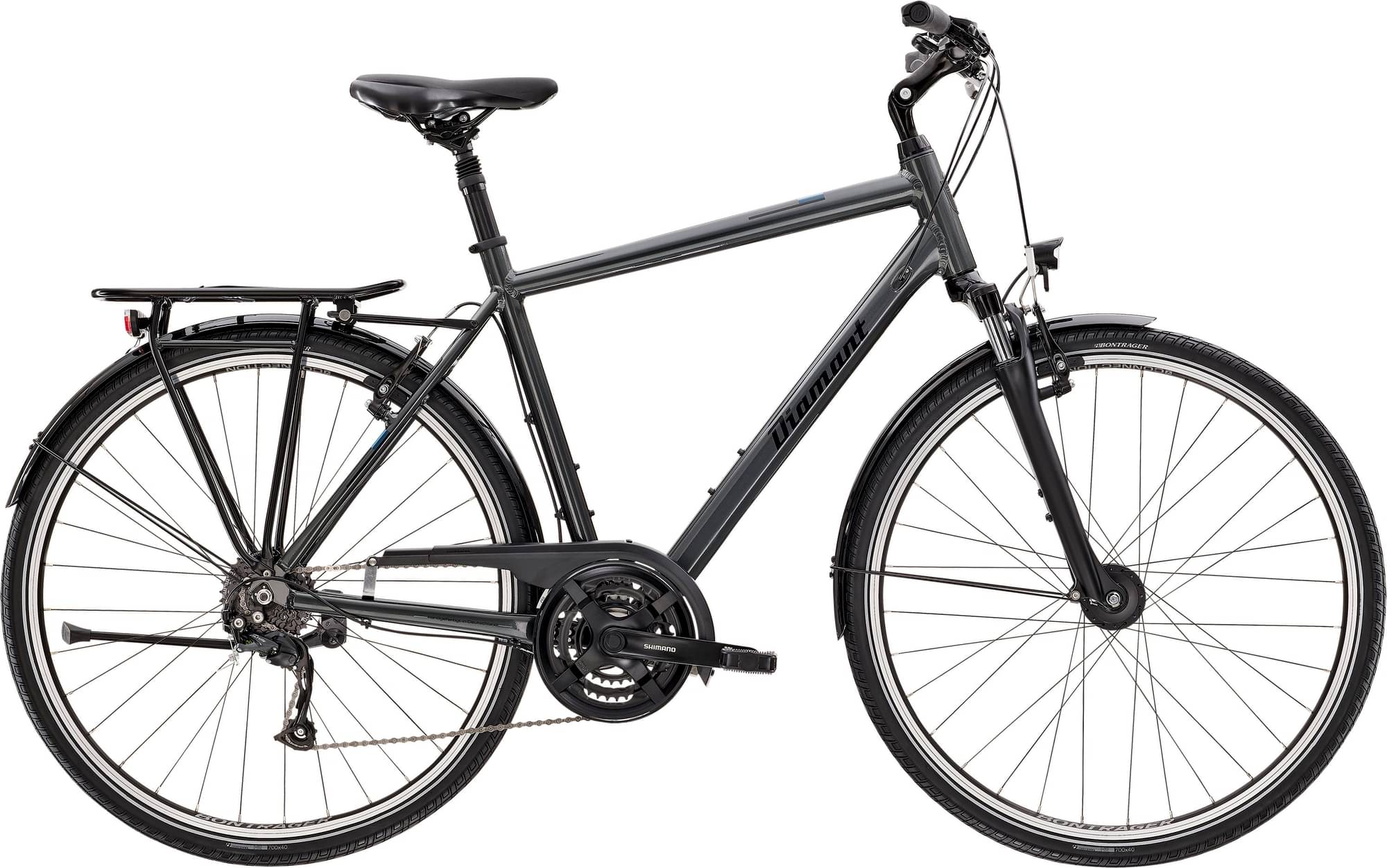

diamant Ubari (Einstieg: hoch) 2022
2022 Urban
Estimate price |
813$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Aluminium, mit interner Zugführung
Suspension Fork
SR Suntour NEX, Spiralfeder, verstellbare Federvorspannung, 50 mm Federweg, 100 x 5 mm Schnellspannachse
Drivetrain
Rear Derailleur
Shimano Altus M2000, langer Käfig
Front Derailleur
Shimano Tourney TY710, 34,9 mm Klemmdurchmesser, Top Swing, Dual Pull
Shift Levers
Shimano EF500, 3fach // Shimano EF500, 8fach
Cassette
Shimano, 8fach, 12-32 Z.
Crank
Shimano, 48/38/24 Z. VP BC73C, 68 mm, Gewindepatronenlager, 122,5 mm Achslänge
Chain
KMC Z8
Pedals
rutschfeste Pedale mit Reflektoren
Wheels
Rims
Bontrager Connection Hohlkammerfelgen Shimano Dynamo-Nabe DH-C3000, 6V/3W, 32-Loch, mit Schraubachse Shimano TX5008
Tires
Bontrager H2 mit Reflexstreifen, 40-622
Brakes
Brakes
Front: Tektro TRB-02 Felgenbremse
Cockpit
Stem
Aluminium, verstellbar, 25,4 mm, Länge 85 mm
Handlebar
Bontrager LowRiser, 25,4 mm, 25 mm Rise, 9° Kröpfung, 4° Kröpfung nach oben, Breite 660 mm
Headset
VP, gedichtetes Gewindepatronenlager, 1 1/8"
Seat
Saddle
Selle Royal Nuvola
Seatpost
Aluminium, gefedert, 31,6 mm, 300 mm Länge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.594 mm | 1.555 mm | 1.567 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm |
| Front Center | 647 mm | 657 mm | 672 mm |
| Rake | 50 mm | 50 mm | 49 mm |
| Trail | 81 mm | 81 mm | 81 mm |
| Stack | 625 mm | 625 mm | 644 mm |
| Reach | 392 mm | 402 mm | 411 mm |
| Top Tube Length | 583 mm | 593 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 160 mm | 180 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1090 mm | 1100 mm | 1115 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 800 mm | 828 mm | 864 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
