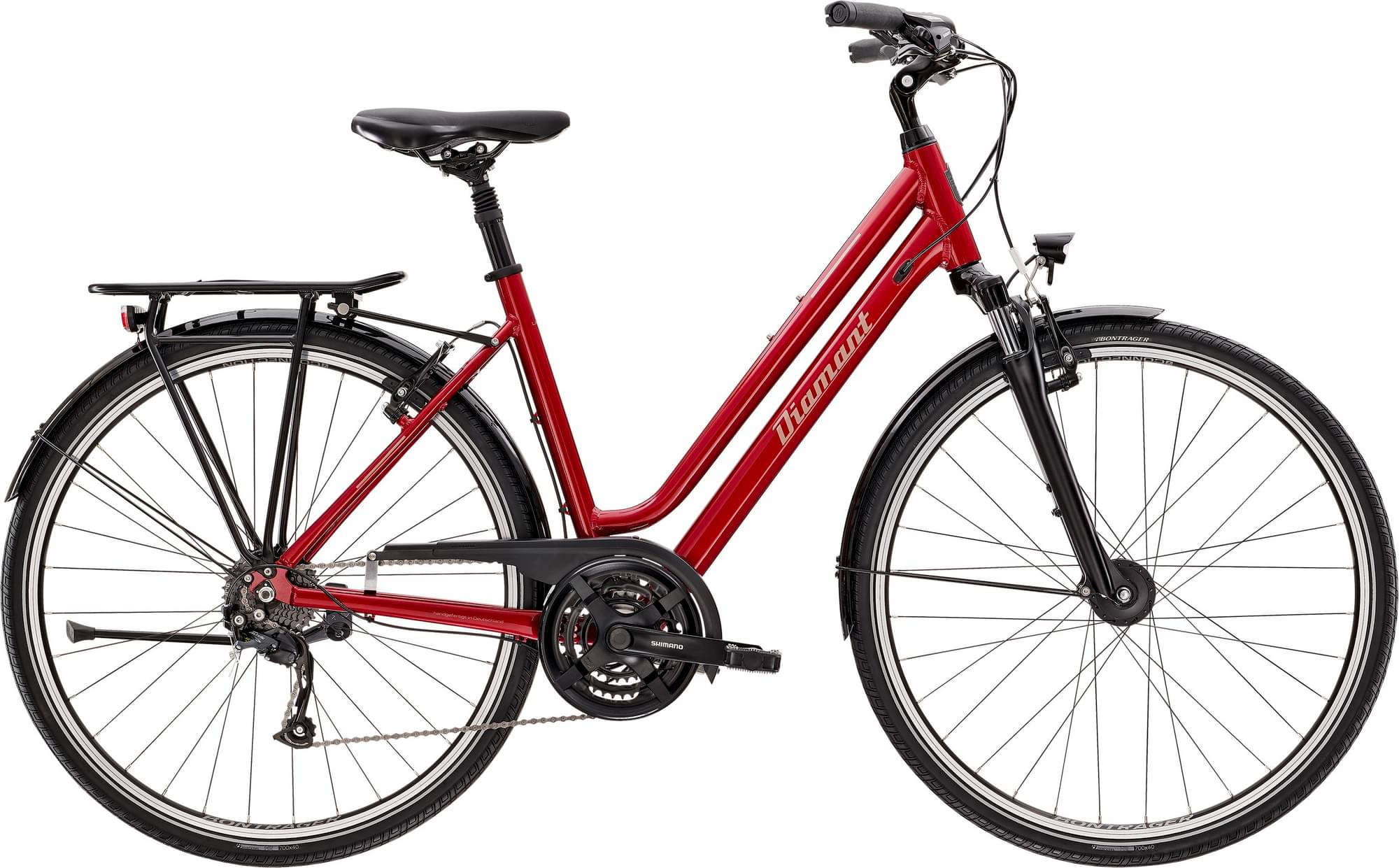

diamant Ubari (Einstieg: mittel) 2023
2023 Urban
Estimate price |
986$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Smooth Aluminium, mit interner Zugführung
Suspension Fork
SR Suntour NEX, Spiralfeder, verstellbare Federvorspannung, 50 mm Federweg, 100 x 5 mm Schnellspannachse
Drivetrain
Rear Derailleur
Shimano Altus M2000, langer Käfig
Front Derailleur
Shimano Tourney TY710, 34,9 mm Klemmdurchmesser, Top Swing, Dual Pull
Shift Levers
Shimano EF500, 3fach // Shimano EF500, 8fach
Cassette
Shimano, 8fach, 12-32 Z.
Crank
Shimano, 48/38/24 Z. VP BC73C, 68 mm, Gewindepatronenlager, 122,5 mm Achslänge
Chain
KMC Z8
Pedals
rutschfeste Pedale mit Reflektoren
Wheels
Rims
Shimano Dynamo-Nabe DH-C3000, 6V/3W, 32-Loch, mit Schraubachse
Brakes
Brakes
Front: Tektro TRB-02 Felgenbremse
Cockpit
Stem
Aluminium, verstellbar, 25,4 mm, 105 mm Länge
Handlebar
Aluminium, 25,4-mm-Klemmung, 20 mm Rise, 630 mm Breite
Headset
VP, gedichtetes Gewindepatronenlager, 1 1/8"
Seat
Saddle
Selle Royal Nuvola
Seatpost
Aluminium, gefedert, 31,6 mm, 300 mm Länge
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.615 mm | 1.594 mm | 1.574 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm |
| Front Center | 642 mm | 647 mm | 258 mm |
| Rake | 50 mm | 50 mm | mm |
| Trail | 81 mm | 81 mm | 81 mm |
| Stack | 625 mm | 625 mm | 625 mm |
| Reach | 387 mm | 392 mm | 397 mm |
| Top Tube Length | 560 mm | 583 mm | 588 mm |
| Seat Tube Angle | 74.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1085 mm | 1090 mm | mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 619 mm | 594 mm | 597 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
