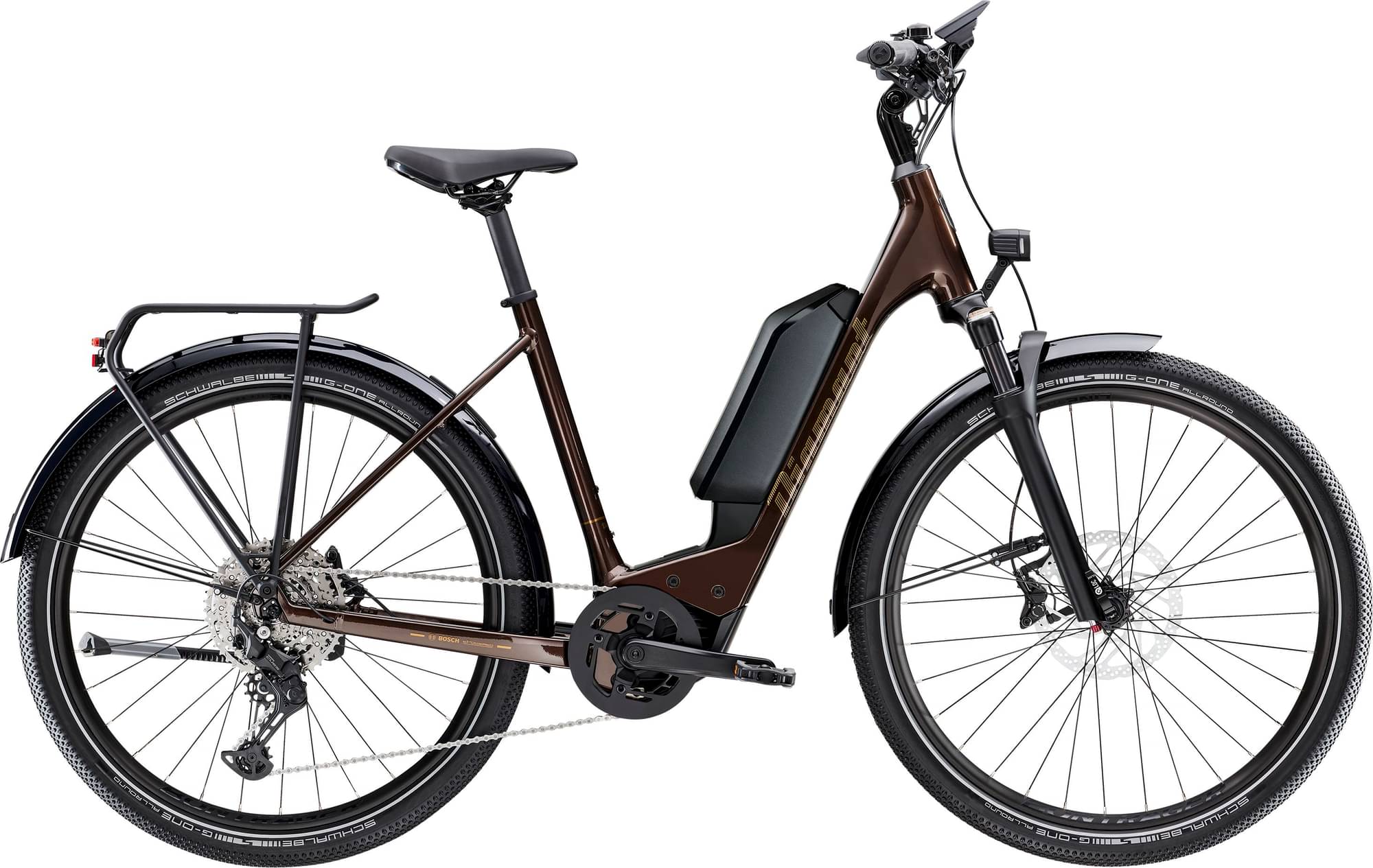

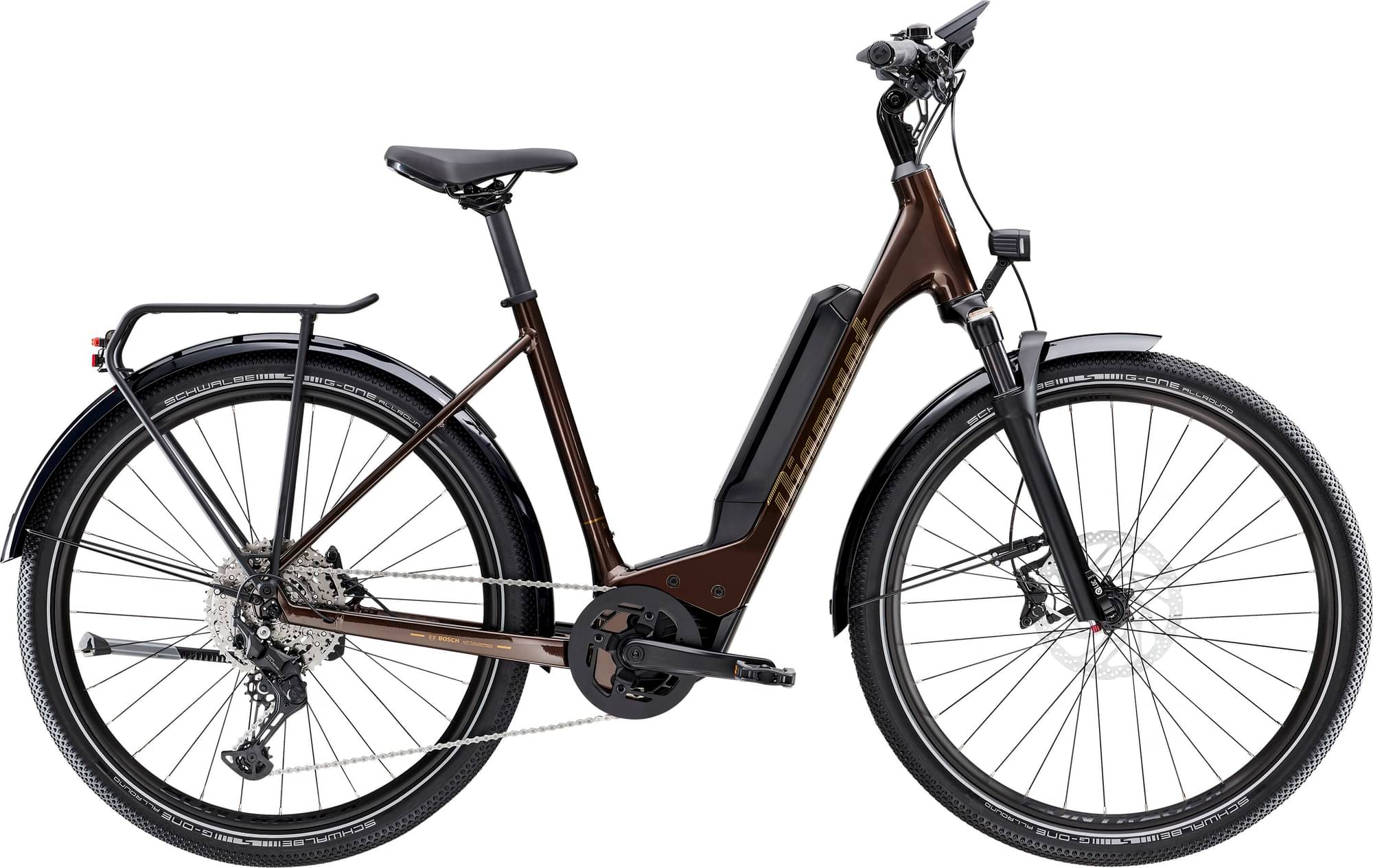

diamant Zing Deluxe Gen 2 (CUES) TIE 2024
2024 E-bike
Estimate price |
4,752$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery UNKNOWN -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hochleistungsfähiger Aluminiumrahmen mit hydrogeformten Rohren, interne Zugführung, externe Akku-Halterung, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm-Schnellspannachse
Suspension Fork
SR Suntour Mobie 34, Luftfeder, verstellbare Zugstufe und Druckstufe, 100mm Steckachse, 60mm Federweg
Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano CUES U6000 mit optischer Ganganzeige, 10-fach
Cassette
Shimano CUES LG400, LINKGLIDE, 11-48 Zähne, 10-fach
Crank
ProWheel, Aluminium, 170 mm Kurbelarmlänge
Chain
Shimano Ultegra HG701, 11fach
Pedals
rutschfeste Aluminiumpedale mit Reflektoren
Wheels
Rims
Bontrager Line TLR 30, Tubeless Ready, 32-Loch, Presta-Ventil Bontrager, gedichtete Lager, 32-Loch, 15-mm-Aluminiumsteckachse Shimano QC400, 32 Loch, Centerlock, 135x5 mm Schnellspanner
Tires
Schwalbe G-One, Performance, RaceGuard, mit reflektierendem Streifen, 57-584
Brakes
Brakes
Front: Shimano MT401 / MT420 hydraulische Scheibenbremse, 180 mm Scheibendurchmesser // Hydraulische Scheibenbremse Shimano MT401/MT420 Shimano RT30, Center Lock, 203 mm // Shimano EM300, Centerlock-Scheibenaufnahme, 180 mm
Cockpit
Stem
Bontrager Aluminium, 31,8 mm, verstellbar, Blendr-kompatibel
Handlebar
Aluminium-Lowriser, 31,8 mm, 25 mm Rise, 11 Grad Krümmung, 660 mm Breite
Seat
Saddle
Selle Royal Vivo Moderate Ergo mit Royalgel
Seatpost
Bontrager Aluminium, 31,6 mm, 12 mm Versatz, 330 mm Länge
Motor & Battery
Motor
Bosch Performance Line CX, 25 km/h
Battery
UNKNOWN
Charger
Bosch Standardladegerät 4 A, 230 V, Smart System
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | SM | SM | MD | MD | MD | MD | LG | LG | LG | LG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.581 mm | 1.581 mm | 1.581 mm | 1.581 mm | 1.617 mm | 1.617 mm | 1.617 mm | 1.617 mm | 1.638 mm | 1.638 mm | 1.638 mm | 1.638 mm |
| Bottom Bracket Height | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm |
| Front Center | 642 mm | 642 mm | 642 mm | 642 mm | 652 mm | 652 mm | 652 mm | 652 mm | 662 mm | 662 mm | 662 mm | 662 mm |
| Rake | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm | 86 mm | 86 mm | 86 mm | 86 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 596 mm | 596 mm | 596 mm | 596 mm | 621 mm | 621 mm | 621 mm | 621 mm | 652 mm | 652 mm | 652 mm | 652 mm |
| Reach | 377 mm | 377 mm | 377 mm | 377 mm | 384 mm | 384 mm | 384 mm | 384 mm | 398 mm | 398 mm | 398 mm | 398 mm |
| Top Tube Length | 559 mm | 559 mm | 559 mm | 559 mm | 576 mm | 576 mm | 576 mm | 576 mm | 590 mm | 590 mm | 590 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 430 mm | 430 mm | 430 mm | 500 mm | 500 mm | 500 mm | 500 mm | 550 mm | 550 mm | 550 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm | 140 mm | 165 mm | 165 mm | 165 mm | 165 mm | 195 mm | 195 mm | 195 mm | 195 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1110 mm | 1110 mm | 1110 mm | 1110 mm | 1120 mm | 1120 mm | 1120 mm | 1120 mm | 1130 mm | 1130 mm | 1130 mm | 1130 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 682 mm | 682 mm | 682 mm | 682 mm | 687 mm | 687 mm | 687 mm | 687 mm | 727 mm | 727 mm | 727 mm | 727 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 158 cm | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 176 cm | 176 cm | 176 cm | 176 cm |
| Rider Max Height | 170 cm | 170 cm | 170 cm | 170 cm | 179 cm | 179 cm | 179 cm | 179 cm | 187 cm | 187 cm | 187 cm | 187 cm |
