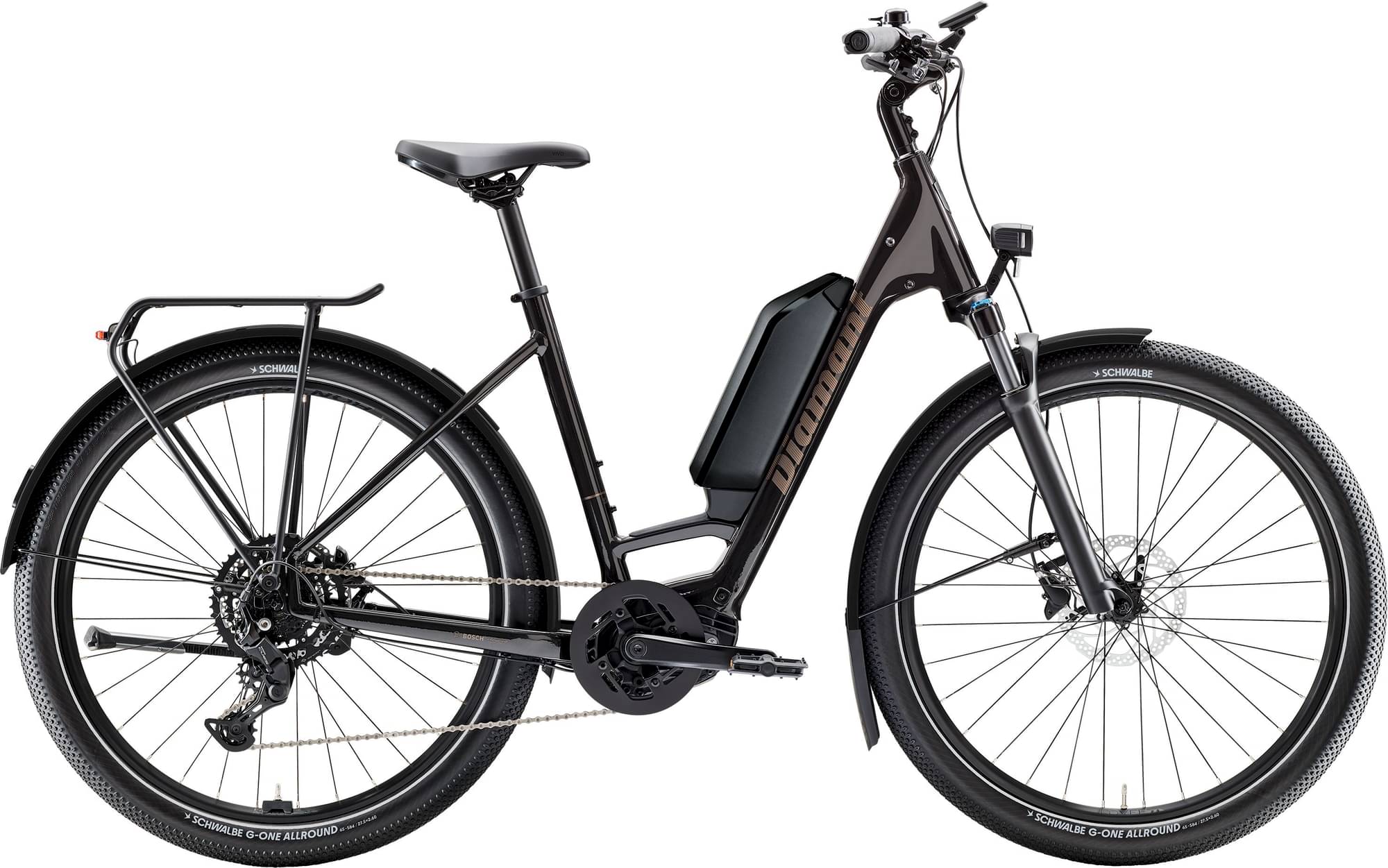

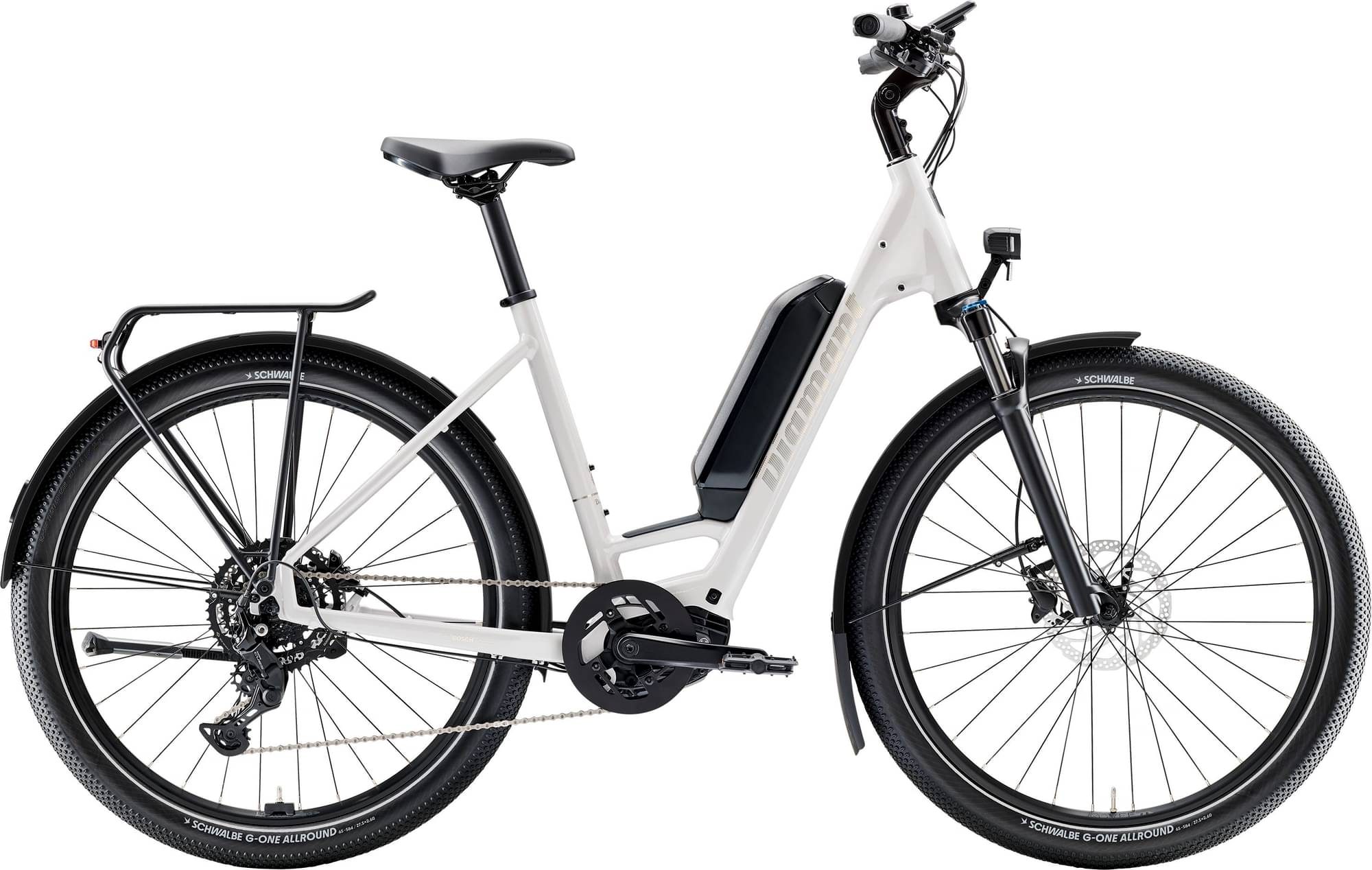

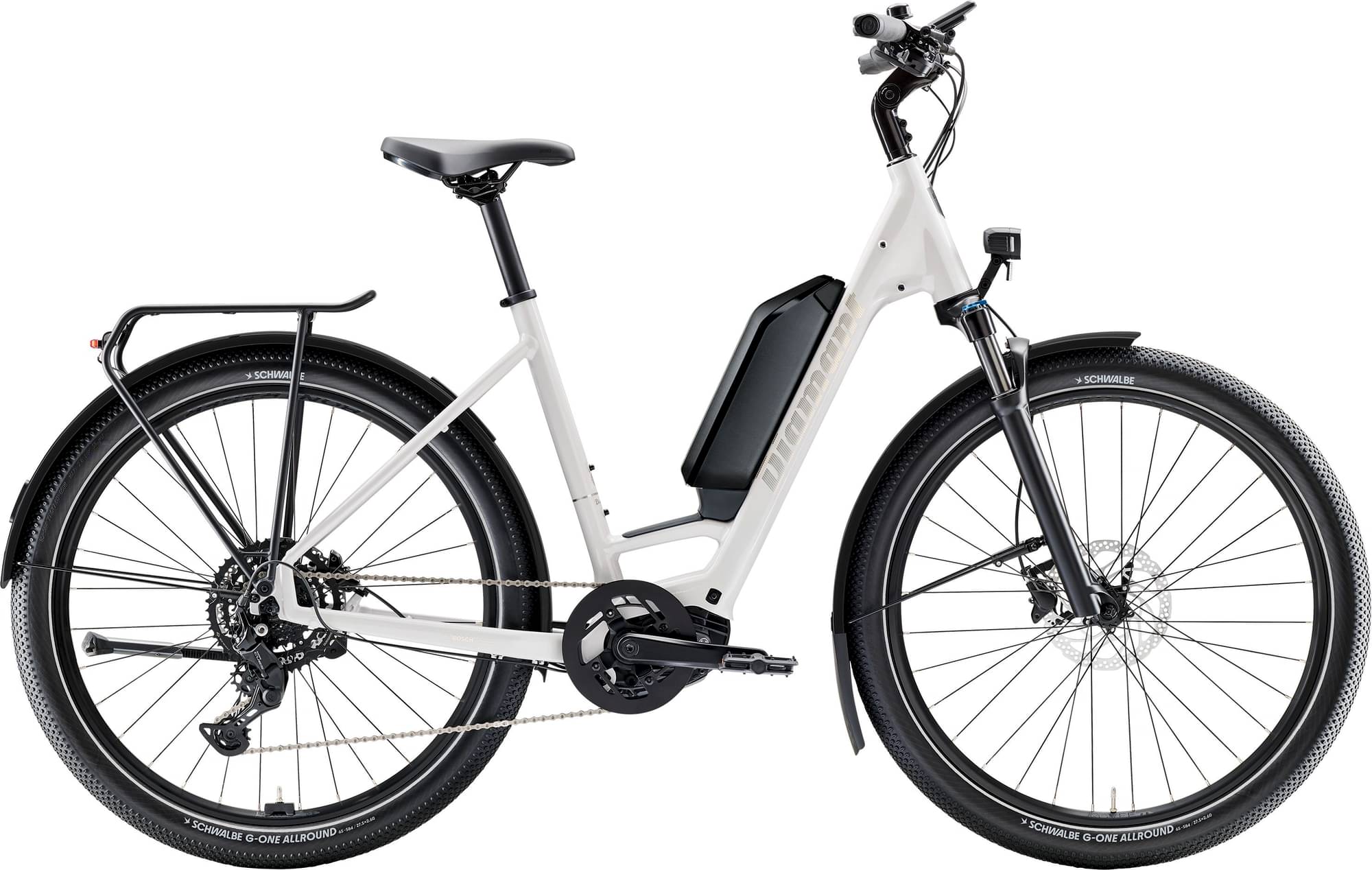

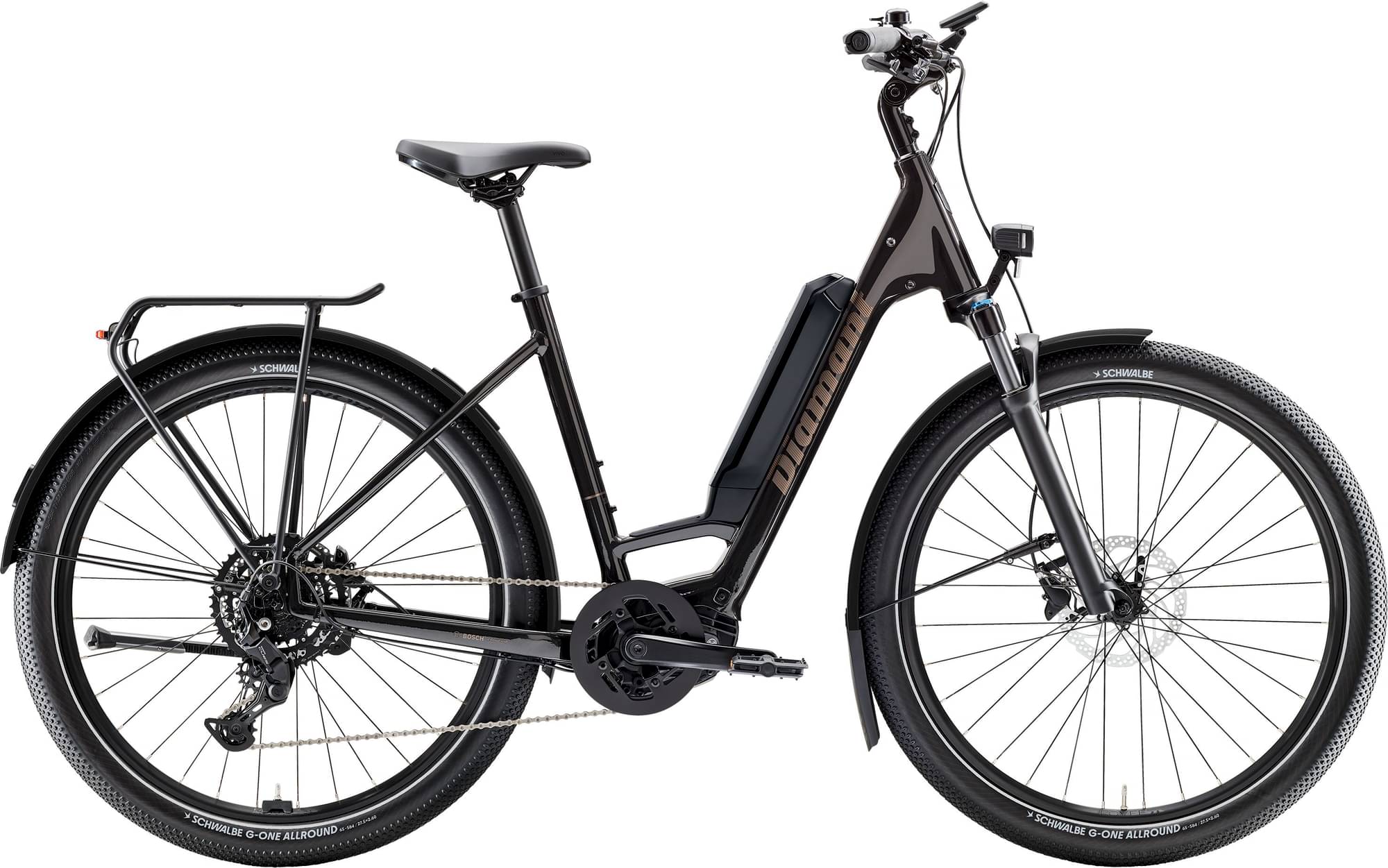

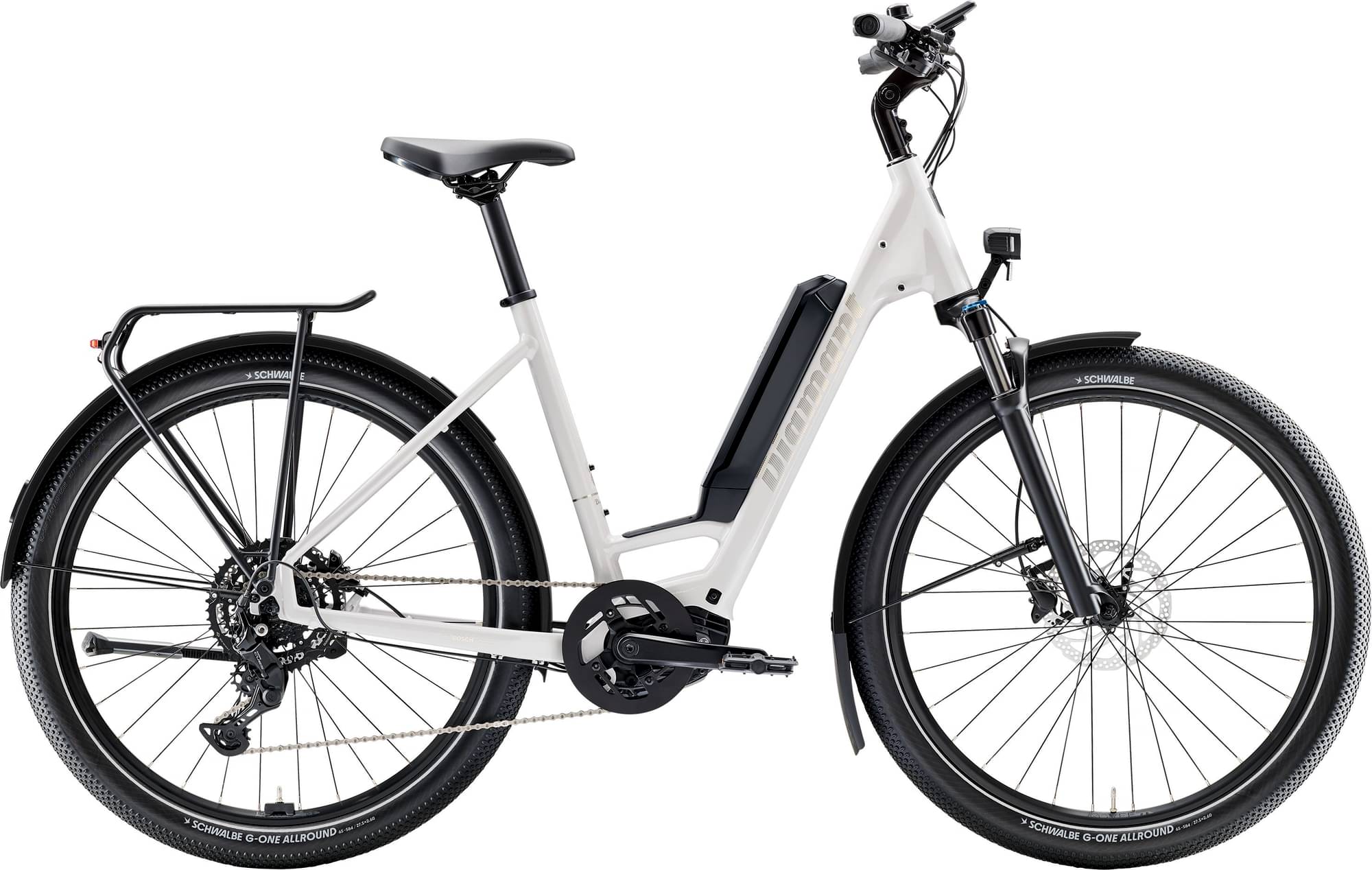

Diamant ZING TRIP (Einstieg: hoch) 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- E-bike
- |
- Urban
- |
- Commuter
Frame Aluminum
Fork Suntour XCR
Groupset CUES
Suspension Hardtail
Motor Bosch 250W 85Nm mid-drive
Battery UNKNOWN
Brakes Shimano Hydraulic Disc

Sizing

Recommended size guide.

SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
MD
168cm - 179cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm
LG
176cm - 187cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame: ALUMINIUM

Suspension Fork

SR Suntour XCR32, Stahlfeder, einstellbare Federvorspannung,

Drivetrain

Rear Derailleur

Shimano CUES U4000

Shift Levers

Shimano CUES U4000 mit optischer Ganganzeige, 9-fach

Cassette

Shimano LINKGLIDE LG300, 11-46 Zähne, 9-fach

Crank

ProWheel, Aluminium, 175 mm Kurbelarmlänge

Chain

Shimano LG500

Pedals

VP-536, Nylonplattform

Wheels

Rims

Bontrager Kovee, Hohlkammerfelge, Tubeless Ready, 32-Loch, 23 mm Innenweite, Presta-Ventil Shimano QC300, Centerlock Shimano QC400, 32 Loch, Centerlock, 135x5 mm Schnellspanner

Tires

Schwalbe G-One Allround, mit reflektierendem Streifen, Drahtwulstkern, Pannenschutz, 65-584

Brakes

Front: Hydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200 Shimano RT30, Centerlock-Scheibenaufnahme, 180 mm

Cockpit

Stem

Bontrager Aluminium, 31,8 mm, verstellbar, Blendr-kompatibel

Handlebar

Ergotec Ergo Series XXL, 31,8 mm, 30 mm Rise, 16° Krümmung

Headset

Integrierter FSA-Steuersatz, gedichtetes Patronenlager, 1 1/8" oben, 1,5" unten

Seat

Saddle

Selle Royal Vivo Moderate Ergo mit Royalgel

Seatpost

Bontrager Aluminium, 31,6 mm, 12 mm Versatz, 330 mm Länge

Motor & Battery

Motor

Bosch Smart System Performance Line CX BDU38, 250 Watt, 85 Nm, bis 32 km/h (max. Unterstützung bis 25 km/h in EU und APAC)

Battery

UNKNOWN

Charger

Bosch Standardladegerät 4 A, 230 V, Smart System

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM	SM	SM	SM	SM	SM	SM	SM	SM	SM	MD	MD	MD	MD	MD	MD	MD	MD	MD	MD	LG	LG	LG	LG	LG	LG	LG	LG	LG	LG
Stack Reach Ratio	1.678 mm	1.678 mm	1.678 mm	1.678 mm	1.678 mm	1.678 mm	1.678 mm	1.678 mm	1.678 mm	1.678 mm	1.716 mm	1.716 mm	1.716 mm	1.716 mm	1.716 mm	1.716 mm	1.716 mm	1.716 mm	1.716 mm	1.716 mm	1.763 mm	1.763 mm	1.763 mm	1.763 mm	1.763 mm	1.763 mm	1.763 mm	1.763 mm	1.763 mm	1.763 mm
Bottom Bracket Height	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm	299 mm
Front Center	634 mm	634 mm	634 mm	634 mm	634 mm	634 mm	634 mm	634 mm	634 mm	634 mm	644 mm	644 mm	644 mm	644 mm	644 mm	644 mm	644 mm	644 mm	644 mm	644 mm	654 mm	654 mm	654 mm	654 mm	654 mm	654 mm	654 mm	654 mm	654 mm	654 mm
Rake	49 mm	49 mm	49 mm	49 mm	49 mm	49 mm	49 mm	49 mm	49 mm	49 mm	48 mm	48 mm	48 mm	48 mm	48 mm	48 mm	48 mm	48 mm	48 mm	48 mm	46 mm	46 mm	46 mm	46 mm	46 mm	46 mm	46 mm	46 mm	46 mm	46 mm
Trail	89 mm	89 mm	89 mm	89 mm	89 mm	89 mm	89 mm	89 mm	89 mm	89 mm	86 mm	86 mm	86 mm	86 mm	86 mm	86 mm	86 mm	86 mm	86 mm	86 mm	83 mm	83 mm	83 mm	83 mm	83 mm	83 mm	83 mm	83 mm	83 mm	83 mm
Stack	614 mm	614 mm	614 mm	614 mm	614 mm	614 mm	614 mm	614 mm	614 mm	614 mm	640 mm	640 mm	640 mm	640 mm	640 mm	640 mm	640 mm	640 mm	640 mm	640 mm	670 mm	670 mm	670 mm	670 mm	670 mm	670 mm	670 mm	670 mm	670 mm	670 mm
Reach	366 mm	366 mm	366 mm	366 mm	366 mm	366 mm	366 mm	366 mm	366 mm	366 mm	373 mm	373 mm	373 mm	373 mm	373 mm	373 mm	373 mm	373 mm	373 mm	373 mm	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm
Top Tube Length	559 mm	559 mm	559 mm	559 mm	559 mm	559 mm	559 mm	559 mm	559 mm	559 mm	574 mm	574 mm	574 mm	574 mm	574 mm	574 mm	574 mm	574 mm	574 mm	574 mm	590 mm	590 mm	590 mm	590 mm	590 mm	590 mm	590 mm	590 mm	590 mm	590 mm
Seat Tube Angle	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °	73 °
Seat Tube Length	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm	450 mm	500 mm	500 mm	500 mm	500 mm	500 mm	500 mm	500 mm	500 mm	500 mm	500 mm	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm
Head Tube Angle	69 °	69 °	69 °	69 °	69 °	69 °	69 °	69 °	69 °	69 °	69.5 °	69.5 °	69.5 °	69.5 °	69.5 °	69.5 °	69.5 °	69.5 °	69.5 °	69.5 °	70 °	70 °	70 °	70 °	70 °	70 °	70 °	70 °	70 °	70 °
Head Tube Length	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm	185 mm	185 mm	185 mm	185 mm	185 mm	185 mm	185 mm	185 mm	185 mm	185 mm	215 mm	215 mm	215 mm	215 mm	215 mm	215 mm	215 mm	215 mm	215 mm	215 mm
Chainstay Length	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm	483 mm
Wheelbase	1110 mm	1110 mm	1110 mm	1110 mm	1110 mm	1110 mm	1110 mm	1110 mm	1110 mm	1110 mm	1120 mm	1120 mm	1120 mm	1120 mm	1120 mm	1120 mm	1120 mm	1120 mm	1120 mm	1120 mm	1130 mm	1130 mm	1130 mm	1130 mm	1130 mm	1130 mm	1130 mm	1130 mm	1130 mm	1130 mm
Bottom Bracket Drop	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm	60 mm
Standover Height	616 mm	616 mm	616 mm	616 mm	616 mm	616 mm	616 mm	616 mm	616 mm	616 mm	622 mm	622 mm	622 mm	622 mm	622 mm	622 mm	622 mm	622 mm	622 mm	622 mm	630 mm	630 mm	630 mm	630 mm	630 mm	630 mm	630 mm	630 mm	630 mm	630 mm
Wheels	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"	29"
Rider Min Height	158 cm	158 cm	158 cm	158 cm	158 cm	158 cm	158 cm	158 cm	158 cm	158 cm	168 cm	168 cm	168 cm	168 cm	168 cm	168 cm	168 cm	168 cm	168 cm	168 cm	176 cm	176 cm	176 cm	176 cm	176 cm	176 cm	176 cm	176 cm	176 cm	176 cm
Rider Max Height	170 cm	170 cm	170 cm	170 cm	170 cm	170 cm	170 cm	170 cm	170 cm	170 cm	179 cm	179 cm	179 cm	179 cm	179 cm	179 cm	179 cm	179 cm	179 cm	179 cm	187 cm	187 cm	187 cm	187 cm	187 cm	187 cm	187 cm	187 cm	187 cm	187 cm
