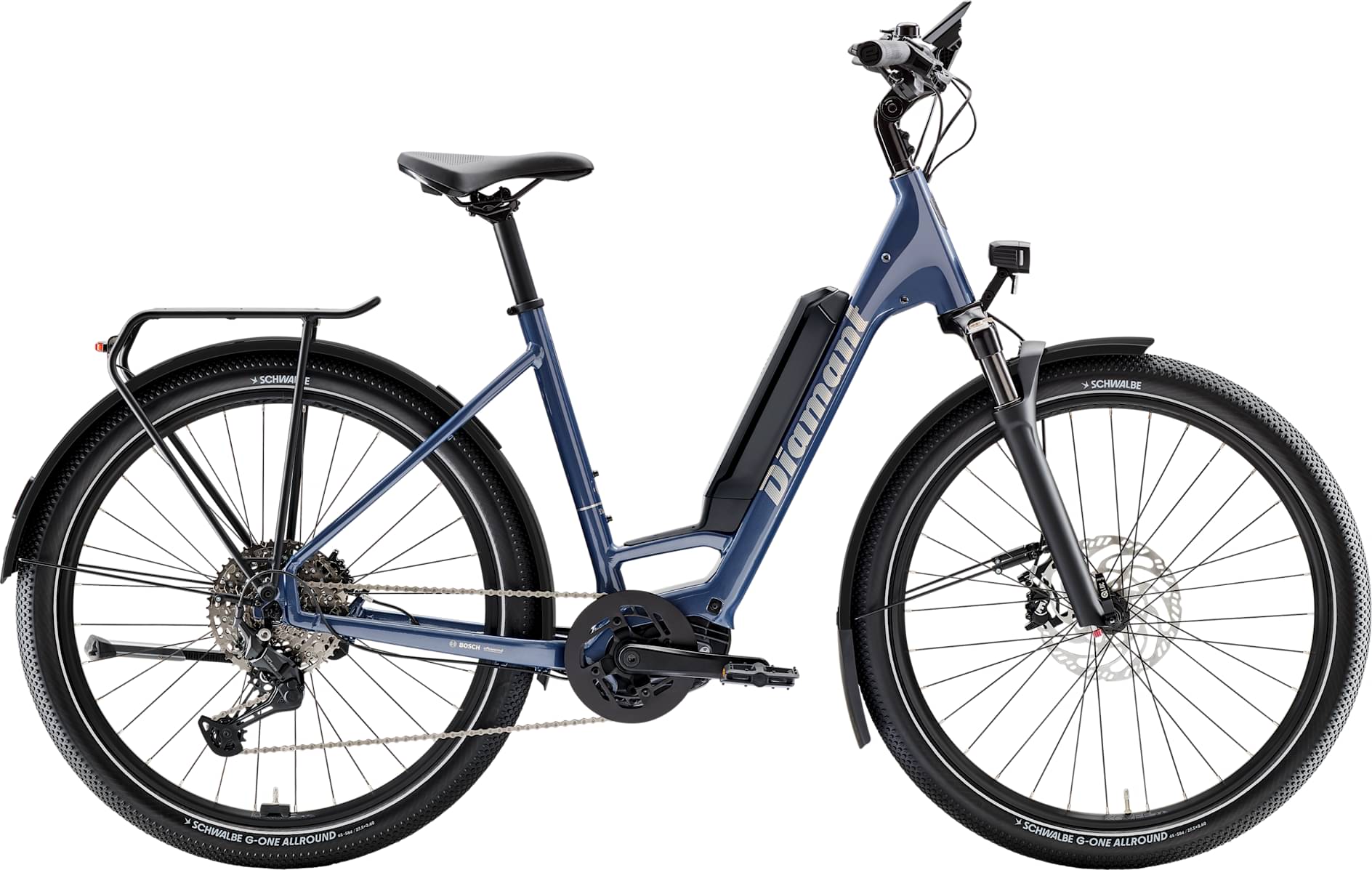

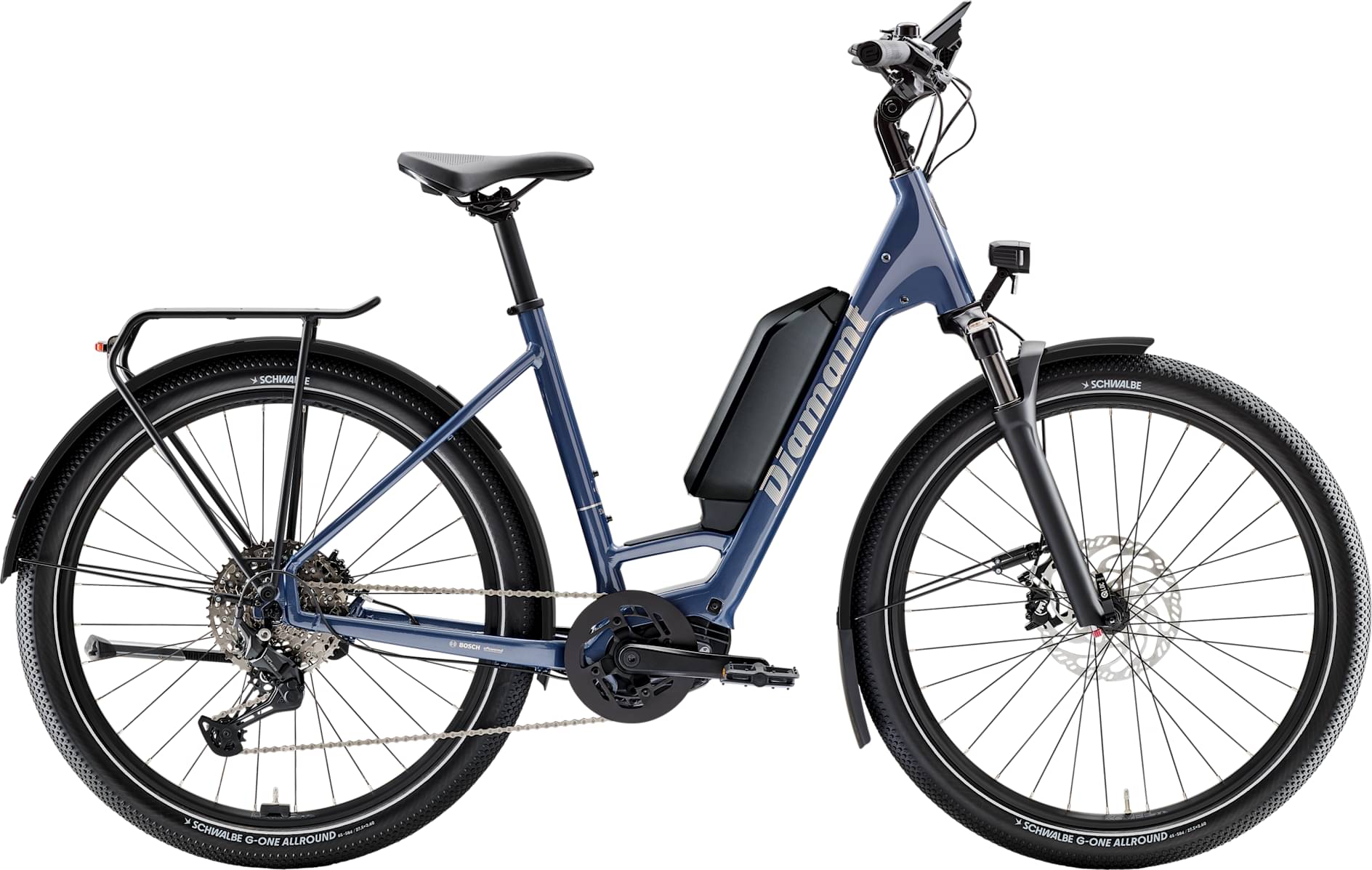

diamant Zing Trip Plus (Lowstep) 2025
2025 E-bike
Estimate price |
4,381$
Weight | 22.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour MOBIE
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery UNKNOWN -
Drivetrain 1 × 10 -
Brakes Magura MT Thirty Hydraulic Disc
Sizing
Recommended size guide.
45cm
155cm - 166cm
50cm
164cm - 176cm
55cm
174cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
High-performance hydroformed alloy, internal cable routing, external battery mount
Suspension Fork
SR Suntour Mobie 34, air spring, external rebound and compression adjustment, 60 mm travel,
Drivetrain
Rear Derailleur
Shimano CUES U6000 GS
Shift Levers
Shimano CUES U6000 w/optical gear display, 10-speed
Cassette
Shimano CUES LG400, LINKGLIDE, 11-48, 10-speed
Crank
Size: S, M, ProWheel alloy, 165mm length; Size: L, ProWheel alloy, 170 mm length
Chain
Shimano LG500, 9/10/11-speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Shimano TC500, centerlock, 110x15 mm thru axle
Rear Hub
Shimano QC400, 32-hole, centerlock, 135x5 mm QR
Rims
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
Spokes
14 g stainless steel, black
Tires
Schwalbe G-One Allround, reflective strip, wire bead, puncture protection, 65-584
Brakes
Brakes
Magura MT Thirty, 4-piston hydraulic disc
Cockpit
Stem
Size: S, M, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length; Size: L, Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Handlebar
Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
Grips
Ergotec EG Active Flex, lock on, flex adjustment
Headset
Integrierter FSA-Steuersatz, gedichtetes Patronenlager, 1 1/8" oben, 1,5" unten
Seat
Saddle
Selle Royal Vivo Moderate Ergo
Seatpost
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Motor & Battery
Motor

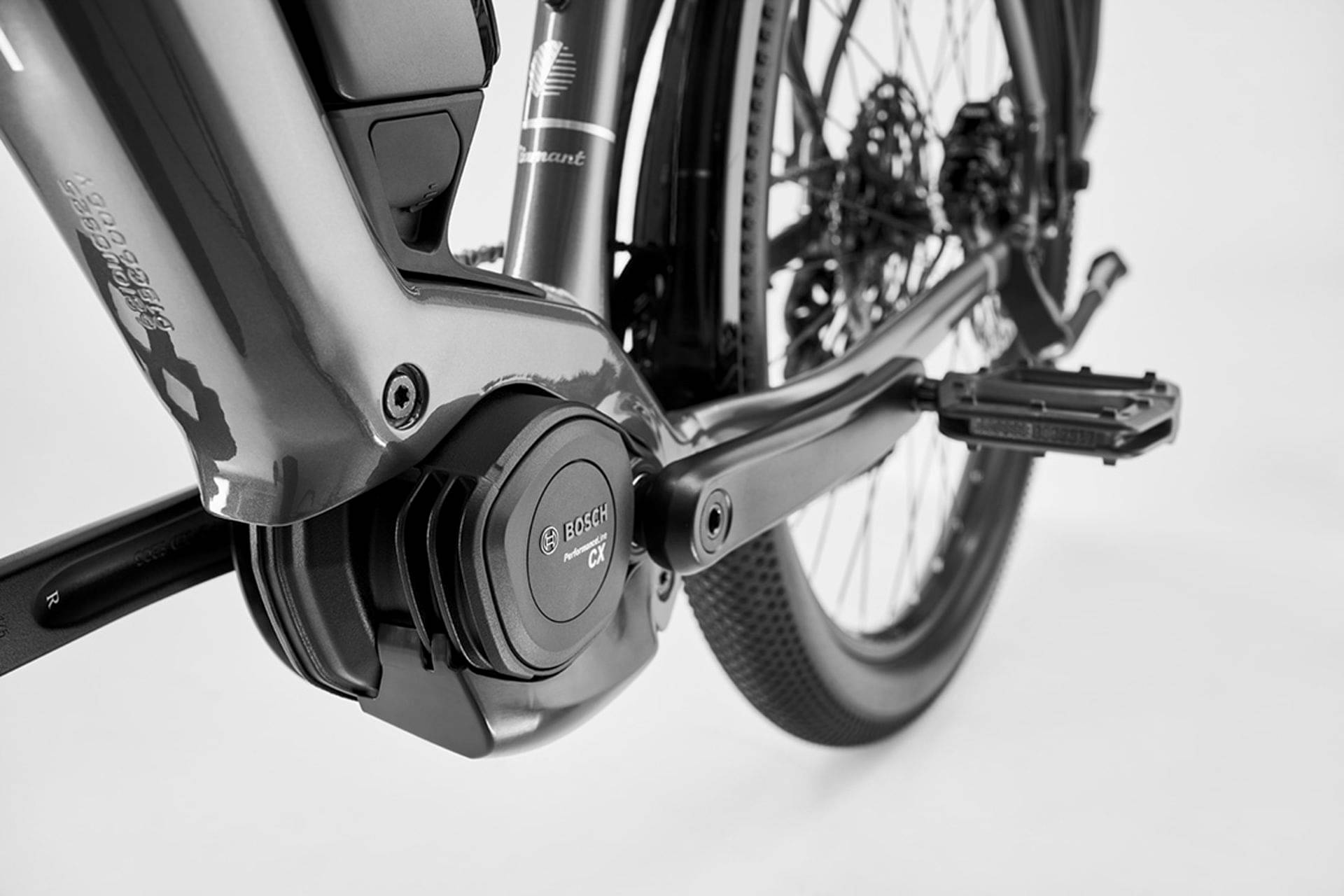

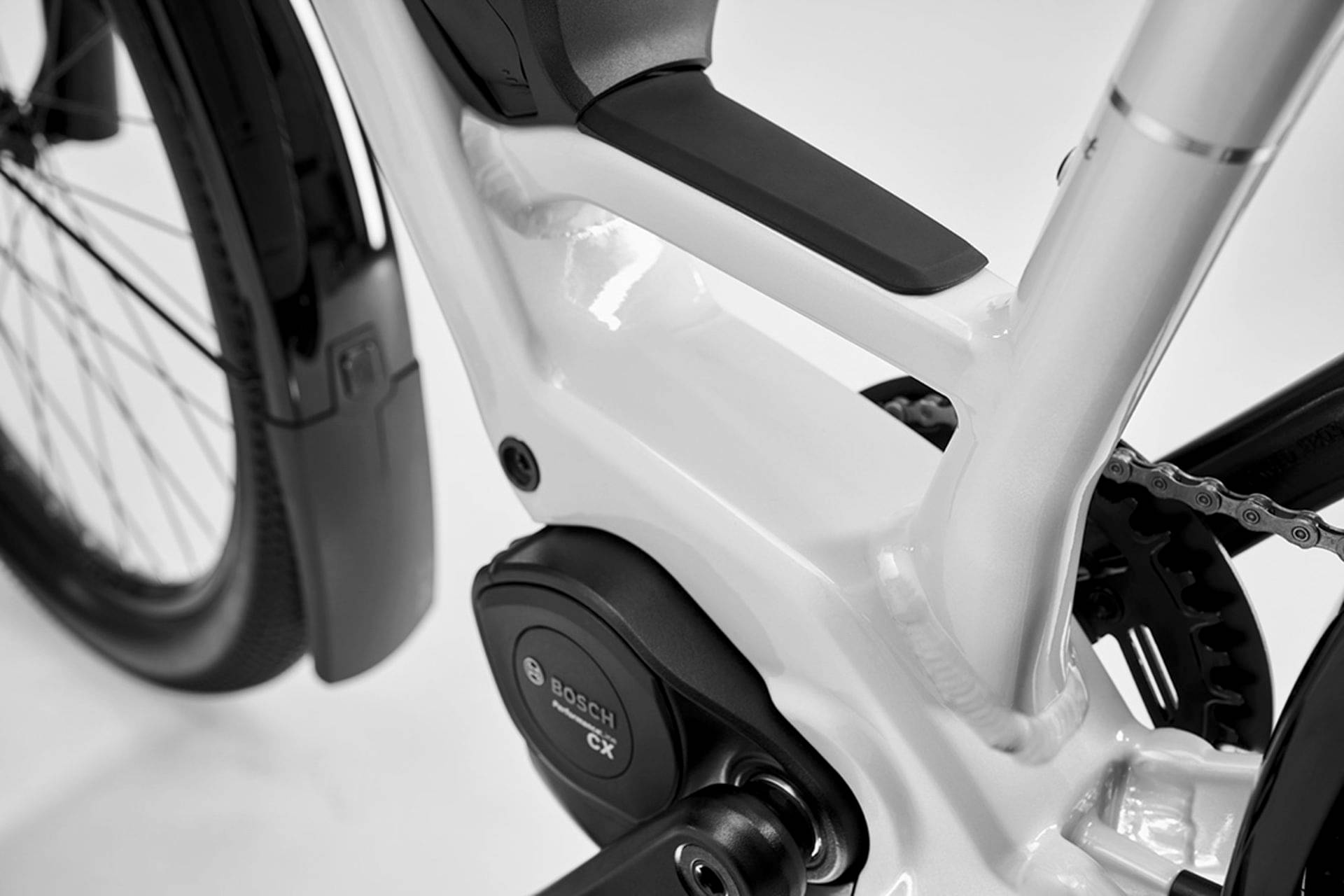

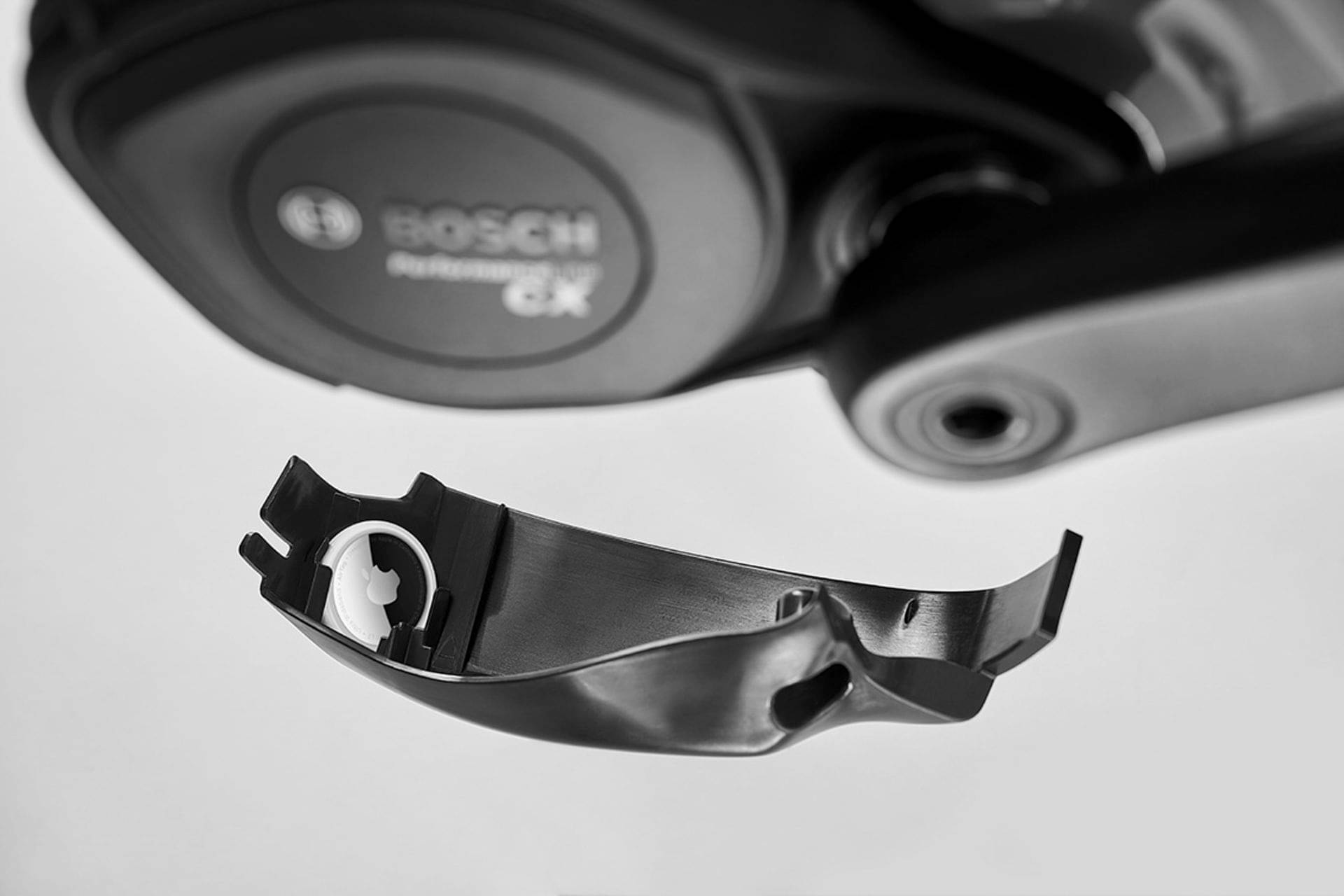

Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Battery
UNKNOWN
Remote
Bosch Kiox 500, smart system
Charger
Bosch standard 4A, 230V, smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.678 mm | 1.716 mm | 1.763 mm |
| Front Center | 634 mm | 644 mm | 654 mm |
| Rake | 49 mm | 48 mm | 46 mm |
| Trail | 89 mm | 86 mm | 83 mm |
| Stack | 614 mm | 640 mm | 670 mm |
| Reach | 366 mm | 373 mm | 380 mm |
| Top Tube Length | 559 mm | 574 mm | 590 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 70 ° |
| Head Tube Length | 160 mm | 185 mm | 215 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1110 mm | 1120 mm | 1130 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 616 mm | 622 mm | 630 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm |
